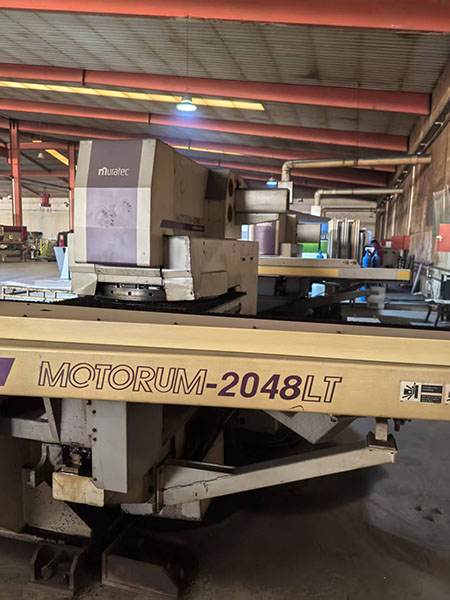

Used Murata M-2048LT CNC Punch Press: 54 Stations & 5-Meter Worktable
| Specification | Details |
| Stock Number | 810799 |
| Brand | Murata |
| Model | M-2048LT |
| Origin | Japan |
| Control System | Fanuc |
| Table Size | 1250 mm x 5000 mm |
| Turret Stations | 54 Stations (incl. 2 Auto-Index) |
1. Equipment Overview: Engineering Excellence from Japan
The Murata M-2048LT stands as a testament to the durability and precision of Japanese machine tool engineering. Designed for high-speed sheet metal fabrication, this CNC turret punch press has been a workhorse in the industry for years. Murata, also known as Muratec, is world-renowned for building machines that maintain their structural integrity even after decades of service. The M-2048LT is particularly famous for its "LT" (Large Table) designation, which caters to industrial demands for processing oversized panels with minimal intervention.
This specific unit, Stock No. 810799, offers a unique opportunity for fabricators to acquire a high-capacity machine at a fraction of the cost of a new one. With its robust mechanical frame and the integration of a Fanuc control system, the M-2048LT provides a level of reliability that is rarely matched by modern entry-level machines. It is engineered to handle heavy duty cycles while maintaining tight tolerances, making it an ideal asset for shops looking to scale their production of cabinets, panels, and structural metal components.
2. Technical Specifications: A Deep Dive into Performance
The technical configuration of the Murata M-2048LT is optimized for versatility and throughput. Let’s break down the key features that make this machine a powerhouse in the used machinery market.
Superior Turret Capacity with 54 Stations
One of the standout features of the M-2048LT is its 54-station turret. In a production environment, tool changeover time is often the enemy of efficiency. With 54 stations, operators can keep a vast array of punches and dies permanently loaded, significantly reducing setup times between different jobs. Furthermore, the inclusion of 2 Auto-Index (AI) stations allows for the rotation of tools at any angle. This capability is crucial for nesting parts efficiently on a sheet and for creating complex geometries without the need for custom-shaped tools.
Fanuc CNC System: The Industry Standard
The machine is equipped with a Fanuc controller, widely regarded as the most stable and user-friendly CNC interface in the world. For a used machine, having a Fanuc system is a massive advantage: parts are readily available, most technicians are trained to repair them, and the programming logic (G-code) is standardized. The control system ensures high-speed turret indexing and synchronized axis movement, translating to faster hit rates and shorter cycle times.
Massive 1250mm x 5000mm Worktable
The processing area of 1250mm x 5000mm is a game-changer. Most standard punch presses are limited to 2.5 or 3-meter tables. The 5-meter length of the M-2048LT allows for the processing of exceptionally long sheets—such as those used in elevator cabins, commercial refrigeration, or architectural facade panels—without the need for multiple re-grips. This reduces the risk of cumulative errors that often occur when moving a sheet mid-process, ensuring a higher quality final product.
3. Application Scenarios: Where the M-2048LT Excels
The Murata M-2048LT is designed for versatility. In the field of electrical enclosure manufacturing, it efficiently handles the complex hole patterns and cutouts required for power distribution units and server racks. The high station count allows for different sizes of knockouts and ventilation louvers to be processed in a single program.
In the transportation sector, it is used for punching aluminum flooring and side panels for trailers and buses. The large table ensures that long structural components can be punched with high precision. Additionally, its ability to handle various material thicknesses makes it suitable for both lightweight decorative panels and heavier industrial components, providing a flexible solution for subcontracting workshops that handle diverse client requests.
4. Maintenance History and Condition Report
This unit (Stock No. 810799) has undergone a rigorous inspection process by our technical team. Since it originated from a facility in Japan, it benefited from a culture of meticulous equipment care. The turret alignment has been verified, and the hydraulic systems have been checked for pressure consistency. The Fanuc servos show excellent response times, indicating that the drive system is in prime condition.
We have ensured that all lubrication points are clear and that the ballscrews on the X and Y axes are operating smoothly without backlash. The table brushes/balls have been inspected to ensure they provide a scratch-free environment for material handling. This machine is not just "used"; it is a "production-ready" asset that can be integrated into your floor with minimal lead time.
5. Value Proposition: Why Invest in a Used M-2048LT?
Investing in a used Murata M-2048LT is a strategic financial move. For the price of a mid-range new machine with limited capabilities, you gain access to a heavy-duty, large-format Japanese turret punch. The depreciation on used equipment is significantly lower, meaning your investment retains its value more effectively. Furthermore, the high throughput of the 54-station turret and the 5-meter table allows you to take on larger, more profitable contracts that competitors with smaller machines simply cannot handle.
The M-2048LT is known for its "tank-like" construction. When properly maintained, these machines can easily provide another 10 to 15 years of precise service. For companies looking to expand their capacity without the burden of massive debt, this Murata punch press offers the perfect balance of performance and economy.
Frequently Asked Questions (FAQ)
Q1: What is the maximum sheet thickness this machine can punch?
While optimized for high-speed thin to medium gauge sheet metal, the Murata M-2048LT can typically handle up to 3.2mm carbon steel and even thicker aluminum, depending on the tool size and tonnage requirements.
Q2: How easy is it to find replacement parts for the Fanuc system?
Very easy. Fanuc is the global leader in CNC controls. Parts like drives, motors, and boards are available worldwide from both OEM and aftermarket suppliers, ensuring minimal downtime.
Q3: Can I use modern CAD/CAM software with this machine?
Yes. Popular software packages like AP100, CNCKad, and Lantek have post-processors specifically designed for Murata Fanuc-controlled machines, allowing for easy G-code generation from DXF/DWG files.
Q4: What are the benefits of the 2 Auto-Index stations?
Auto-Index stations allow the tool to rotate automatically. This means you can use a single rectangular tool to punch at any angle, which reduces the number of specialized tools you need to buy and allows for more complex part designs.
Q5: Is training available for new operators?
Because the Fanuc system is an industry standard, finding skilled operators is easier than for proprietary systems. However, most used machinery dealers can recommend specialized trainers familiar with the Murata turret layout.
