Used DMG MORI DMU 80 P duOBLOCK 5-Axis machining centre Technical Review
Author：JINYI Date：2026-02-02
| Specification | Value |
| Stock Number | 810804 |
| Brand / Model | DMG MORI / DMU 80 P duOBLOCK |
| Origin | Germany |
| CNC Control | Heidenhain iTNC 530 |
| Travel (X/Y/Z) | 800 x 1050 x 800 mm |
| B-Axis Swivel Range | ±180° |
| C-Axis Rotation | 360° |
| Rapid Feed Rate | Up to 60,000 mm/min |
| Table Size | 900 x 700 mm |
| Max Workpiece Diameter | 950 mm |
| Max Workpiece Height | 1400 mm |
| Max Workpiece Weight | 1500 kg |
| Spindle Speed | 10000 rpm |
| Spindle Power | 44-32 kW |
| Tool Taper | SK50 |
| ATC Capacity | 40 positions |

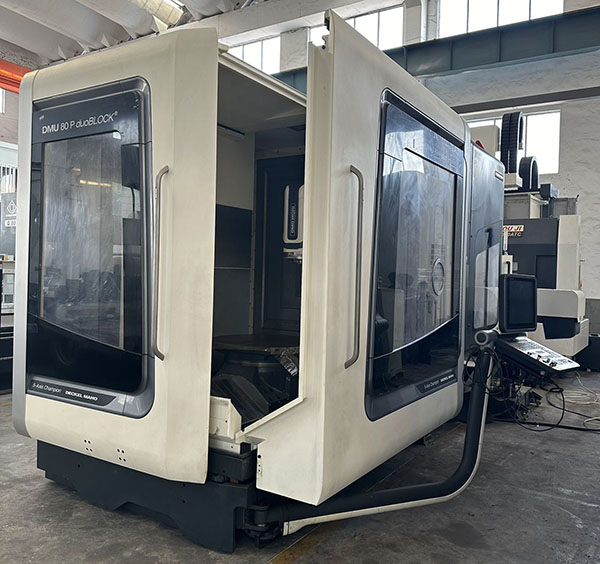

1. Equipment Overview: The Gold Standard of duOBLOCK Technology
The DMG MORI DMU 80 P duOBLOCK is a testament to German engineering excellence in the field of 5-axis machining. The "duOBLOCK" design is a revolutionary construction concept that features a double-column bed, which provides exceptional thermo-stability and static rigidity. Unlike conventional C-frame machines, the duOBLOCK architecture ensures that the center of gravity of the moving masses remains within the machine bed's support area throughout the entire travel range. This results in nearly zero vibration and extremely high surface quality. This specific used unit (Stock No. 810804) offers professional workshops a rare opportunity to acquire high-tier 5-axis capabilities at a fraction of the cost of a new machine, without sacrificing the legendary precision associated with the DMG brand.
2. Technical Specifications: Power Meets Precision
The technical specifications of the DMU 80 P are designed for versatility and heavy-duty performance. With an X-axis of 800mm, Y-axis of 1050mm, and Z-axis of 800mm, it caters to a wide variety of industrial parts. One of the most critical aspects of this machine is the B-axis swivel range of ±180° and the C-axis 360° rotation. This kinematic flexibility allows for complex simultaneous 5-axis machining, enabling the tool to approach the workpiece from virtually any angle. This is essential for machining deep cavities or complex undercut geometries in aerospace components.
Moreover, the spindle is a powerhouse. Featuring an SK50 taper, it is built for high-torque applications. The spindle power ranges from 32 kW to 44 kW, providing enough force to mill through toughened steel and exotic alloys like Inconel or Titanium with ease. The 10,000 rpm speed ensures that finishing operations are equally efficient. Coupled with a rapid feed rate of 60,000 mm/min, this machine drastically reduces cycle times. The robust table can handle a maximum workpiece weight of 1500 kg, making it suitable for large injection molds and heavy mechanical components.
3. Application Scenarios: Aerospace, Automotive, and Tool Making
In the aerospace industry, the DMU 80 P is frequently used for machining structural parts and engine components. The high accuracy of the Heidenhain iTNC 530 controller ensures that tight tolerances are maintained over long machining cycles. The 5-axis simultaneous capability allows for the production of blisks and impellers with optimized tool paths that minimize tool wear.
For automotive tool and die makers, the large working envelope (950mm max diameter and 1400mm max height) is ideal for bumpers, dashboards, and lighting molds. The SK50 spindle provides the necessary rigidity for roughing out large blocks of steel, while the machine's precision ensures the fine details required for aesthetic plastic parts. The 40-tool ATC (Automatic Tool Changer) allows for complex, multi-stage processes to be completed without manual intervention.
4. Maintenance History and Machine Condition
Originating from Germany, this machine has been maintained under strict industrial standards. The Heidenhain 530 system has been regularly updated, and the servo drives show optimal response curves. The mechanical components, including the precision ball screws and linear guides, have been inspected for wear and backlash. The SK50 spindle taper remains in excellent condition, ensuring proper tool pull-off force and runout accuracy. Regular fluid analysis and lubrication schedule adherence mean the machine’s internal cooling system is clear of contamination, maintaining the thermal stability required for micron-level accuracy.
5. Investment Value: Why Choose a Used DMU?
Investing in a used DMU 80 P duOBLOCK is a strategic decision for companies looking to scale their production quality. New 5-axis machines from premium brands involve significant lead times and massive capital investment. This used unit provides the same technical core—duOBLOCK stability and Heidenhain reliability—immediately. The depreciation curve of such a high-quality machine is much flatter than lower-tier brands, meaning it retains its value over time. For a precision engineering shop, it represents the ability to bid on more complex, higher-margin contracts that require certified 5-axis precision.
FAQ: Common Questions About the DMU 80 P duOBLOCK
1. What makes the Heidenhain 530 controller ideal for 5-axis?
The iTNC 530 is famous for its conversational programming and advanced algorithms like TCPM (Tool Center Point Management). It allows the machine to adjust the tool tip position in real-time as the B and C axes rotate, ensuring perfect geometry.
2. Is the SK50 spindle still relevant compared to HSK-100?
Yes, absolutely. While HSK is great for high speed, the SK50 offers superior static stiffness and is the preferred choice for heavy milling where material removal rate is a priority. It is exceptionally durable for mold making.
3. Can this machine handle 1500 kg at full rapid speed?
The duOBLOCK structure is designed specifically for heavy loads. While the controller will automatically manage acceleration based on load settings, the machine’s frame is more than capable of handling 1500 kg during high-dynamic movements.
4. How difficult is it to find spare parts for this model?
The DMU 80 P is one of DMG MORI's most successful models. Spare parts are widely available through official channels and third-party specialists globally. The Heidenhain components are also easily serviceable.
