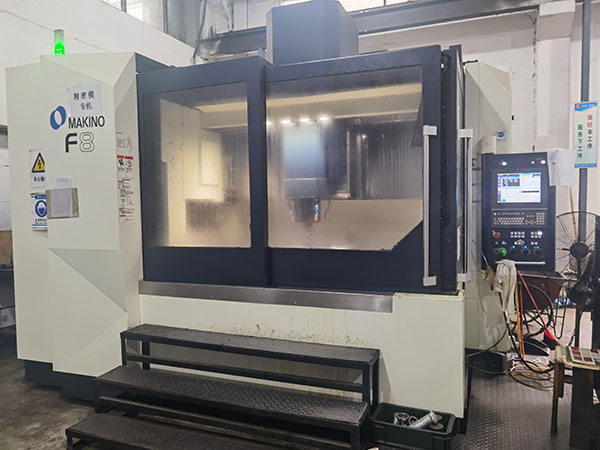

Used Makino F8 Vertical Machining Center: The Gold Standard in Precision

I. Equipment Overview: Japanese Engineering Excellence

The Makino F8 Vertical Machining Center (VMC) represents the pinnacle of Japanese industrial engineering, specifically designed to bridge the gap between heavy-duty material removal and ultra-high precision finishing. Makino machines are globally renowned for their unmatched thermal stability and structural rigidity. This specific unit, identified by Stock Number 810727, originated in Japan, a manufacturing hub known for its stringent quality control and advanced metallurgical techniques. The F-series from Makino is intentionally engineered for the mold and die industry, where the demand for consistent accuracy over long cycle times is non-negotiable. The F8 provides a robust platform that minimizes vibration even during high-velocity milling operations. For manufacturers looking to upgrade their shop floor capabilities without the staggering lead times and price tags of a brand-new machine, this used Makino F8 offers a strategic opportunity. Its design philosophy centers on "sustained accuracy," meaning the machine is built to maintain its factory tolerances even after years of intensive use in a production environment. Whether you are dealing with large automotive die components or intricate aerospace structures, the F8 stands as a reliable partner in precision manufacturing.

II. Detailed Parameter Analysis: Power Meets Precision

Delving into the technical specifications of the Makino F8 reveals why it remains a market leader. At its core is the Professional 6 CNC system, a sophisticated control platform that offers an intuitive interface and lightning-fast processing speeds. This system is crucial for executing the complex 3D toolpaths required in modern mold making. The machine features a generous work envelope with X/Y/Z travels of 1300mm, 800mm, and 650mm respectively, supported by a large 1550mm x 800mm worktable. One of the most critical features of this particular unit is the 3-axis full closed-loop feedback system, equipped with high-precision linear scales. Unlike standard rotary encoder systems, linear scales measure the actual position of the table, compensating for any thermal expansion or mechanical backlash in the ballscrews. This ensures sub-micron repeatability. The spindle is a heavy-duty BT50 taper, driven by a powerful 37/25kw motor. With a speed range of 20 to 10,000 rpm, the spindle provides the low-end torque necessary for aggressive roughing in hardened steels and the high-end speed required for achieving mirror-like surface finishes. The table load capacity of 2500kg further emphasizes the machine’s heavy-duty pedigree, allowing for the processing of substantial workpieces with ease.

III. Application Case Studies: Versatility Across Industries

The Makino F8 has proven its worth across a diverse range of demanding industrial applications. In the automotive sector, it is a preferred choice for machining engine block molds and large transmission housings. The precision provided by the Professional 6 control and linear scales ensures that parting lines in plastic injection molds are virtually invisible, reducing the need for costly manual benchwork. In the aerospace industry, the F8 is utilized for milling structural components from solid billets of aluminum and titanium. The 37kw spindle motor provides the necessary power to maintain high chip removal rates, significantly reducing cycle times for complex parts. Another prominent application is in the large-scale die-casting industry. The F8’s ability to handle 2.5-ton loads makes it ideal for machining the heavy steel plates used in high-pressure die casting. Furthermore, job shops that require a "one-machine solution" for both roughing and finishing find the F8 indispensable due to its broad spindle speed range and extreme rigidity. The machine's flexibility allows it to transition seamlessly from heavy milling to delicate finishing on the same workpiece, ensuring superior geometric accuracy.

IV. Maintenance Records and Quality Assurance

A machine of this caliber requires professional upkeep, and this Makino F8 has been maintained to the highest standards. Historically used in Japan, it benefited from a culture of meticulous preventative maintenance. The maintenance logs indicate regular spindle vibration analysis and annual laser calibration of the X, Y, and Z axes. The lubrication system has been consistently monitored to ensure that all guideways and ballscrews are protected from wear. Upon inspection, the machine shows minimal signs of wear; the telescopic way covers are intact, and the spindle runout is well within original factory specifications. The Professional 6 control system is fully functional, with no hardware errors or screen degradation. The cooling system, vital for the high-power 37kw motor, has been flushed and pressure-tested. For a used machine, these maintenance factors are paramount. They translate to a lower Total Cost of Ownership (TCO) for the buyer, as the machine is ready for immediate deployment without the need for extensive repairs or part replacements. Purchasing a Makino with this level of documented care is a low-risk, high-reward investment for any precision engineering firm.

V. Investment Value: Why Choose a Used Makino F8?

The financial logic for acquiring a used Makino F8 is compelling. In today's competitive landscape, manufacturers must balance technological capability with fiscal responsibility. A new Makino F8 is a significant capital expenditure, often requiring years to reach a break-even point. By opting for a well-maintained used unit like Stock No. 810727, a company can acquire the same level of Japanese-built quality and precision at a fraction of the cost. This allows for faster ROI (Return on Investment) and frees up capital for other operational needs. Moreover, Makino machines are legendary for their longevity. It is not uncommon for an F8 to provide two or three decades of service if properly maintained. This durability also means that the machine retains a high resale value, protecting the buyer's investment in the long term. For companies looking to secure high-end contracts that specify stringent tolerance requirements, owning a Makino F8 provides an immediate boost to their technical profile. It signals to clients that the facility is equipped with world-class technology capable of meeting the most difficult manufacturing challenges.

VI. Frequently Asked Questions (FAQ)

1. What are the advantages of the Professional 6 control over older versions?

The Professional 6 control offers a more powerful processor, which allows for better "Look-Ahead" capabilities. This means the machine can anticipate changes in direction faster, resulting in smoother motion and better surface finishes, especially during 3D contouring.

2. Is the BT50 spindle suitable for high-speed finishing?

Absolutely. While BT50 is often associated with heavy roughing, Makino's 10,000 rpm spindle design includes sophisticated cooling and balancing, making it exceptionally capable of high-speed finishing with excellent surface quality.

3. How do the linear scales benefit my production?

Linear scales provide direct feedback of the table position. In environments where temperature fluctuates, the ballscrews can expand. Linear scales detect this and the CNC adjusts the movement, ensuring that your parts stay within tolerance throughout the entire day.

4. Can the machine handle 2500kg loads without losing accuracy?

Yes, the F8 is built on a heavy, wide-based casting. The guideways and structural ribs are specifically designed to distribute heavy loads, ensuring that the machine's geometry remains true even when the table is loaded to its maximum capacity.

5. What kind of power supply is required for this Japanese machine?

Most Japanese machines operate on 200V/220V. For use in regions with different voltages, a high-quality transformer is required. Given the 37kw motor, we recommend a transformer rated for at least 60-75 kVA to handle peak loads during heavy cutting.
