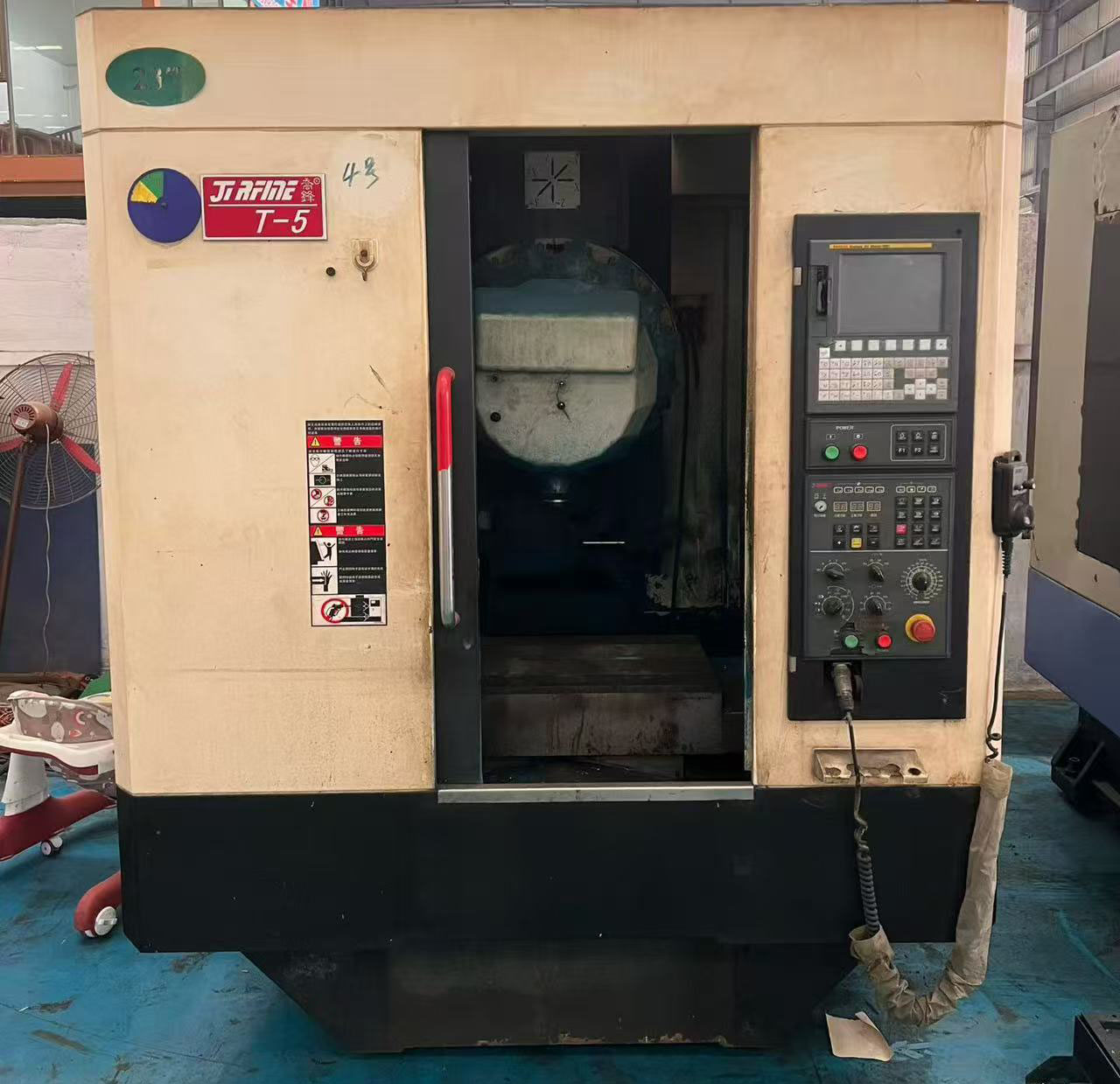

Used JIRFINE T-5A Tapping Center: 20,000rpm Spindle & Fanuc MD Control
| Specification | Details |
| Stock Number | 810708 |
| Brand / Origin | JIRFINE / Taiwan, China |
| Model | T-5A |
| Year of Manufacture | 2016 |
| CNC System | Fanuc MD |
| Spindle Speed | 20,000 rpm |
| Travel (X/Y/Z) | 500 * 400 * 300 mm |
| Table Size | 650 * 400 mm |
| Spindle Taper | BT30 |
Equipment Overview: The High-Speed Precision Workhorse
The used JIRFINE T-5A CNC Tapping Center, manufactured in 2016, represents the pinnacle of Taiwan's precision machine tool engineering for high-speed applications. Specifically designed for the 3C industry (Computer, Communication, and Consumer Electronics), this machine is a specialized solution for parts requiring rapid drilling, tapping, and high-quality milling. The T-5A is widely recognized in the industrial manufacturing sector for its compact footprint, exceptional thermal stability, and high-acceleration capabilities. For businesses looking to scale their production without the steep investment of a brand-new unit, this specific machine (Stock No. 810708) offers a perfect blend of performance and economy. It is an ideal choice for manufacturing complex aluminum alloy components, small molds, and precision medical devices where speed and accuracy are paramount.
Detailed Parameter Analysis: Engineering Excellence
The core of the T-5A's superiority lies in its 20,000 RPM high-speed spindle. Unlike standard 8,000 or 10,000 RPM spindles found in general-purpose machining centers, the 20,000 RPM capability allows for extremely high surface speeds with small-diameter tools, which is critical for achieving superior surface finishes and reducing cycle times in micro-machining. The BT30 taper design facilitates rapid tool changes and minimizes spindle inertia, allowing for rapid acceleration and deceleration cycles.
Advanced Fanuc MD Control Integration
The Fanuc MD CNC system serves as the intelligence center of the machine. Fanuc is globally renowned for its reliability and user-friendly interface. The MD series specifically offers advanced look-ahead functions and high-speed processing capabilities, ensuring that the machine's 500x400x300mm travel remains precise even at maximum feed rates. With a table size of 650x400mm, the machine provides ample space for multi-fixture setups, enhancing productivity by allowing several parts to be machined in a single cycle. The structural design of the machine utilizes high-quality Meehanite cast iron, which provides excellent dampening characteristics to absorb vibrations during high-speed operations.
Industry Application Cases: Where Precision Meets Speed
The JIRFINE T-5A has been a staple in the production lines of leading electronics manufacturers. For instance, in the production of smartphone internal frames, the T-5A handles thousands of tiny holes and intricate milling paths daily with micron-level repeatability. Another significant application is in the automotive sector for lightweight aluminum components, where the high spindle speed reduces burr formation, thereby saving time on post-processing. A client in the aerospace components industry utilized this model for machining high-frequency connectors, noting that the T-5A's stability significantly reduced the reject rate compared to other machines in the same class. This track record proves that the T-5A is not just a machine, but a reliable partner for high-output manufacturing environments.
Maintenance Records and Condition Assessment
This 2016 unit has been meticulously maintained throughout its service life. Regular inspections were performed on the precision ball screws and linear guides to ensure zero backlash and smooth motion. The 20,000 RPM spindle has undergone routine vibration analysis and thermal checks, confirming that it still operates within original factory specifications. The coolant system and the automatic tool changer (ATC) have been tested for speed and reliability, showing no signs of fatigue. Because this machine comes from a climate-controlled facility with a professional maintenance team, its internal components remain in excellent condition, offering the next owner a machine that is ready for immediate production upon installation.
Price-Performance Ratio: A Strategic Investment
Investing in a used 2016 Joenone T-5A is a strategic move for any factory looking to optimize its capital expenditure. The initial depreciation of a new machine is typically its most significant cost; by purchasing a well-maintained second-hand unit, you avoid this massive hit to your balance sheet while retaining the high-performance capabilities of a Taiwan-made machine. In comparison to low-cost new machines with lesser-known controls, the T-5A with its Fanuc MD system offers better resale value, easier access to spare parts, and a more robust support network. It is the definitive choice for workshops that refuse to compromise on quality but are mindful of their budget.
Frequently Asked Questions (FAQ)
1. Is the Fanuc MD system easy to operate for new users?
Yes, Fanuc is the global standard for CNC controls. Most CNC operators are already familiar with its logic and G-code programming, making the learning curve extremely short for most shops.
2. Can the 20,000 RPM spindle handle steel machining?
While the T-5A is optimized for aluminum, brass, and plastics, it can certainly handle light steel milling and drilling with the appropriate tooling. However, for heavy-duty steel removal, a BT40 machine would be more suitable.
3. What kind of power supply does the T-5A require?
It typically requires a standard 3-phase AC 220V power supply (or 380V with a transformer). It is highly recommended to use a voltage stabilizer to protect the sensitive Fanuc electronics.
4. Are spare parts for Joenone machines easily available?
Absolutely. JIRFINE uses many standardized components from world-class suppliers like Fanuc, HIWIN, and NSK, making spare parts readily available globally.
5. Can I inspect the machine under power before purchasing?
Yes, we encourage all potential buyers to visit our warehouse for a live demonstration. You can run test programs or even bring your own materials to verify the machine's precision and speed.
