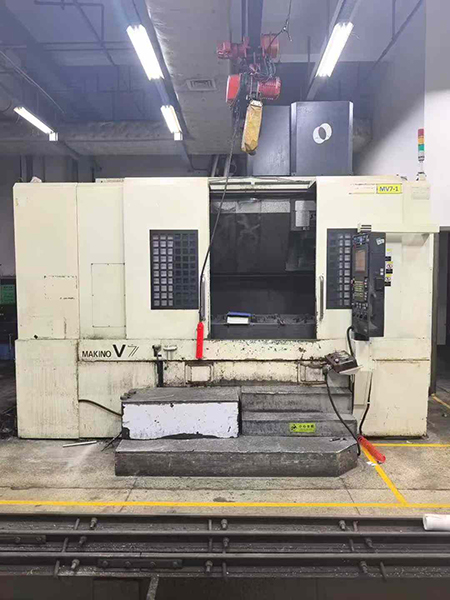

Used Makino V77 Vertical Machining Center - Technical Powerhouse for Precision Dies
| Stock No. | 810300 | Brand | Makino |
| Model | V77 | Origin | Japan |
| CNC System | Professional 5 (Pro 5) | Spindle Speed | 20,000 RPM |
| Travels (X/Y/Z) | 1200 * 700 * 650 mm | Spindle Power | 18.5 KW |
| Table to Spindle Nose | 250 - 900 mm | ATC Capacity | 30 Tools |
Equipment Overview: The Makino V77 Performance Legacy
In the world of high-speed precision machining, Makino has long been recognized as a global leader, particularly in the die and mold industry. The Makino V77 Vertical Machining Center is a robust platform designed to tackle the challenges of large, complex workpieces that require both high speed and superior accuracy. Unlike standard VMCs, the V77 is engineered with a thermal stability focus, ensuring that even during long shifts of continuous milling, the machine maintains its volumetric accuracy. This used V77, originating from Japan, represents the pinnacle of engineering excellence, offering a unique blend of a large 1200mm X-axis travel with a high-speed 20,000 RPM spindle—a combination rarely found in such a balanced machine frame.
For manufacturers looking to elevate their production quality, the V77 provides the rigidity needed for aggressive material removal and the finesse required for ultra-fine finishing. The machine's design minimizes vibration and heat generation, which are the primary enemies of tool life and surface quality. By investing in this pre-owned Makino V77, workshops can gain a competitive edge by delivering parts that require minimal manual polishing or post-processing.
Detailed Parameter Analysis: Mastering High-Speed Control
The Professional 5 CNC Control
The heart of this machine is the Makino Professional 5 system. This control is widely respected for its processing speed and specialized software modules. It features the Super Geometric Intelligence (SGI.4) software, which is essential for high-speed machining of complex, 3D curved surfaces. SGI.4 enables the machine to process thousands of blocks of data per second, ensuring that the tool path remains smooth even at high feed rates. This results in significantly reduced cycle times and a "mirror-like" surface finish that is a hallmark of Makino technology.
20,000 RPM Spindle and Motor Dynamics
The 20,000 RPM spindle is not just about speed; it is about precision at speed. With 18.5 KW of power, the V77 can drive small-diameter cutters with the necessary RPM for high-efficiency milling while maintaining the torque required for larger tools. Makino’s proprietary spindle cooling system circulates temperature-controlled oil through the spindle jacket, preventing thermal expansion. This ensures that the Z-axis position remains constant throughout the day, which is critical for maintaining tight tolerances in deep-cavity molds.
Structural Rigidity and Envelope
With a work envelope of 1200mm x 700mm x 650mm, the V77 is perfectly sized for medium-to-large mold bases and aerospace structural parts. The table-to-spindle nose distance of 250mm to 900mm allows for various setups, including the use of tall fixtures or long tooling. The machine's bed is cast from premium materials to provide maximum damping, which reduces tool chatter and improves overall part quality.
Application Cases: Industry Verticals and Success Stories
The Makino V77 is a staple in the automotive and aerospace industries. In automotive manufacturing, it is the go-to machine for producing injection molds for bumpers, dashboards, and lighting components. These parts require massive mold bases where the V77's 1.2-meter travel is indispensable. Its ability to produce high-quality finishes means that the time spent on manual benching is reduced by up to 50%, leading to faster time-to-market for new vehicle models.
In the aerospace sector, the V77 is utilized for the machining of aluminum and titanium structural components. The high-speed spindle allows for high metal removal rates in aluminum, while the rigid frame provides the stability needed for milling tougher alloys. Additionally, the precision optics and medical equipment industries utilize the V77 for manufacturing large-scale molds for high-precision plastic components, where micron-level accuracy is non-negotiable.
Maintenance Records and Quality Inspection Report
This specific unit (Stock #810300) has undergone a comprehensive inspection by our technical experts. We have verified the spindle runout, axis backlash, and overall geometry to ensure they meet original factory specifications. Makino machines are known for their longevity; the quality of the Japanese castings ensures that the machine structure remains true for decades. Our maintenance log shows that this machine has been operated in a climate-controlled environment, with regular lubrication and filter changes. The Professional 5 control panel and electronics have been tested for stability, and the 30-tool ATC operates smoothly with rapid changeovers. Buying a used Makino is often a better investment than a new lower-tier machine, as the fundamental build quality of the V77 is far superior.
The Economic Advantage: Why Buy a Pre-owned Makino V77?
The capital expenditure for a brand-new Makino V77 is significant and often out of reach for small to mid-sized shops. However, the used market offers an excellent opportunity to acquire this high-level technology at a fraction of the cost. The resale value of Makino machines remains high worldwide, making it a safe asset for any business. By choosing this V77, you are not just buying a machine; you are acquiring the capability to bid on more complex, higher-margin projects that your competitors cannot handle. The reliability of Makino means less downtime and more billable hours, maximizing your ROI from day one.
Frequently Asked Questions (FAQ)
1. What makes the Professional 5 control better for mold making?
The Pro 5 control includes advanced algorithms like SGI.4 that optimize the relationship between feed rate and accuracy, specifically for the complex geometry found in mold surfaces.
2. Is a 20,000 RPM spindle durable for everyday use?
Yes, Makino's spindle design includes an integrated cooling system that allows for continuous high-speed operation without the overheating issues common in lesser machines.
3. Can the V77 handle heavy workpieces?
Absolutely. The V77 is designed with a high-capacity table and a rigid base that can support the heavy weights associated with large steel mold bases while maintaining precision.
4. How easy is it to find spare parts for a used Makino in this region?
Makino has a global service network. Many components are standardized, and there is a healthy market for both OEM and aftermarket parts for the V77 series.
5. What is the typical accuracy level of a used Makino V77?
When properly maintained, a used V77 can still hold tolerances within several microns, making it suitable for even the most demanding precision engineering tasks.
