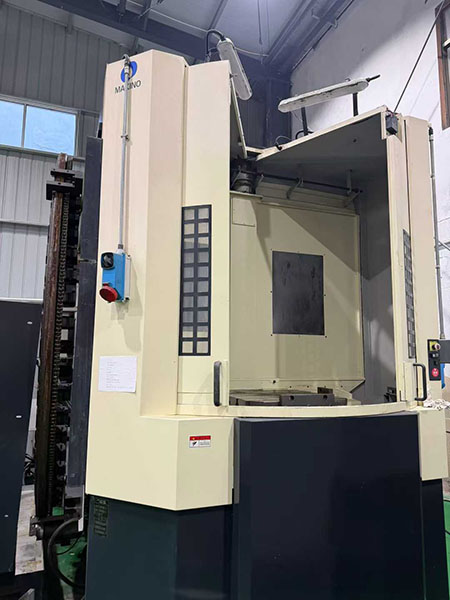

Used Makino a81 Horizontal Machining Center - High-Rigidity BT50 Spindle
| Specification | Technical Data |
| Stock Number | 810342 |
| Brand / Origin | Makino / Japan |
| Model | a81 |
| Travel (X/Y/Z) | 900 * 800 * 1020 mm |
| Pallet Size | 630 mm * 630 mm |
| Table Indexing | 0.001° |
| Spindle Taper | BT50 |
| Spindle Speed | 20 - 10,000 rpm |
1. Equipment Overview: The Legacy of Makino a81 Efficiency
The Makino a81 has long been recognized as a benchmark in the horizontal machining center (HMC) market. Designed for durability and extreme precision, the a81 is a powerhouse engineered by Makino Japan to bridge the gap between heavy-duty material removal and high-speed finishing. For decades, the a-series has been the go-to choice for manufacturers who require a machine that can run 24/7 without compromising on accuracy. This specific unit, stock number 810342, represents a rare opportunity to acquire Makino's legendary engineering at a fraction of the cost of a new machine.
What sets the a81 apart is its unique "Box-in-Box" construction and symmetrical design, which significantly minimizes thermal distortion. Even in environments with fluctuating ambient temperatures, the a81 maintains its geometric integrity. This makes it an essential asset for industries such as aerospace, automotive, and heavy industrial equipment manufacturing, where large-scale parts must meet micron-level tolerances. Investing in a used Makino a81 is not just about adding a machine; it is about adopting a production philosophy centered on uptime and reliability.
2. Detailed Parameter Analysis: Precision Engineering in Every Axis
Rigid BT50 Spindle Performance
The heart of this a81 is its BT50 spindle. Unlike lighter BT40 machines, the BT50 interface provides the surface contact area and clamping force necessary for aggressive milling in hardened steels and tough alloys. With a speed range of up to 10,000 RPM, it offers the versatility to use large diameter face mills for roughing while also having the RPM required for finishing with smaller solid carbide tools. The spindle features an advanced oil-air lubrication system, ensuring that heat generation is kept to a minimum even at maximum velocity.
Massive Work Envelope and 630mm Pallets
The travel dimensions of 900mm (X), 800mm (Y), and 1020mm (Z) provide a substantial work envelope that can accommodate large castings and complex weldments. The dual 630mm x 630mm pallet system allows for simultaneous setup and machining, maximizing the spindle utilization rate. A critical highlight is the 0.001-degree indexing table. This ultra-fine resolution in the B-axis allows for the machining of complex angles and ensures that multi-sided parts are completed with perfect alignment, reducing the need for multiple setups and specialized fixtures.
Control and Motion Dynamics
Makino’s proprietary geometric intelligence (GI) software works in tandem with the high-torque servo motors to provide smooth, rapid movements. Despite its size, the a81 moves with an agility that rivals much smaller machines. This reduces non-cut time during tool changes and rapid traverses, which is vital for high-volume production runs where every second counts toward the bottom line.
3. Application Scenarios: Where the Makino a81 Excels
In the automotive sector, the Makino a81 is frequently used for the production of engine blocks, cylinder heads, and transmission housings. Its ability to maintain high feed rates during deep cavity milling makes it ideal for these complex components. The high-rigidity spindle can easily handle the interrupted cuts often found in cast iron components without causing tool vibration or chatter.
In the aerospace and energy industries, the machine is often tasked with milling structural components and turbine housings. The 1020mm Z-axis travel is particularly useful for long-reach tooling required for deep internal features. Furthermore, the precision of the 0.001-degree table is vital for achieving the tight true-position tolerances required for bolt hole circles on large flanges and hydraulic manifolds.
4. Maintenance and Condition Report
This used Makino a81 (Stock #810342) has undergone a comprehensive multi-point inspection by our senior technicians. The spindle runout has been measured and verified to be within original factory tolerances. We have inspected the ball screws for backlash and the linear guides for any signs of premature wear; both systems are in excellent condition, benefiting from the machine's robust automatic lubrication system. The Automatic Pallet Changer (APC) has been cycle-tested to ensure smooth transition and locking. Electrically, the CNC control and all peripheral cards are fully functional, with no history of major faults. This machine is truly "plug-and-play," ready to be integrated into a demanding production schedule immediately upon installation.
5. Cost-Benefit Analysis: The Smart Choice for Growing Shops
Choosing a used Makino a81 over a brand-new model is a strategic financial move for many precision engineering firms. The initial depreciation has already occurred, allowing the second owner to benefit from Makino’s world-class quality at a significantly lower capital expenditure. This improves the Return on Investment (ROI) and shortens the payback period for new projects. Moreover, Makino machines are known for their high resale value; they are a liquid asset in the global machinery market. By selecting this well-maintained a81, you are gaining a high-performance HMC that offers the same accuracy and speed as new mid-range machines but with much higher structural rigidity and longevity.
6. Frequently Asked Questions (FAQ)
Q1: What is the maximum tool weight for the a81's ATC?
A: The Makino a81 typically supports tool weights up to 25kg or 30kg depending on the specific ATC configuration, making it suitable for large multi-tip cutters.
Q2: Does the machine come with Coolant Through Spindle (CTS)?
A: Most a81 models are equipped with CTS, which is essential for high-speed drilling and maintaining thermal stability during heavy milling. This unit includes a high-pressure pump system.
Q3: Can I run 4-axis simultaneous programs?
A: Yes, with the 0.001° indexing B-axis and the appropriate CNC software options, the a81 is fully capable of complex 4-axis contouring.
Q4: What are the power requirements for a Japanese Makino a81?
A: Generally, it requires a 200/220V 3-phase supply. We can provide a transformer if your facility uses 380V or 480V.
