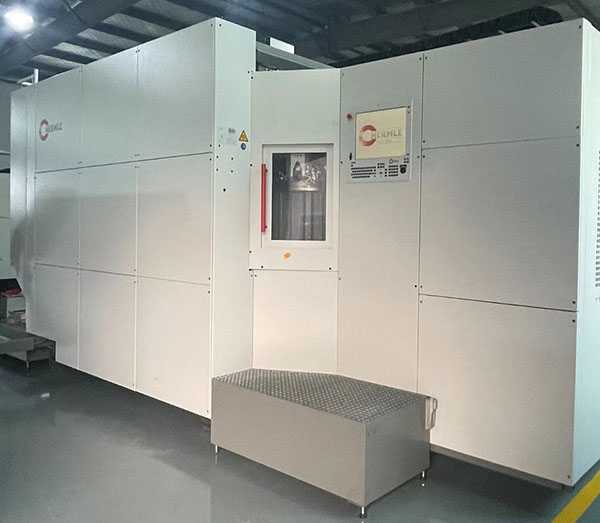

Used Hermle C50U 5-Axis Machining Center: Precision German Engineering
| Stock No. | 810401 |
| Brand | Hermle |
| Model | C50U |
| Origin | Germany |
| CNC System | Heidenhain iTNC 530 |
| Travel (X/Y/Z) | 1000 x 1100 x 750mm |
| Table Size | 1150 x 900mm |
| Spindle Speed | 18,000 rpm |
| Spindle Taper | HSK-A63 |
| ATC Capacity | 60 positions |
| Swivel Range | +100° / -130° |
| Dimensions | 3000mm x 6500mm x 3600mm |
| Configuration | Chip Conveyor, Water Tank, Renishaw Probe, Blum Tool Setter |
1. Equipment Overview: The Benchmark of 5-Axis Machining
The Hermle C50U stands as a testament to German engineering excellence in the realm of high-performance CNC machining. Renowned for its unparalleled precision, stability, and versatility, the C50U is designed to handle the most complex and demanding workpieces across various high-tech industries. This particular pre-owned unit offers an exceptional opportunity for manufacturers to acquire a top-tier machine tool at a fraction of the cost of a new one. With its robust modified gantry design, the C50U provides the structural rigidity necessary for heavy-duty cutting while maintaining the agility required for intricate surface finishes. Whether it's for aerospace components, automotive engine parts, or complex medical implants, this machine is engineered to deliver results that meet the most stringent quality standards.
The Hermle brand is synonymous with the "five-axis philosophy." Unlike many competitors, the C-series machines are built from the ground up for simultaneous five-axis movement, rather than being adapted from three-axis platforms. This ensures superior thermal stability and vibration damping, which are critical for maintaining micron-level accuracy over long production cycles. This C50U model, with its impressive travel and high-speed spindle, represents the perfect balance between raw power and delicate precision.
2. Detailed Technical Specifications
Every aspect of the Hermle C50U is optimized for performance. Let's delve into the core parameters that make this machine a powerhouse in the workshop. The large work envelope (X: 1000mm, Y: 1100mm, Z: 750mm) is particularly notable for its generous Y-axis travel, which is often a bottleneck in five-axis machines of this class. The 1150 x 900mm table allows for the setup of large components or multiple smaller fixtures, maximizing the efficiency of your operations.
The spindle is the heart of any CNC, and the C50U does not disappoint. It features a high-speed 18,000 RPM motor spindle with an HSK-A63 taper. This interface is widely regarded as the best for high-speed machining due to its excellent clamping force and repeatability. With 18,000 RPM at your disposal, you can leverage modern high-speed cutting (HSC) strategies to reduce cycle times and achieve superior surface finishes on aluminum, titanium, and hardened steels. The swivel range of +100° to -130° provides extreme flexibility, allowing the tool to reach deep undercuts and complex geometries that would be impossible on standard machines.
Control is provided by the Heidenhain iTNC 530, a system revered by operators for its intuitive interface and powerful processing capabilities. It handles complex five-axis transformations and tool path calculations with ease, ensuring smooth motion and constant feed rates even on the most intricate tool paths. Coupled with a 60-tool magazine, this machine is ready for highly automated, low-intervention manufacturing environments.
3. Application Cases: Solving Complex Challenges
In the aerospace industry, the C50U is frequently utilized for machining structural components from solid billets. Its ability to maintain tight tolerances over long distances makes it ideal for wing ribs, bulkheads, and engine mounts. The simultaneous 5-axis capability allows for the efficient production of blisks and impellers, where tool access is limited and surface continuity is paramount.
For the die and mold sector, the C50U’s rigidity and high spindle speed allow for the finishing of hardened tool steel molds with minimal manual polishing required. The Heidenhain 530 system’s look-ahead features and dynamic collision monitoring (DCM) provide peace of mind when running expensive, one-off mold components. Additionally, the integrated Blum tool setter and Renishaw probe ensure that every part is measured and verified within the machine, drastically reducing scrap rates and setup times.
4. Maintenance History and Condition Report
This used Hermle C50U (Stock No. 810401) has been maintained to the highest standards. In a professional manufacturing environment, the machine underwent regular preventive maintenance, including spindle run-out checks, geometric alignment calibration, and fluid analysis. The guide-ways and ball screws show minimal wear, and the tool changer operates with the snappy precision Hermle is known for.
The electrical cabinets are clean, and all cooling systems for the spindle and control have been verified for efficiency. By choosing a machine with a documented maintenance history, you are investing in a reliable asset that will continue to provide high-precision output for years to come. The German build quality ensures that even after years of service, the structural integrity of the base remains uncompromised.
5. Cost-Effectiveness and Return on Investment
Acquiring a used Hermle C50U is a strategic financial move. New Hermle machines often come with significant lead times and high capital requirements. This pre-owned unit is available for immediate delivery, allowing your business to scale up its technical capabilities instantly to meet new contract requirements. The lower initial investment means a faster ROI, while the machine's high resale value ensures that your capital is well-protected. For shops looking to transition from 3-axis to 5-axis, or for established Tier-1 suppliers needing additional capacity, this C50U represents the best value in the high-end used market.
FAQ: Common Questions about the Hermle C50U
1. Is the Heidenhain iTNC 530 still compatible with modern CAM software?
Absolutely. The iTNC 530 remains one of the most widely supported controllers in the industry. All major CAM packages like NX, Hypermill, and PowerMill have robust post-processors for this system, supporting full simultaneous 5-axis motion.
2. Can I inspect the machine under power?
Yes, we encourage serious buyers to visit and inspect the machine. Seeing the machine under power and performing a dry run or a test cut is the best way to verify its performance.
3. What are the shipping requirements for a machine of this size?
With dimensions of 3000mm x 6500mm x 3600mm, this machine requires professional heavy-duty logistics and a flatbed or low-loader trailer. We can assist in coordinating the transport and rigging.
4. Does it come with any tooling?
The sale includes the machine and its core configurations (probes, tool setters, etc.). While specific cutting tools are usually not included, we can discuss a package of HSK-A63 tool holders if required.
5. How does the cooling system handle heat in long cycles?
The C50U features an integrated spindle chiller and thermal compensation algorithms within the CNC, ensuring that even during 24-hour production cycles, the machine maintains its geometric accuracy despite ambient temperature changes.
