1. Equipment Overview: The Swiss Standard in Precision

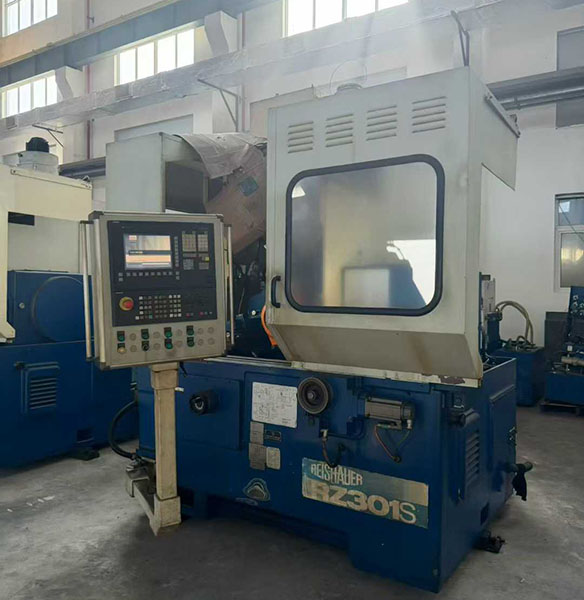

The Reishauer RZ301S stands as a testament to the legendary Swiss precision that has defined the gear manufacturing industry for decades. As a high-performance generating gear grinding machine, the RZ301S is engineered for the continuous grinding of cylindrical gears with unprecedented accuracy. This machine utilizes the continuous generating grinding process, which allows for significantly higher material removal rates and shorter cycle times compared to profile grinding, without compromising on surface quality or geometric precision. For manufacturers in sectors such as automotive transmission, aerospace drive systems, and high-end industrial machinery, the RZ301S provides a reliable solution for achieving DIN 3 or DIN 4 quality levels consistently. Its thermal stability and vibration-dampening design make it an ideal choice for multi-shift production environments where precision is non-negotiable.

This specific unit has been meticulously maintained and represents a rare opportunity to acquire world-class Swiss technology at a fraction of the cost of a new machine. The RZ301S series is renowned for its durability, with many units serving in top-tier factories for over twenty years while still maintaining original tolerances. Investing in a used Reishauer is not just a purchase; it is an upgrade to your facility's technical capabilities, allowing you to compete for high-precision contracts that require the strictest adherence to gear geometry specifications.

2. Technical Parameter In-depth Analysis

The technical capabilities of the Reishauer RZ301S are designed to cover a broad spectrum of industrial applications. With a module range of 0.5 to 6, the machine is exceptionally versatile, capable of handling everything from delicate small-module gears used in precision instruments to more robust gears for industrial gearboxes. The ability to grind gears with a number of teeth ranging from 10 to 600 ensures that even the most complex gear ratios can be accommodated. The machine supports a gear diameter up to 330mm and a face width of 175mm, which fits perfectly into the size requirements for the majority of passenger vehicle transmissions and mid-sized industrial drives.

Powering this precision is a 20 kVA total power capacity, providing the necessary torque for heavy-duty grinding cycles while maintaining the delicate touch required for final finishing. The slide stroke of 180mm and a clamping length of 420mm provide ample room for various tooling setups, including long shafts and specialized fixtures. One of the most critical aspects of the RZ301S is its grinding worm system. By utilizing grinding worms with diameters between 270mm and 350mm and widths up to 104mm, the machine ensures a long contact length and efficient dressing intervals. This reduces the frequency of wheel changes and dressing cycles, directly contributing to higher uptime and lower consumable costs per part produced. The pressure angle flexibility from 10° to 45° further enhances its ability to process non-standard gear designs often found in custom engineering projects.

3. Industrial Application Cases: Versatility in Action

The RZ301S has been a staple in the production lines of global Tier-1 automotive suppliers. In one notable case, a manufacturer utilized the RZ301S to produce helical gears for a high-performance 8-speed automatic transmission. The machine's ability to precisely control the lead and profile of the gear teeth resulted in a significant reduction in transmission whine, meeting the strict acoustic requirements of luxury vehicle brands. In the field of renewable energy, RZ301S machines are often used to grind precision gears for wind turbine pitch drives, where reliability and load-carrying capacity are paramount.

Furthermore, in the emerging field of robotics and automation, the RZ301S is used for the production of planetary gears for high-precision reducers. The machine's ability to handle small root diameters (down to 10mm) allows for the design of compact, high-torque gearsets required for articulated robotic arms. The aerospace industry also benefits from the RZ301S's capabilities, particularly for auxiliary power unit (APU) gears where material hardness is high and tolerances are microscopic. These diverse applications demonstrate that the RZ301S is not just a gear grinder; it is a multi-industry solution for high-value manufacturing.

4. Maintenance Logs and Machine Condition

This used Reishauer RZ301S has a clean bill of health, backed by a comprehensive maintenance history. Throughout its previous service life, the machine was operated under climate-controlled conditions, which is crucial for preserving the integrity of its precision components. The spindle bearings show no signs of excessive runout, and the workhead indexing system remains within factory-specified angular accuracy. Regular preventive maintenance included the replacement of filtration elements, calibration of the cooling system, and systematic lubrication of the linear guides.

The machine’s bed and ways are in excellent condition, showing only minimal signs of wear consistent with careful use. The electronic control system has been tested for responsiveness, and all software functions for gear geometry calculation and dressing cycles are fully operational. Buyers can be confident that this machine has not been subjected to crashes or overloads. It is offered in "ready-to-work" condition, meaning that after standard installation and leveling, it can be immediately integrated into a production workflow to start generating high-quality gears.

5. The Economic Logic: Why Invest in a Used RZ301S ?

The decision to purchase a used Reishauer RZ301S is driven by a clear economic advantage. The capital expenditure (CAPEX) for a brand-new high-end Swiss gear grinder can be prohibitive for many companies, especially those looking to expand capacity or replace older, less efficient equipment. By choosing a well-maintained used unit, you significantly reduce your initial investment, leading to a much faster Return on Investment (ROI). The RZ301S maintains its value exceptionally well, offering a high resale value should your production needs change in the future.

Moreover, the operational costs of the RZ301S are highly competitive. Its continuous grinding technology is faster than the single-profile grinding found on many lower-cost machines, meaning your cost-per-part is lower. The availability of spare parts and the large pool of technicians familiar with Reishauer systems ensure that any downtime is kept to a minimum. In essence, the RZ301S offers the prestige and performance of a Swiss master-class machine at a price point that makes sense for the modern, cost-conscious manufacturing business.

6. Frequently Asked Questions (FAQ)

1. What is the maximum gear quality class achievable on the RZ301S?

Under optimal conditions and with proper setup, the RZ301S can consistently achieve gear qualities of DIN 3 to DIN 4, which is suitable for the most demanding automotive and aerospace applications.

2. Is the machine capable of grinding helical gears?

Yes, the RZ301S is designed for both spur and helical gears. The helix angle can be precisely set and maintained throughout the grinding process.

3. What kind of cooling system is recommended for this machine?

To maintain precision and prevent grinding burns, a high-quality oil-based coolant with a specialized filtration and temperature control unit is highly recommended.

4. Can the RZ301S handle high-volume production?

Absolutely. The continuous generating grinding principle is specifically designed for high-throughput environments, making it much faster than profile grinding for standard gear geometries.

5. Are spare parts for the RZ301S still available?

Yes, Reishauer provides excellent long-term support for their machines. Additionally, due to the popularity of the RZ301 series, there is a robust global market for both OEM and high-quality aftermarket parts.
