How can I identify potential mechanical and electrical defects in a used machine tool？

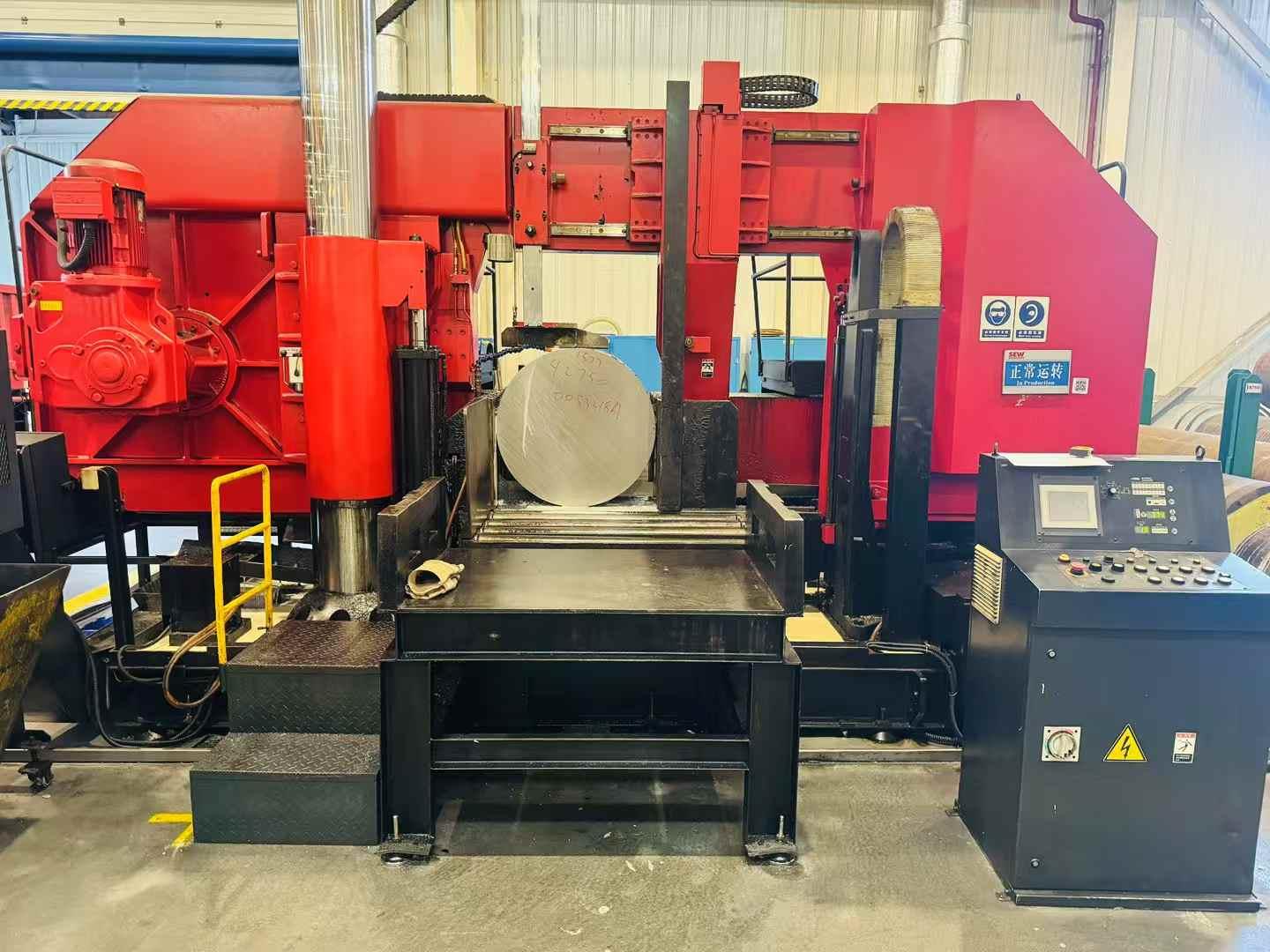

Identifying mechanical and electrical defects in used machine tools requires a systematic inspection approach. Below is a detailed guide with step-by-step methods, tools, and indicators to help you detect hidden issues:

### **I. Mechanical Defect Identification**
#### **1. Visual and Physical Inspection**
- **Key Areas to Check**:
  - **Machine Structure**:
    - Look for cracks, rust, or misalignment in the base, column, or table (use a straightedge or laser level).
    - Check for oil leaks around seals, gaskets, or hydraulic lines (indicates worn components).
  - **Guide Rails and Ways**:
    - Inspect for scoring, pitting, or uneven wear (use a magnifying glass). Run a feeler gauge along the rails to check for gaps or roughness.
    - Example: Horizontal scratches on guide rails may indicate improper lubrication or debris damage.
  - **Spindle and Chuck/Jaw Components**:
    - Visually inspect the spindle nose for dents, cracks, or excessive wear. Check chuck jaws for chips or uneven clamping surfaces.
  - **Transmission Systems**:
    - Examine belts for fraying, cracks, or glazing. Gears should show uniform tooth wear without chips or burrs.

#### **2. Functional Testing**
- **Spindle Performance**:
  - Run the spindle at various speeds (low, medium, high) and listen for unusual noises (grinding, whining). Use a tachometer to verify speed accuracy.
  - Measure spindle runout with a dial indicator: mount the indicator on the table, touch the spindle nose, and rotate—deviations >0.01mm (0.0004") may signal wear.
- **Axial Movement (X, Y, Z axes)**:
  - Manually move each axis through its full travel. Note resistance, jerking, or uneven motion (indicates worn bearings or misaligned guides).
  - Use a laser interferometer to check positional accuracy (e.g., linear positioning error should be <0.02mm/m for most CNC machines).
- **Clamping and Braking Systems**:
  - Test the chuck/clamp’s holding force with a torque wrench. For lathes, check tailstock alignment by drilling a test bar and measuring taper.

#### **3. Lubrication and Cooling Systems**
- Check lubricant reservoirs for contamination (metal shavings, sludge) or low levels. Dirty oil may indicate excessive wear.
- Run the coolant system: ensure proper flow, no leaks, and that the pump operates quietly. Corroded tanks or clogged filters suggest neglect.

### **II. Electrical Defect Identification**
#### **1. Electrical Panel and Wiring Inspection**
- **Panel Condition**:
  - Open the control panel (with power off!) and look for burnt components, loose wires, or corroded terminals. Burn marks or a “burnt” smell indicate past electrical failures.
  - Check capacitors for bulging or leaking electrolyte (a sign of aging or overvoltage).
- **Wiring and Connectors**:
  - Inspect cables for fraying, cracked insulation, or loose connections. Plugged connectors should fit tightly without corrosion.
  - Example: Loose wiring in the CNC control cabinet may cause random axis movements or system crashes.

#### **2. Control System Testing**
- **CNC Interface and Software**:
  - Power on the machine and observe the control screen for error codes (e.g., “ALARM 401” in Fanuc systems often means servo failure).
  - Run basic G-code programs (e.g., linear and circular interpolation) to test axis coordination. Jerky movements or incorrect positioning signal servo motor or drive issues.
- **Emergency Stop and Safety Circuits**:
  - Press the E-stop button and verify all motions halt immediately. Test interlock switches (e.g., door sensors) to ensure they disable the machine when triggered.

#### **3. Motor and Drive System Checks**
- **Servo Motors and Drives**:
  - During operation, feel the motors for excessive heat (should be warm, not hot). Unusual vibrations may indicate bearing wear.
  - Use an oscilloscope to check drive output waveforms—distorted signals suggest faulty power electronics.
- **Transformer and Power Supply**:
  - Measure input/output voltages with a multimeter to ensure they match specifications. Fluctuating voltages can damage sensitive components.

### **III. Tools and Equipment for Inspections**
| **Tool**               | **Purpose**                                                                 |
|------------------------|-----------------------------------------------------------------------------|
| Dial indicator         | Measure spindle runout, table flatness, and axis alignment.                  |
| Laser interferometer   | Accurately test linear positioning and backlash.                            |
| Multimeter             | Check voltage, current, and continuity in electrical circuits.               |
| Oscilloscope           | Analyze drive system waveforms and signal quality.                           |
| Feeler gauges          | Detect gaps in guide rails or misaligned components.                          |
| Straightedge           | Verify flatness of machine tables or guide rails.                             |
| Borescope              | Inspect hard-to-reach areas (e.g., inside spindles or gearboxes).             |

### **IV. Advanced Testing Methods**
- **Thermographic Imaging**: Use an infrared camera to detect hotspots in electrical components or overheating motors.
- **Vibration Analysis**: Attach accelerometers to the machine to measure vibration levels—excessive readings indicate mechanical imbalance.
- **Load Testing**: Run the machine under simulated working loads (e.g., machining a test part) to reveal performance issues under stress.

### **V. Documentation and History Review**
- **Maintenance Records**: Request logs of past repairs, part replacements, and calibrations. Inconsistent or missing records may hide unresolved issues.
- **Usage Hours**: Compare reported hours to physical wear. A machine with 10,000 hours but heavily worn components may have been misused (e.g., running at max load continuously).
- **Calibration Reports**: Verify recent checks for geometric accuracy (e.g., table parallelism, spindle) using certified equipment.

### **VI. Red Flags to Watch For**
- **Mechanical Warning Signs**:
  - Excessive backlash (play) in axes (e.g., >0.05mm in CNC machines).
  - Unusual noises during operation (rattling, banging, or squealing).
  - Fluid leaks that leave oily residue on the floor or machine components.
- **Electrical Warning Signs**:
  - Frequent circuit breaker trips or blown fuses.
  - Intermittent control system failures (e.g., screens flickering or losing programs).
  - Burn marks on circuit boards or charred wiring insulation.

### **VII. Best Practices for Inspections**
1. **Hire a Professional Inspector**: Engage a certified machine tool technician or third-party firm (e.g., SGS, TÜV) for complex inspections, especially for high-value equipment.
2. **Test Under Full Operation**: Run the machine for at least 30 minutes to allow hidden issues (e.g., heat-related expansion causing binding) to surface.
3. **Request a Demo**: Ask the seller to machine a sample part and verify its dimensions with precision measuring tools (e.g., coordinate measuring machine, CMM).
4. **Document Everything**: Take photos of defects, record test results, and have the seller acknowledge issues in writing before negotiating repairs or price reductions.

By combining visual checks, functional testing, and technical tools, you can systematically uncover mechanical and electrical flaws in used machine tools. This due diligence minimizes the risk of purchasing a faulty machine and helps negotiate a fair price based on its actual condition.
