How to inspect the spindle of a used lathe machine tool？

Author： Date：2025-06-19

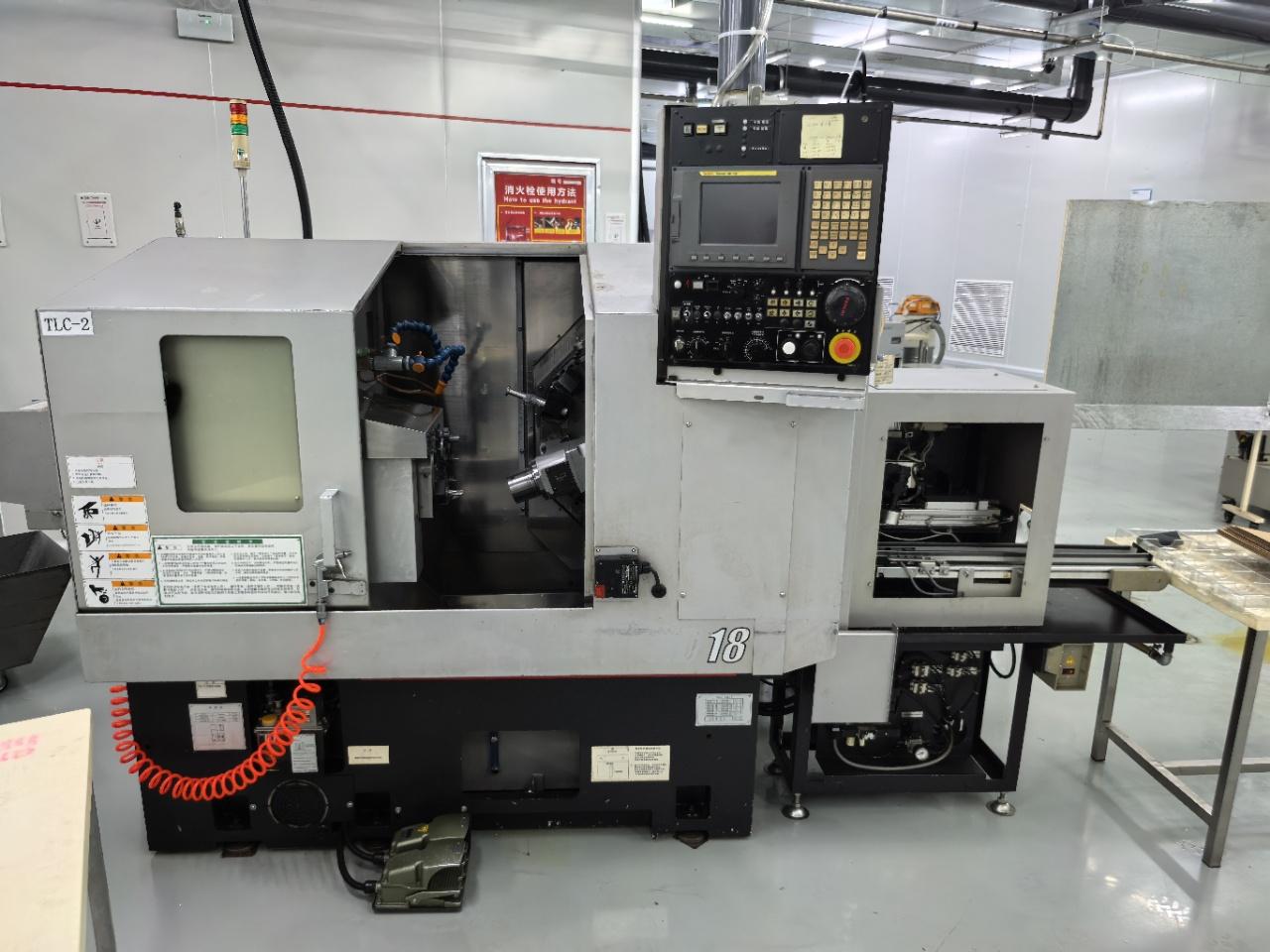

When inspecting the spindle of a used lathe machine tool, a systematic evaluation of its mechanical condition, performance, and potential issues is crucial. The following steps and key points provide a comprehensive inspection framework:

### **1. Visual and Physical Inspection**
- **Surface Condition**:
- Check for visible damage (cracks, chips, rust, or wear marks) on the spindle shaft, bearings, and housing.
- Inspect the spindle nose (where tools or chucks are mounted) for deformations, stripped threads, or misalignment.
- Examine the spindle cooling system (if present) for leaks, clogged pipes, or corrosion.
- **Lubrication System**:
- Verify that lubrication ports are clean and unobstructed.
- Check the oil level and quality in the spindle lubrication reservoir; dark, gritty, or foul-smelling oil indicates contamination or wear.

### **2. Mechanical Clearance and Runout Tests**
- **Radial and Axial Runout**:
- Use a dial indicator to measure runout (deviation from perfect rotation):
- **Radial Runout**: Attach the indicator to the bed of the lathe, position its probe against the spindle shaft (near the nose), and rotate the spindle by hand. A healthy spindle should show runout ≤ 0.01 mm (0.0004 inches); excessive runout (e.g., >0.03 mm) suggests bearing wear or shaft misalignment.
- **Axial Runout**: Place the indicator probe against the spindle’s end face (perpendicular to the shaft), rotate the spindle, and check for movement. Axial play should be minimal (≤ 0.01 mm); excessive movement indicates thrust bearing damage.
- **Bearing Clearance**:
- Gently wiggle the spindle nose by hand (in radial and axial directions) to feel for excessive play. Noticeable movement suggests worn bearings, which may need replacement.

### **3. Operational Performance Testing**
- **Rotation Smoothness**:
- Start the spindle at low, medium, and high speeds (if variable speed is available). Listen for unusual noises (grinding, rattling, or whining), which may indicate bearing failure, misalignment, or debris.
- Observe if the spindle accelerates and decelerates smoothly without vibration or hesitation.
- **Temperature Check**:
- After running the spindle for 10–15 minutes, use a thermal sensor or touch (with caution) to measure the temperature of the spindle housing and bearings. Uniform warmth is normal, but hot spots or excessive heat (e.g., too hot to touch) signal overheating, possibly due to insufficient lubrication or worn bearings.
- **Vibration Analysis**:
- Use a vibration meter or place a hand on the spindle housing to feel for vibrations. Excessive vibration at specific speeds may indicate unbalanced components, misaligned shafts, or bearing defects.

### **4. Electrical and Control System Checks**
- **Spindle Motor and Drive**:
- Inspect the spindle motor for frayed wires, loose connections, or overheating signs (burn marks or odors).
- Test the motor’s rotational direction and speed control via the lathe’s control panel. Ensure the speed feedback (e.g., digital readout) matches the actual spindle speed.
- **Encoder and Feedback Systems (for CNC Lathes)**:
- If the lathe is CNC-controlled, verify that the spindle encoder (which tracks rotation for tool positioning) functions correctly. Erratic tool movements or positioning errors may indicate encoder damage.

### **5. Tool Holding and Accessory Compatibility**
- **Chuck and Tool Holder Fit**:
- Mount a chuck or tool holder on the spindle nose and check for tight engagement. Loose fitting or wobbling accessories suggest wear on the spindle taper (e.g., Morse taper, ISO taper) or nose threads.
- **Spindle Keyway and Drive Components**:
- Examine the keyway (slot for transmitting torque) for deformation or wear. Damaged keys or keyways can cause slippage during operation.

### **6. Documentation and Historical Records**
- **Maintenance Logs**:
- Review records of past spindle repairs, bearing replacements, or lubrication schedules. A well-documented history reduces the risk of undisclosed issues.
- **Manufacturer Specifications**:
- Confirm the spindle’s rated speed, power, and tolerance limits (e.g., maximum runout) against the manufacturer’s data. Deviations from specs may indicate abuse or neglect.

### **7. Additional Tests for Precision Applications**
- **Cutting Test**:
- Perform a trial cut on a test workpiece (e.g., turning a cylindrical bar) to check surface finish and dimensional accuracy. Rough surfaces or out-of-tolerance cuts may stem from spindle instability.
- **Balancing Check**:
- For high-speed lathes, request a spindle balancing report. Unbalanced spindles can cause premature wear and vibration at high speeds.

### **8. Common Issues and Red Flags**
- **Bearing Wear**: Noises (e.g., clicking, grinding) or excessive play indicate worn bearings, which are costly to replace.
- **Shaft Misalignment**: Persistent vibration or uneven wear on the spindle nose suggests misalignment, possibly from impact or improper installation.
- **Lubrication Neglect**: Dry bearings, caked grease, or oil contamination signal poor maintenance, increasing the risk of overheating.

### **Summary: Key Inspection Steps at a Glance**
| **Inspection Area** | **Methods/Tools** | **Acceptable Criteria** |
|---------------------------|---------------------------------|----------------------------------|
| Visual damage | Visual check, flashlight | No cracks, rust, or deformations |
| Radial/axial runout | Dial indicator | ≤ 0.01–0.03 mm (depending on age) |
| Bearing play | Hand pressure, dial indicator | Minimal movement |
| Operational noise/temp |听觉/thermal sensor | Smooth rotation, moderate warmth |
| Electrical components | Multimeter, visual inspection | No burns, loose wires |
| Cutting performance | Test workpiece, surface finish | Uniform finish, tight tolerances |

By following these steps, you can assess the spindle’s condition accurately and make an informed decision about the used lathe’s viability. If unsure, consult a mechanical engineer or experienced machinist for a professional evaluation.
