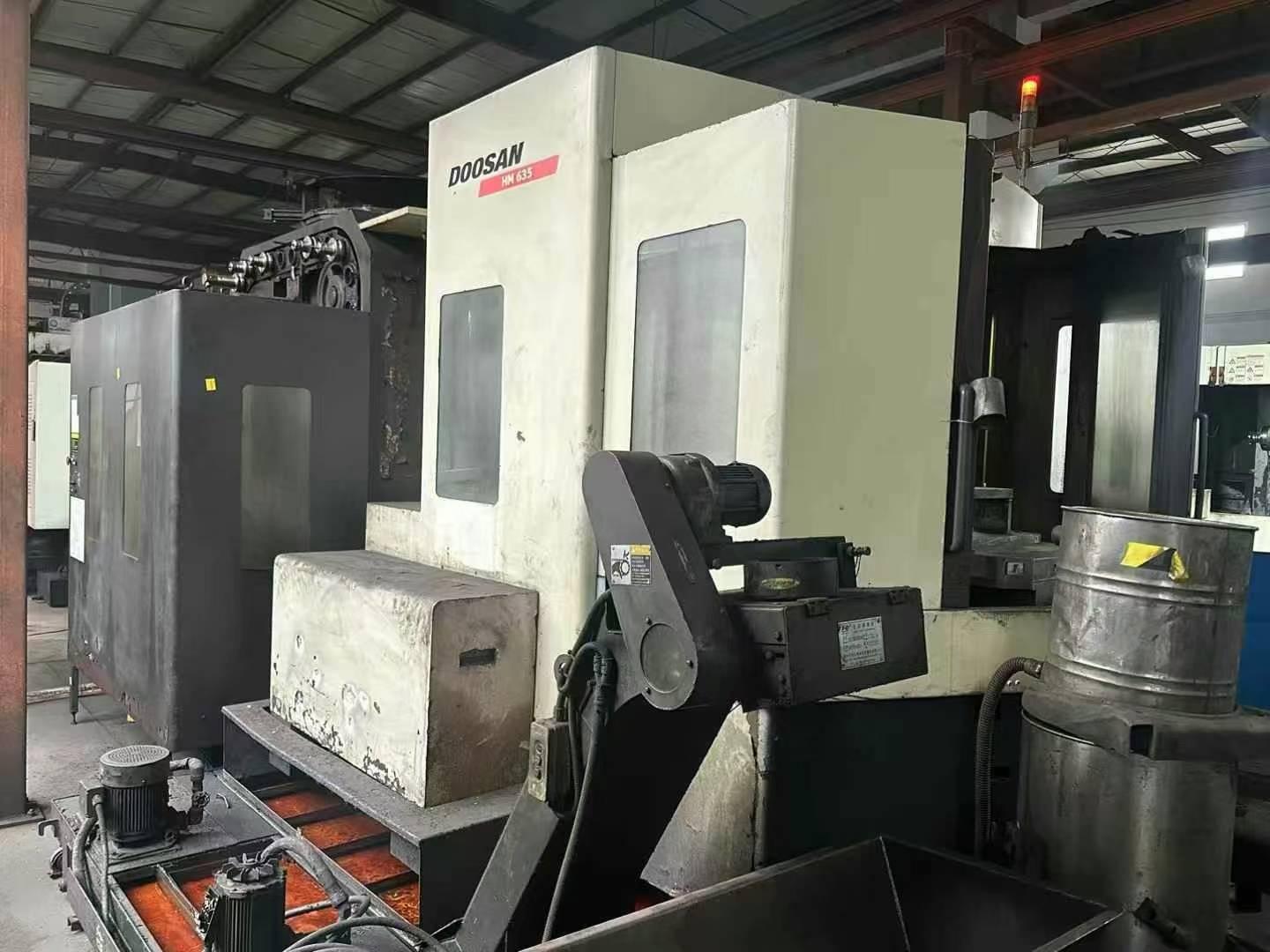

How to repair and maintain the Doosan DNM4050 vertical machining center?
The maintenance of the Doosan DNM4050 vertical machining center can be carried out according to the following cycles and contents:
Daily maintenance and upkeep
1. Cleaning work: Clean the inside and outside of the machine tool, including the control panel, spindle taper hole, tool holder, tool head, worktable, three-axis telescopic cover, etc., to remove dust and iron filings.
2. Check the oil level: Check the height of the lubricating oil level to ensure that all components of the machine tool are fully lubricated; Check if the coolant in the coolant tank is sufficient and add it in a timely manner; Check if the oil in the knife cylinder oil cup is sufficient, and add it promptly if it is insufficient.
3. Check the air pressure: Check the oil level height of the pneumatic triple joint, which is about 2/3 of the entire oil pipe height, and eliminate the water vapor in the oil filter tank; Check the air pressure, usually set at 5-7kg/c ㎡.
4. Check the spindle: Check if the air blowing in the taper hole of the spindle is unobstructed, and wipe it with a cotton cloth before spraying light oil.
5. Check the tool magazine: Clean the tool magazine arm and tools, especially the claw part, to ensure that the tool magazine arm changes smoothly.
6. Check the components: Check if the limit switch and collision block are exposed and clean them, removing any cutting or oil stains on them; Check all signal lights to ensure that the abnormal alarm warning lights are working properly; Check if there is any leakage in the oil pressure unit pipe.
Weekly maintenance
1. Filter cleaning: Clean the air filter, cooling pump, and lubricating oil pump filter of the heat exchanger.
2. Tool inspection: Check if the tool bolt is loose and if the handle is clean.
3. Origin check: Check if the three-axis mechanical origin is offset.
4. Tool magazine inspection: Check whether the tool magazine changing arm action or tool magazine disc rotation is smooth.
5. Oil cooler inspection: Check the set temperature of the oil cooler, it is recommended to set it between 26-28 ℃, and replenish the oil cooler.
Monthly Maintenance
1. Track lubrication: Check the lubrication condition of the X, Y, and Z three-axis tracks to ensure good lubrication of the track surface.
2. Switch cleaning: Check and clean the limit switch and bumper.
3. Nameplate inspection: Check whether the indicator and warning nameplates on the machine are clear and visible.
Half year maintenance
1. Component cleaning and inspection: Remove the three-axis anti chip cover, clean the three-axis oil pipe joint, ball guide screw, three-axis limit switch, and check their normality; Check if the hard rail scraping blades on each axis are effective.
2. Motor inspection: Check whether the servo motors and heads of each axis are operating normally and whether there are any abnormal sounds.
3. Oil change: Replace the oil pressure unit oil and the tool magazine reducer oil.
4. Gap test: Test the gap between each axis and adjust the compensation amount if necessary.
5. Electrical box inspection: Clean the dust inside the electrical box and thoroughly inspect whether all contacts, joints, sockets, and switches are normal.
6. Horizontal adjustment: Check and adjust the mechanical level.
Annual maintenance
1. Button inspection: Check if all buttons are sensitive and functioning properly.
2. Water tank cleaning: Clean the cutting water tank and replace the cutting fluid.
3. Accuracy check and adjustment: Check the vertical accuracy of each axis to determine whether adjustment is necessary; Calibrate the geometric accuracy of the machine tool, including indicators such as straightness, parallelism, and flatness; Measure the axial positioning accuracy using professional tools such as laser interferometers, and adjust the corresponding compensation values based on the results.
4. Electrical system maintenance: Check the integrity and working condition of components such as grounding protection system, circuit breakers, contactors, etc; Ensure the normal operation of the cooling fan inside the electrical cabinet, and check for any abnormalities in the fuses and air switches; Clean the electrical components inside the control cabinet.
