What are the specifications of Leadwell T-6 CNC lathe?

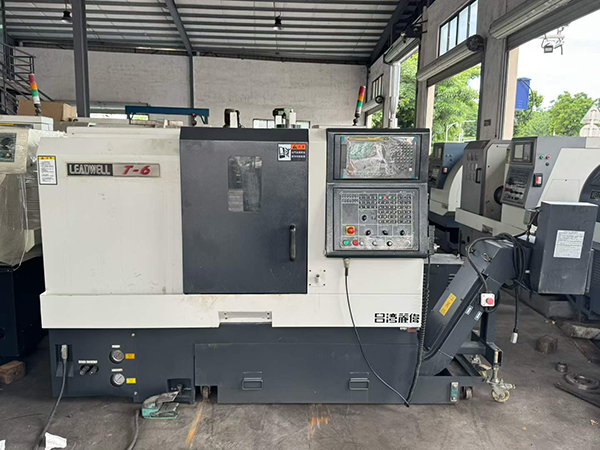

The 2021 Leadwell T-6 is presented as a CNC lathe with origin listed as Taiwan. Based on the supplied data, this page focuses on the machine's known specifications, configuration points, and practical items that buyers should confirm before moving forward with a quotation or inspection request. For procurement teams, the value of this summary is simple: it consolidates the machine’s basic envelope, control platform, and major configuration items in one place so you can compare it against your target process without relying on assumptions.
Available machine data
| Item | Available information |
|---|---|
| Brand | Leadwell |
| Model | T-6 |
| Year | 2021 |
| Origin | Taiwan, China |
| CNC control | FANUC oi-MF |
| Machining diameter | 300 mm |
| Swing diameter | 450 mm |
| Machining length | 420 mm |
| Spindle speed | 5000 rpm |
| X/Z travel | 150 × 338 mm |
| Chuck through-hole | 52 mm |
| Turret | 12-station |
| Tailstock | Hydraulic tailstock |
How to read these specifications
Control and programming context
The machine is listed with a FANUC oi-MF CNC system. For many buyers, this matters because control familiarity affects programming workflow, operator training, troubleshooting routines, and post-processing compatibility. The source material only states the control model, so any discussion of software options, conversational functions, or added packages should be confirmed separately. In other words, the control name is known, but the surrounding software scope is not.
Work envelope and turning range
The listed machining diameter is 300 mm, the swing diameter is 450 mm, and the machining length is 420 mm. Together, these figures provide an initial picture of the turning range. Buyers producing shafts, sleeves, hubs, rings, flanges, or other rotational parts can use these numbers as a first screening step when comparing this model with other compact or mid-range CNC lathes. The X/Z travel of 150 × 338 mm should also be reviewed against your typical part geometry, tool approach distance, and required cutting path. If your shop works with short parts today but expects a wider part family later, the swing diameter and travel values become especially useful during early comparison.
Spindle and bar capacity reference
The spindle speed is listed as 5000 rpm, and the chuck through-hole is listed as 52 mm. These values help purchasing and process teams estimate whether the machine fits their expected material diameter range and spindle speed requirement. For shops handling bar-fed or through-spindle work, the 52 mm through-hole is a key checkpoint, but actual usable bar capacity should still be verified with the seller because the source does not provide a bar feeder setup or a full chuck specification. It is also worth separating what is stated from what is implied: the listing gives the through-hole dimension, but not the complete clamping or feeding configuration.
Turret and tailstock configuration
The machine is described with a 12-station turret and a hydraulic tailstock. This combination may be relevant for users planning multi-tool turning operations or support for longer workpieces. A 12-station turret can improve setup flexibility when several tools must remain ready in one cycle, while a hydraulic tailstock can be important for jobs that need axial support. However, the source does not specify turret indexing condition, toolholder type, live tooling, or tailstock quill details, so those points should be checked during the procurement process. If your parts rely on repeatable support from the tailstock, this is one of the first areas to confirm.
Important note on the “8-inch hydraulic” entry
The source includes the phrase “8-inch hydraulic,” but it does not explicitly define the component. In many machine listings, this could refer to an 8-inch hydraulic chuck, but that interpretation is not directly stated in the supplied material. For accuracy, buyers should treat this item as incomplete and ask the seller to confirm exactly what the 8-inch hydraulic configuration refers to. Until that is clarified, it should remain a verification item rather than a published fact.
Typical application reference
- General CNC turning of small to medium rotational parts
- Jobs requiring a standard FANUC-based control environment
- Workpieces within the listed 420 mm machining length
- Applications that may benefit from a 12-station turret and hydraulic tailstock support
These use cases are only a practical reading of the listed parameters, not a promise of performance. The actual fit depends on the part drawing, tooling package, and the current machine condition.
If this Leadwell T-6 matches your target capacity range, the next practical step is to contact the supplier for machine status, pricing, and trial operation details before making a final technical comparison. In procurement terms, the parameter sheet is the starting point; the seller’s confirmation is what turns it into a decision.
Procurement reading guide
When comparing this machine with other lathes, buyers often focus on three questions: does the work envelope suit the part, does the control fit the shop floor, and does the configuration support the intended process? The data provided here answers the first two at a basic level and gives an initial view of the third. For that reason, the listing is useful for shortlist building, but it still requires a direct check on the missing operational details.
