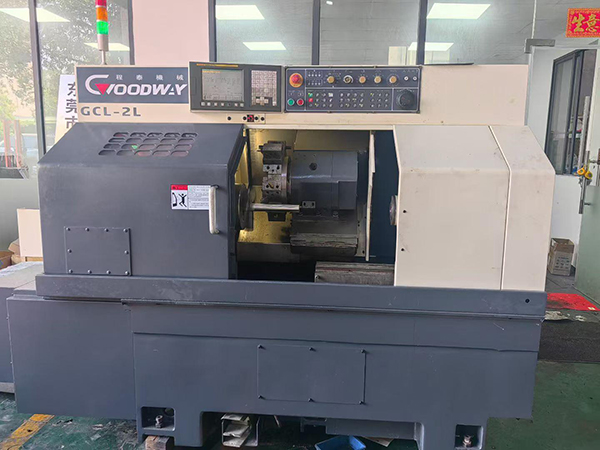

Used Goodway GCL-2L CNC Lathe
Author：JINYI Date：2026-06-25
A pre-owned Goodway GCL-2L CNC lathe (2019) with FANUC 0i-TD control is now available on the used machinery market and open for immediate inspection. Delivering 400 mm swing over bed, 230 mm maximum turning diameter, and 600 mm turning length, this horizontal turning center is built for medium-duty production across automotive, aerospace, medical device, and general engineering shops. Its 15 kW spindle motor, 4,500 rpm top speed, and 52 mm bar capacity make it a versatile single-machine solution for shafts, bushings, connectors, and mold components. Located in China and ready for powered evaluation, this unit gives buyers a fast path to near-current capability without new-machine lead times.
Market Availability & Inspection Readiness
Stock number 812455 identifies a single 2019-built Goodway GCL-2L that has recently come onto the market. The machine is located in China and can be inspected under power by appointment. Because this is a physical, on-hand unit — not a consignment or remote listing — procurement managers can assess actual condition, spindle runout, and control response before committing. The pairing of a Taiwan-built machine with a widely supported FANUC control makes this lathe a practical choice for factories looking to add capacity without waiting on factory-order delivery. The value lies in its balanced work envelope: large enough for typical job-shop parts, yet compact enough for cellular layouts.
Compared with ordering a new equivalent, acquiring this used GCL-2L can significantly shorten the commissioning timeline, assuming the inspection confirms mechanical and electrical integrity. The machine also comes with standard tooling readiness — the A2-6 spindle nose ensures broad chuck and collet compatibility.
Key Specifications & What They Mean on the Shop Floor
MAX SWING OVER BED: 400 mm
MAX TURNING DIAMETER: 230 mm
MAX TURNING LENGTH: 600 mm
SPINDLE BORE: 52 mm
SPINDLE MOTOR: 15 kW
SPINDLE SPEED: 4500 rpm
SPINDLE NOSE: A2-6
CNC CONTROL: FANUC 0i-TD
Swing and turning diameter: The 400 mm swing accommodates raw stock up to that diameter, while the 230 mm maximum turning diameter determines the finished part envelope. This combination works well for medium-batch flanges, pulleys, and bearing housings. A turning length of 600 mm covers typical shaft work found in hydraulic cylinders, gearbox shafts, and spindle components, without demanding an oversized machine footprint.
Spindle motor (15 kW) and 4,500 rpm: These figures deliver enough torque for roughing steel and stainless steel, while the high rpm range supports fine finishing on aluminum or brass parts. Shops that require both heavy cuts and precise surface finishes will benefit from this speed-power balance. A 52 mm spindle bore enables bar feeding of diameters up to 52 mm, boosting unattended productivity when paired with a bar loader — an important detail for high-mix, medium-volume operations.
The A2-6 spindle nose is standard in its class, meaning chucks, collet chucks, and face drivers are readily sourced. FANUC 0i-TD control supports standard G-code and canned cycles, so existing part programs or CAM posts can be transferred with minimal editing.
which operations should consider this machine now
The Goodway GCL-2L suits a broad range of production environments precisely because its specifications are neither too small nor overly specialized. Below are the typical profiles that gain immediate value from this used CNC lathe:
- Automotive parts suppliers: producing wheel hubs, brake pistons, alternator shafts, and small transmission components within the 230 mm turning diameter.
- Aerospace subcontractors: machining hydraulic fittings, bushings, and small structural parts where FANUC control reliability and consistent turn-mill prep work matter.
- Mold & die shops: turning ejector pins, guide pillars, and core inserts up to 600 mm long, often from tool steels that capitalize on the spindle torque.
- Medical device manufacturers: crafting orthopedic implants, bone screws, and surgical instrument bodies from stainless or titanium, taking advantage of high-rpm finishing passes.
- Electronics & connector producers: small, precision parts such as sensor housings and connector shells, supported by the 4,500 rpm capability and crisp FANUC interpolation.
- General job shops: the "one machine, many applications" flexibility reduces the need for multiple lathe sizes when handling mixed batches of prototypes and repeat orders.
Frequently Asked Questions
Is the Goodway GCL-2L CNC lathe still in stock and available?
Yes, this 2019 unit is physically in stock and available for inspection. It has not been sold and can be reserved for evaluation.
Can I visit and inspect the machine before purchasing?
Absolutely. An in-person, powered inspection is encouraged. You can verify spindle runout, control operation, and axis movement at our Dongguan location.
What kind of parts can this used CNC lathe realistically produce?
It handles parts up to 230 mm diameter and 600 mm long — typical shafts, flanges, bushings, connectors, and medical/mold components in steel, stainless, aluminum, and engineering plastics.
Is the FANUC 0i-TD control compatible with our existing programs?
Generally yes. The 0i-TD uses standard G-code and ISO programming, so most CAM postprocessors and existing FANUC programs can be adapted with minor modifications.
How quickly can the machine be put into production after purchase?
Because it is a complete, functional used lathe, commissioning mainly involves transport, leveling, and connection to power. Depending on your facility readiness, it can begin cutting parts shortly after relocation.
What makes this GCL-2L more versatile than other used CNC lathes?
Its combination of 4,500 rpm top speed, 15 kW power, 52 mm bore, and 600 mm turning length allows it to shift between small-lot precision work and heavier automotive jobs — one machine covering multiple production styles.
