Used Tsugami M08JL5-II CNC Lathe for Turning Production

Author：JINYI Date：2026-06-03

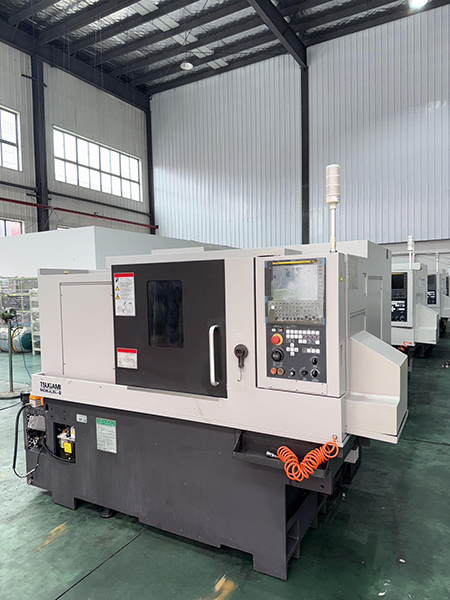

Tsugami M08JL5–II CNC turning lathe

This used Tsugami M08JL5-II CNC lathe is a Japanese CNC turning machine equipped with a FANUC 0i-TF Plus control, 280 mm maximum turning diameter, 500 mm maximum machining length, 65 mm bar capacity, and 4,000 rpm spindle speed. It is suitable for manufacturers producing shaft parts, bushings, sleeves, precision turned components, and medium-size bar-fed parts for automotive, aerospace, mold making, medical device, and electronics supply chains. The machine is in stock under inventory number 812205, and is available for evaluation for inspection, tooling fit, shipment planning, and production suitability.

Stock Status and buying value

The Tsugami M08JL5-II CNC lathe is currently listed in stock, which is important for buyers who want to inspect a real machine rather than make a decision from catalog data alone. For procurement managers and production teams, an in-stock CNC lathe helps shorten the buying process because the machine, model, control system, travels, spindle data, and footprint can be checked against the factory’s actual part mix before the inquiry moves forward.

This model falls into a practical mid-range category for turning work. The 280 mm maximum machining diameter gives it capacity beyond small precision pins, while the 65 mm bar through-hole makes it useful for bar-fed components, hydraulic fittings, threaded parts, connectors, spacers, collars, and shaft-type products. The 500 mm maximum machining length is also important for buyers who need flexibility between short-cycle small parts and longer workpieces requiring stable Z-axis travel.

In the used CNC machinery market, Tsugami machines are often considered for precision turning applications where compact size, familiar CNC control, and bar work capability matter. This M08JL5-II, equipped with FANUC 0i-TF Plus, suits factories that want operators and programmers to work with a widely used industrial control platform. Its current stock status gives buyers the opportunity to compare the machine directly with production requirements such as part diameter, cycle rhythm, available floor space, and bar material size.

Key Specifications and Production Readiness

The key production question is not simply whether this is a used CNC lathe, but whether its capacity matches the parts the factory plans to run. The M08JL5-II provides 160 mm X-axis travel and 560 mm Z-axis travel, giving the machine room for facing, turning, grooving, boring, and threading operations on medium-size components. For process engineers, the Z-axis travel supports workpieces up to 500 mm machining length, making the machine relevant for shafts, pins, sleeves, and longer turned parts that may exceed the practical range of smaller compact lathes.

The 280 mm maximum machining diameter provides a useful turning envelope for round parts, flanges, housings, and cylindrical blanks. In mold making, this can be useful for inserts, bushings, and round tooling components. In automotive and aerospace supply chains, it can be considered for bushings, spacers, connector bodies, precision shafts, and light structural turned parts, provided the material, chucking method, and tooling arrangement are suitable. In electronics and medical device production, the advantage is that one machine can cover several component families, from smaller bar-fed parts to moderate-diameter precision components.

The 4,000 rpm maximum spindle speed is relevant for shops machining steel, aluminum, brass, stainless steel, and engineering materials under a controlled turning process. The spindle motor power of 11 kW continuous and 18.5 kW peak should be reviewed against the intended cutting depth, material hardness, insert selection, and cycle time expectations. For many buyers, this combination is attractive because it supports general turning as well as more demanding roughing operations when the workholding and tooling are properly matched.

Rapid traverse speeds of 24 m/min on the X-axis and 27 m/min on the Z-axis affect non-cutting movement. This matters for factories running batches that require repeated tool approaches, retracts, and position changes. Although actual output depends on the program, tooling, operator practice, and material, these rapid rates show that the machine is intended for a modern production pace rather than occasional manual-style machining.

Brand and Model	Tsugami M08JL5-II CNC Lathe
Control System	FANUC 0i-TF Plus CNC control
Maximum Turning Diameter	280 mm, suitable for medium-size round components
Maximum Machining Length	500 mm, useful for shafts, sleeves, and longer turned parts
Bar Through-Hole Diameter	65 mm, important for bar-fed turning work
Spindle Speed	Up to 4,000 rpm
Spindle Motor Power	11 / 18.5 kW continuous / peak
Axis Travel	X-axis 160 mm; Z-axis 560 mm
Rapid Traverse	X-axis 24 m/min; Z-axis 27 m/min
Machine Footprint	1970 × 1778 × 1600 mm
Machine Weight	3830 kg
Year	2023

Why This Machine is worth considering now

In the current used CNC machinery market, buyers often look for machines that combine a known control system, reasonable floor space, practical bar capacity, and a turning envelope large enough for more than miniature parts. The Tsugami M08JL5-II fits that requirement with its 65 mm bar passage, 4,000 rpm spindle speed, 500 mm machining length, and FANUC 0i-TF Plus control in a compact machine footprint.

Its value is strongest as a versatile all-rounder. A factory may use the same machine capability for automotive spacers one month, mold components the next, and electronics connector bodies after that. For subcontract manufacturers, this “one machine, multiple applications” approach can be more useful than a machine optimized for only one narrow part. The ability to review an in-stock machine also helps buyers move from general market research to a clear production-fit decision.

Commercially, the next step is straightforward: request current photos, confirm stock number 812205, prepare sample part drawings or part size ranges, and arrange an inspection discussion based on the actual production plan. The more specific the inquiry, the easier it is to decide whether this used Tsugami M08JL5-II CNC lathe should be shortlisted for shipment and installation planning.

Frequently Asked Questions

Is the used Tsugami M08JL5-II CNC Lathe in stock?

Yes. This machine is listed in stock under inventory number 812205. Buyers can send an inquiry to confirm current availability and inspection arrangements.

What production work is this Tsugami M08JL5-II best suited for?

It is suitable for medium-size CNC turning work, especially shaft parts, sleeves, bushings, fittings, collars, spacers, connector bodies, and bar-fed components within 280 mm diameter, 500 mm length, and 65 mm bar capacity.

What should be checked during inspection of this CNC lathe?

Key checks include FANUC 0i-TF Plus control operation, spindle running condition, X-axis and Z-axis movement, usable work envelope, and whether the machine dimensions and 3830 kg weight fit the buyer’s site plan.

Is the 65 mm bar through-hole important for purchase evaluation?

Yes. The 65 mm bar through-hole is a major factor if the factory plans bar-fed production. Buyers should compare their raw bar diameter, chucking method, and finished part size before making a decision.

Which industries can use this Tsugami CNC lathe?

It can be evaluated for automotive, aerospace, mold making, medical device, and electronics component production, provided the parts match the stated diameter, length, spindle power, and tooling requirements.

What information should be included in an inquiry?

Include the stock number 812205, target part drawings or dimensions, material, batch size, required tolerance range, bar or chucking plan, and preferred inspection or shipment timing.
