Used Leadwell VH-1060 Vertical Machining Center Specs for Production Evaluation

Author：JINYI Date：2026-05-29

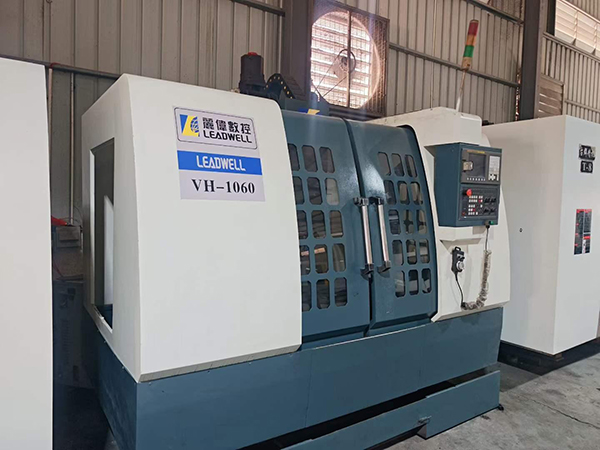

This used Leadwell VH-1060 Vertical Machining Center is a Taiwan-made 2017 CNC milling machine equipped with Fanuc 0i-MD control, 1000 x 600 x 500 mm XYZ travel, a BT40 spindle taper, 8000 rpm spindle speed, and a 20-tool umbrella-type magazine. It is suitable for manufacturers machining medium-size precision components, molds, fixtures, plates, housings, and general prismatic parts. Stock number 812141 is in stock, available now, available for inspection, and offers a cost-effective way to add machining capacity without waiting for new-machine lead time.

Core Specifications and What They Mean in Production

The Leadwell VH-1060 is a vertical machining center designed for general CNC milling work where part size, tool access, and process flexibility matter more than single-purpose automation. For factories comparing used VMC options, the key question is not simply whether the machine can cut, but whether its travel, spindle interface, tool capacity, and CNC control match the parts already in production.

Machine Name	Used Leadwell VH-1060 Vertical Machining Center
Brand and Model	Leadwell VH-1060
Origin	Taiwan
Year	2017
CNC Control	Fanuc 0i-MD
XYZ Axis Travel	1000 x 600 x 500 mm
Spindle Taper	BT40
Maximum Spindle Speed	8000 rpm
Tool Magazine	20-tool umbrella-type automatic tool changer
Stock Number	812141

The 1000 mm X-axis travel provides room for longer plates, brackets, mold inserts, and multi-part fixtures. The 600 mm Y-axis travel is useful for wider housings, cavities, and fixture layouts where several parts need to be clamped at the same time. The 500 mm Z-axis travel gives practical vertical clearance for common milling setups, vise work, tooling blocks, and parts that require drilling, tapping, or pocket machining from above.

The BT40 spindle taper places this machine in a widely used tooling category. For shops already using BT40 tool holders, end mills, drills, face mills, boring heads, and tapping tools, the tooling transition can be straightforward. The 8000 rpm spindle speed supports a broad cutting range, including roughing and finishing of steels at moderate spindle speeds, aluminum machining with suitable tooling, and general mold or fixture machining where both surface finish and cycle balance are important.

The Fanuc 0i-MD CNC control is important for production planning because many operators, programmers, and process engineers are already familiar with Fanuc-based programs. For a factory adding this used Leadwell VH-1060 VMC in stock to an existing CNC department, familiar control operation can reduce changeover friction and help standardize programming methods across machines.

Tooling Match and Part Fit

Tooling compatibility is one of the fastest ways to judge whether this Leadwell vertical machining center fits your factory. The BT40 spindle taper is commonly used for medium-duty milling, drilling, tapping, boring, chamfering, and finishing. It is not limited to one industry or one part family, making the VH-1060 a versatile all-round VMC for factories that need one machine to cover several production tasks rather than a single dedicated component.

Suitable Tooling

BT40 end mill holders for pocketing, profiling, and contour milling
Face mill holders for plate facing and datum preparation
Drill chucks and collet holders for hole-making operations
Tapping tools for threaded holes in fixtures, molds, and housings
Boring tools for more controlled hole finishing when required

Suitable Part Families

Automotive brackets, plates, dies, and fixture components
Aerospace structural parts and aluminum machining work within travel range
Mold inserts, cores, cavities, and tooling plates
Medical device components requiring multiple milled features
Electronics housings, heat sink parts, precision plates, and jigs

The 20-tool umbrella-type automatic tool changer is also important for process planning. A 20-position magazine can handle typical VMC programs that include roughing, semi-finishing, finishing, drilling, tapping, chamfering, and inspection-related probing tools when the process layout is controlled. For very complex parts requiring many cutters, engineers should compare the required tool list with the 20-tool capacity before planning unattended cycles or long programs.

Part fit should be checked against the 1000 x 600 x 500 mm travel envelope, workholding height, cutter length, and the clearance required for safe tool changes. For production managers, this means reviewing not only the nominal part size, but also the vise, fixture plate, clamps, parallels, cutting tool projection, and any rotary device planned for the job. If your work includes medium-size prismatic components, multiple smaller components on a fixture, or mold-related blocks within the travel range, this used Leadwell VH-1060 Vertical Machining Center can support many applications from one machine platform.

How the Key Specs Affect Machine Selection

Selecting a used vertical machining center is mainly about production fit. The VH-1060 offers a practical balance of travel size, tooling availability, spindle speed, and CNC control. It is especially relevant for factories that need to increase milling capacity quickly and want a machine that can move between job-shop, tooling, mold, and component machining work.

Travel Size: 1000 x 600 x 500 mm

XYZ travel is one of the most important selection factors. A 1000 mm X-axis suits long workpieces and multi-part fixture layouts. A 600 mm Y-axis provides more cross-travel than smaller VMCs, which helps when machining wider parts or setting several components across a fixture. The 500 mm Z-axis should be checked against your tallest workpiece and longest tool assembly. For many production teams, this travel range is large enough to handle daily machining without moving to a much larger machine footprint.

BT40 Spindle Taper

BT40 is a practical choice for factories that need one machine for many applications. It supports common milling cutters and drilling tools while keeping tooling availability and cost favorable compared with less common interfaces. If your current tool room already uses BT40 holders, this machine can fit existing tool inventory and simplify cutter allocation across multiple VMCs.

8000 rpm Spindle Speed

An 8000 rpm spindle is suitable for general machining work, including steel, cast iron, aluminum, and engineering plastics when paired with the right cutter and cutting data. It is not a dedicated ultra-high-speed spindle, but it provides enough speed for many finishing, drilling, and contouring jobs. Process engineers should compare the required surface speed of their materials and cutter diameters with the 8000 rpm limit.

Fanuc 0i-MD Control

Control system compatibility matters when transferring programs, training operators, and standardizing CNC workflow. The Fanuc 0i-MD system is a familiar control platform in many machining departments. For factories already using Fanuc controls, this can make the VH-1060 easier to integrate into existing programming practices and shop floor routines.

Frequently Asked Questions

What does the 1000 x 600 x 500 mm travel mean for part selection?

The travel defines the maximum axis movement available for machining. On this Leadwell VH-1060, the 1000 mm X-axis is useful for longer plates and multi-part fixtures, while the 600 mm Y-axis supports wider parts. The 500 mm Z-axis should be checked together with workholding height, tool length, and safe clearance.

Is the BT40 spindle suitable for mold making and general component machining?

Yes. BT40 is widely used for medium-duty milling, drilling, tapping, boring, and finishing. It is suitable for mold inserts, tooling plates, brackets, housings, fixtures, and many general components, provided the cutter size and cutting load match the machine setup.

How should engineers evaluate the 8000 rpm spindle speed?

The 8000 rpm spindle speed is suitable for many steel, aluminum, cast iron, and plastic machining jobs. Engineers should compare cutter diameter, material, required surface speed, and finish requirements. If your process uses very small cutters at very high surface speeds, check whether 8000 rpm is sufficient.

Is a 20-tool umbrella-type magazine enough for production work?

A 20-tool magazine is sufficient for many programs involving roughing, finishing, drilling, tapping, and chamfering. For complex parts with many tool types, compare the complete tool list against the 20 available positions before planning the cycle.

Who should consider this used Leadwell VH-1060 Vertical Machining Center?

It is suitable for procurement managers, factory owners, production managers, and process engineers who need a used vertical machining center in stock for medium-size CNC milling work. It fits automotive, aerospace, mold making, medical device, electronics, fixture, and general machining applications within the listed specifications.

What should be checked before sending an inquiry for this machine?

Check your largest part size, fixture height, BT40 tooling inventory, required spindle speed, number of tools per program, and control compatibility. If those points match the VH-1060 specs, stock number 812141 is available now for inspection and purchase evaluation.
