Used Neway PM3080HA CNC Gantry Machining Center Specs and Production Fit

Author：JINYI Date：2026-05-25

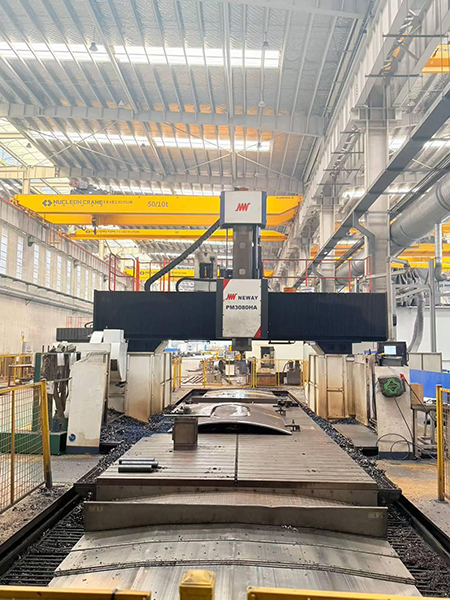

Used Neway PM3080HA CNC Gantry Machining Center

This used Neway PM3080HA CNC Gantry Machining Center is a large-format CNC bridge-type machining solution with 8500 × 4200 × 1250 mm axis travel, an 8000 × 3000 mm worktable, a BT50 spindle interface, Fanuc MF Plus control, and a 20-tool magazine. It is suitable for shops machining large dies, structural plates, aerospace tooling, automotive molds, medical device fixtures, and electronics-related tooling plates. Listed under stock number 67958, this machine is in stock, available for inspection, and positioned as a cost-effective, ready-to-ship capacity upgrade for buyers who need wide machining coverage without waiting for a new machine lead time.

Fast Evaluation Snapshot

Brand and model: Neway PM3080HA
Machine category: CNC gantry machining center
Control system: Fanuc MF Plus
Travel: 8500 × 4200 × 1250 mm
Worktable: 8000 × 3000 mm
Spindle taper: BT50
Status: in stock and available now

Best-Fit Production Work

Automotive die and mold machining
Aerospace tooling, plates, and structural components
Mold bases and large precision fixtures
Medical device tooling and equipment frames
Electronics fixture plates and large housings

Core Specifications and What They Mean in Production

The Neway PM3080HA is designed for large work envelopes where a standard vertical machining center cannot cover the part in a single setup. For procurement managers and production engineers evaluating a used CNC gantry machining center, the key question is not just the rated machine size, but whether the travel, table, spindle interface, clearance, and tooling configuration match the parts to be produced.

Machine Name	Neway PM3080HA CNC Gantry Machining Center
Stock Number	67958
Brand	Neway
Model	PM3080HA
Origin Listed	United States
Year Listed	2021
CNC Control	Fanuc MF Plus
3-Axis Travel	8500 × 4200 × 1250 mm
Worktable Size	8000 × 3000 mm
Gantry Clearance Height	1700 mm
Gantry Width	3800 mm
Square Ram	420 × 420 mm
Tool Magazine	20 tools
Spindle Interface	BT50
Included Configuration	Fully automatic universal head, head magazine, oil cooler, main chip conveyor, and built-in dual screw chip conveyors

The 8500 mm X-axis travel and 8000 mm table length allow long plates, mold bases, rail-type components, and aerospace tooling structures to be machined with fewer repositioning steps. The 4200 mm Y-axis travel, together with the 3000 mm table width and 3800 mm gantry width, supports wide fixtures and large workpieces while leaving room for clamping. The 1250 mm Z-axis travel and 1700 mm gantry clearance are important for tall molds, raised fixtures, welded structures, and workpieces that require longer tool projection.

The BT50 spindle taper is a major selection point. Compared with smaller taper systems, BT50 is typically preferred for heavier milling, large face mills, roughing cutters, long-reach tools, and stable cutting on large mold or structural parts. For factories machining steel, cast iron, aluminum tooling plates, or large non-ferrous components, the spindle interface helps determine which cutting tools can be used effectively.

Tooling Match and Part Fit

Tooling compatibility is central to deciding whether this used Neway PM3080HA CNC Gantry Machining Center belongs in a production line. The 20-tool magazine is suitable for mixed operations such as rough milling, semi-finishing, finishing, drilling, countersinking, chamfering, and spot facing. For large workpieces that require multiple tools but not an excessive number of unattended tool changes, this capacity can support a practical machining flow without creating an overly complex tool management process.

The fully automatic universal head extends the machine beyond basic vertical machining. It is useful when parts require angled surfaces, side machining, bevel features, mold surface access, or fixture machining from multiple directions. The included head magazine supports head handling as part of the machine configuration, which is important for users who need one machine to cover multiple part families.

How the Key Specs Affect Machine Selection

Work Envelope: 8500 × 4200 × 1250 mm Travel

Travel determines machining reach, not only maximum workpiece size. Buyers should compare the 8500 mm length and 4200 mm width with the actual toolpath envelope, clamp locations, probe or tool clearance if used, and safe approach movements. For large dies and plates, having more travel than the physical part size helps reduce unnecessary refixturing.

Table Size: 8000 × 3000 mm

The table size should be checked against the part footprint and fixturing strategy. A long worktable allows a single large part or multiple medium-size workpieces to be set up in one cycle. This is valuable for factories trying to increase capacity quickly because one gantry machine can take on work that would otherwise occupy several smaller machines or require repeated setups.

Gantry Clearance and Width

The 1700 mm gantry clearance height is important for tall fixtures, raised workpieces, and long tools. The 3800 mm gantry width helps determine whether wide components can pass under the bridge structure with suitable clamp clearance. These two specifications should be reviewed together with table width and part height, especially for welded frames, mold assemblies, and tooling nests.

BT50 Spindle and 420 × 420 mm Square Ram

The BT50 interface and 420 × 420 mm square ram support the machine’s role as a heavy-duty machining platform. For process engineers, this means the machine should be evaluated against cutter size, tool overhang, material removal requirements, and surface finish targets on large parts. The square ram dimension is also relevant when assessing rigidity during extended Z-axis machining or angled head work.

Fanuc MF Plus Control

Fanuc MF Plus is a familiar CNC platform in many machining departments. For a used machine purchase, this can make operator adaptation easier where Fanuc-based programming and shopfloor operation are already standard. Buyers should still verify program compatibility, axis operation, and control functions during inspection.

Frequently Asked Questions

What does the 8500 × 4200 × 1250 mm travel mean for part selection?

It means the machine can cover very large toolpaths across length, width, and height. Buyers should compare these travels with the full machining envelope, including clamps, fixtures, tool approach space, and any required angled head movement.

Is the 8000 × 3000 mm table suitable for automotive die work?

Yes, it can be suitable for large die plates, mold bases, checking fixtures, and stamping tooling, provided the workpiece footprint, fixture system, and machining height fit within the table area and gantry clearance.

Why is the BT50 spindle interface important on this machine?

BT50 tooling is commonly selected for heavier milling, larger cutters, and long-reach tools. On a gantry machining center of this size, BT50 helps match the spindle interface to large-part roughing and finishing requirements.

How does the automatic universal head affect production flexibility?

The automatic universal head allows the machine to approach features from different angles, which can reduce additional setups on large molds, tooling plates, and structural components. It is especially useful when one machine must support multiple part families.

Is a 20-tool magazine enough for large gantry machining?

For many large-part jobs, 20 tools can cover roughing, finishing, drilling, chamfering, and spot-facing operations. Buyers with complex parts should compare the required tool list with the magazine capacity before purchase.

Who should consider this used Neway PM3080HA CNC Gantry Machining Center?

It is a strong fit for factories that need large-format machining capacity for automotive, aerospace, mold making, medical device tooling, and electronics fixtures. It is available now for inspection and inquiry.
