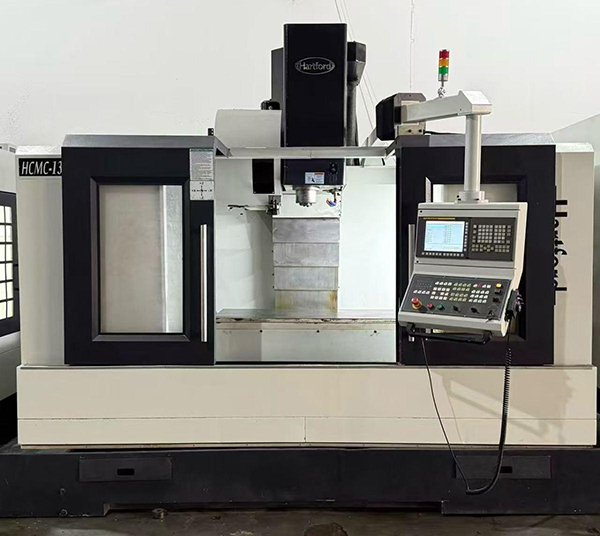

Used Hartford HCMC-1370 Vertical Machining Center

Author：JINYI Date：2026-05-23

This used Hartford HCMC-1370 Vertical Machining Center is a Taiwan-built CNC machining center with a Fanuc Oi-MF control, 1300 x 700 x 600 mm X/Y/Z travel, a 1400 x 700 mm table, 1200 kg table load, BT40 spindle, 18.5 kW spindle power, 15000 rpm maximum spindle speed, and a 24-tool magazine. The machine is in stock and is suitable for shops machining medium to large plates, mold bases, precision fixtures, aluminum structural parts, and mixed-batch components where one VMC must cover a wide range of work.

Stock Status and buying value

The Hartford HCMC-1370 is available as a used vertical machining center in stock under stock number 67886. For purchasing managers and production teams, the main value is not just the model name, but the combination of travel, table size, table load, spindle speed, and tool capacity. The 1300 mm X-axis and 700 mm Y-axis allow the machine to handle workpieces larger than many compact VMCs, while the 600 mm Z-axis gives useful clearance for taller setups, vise stacks, fixture plates, and mold-related machining.

In practical production terms, this model sits between a small job-shop VMC and a heavy bridge-type machine. It is not limited to one narrow part family. The BT40 spindle, 15000 rpm speed, and 18.5 kW spindle power make it relevant for aluminum, steel, non-ferrous parts, mold inserts, and general precision machining. That flexibility is why machines in this size class remain attractive when factories need extra CNC capacity without changing their full process flow.

The machine is a major manufacturing area serving mold making, automotive components, electronics, and precision tooling suppliers. Because it is in stock, interested buyers can focus on production fit, machine inspection, shipment planning, and tooling compatibility instead of evaluating the machine only from a catalogue description.

Key Specifications and Production Readiness

The first production question for this used Hartford HCMC-1370 Vertical Machining Center is whether the working envelope fits your parts and fixtures. With 1300 x 700 x 600 mm travel, the machine can handle long plates, multi-part fixtures, mold components, die blocks, and structural parts that need more space than an 850 mm or 1000 mm class machining center. The 1400 x 700 mm table provides room for both the workpiece and clamping hardware, which is important when running multiple parts in one setup.

The 1200 kg table load is especially important for mold shops, tooling plates, steel fixtures, and heavy workholding. Buyers should consider the combined weight of the workpiece, fixture, vises, and cutting load. A table may be large enough in size but still become a bottleneck if the load rating is too low. The listed 1200 kg capacity gives this machine a wider range for heavier production work.

The BT40 spindle configuration matches common tooling used by automotive suppliers, aerospace subcontractors, mold shops, medical device fixture makers, and electronics tooling departments. Compared with larger taper machines, BT40 is often preferred where spindle speed, tool availability, and mixed-material machining are important. The 15000 rpm spindle speed is useful for aluminum, copper, graphite electrodes, small tools, and finishing work, while the 18.5 kW spindle power supports general steel machining and mold work.

The Fanuc Oi-MF CNC system is also important for production readiness because many operators, programmers, and process engineers already understand Fanuc programming and operation. For a factory adding another machining center to an existing workshop, familiar control operation can reduce friction when transferring programs, setting offsets, and training operators across similar machines.

Machine Category	CNC Vertical Machining Center
Brand	Hartford
Model	HCMC-1370
Origin	Taiwan
Year	2018
Current Location	China
CNC Control	Fanuc Oi-MF
X/Y/Z Travel	1300 x 700 x 600 mm
Table Size	1400 x 700 mm
Maximum Table Load	1200 kg
Spindle Taper	BT40
Spindle Power	18.5 kW
Maximum Spindle Speed	15000 rpm
Tool Magazine Capacity	24 tools

which operations should consider this machine now

This used Hartford HCMC-1370 VMC is a strong option for factories that need a versatile all-round machining center rather than a single-purpose machine. Its working range and spindle specification make it practical for automotive, aerospace, mold making, medical device, and electronics production environments. The same machine can be used for roughing and finishing mold plates, machining aluminum housings, producing fixture components, making precision brackets, or cutting engineering samples before a project moves into larger batch production.

Automotive Component and Fixture Shops

Automotive suppliers often need to machine brackets, housings, tooling plates, checking fixtures, and small-to-medium production batches. The 1400 x 700 mm table supports multi-part setups, while the 24-tool magazine provides space for a practical mix of drills, end mills, chamfer tools, taps, and finishing cutters in one program.

Aerospace and Precision Structural Parts

For aerospace subcontract machining, the 15000 rpm spindle is useful for aluminum structural components and thin-wall features. The 1300 mm X-axis travel also provides room for longer parts and fixture rails. Buyers should confirm exact accuracy requirements during inspection, but the machine category and working envelope are relevant for many precision structural machining jobs.

Mold Making and Tooling

Mold shops can benefit from the 600 mm Z-axis stroke, 1200 kg table load, and BT40 spindle. These specifications support mold bases, inserts, electrode holders, plates, and tooling components. Table capacity is especially important when steel blocks and heavy clamping systems are involved.

Medical Device and Electronics Tooling

Medical device manufacturers and electronics tooling suppliers often need accurate machining for fixtures, nests, plates, and small precision parts. The Fanuc Oi-MF control and 24-tool magazine help manage mixed operations when the machine switches between drilling, pocketing, profiling, and finishing.

Frequently Asked Questions

Is the used Hartford HCMC-1370 Vertical Machining Center currently in stock?

Yes. This Hartford HCMC-1370 VMC is listed as current stock under stock number 67886. Buyers can send an inquiry to confirm inspection timing and shipment-related details.

What production work is this Hartford HCMC-1370 best suited for?

It is suitable for medium to large CNC milling work, including mold bases, tooling plates, fixtures, automotive brackets, aluminum structural parts, electronics tooling, and medical device production fixtures. The 1300 x 700 x 600 mm travel and 1400 x 700 mm table support larger setups than smaller VMCs.

Why does the 15000 rpm BT40 spindle matter for purchase evaluation?

The 15000 rpm spindle is useful for aluminum machining, finishing cuts, smaller tools, and precision profiling. The BT40 taper also keeps the machine compatible with widely used CNC tooling, making it practical for factories handling mixed materials and mixed part types.

What should be checked before purchasing this used VMC?

Key checks include spindle running condition, full axis movement across the 1300 x 700 x 600 mm travel, table surface condition, 24-tool magazine operation, and Fanuc Oi-MF control functions. These checks help connect the machine’s condition with real production suitability.

Is this machine a good fit for a factory needing one CNC for many applications?

Yes, if the factory needs a flexible machining center for automotive, aerospace, mold making, medical device, and electronics-related work. Its travel, table load, BT40 spindle, 15000 rpm speed, and 24-tool magazine support a wide range of milling, drilling, tapping, and finishing operations.

What information should be included when sending an inquiry?

Include your target part size, material, fixture weight, required tolerances, tooling type, and expected batch rhythm. This makes it easier to evaluate whether the Hartford HCMC-1370 specifications match your actual production needs.
