Used Zeiss PRISMO 7/9/5 Verity CMM Available for Immediate Inspection
Author：JINYI Date：2026-05-15

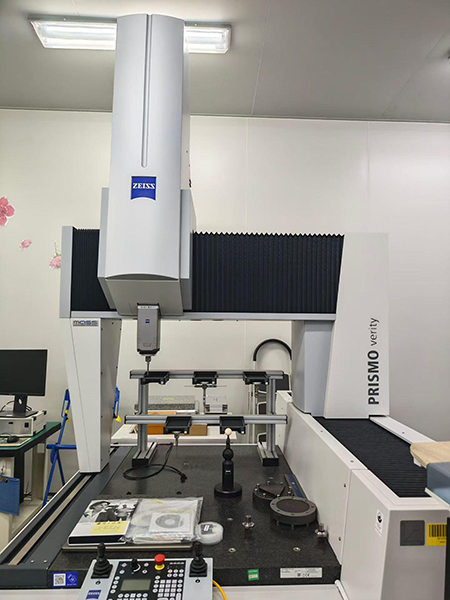

This 2020 Zeiss PRISMO 7/9/5 verity Coordinate Measuring Machine (CMM) is in stock and available for immediate inspection in Wuxi. Engineered for high-precision quality control, this unit features a 700 x 900 x 500 mm measurement volume, making it an ideal solution for facilities requiring rigorous dimensional verification. Renowned for high-speed scanning and exceptional accuracy, this machine is well-suited for automotive, aerospace, and precision manufacturing applications. The unit is ready for on-site inspection by appointment.
Stock Status and buying value
This 2020 model (Stock ID: 811949) offers a strategic balance of modern metrology performance, current software compatibility, and cost-efficiency. Acquiring a pre-owned Zeiss PRISMO verity allows manufacturers to integrate high-end measurement capabilities into their production lines while bypassing the extended lead times typical of new capital equipment procurement.
The machine is available for immediate on-site inspection. We encourage procurement teams and quality managers to schedule an appointment to verify the condition of the granite table, the probe system, and the overall operational status of the machine.
Key Specifications and Production Readiness
The Zeiss PRISMO verity series is engineered for high-speed, high-precision measurement. Review the specifications below to ensure this unit aligns with your specific part tolerances and throughput requirements.
| Parameter | Specification |
|---|---|
| Model | PRISMO 7/9/5 verity |
| Measurement Range (X/Y/Z) | 700 x 900 x 500 mm |
| MPE (E0) | 0.7 + L/400 μm (at 19°C–22°C) |
| Repeatability (R0) | 0.6 μm |
| Scanning Error (THP) | 0.9 μm |
| Measurement Time (MPT) | 40 s |
| Form Error (RONt) | 0.7 μm |
Production Interpretation:
- Measurement Volume: The 700 x 900 x 500 mm envelope is optimized for medium-sized components, including engine blocks, complex housings, and aerospace sub-assemblies.
- Accuracy & Repeatability: With an E0 of 0.7 + L/400 μm and R0 of 0.6 μm, this machine is designed for high-tolerance parts where micron-level deviations are critical.
- Throughput: The MPT of 40 seconds indicates high-speed scanning capability, essential for production lines requiring 100% inspection or high-volume sampling without creating bottlenecks.
which operations should consider this machine now
The Zeiss PRISMO verity is a versatile workhorse in the metrology industry. Its design prioritizes flexibility, allowing it to adapt to diverse measurement tasks across multiple sectors.
Automotive and Aerospace
For manufacturers producing gearboxes, turbine blades, or structural castings, the PRISMO’s ability to handle complex geometries with high repeatability ensures that parts meet stringent safety and performance standards.
Medical Device Manufacturing
The precision offered by the 0.7 μm form error (RONt) makes this CMM ideal for checking the circularity and profile of medical implants and precision instruments, where dimensional integrity is non-negotiable.
Electronics and Mold Making
In mold making, where the accuracy of the cavity and core directly impacts the quality of the final molded part, this machine provides the necessary verification to reduce scrap rates and optimize tooling adjustments.
Inspection Points Before Purchase
To ensure this machine meets your production requirements, we recommend the following inspection steps during your site visit:
- Granite Table Integrity: Inspect the granite surface for any scratches, chips, or signs of improper handling that could affect the stability of the measurement setup.
- Probe System Functionality: Verify the movement and calibration status of the probe head. Ensure there is no audible grinding or erratic movement during test runs.
- Air Supply and Pressure: Check the air bearings. The system requires clean, dry, and stable air pressure to operate within the specified accuracy range.
- Software and Controller: Confirm the controller version and software compatibility with your existing CAD/CAM workflows.
Why This Machine is worth considering now
The Zeiss PRISMO 7/9/5 verity is recognized industry-wide for its stability and measurement speed. In the current market, securing a 2020 unit in excellent condition offers a significant advantage for companies looking to rapidly upgrade their quality assurance capabilities. This machine is a long-term asset for maintaining consistent quality. Available for immediate inspection and shipment, it is a practical solution for production managers addressing urgent capacity requirements.
Frequently Asked Questions
Q: Is this machine currently available for inspection?
A: Yes, this unit is in stock. Please contact us to schedule an appointment for a physical inspection and operational demonstration.
Q: What type of production environment is this CMM best suited for?
A: This machine is highly versatile, suited for high-precision environments including automotive, aerospace, medical device, and mold-making facilities that require high-speed scanning and sub-micron accuracy.
Q: How does the 40s MPT affect production throughput?
A: The 40-second Measurement Time (MPT) is optimized for high-throughput environments. It allows for faster data acquisition compared to standard CMMs, which helps minimize inspection bottlenecks in high-volume production lines.
Q: What is the primary advantage of the PRISMO verity series?
A: The PRISMO verity series is known for combining high measurement speed with excellent accuracy, making it a robust choice for both lab-grade metrology and high-speed production floor quality control.
