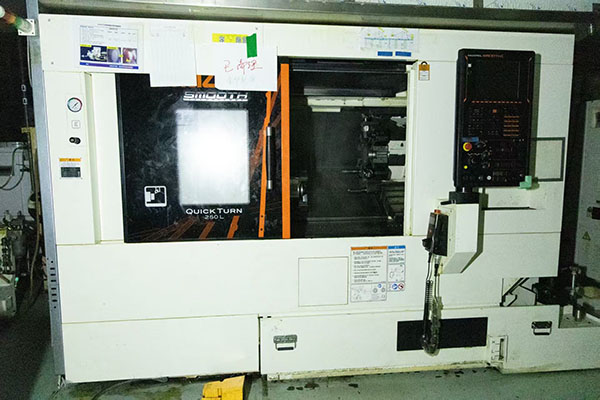

Used Mazak QUICK TURN 250L CNC Lathe – Available for Immediate Inspection
Author：JINYI Date：2026-04-25
The Mazak QUICK TURN 250L is a high-performance CNC turning center engineered for precision and high-volume throughput. This 2021 model is currently in stock and available for immediate inspection. With a maximum machining length of 511 mm and a substantial 91 mm spindle bore, this machine is built to handle a diverse range of shaft and chucking applications. It is an ideal solution for manufacturers looking to balance high-speed production with the flexibility required for automotive, aerospace, and general industrial component manufacturing.
Stock Status and Production Value
As a 2021 model, this Mazak QUICK TURN 250L is a modern asset for any shop floor. Because the machine is currently held in our inventory, you can bypass the long lead times associated with new factory orders. For production managers facing immediate capacity constraints, this lathe offers a proven platform for consistent, reliable output. The QUICK TURN series is widely recognized for its robust construction and intuitive interface, making it a dependable addition to existing turning cells or a primary machine for job shops.
Key Specifications and Production Readiness
Review the technical specifications of the QUICK TURN 250L to ensure it aligns with your part geometries and production requirements:
| Specification | Value |
|---|---|
| Model | QUICK TURN 250L |
| Year | 2021 |
| Swing over bed | Ø660 mm |
| Max machining diameter | Ø380 mm |
| Max machining length | 511 mm |
| X-axis travel | 210 mm |
| Z-axis travel | 560 mm |
| Spindle speed | 45–4000 rpm |
| Spindle bore diameter | 91 mm |
| Turret type | 12-position drum turret |
| Rapid traverse (X/Z) | 30,000 / 33,000 mm/min |
| Motor power | 22 / 15 kW |
The 91 mm spindle bore is a critical feature, allowing for the processing of larger diameter bar stock and reducing the need for secondary operations. The 12-position drum turret facilitates complex operations in a single setup, optimizing cycle times for multi-operation parts.
Ideal Applications for the QUICK TURN 250L
The Mazak QUICK TURN 250L is a versatile all-rounder suitable for various production environments:
- Automotive Suppliers: Ideal for producing shafts, flanges, and transmission components that require high precision and repeatability.
- Aerospace Sub-contractors: The rigidity of the Mazak platform supports tight-tolerance machining on small-to-medium sized structural components.
- Medical Device Manufacturers: Suitable for turning surgical instruments or housings where surface finish and dimensional accuracy are critical.
- General Job Shops: The combination of a 511 mm bed length and 380 mm machining diameter offers the flexibility needed for high-mix, low-volume production runs.
Why This Machine is worth considering
In today's market, securing a 2021 CNC lathe with these specifications is an excellent opportunity to scale capacity without the wait times of new equipment procurement. The QUICK TURN 250L features a compact footprint (2630 × 1680 mm), allowing it to fit into crowded shop floors while providing the power (22/15 kW) necessary for heavy-duty material removal. Its design emphasizes ease of operation and rapid setup, which are critical factors for shops managing frequent job changeovers.
Frequently Asked Questions
Is this Mazak QUICK TURN 250L available for immediate inspection?
Yes, this machine is currently in stock. We encourage prospective buyers to schedule an on-site visit to inspect the machine, verify its condition, and witness a power-on demonstration.
What type of production is this machine best suited for?
The QUICK TURN 250L is a versatile turning center. Its 91 mm spindle bore and 511 mm machining length make it excellent for shaft work and medium-sized chucking parts. It is well-suited for automotive, aerospace, and general precision machining environments.
Can I see the machine running before purchase?
Yes. We facilitate inspections where you can test the machine’s functionality, including the spindle, turret indexing, and control interface, to ensure it meets your specific production requirements.
How does the 2021 model year impact my purchase decision?
A 2021 model is a modern machine, meaning it utilizes current control technology and mechanical standards. This ensures compatibility with modern CAD/CAM software and provides a longer remaining service life compared to older vintage equipment.
What is the footprint of this machine?
The machine requires a floor space of 2630 × 1680 mm. Please ensure your facility has adequate clearance for the machine height (1703 mm) and surrounding access for maintenance and operator safety.
