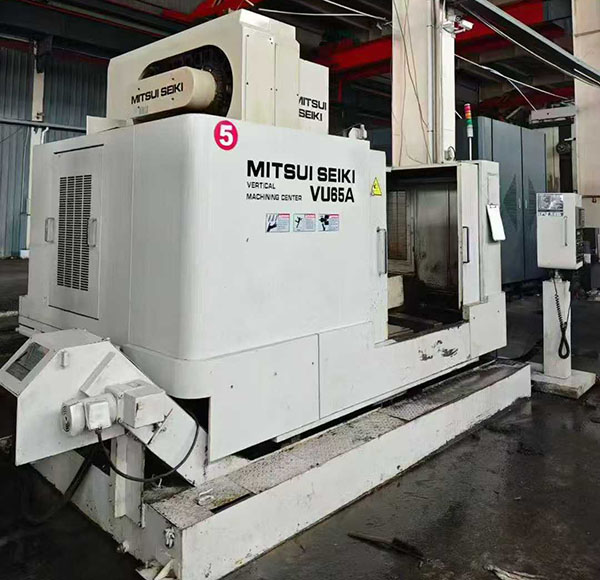

Used Mitsui VU65 Vertical Machining Center

In the global precision manufacturing landscape, the strategic acquisition of used machine tools has become a vital method for enterprises to enhance production capabilities while managing capital expenditure. Among the elite tier of Japanese manufacturing equipment, the Mitsui Seiki VU65 Vertical Machining Center stands out as a symbol of structural integrity and enduring accuracy. Known for its heavy-duty design and high-torque performance, the Mitsui Seiki VU65 remains a highly sought-after asset in the secondary market, particularly for industries involved in complex mold making and large-scale component production.

This technical analysis focuses on the Mitsui Seiki VU65 (Stock No. 811110), a machine engineered to bridge the gap between high-precision finishing and aggressive material removal. By examining its core specifications—ranging from its robust box-way construction to its specialized gear-head spindle—we aim to provide procurement professionals with the insights necessary to evaluate this machine's potential impact on their production lines. Despite some missing data regarding its production year and current location, the inherent quality of Mitsui's engineering provides a solid foundation for industrial reliability.

Technical Specifications and Structural Capacity

The Mitsui Seiki VU65 is defined by its generous working envelope, designed to accommodate substantial workpieces. It features an X-axis travel of 1300mm, a Y-axis travel of 650mm, and a Z-axis travel of 700mm. This 1300mm longitudinal capacity is particularly advantageous for machining long structural parts or mounting multiple fixtures on the table simultaneously. The worktable itself measures 1400 * 600 mm, offering ample surface area for securing heavy molds and ensuring that the load distribution does not compromise the machine's geometric alignment during high-speed movements.

Underpinning this physical capacity is the Fanuc 16M CNC system. Fanuc systems are the gold standard in the used machine tools market due to their global support network and intuitive operator interface. The 16M series provides the computational power required for complex 3-axis simultaneous movements and high-resolution feedback. For a pre-owned machine, the presence of a Fanuc controller ensures that finding qualified operators and integrating the machine into existing CAD/CAM workflows remains a straightforward process, minimizing the learning curve and deployment time.

The Powerhouse: BT50 Gear-Head Spindle Performance

One of the most critical features of the Mitsui VU65 is its spindle configuration. Equipped with a BT50 taper, this machine is built for heavy-duty industrial tasks. The BT50 interface provides a significantly larger contact area and clamping force compared to the lighter BT40 standard, which translates directly into superior vibration dampening and higher accuracy during aggressive milling operations. The spindle speed ranges from 10 to 6000 RPM, a specification that highlights its optimization for high-torque applications rather than high-speed aluminum trimming.

The inclusion of a Gear Head transmission is a defining characteristic of the Mitsui Seiki VU65's power delivery. Unlike belt-driven spindles which may slip under extreme loads, or direct-drive spindles that often lose torque at lower speeds, the gear-driven system maintains maximum power throughout the lower RPM range. This makes the Mitsui Seiki VU65 exceptionally capable of handling tough materials such as titanium, stainless steel, and hardened tool steels. For shops specializing in roughing operations or large-diameter boring, this spindle design offers a level of reliability and metal removal rate that modern high-speed machines often cannot match.

Rigidity and Precision: The Advantage of Box-Way Construction

In the realm of used machine tools, the choice between linear guides and box ways is often a deciding factor for specific applications. The Mitsui Seiki VU65 utilizes 3-axis box ways (hard rails), a design choice that prioritizes rigidity and damping over rapid traverse speeds. Box ways consist of wide, flat surfaces that are typically induction hardened and precision ground. The large contact area between the moving components and the machine base allows for the effective dissipation of cutting forces and thermal energy, ensuring that the machine remains stable even during interrupted cuts or heavy face milling.

The structural damping provided by box ways is essential for maintaining high surface finish quality on large workpieces. While linear guides excel in high-speed positioning, box ways prevent the "chatter" that can occur when a large cutter engages with a hard workpiece. This makes the Mitsui Seiki VU65 an excellent choice for finishing operations where dimensional tolerance and surface integrity are paramount. For any manufacturing facility looking to produce parts with long-term consistency, the inherent stability of a box-way machine like the Mitsui Seiki VU65 is a significant technical advantage.

Industrial Applications and Production Line Integration

The combination of a 1300mm X-axis and a high-torque BT50 spindle positions the Mitsui Seiki VU65 as a versatile workhorse across several high-value sectors. In the automotive industry, it is ideally suited for the machining of engine blocks, transmission housings, and suspension components. Its ability to perform heavy-duty drilling and tapping in cast iron or steel makes it a reliable choice for Tier 1 and Tier 2 suppliers who require consistent throughput and the ability to handle large parts that exceed the capacity of standard 1000mm machines.

Beyond automotive, the Mitsui Seiki VU65 is a staple in the heavy machinery and energy sectors. It can be utilized for machining large valves, pump housings, and components for construction equipment. The 20-tool Automatic Tool Changer (ATC) allows for complex multi-stage processing without manual intervention, supporting high-efficiency production cycles. For a facility looking to diversify its output, the Mitsui Seiki VU65 provides the mechanical "muscle" needed to take on projects that require both significant material removal and high-precision finishing, all within a single setup.

Conclusion: The Lasting Value of Mitsui Engineering

The Mitsui Seiki VU65 Vertical Machining Center represents a pinnacle of Japanese machine tool design, balancing power, size, and precision. Its BT50 gear-driven spindle and robust box-way architecture make it a formidable competitor in the used machine tools market, offering capabilities that many newer, lighter machines lack. Whether it is being used for heavy-duty roughing or precision mold finishing, the VU65 provides a stable platform that empowers manufacturers to meet the most demanding client specifications with confidence.

In summary, for companies looking to expand their machining capacity with a reliable and powerful vertical machining center, the Mitsui Seiki VU65 is an outstanding candidate. By understanding the specific mechanical advantages of this model—such as its high torque and superior vibration damping—decision-makers can make an informed choice that aligns with their long-term production goals. In an era where efficiency and reliability are the keys to competitiveness, the Mitsui VU65 remains a relevant and valuable tool for the modern machine shop.

FAQ

Q1: What makes the BT50 gear-head spindle on the Mitsui Seiki VU65 special?
A: The BT50 taper provides high rigidity, while the gear-head transmission multiplies torque at low speeds. This allows the machine to perform heavy-duty cutting on hard materials that would stall a standard belt-driven or high-speed spindle.

Q2: Is the Fanuc 16M system still viable for modern manufacturing?
A: Yes, the Fanuc 16M is a highly reliable and widely understood system. It supports standard G-code and can be integrated with modern CAM software, making it a practical choice for most industrial machining tasks today.

Q3: What are the benefits of 3-axis box ways (hard rails) for this machine?
A: Box ways offer a large contact surface area, which provides excellent vibration damping and structural rigidity. This is crucial for heavy cutting and for achieving high-quality surface finishes on tough workpieces.

Q4: How does the 1300mm X-axis travel benefit my shop?
A: The 1300mm travel allows you to machine larger parts, such as automotive engine components or long mold bases, which wouldn't fit on standard small-to-medium machining centers, thus expanding your project capabilities.
