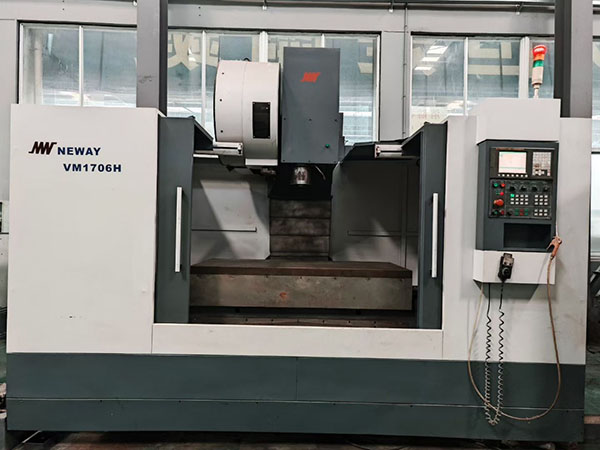

Used Neway VM1706HR VMC: Deep Dive into BT50 Spindle and 4-Rail Y-Axis Specs

In the evolving landscape of global manufacturing, the acquisition of used machine tools has become a strategic lever for companies looking to enhance capacity without the prohibitive lead times and costs of new equipment. The Neway VM1706HR Vertical Machining Center (VMC) stands out in the secondary market as a robust solution for large-scale, high-precision metal cutting. Known for its structural integrity and powerful spindle options, this machine is specifically engineered to handle demanding industrial tasks that require both scale and stability.

The Neway VM1706HR is not just a standard milling machine; it is a heavy-duty platform designed for longevity. For enterprises specializing in mold making, energy components, or aerospace parts, understanding the technical nuances of this specific model is essential. Based on the specifications of Inventory No. 811108, this article provides an in-depth professional assessment of the VM1706HR, focusing on its mechanical architecture, control capabilities, and operational value in the used machine tools marketplace.

Detailed Parameter Breakdown and Working Envelope

The Neway VM1706HR offers a substantial working envelope that accommodates large workpieces. With an X-axis travel of 1560mm, a Y-axis travel of 805mm, and a Z-axis travel of 690mm, it provides the necessary clearance for complex 3D machining. The table size of 1700×800mm is perfectly matched to these travels, ensuring that the entire surface area can be utilized effectively for single large parts or multiple smaller setups. This versatility is a key selling point for used machine tools in high-mix, low-volume production environments.

Furthermore, the distance from the spindle nose to the table is 700mm, providing ample room for tall fixtures or long tool holders. This clearance is particularly important when machining deep cavities in molds or when using heavy-duty BT50 tooling. The physical dimensions of the VM1706HR reflect a design philosophy focused on accessibility and capacity, allowing manufacturers to take on projects that smaller, standard VMCs simply cannot handle.

The Advantage of the 4-Rail Y-Axis Design

One of the most distinctive features of the Neway VM1706HR is its guideway configuration. While most vertical machining centers utilize two linear rails for the Y-axis, the VM1706HR is equipped with four linear rails on the Y-axis. This design choice is critical for maintaining geometric accuracy under heavy loads. By distributing the weight of the massive 1.7-meter table and the workpiece across four points of contact, the machine minimizes structural deflection and vibration during high-speed traverses and heavy cuts.

This four-rail system ensures that even when the table is at its furthest X-axis travel, the load remains balanced and supported. For buyers of used machine tools, this structural reinforcement is a significant indicator of the machine's ability to maintain precision over time. It reduces the uneven wear often seen in two-rail systems and provides a more stable foundation for high-torque machining, making it an ideal candidate for heavy-duty mold base work and large structural components.

BT50 Spindle Performance and Thermal Management

At the heart of the VM1706HR is a high-torque BT50 spindle, a feature that distinguishes it from lighter-duty BT40 machines. The BT50 interface provides a larger contact surface and greater clamping force, which translates directly into superior rigidity. With a maximum speed of 6,000 rpm, the spindle is optimized for heavy metal removal in materials such as cast iron, tool steel, and titanium. It allows for the use of larger face mills and boring heads without the risk of chatter or spindle stall.

To maintain accuracy during long production runs, the spindle is equipped with an oil cooling system. This system actively manages the thermal expansion of the spindle cartridge, which is vital for preventing Z-axis drift—a common issue in precision machining. In the context of used machine tools, a spindle with a dedicated cooling system is a highly desirable feature, as it indicates the machine was built for continuous, high-accuracy industrial operation rather than light intermittent use.

FANUC MD Control System: Reliability and Integration

The control system is the interface between the operator and the machine's mechanical capabilities. This VM1706HR is powered by the FANUC MD system, globally recognized for its stability and user-friendly architecture. FANUC controls are the gold standard in the CNC industry, offering vast libraries of macros, reliable hardware, and excellent processing speeds for complex G-code programs. For a used machine tool, the presence of a FANUC system significantly simplifies the integration into an existing shop floor.

The MD series provides advanced features for look-ahead processing and jerk control, which are essential for achieving high-quality surface finishes on complex 3D surfaces. Moreover, the ease of sourcing parts and the wide availability of trained operators make FANUC-equipped machines a lower-risk investment. When evaluating used machine tools, the longevity of the electronics is just as important as the iron, and FANUC’s reputation for industrial durability provides peace of mind for long-term operational planning.

Automatic Tool Changer and Operational Efficiency

Efficiency in a modern machine shop is measured by chip-to-chip time and automation levels. The Neway VM1706HR features a 24-station mechanical (cam-type) automatic tool changer (ATC). The mechanical arm design provides faster and more reliable tool swaps compared to umbrella-style changers. This is particularly important when handling heavy BT50 tools, which require a robust gripping and transfer mechanism to ensure safety and precision during the exchange process.

Having 24 tool pockets allows for comprehensive tooling setups, reducing the need for manual tool changes between operations. This capability supports unattended machining and complex multi-operation cycles. For those looking at used machine tools, the ATC's condition is a vital check-point; the VM1706HR’s rugged mechanical arm is designed to withstand the rigors of heavy industrial use, ensuring that the machine remains a productive asset for years to come.

Procurement Evaluation and Industrial Applications

When considering the purchase of this Neway VM1706HR (Inventory No. 811108), it is important to evaluate the machine's origin and intended application. Listed with an origin of USA, this machine adheres to rigorous manufacturing standards. Potential applications range from the production of large automotive stamping dies to the machining of critical components for the oil and gas industry. Its combination of a 1.5-meter X-axis and BT50 spindle makes it a rare find in the used market, where such high-spec machines are quickly acquired.

In conclusion, the Neway VM1706HR represents a balanced investment for companies needing heavy-duty vertical machining capabilities. Its unique 4-rail Y-axis, high-torque oil-cooled spindle, and reliable FANUC control form a package that prioritizes stability and performance. For buyers of used machine tools, this model offers the structural "heaviness" required for serious metal cutting while maintaining the precision necessary for modern engineering tolerances. Evaluating the physical condition of the linear guides and the spindle runout will confirm the exceptional value this machine can bring to a production line.
