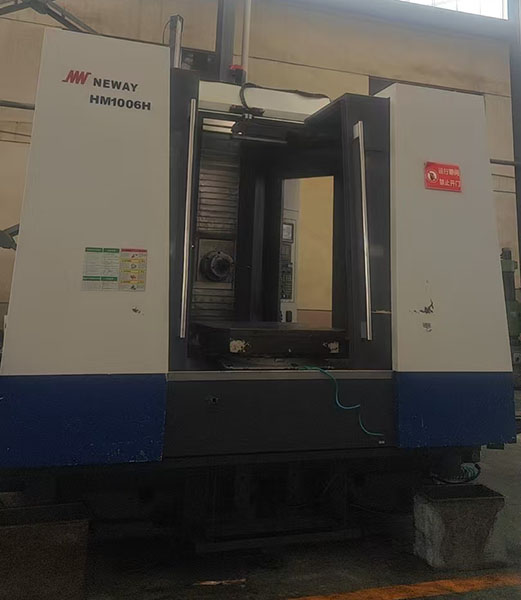

Used Neway HM1006H Horizontal Machining Center: Specs and Analysis

In the competitive landscape of industrial manufacturing, acquiring high-quality used machine tools has become a strategic move for companies looking to expand capacity without the lead times of new equipment. The Neway HM1006H horizontal machining center (HMC), known for its robust construction and precision, stands out as a formidable contender in the secondary market. This article examines the technical specifications and operational advantages of stock number 811079.

This specific Neway model, originating from the USA, combines American engineering standards with high-end CNC components. Designed for heavy-duty applications and high-precision tasks, the HM1006H offers a balanced package of speed, torque, and spatial capacity. For manufacturers dealing with complex geometries and large workpieces, understanding the depth of this machine's capabilities is essential for a sound investment.

Technical Specifications and Travel Analysis

The Neway HM1006H is defined by its generous work envelope, featuring axis travels of 1400 mm (X), 1000 mm (Y), and 1050 mm (Z). This substantial range allows for the processing of large engine blocks, transmission cases, and complex structural components. In the realm of used machine tools, such large travels provide significant versatility for job shops that handle diverse project requirements.

Complementing the linear axes is a high-resolution rotary table with 0.001-degree indexing. This fine level of control is vital for multi-sided machining where angular precision dictates the final quality of the part. Whether performing simple four-axis positioning or complex contouring, the table's accuracy ensures that tolerances are met consistently across all faces of the workpiece.

Spindle Performance and Through-Spindle Coolant

Efficiency in metal removal is largely driven by spindle capability. This HM1006H is equipped with a 10,000 RPM spindle, which is an ideal middle ground for modern manufacturing. It provides the necessary speed for high-speed finishing in aluminum and the required torque for roughing in harder materials like cast iron or steel. This versatility makes it a multi-purpose workhorse for any production floor.

Furthermore, the inclusion of Coolant Through Spindle (CTS) is a major advantage for this used CNC machine. CTS is essential for high-performance drilling and deep-cavity milling, as it delivers high-pressure coolant directly to the cutting edge. This feature not only prevents chip re-cutting but also significantly reduces thermal stress on both the tool and the workpiece, leading to superior surface finishes.

CNC Control and System Stability

At the heart of the machine is the Fanuc MD control system. Fanuc is globally recognized as the gold standard for CNC reliability and user-friendliness. For a second hand machining center, having a Fanuc control means easier integration into existing workflows, as most CNC operators are already proficient with the interface. This reduces training time and minimizes the risk of operational errors.

The MD series control provides advanced algorithms for motion control, ensuring smooth transitions and high-speed processing of code. This is particularly important when executing complex 3D programs where data starvation can lead to surface imperfections. The synergy between the Neway hardware and Fanuc software creates a stable platform for high-uptime production environments.

Precision Enhancement with Linear Scales

Accuracy is the cornerstone of high-end manufacturing, and this Neway HM1006H is equipped with linear scales (grating scales). Unlike standard encoders that measure motor rotation, linear scales measure the actual position of the machine slide. This creates a full-closed-loop system that compensates for thermal expansion and mechanical backlash, ensuring the highest possible positioning accuracy.

In the context of used machine tools, the presence of linear scales is a strong indicator of a high-spec machine. It allows the equipment to maintain its original precision standards even after years of operation. For industries such as aerospace or medical device manufacturing, where microns matter, this configuration is often a non-negotiable requirement during the procurement process.

Industrial Applications and Production Suitability

The Neway HM1006H is exceptionally suited for the automotive, energy, and heavy machinery sectors. Its horizontal configuration is inherently better for chip evacuation compared to vertical mills, making it the preferred choice for high-volume production of cast parts. The 1400mm X-axis travel allows for either very large parts or the mounting of multiple smaller parts on a tombstone fixture for increased throughput.

When evaluating this machine for your facility, consider the benefits of its American origin and robust build. It is designed to handle continuous shifts and heavy cutting loads. For enterprises looking to upgrade from smaller vertical centers to a high-capacity horizontal platform, this machine offers a significant leap in both capability and efficiency without the premium cost of a brand-new unit.

Procurement Considerations: Year and Origin

While the specific year of manufacture is not provided for this unit, the overall configuration suggests a modern era of Neway's machine design. Buyers should focus on the physical condition of the guideways and the integrity of the spindle. As a USA-origin machine, it follows rigorous construction standards, which usually translates to a longer structural lifespan in a used machine tools environment.

Potential buyers are encouraged to verify the specific location and logistics requirements for a machine of this size. Given its high-precision components like linear scales and the 10,000 RPM spindle, professional handling during decommissioning and installation is paramount. This Neway HM1006H represents a high-value asset for any shop requiring a combination of large-scale capacity and precision accuracy.

FAQ

Q1: What is the primary benefit of the Fanuc MD system on this machine?
A1: It offers industry-leading reliability, a user-friendly interface, and ensures that spare parts and technical knowledge are widely available.

Q2: How does the 1400mm X-axis travel compare to other HMCs?
A2: It is considered a large-travel machine for its class, allowing for much larger workpieces than standard 1000mm or 1200mm machines.

Q3: Is the Neway HM1006H suitable for high-speed aluminum machining?
A3: Yes, the 10,000 RPM spindle and through-spindle coolant make it very effective for high-speed cutting in non-ferrous materials.

Q4: Why are linear scales important for a used CNC machine?
A4: They provide a full-closed-loop feedback system, which maintains high accuracy by compensating for mechanical wear and thermal changes.

Q5: What industries benefit most from a horizontal machining center like this?
A5: Industries such as automotive (engine blocks), aerospace (structural parts), and heavy equipment (hydraulic manifolds) benefit most from its chip flow and multi-sided machining capabilities.
