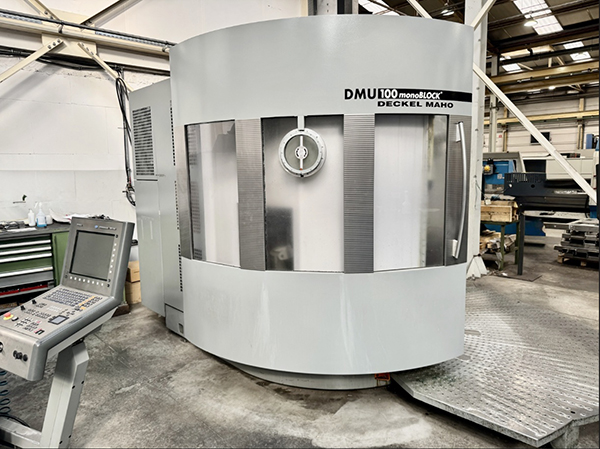

Used DMG DMU 100 monoBLOCK 5-Axis Machining Center Technical Analysis
| tock No. | 811017 |
| Brand | DMG |
| Model | DMU 100 monoBLOCK |
| Origin | Germany |
| Control System | Heidenhain TNC530 |
| Travel (X/Y/Z) | 1150 * 710 * 710 mm |
| B-Axis Travel | -30° ~ 120° |
| C-Axis Travel | 360° |
| Spindle Taper | SK40 |
| Spindle Speed | 12000 rpm |
| Rotary Table Diameter | 800 mm |
1. Equipment Overview: The Gold Standard of German Precision
The DMG DMU 100 monoBLOCK is a masterpiece of industrial engineering, designed for manufacturers who refuse to compromise on precision and versatility. Built on the iconic monoBLOCK foundation, this machine offers an exceptionally rigid structure that minimizes thermal expansion and vibration. Unlike traditional C-frame designs, the monoBLOCK architecture provides optimal stability across the entire machining envelope, making it a preferred choice for high-precision components. This specific unit, stock number 811017, represents the peak of German manufacturing excellence, offering a seamless blend of heavy-duty milling capabilities and high-speed finishing finesse. Its compact footprint combined with a massive working area makes it an ideal upgrade for workshops looking to modernize their 5-axis production capacity without expanding their physical shop floor.
2. Comprehensive Technical Parameter Analysis
The technical specifications of this DMG DMU 100 monoBLOCK are engineered for demanding industrial tasks. At its heart lies the Heidenhain TNC530 control system, widely regarded by operators worldwide as the most intuitive and powerful interface for simultaneous 5-axis machining. The system’s advanced look-ahead features and dynamic collision monitoring ensure safe and efficient tool paths even for the most complex geometries. With an X-axis travel of 1150mm and Y/Z axes of 710mm, the machine accommodates substantial workpieces, while the B-axis (-30° to 120°) and 360° C-axis provide the kinematic freedom required for undercut machining and complex angular drilling.
Furthermore, the 12000 rpm SK40 spindle is a versatile powerhouse. It delivers sufficient torque for aggressive roughing in steel while maintaining the high-speed stability necessary for mirror-finish results in aluminum and exotic alloys. The 800mm rotary table is integrated directly into the machine bed, offering superior load-bearing capacity and rotational accuracy. Every component, from the high-resolution linear scales to the precision-ground ball screws, is designed to maintain micron-level tolerances over long production runs. This configuration ensures that the machine can handle everything from large aerospace structural components to intricate medical implants with the same level of reliability.
3. Industrial Applications: Solving Complex Geometry Challenges
In the aerospace sector, the DMG DMU 100 monoBLOCK excels at producing impellers, turbine blades, and bulkhead segments where simultaneous 5-axis movement is mandatory. Its ability to maintain a constant tool-to-surface angle optimizes cutting conditions, significantly extending tool life and improving surface integrity. For the die and mold industry, this machine is a game-changer. It allows for the machining of deep cavities and complex cores in a single setup, eliminating the errors associated with workpiece repositioning. Automotive manufacturers also utilize the DMU series for prototyping and production of engine components and transmission housings, where speed and repeatability are paramount. The machine's flexibility makes it a true multi-tasking workhorse, capable of adapting to the shifting demands of modern just-in-time manufacturing environments.
4. Investment Value and Strategic ROI
Investing in a used DMG DMU 100 monoBLOCK provides a strategic advantage for companies aiming to balance technical capability with financial prudence. The depreciation curve of high-end German machinery is favorable for second-hand buyers; the first owner has already absorbed the steepest part of the value drop, yet the machine's robust construction ensures it has decades of life remaining. For a fraction of the cost of a new 5-axis center, a shop can acquire the same level of accuracy and brand prestige that DMG offers. This lower capital expenditure leads to a much faster Return on Investment (ROI), allowing for more competitive bidding on projects. Additionally, the availability of spare parts and global service support for the DMU series ensures that downtime is kept to a minimum, protecting the long-term viability of the investment.
Frequently Asked Questions (FAQ)
1. Is the Heidenhain TNC530 compatible with modern CAD/CAM software?
Absolutely. The TNC530 is one of the most supported controllers in the industry. All major CAM packages like NX, CATIA, and Mastercam provide robust post-processors specifically tuned for the DMU 5-axis kinematics.
2. What is the benefit of the SK40 spindle over BT40?
SK40 (DIN 69871) is the European standard for high-precision spindles. It offers excellent balance and rigidity at 12,000 rpm and is fully compatible with a wide range of high-performance tooling available globally.
3. Can this machine perform simultaneous 5-axis contouring?
Yes, this model is equipped for full simultaneous 5-axis machining. The Heidenhain TNC530 handles the complex mathematical transformations required for smooth 5-axis motion seamlessly.
4. How easy is it to source spare parts for a used DMG machine?
DMG Mori has one of the most extensive service networks in the world. Spare parts for the DMU monoBLOCK series are readily available through official channels and third-party specialists, ensuring long-term maintainability.
5. What kind of foundation is required for this machine?
Due to the rigid monoBLOCK design, it is less sensitive to foundation variations than larger bridge mills. However, a standard reinforced industrial concrete floor is recommended to maintain its micron-level precision during heavy cutting.
