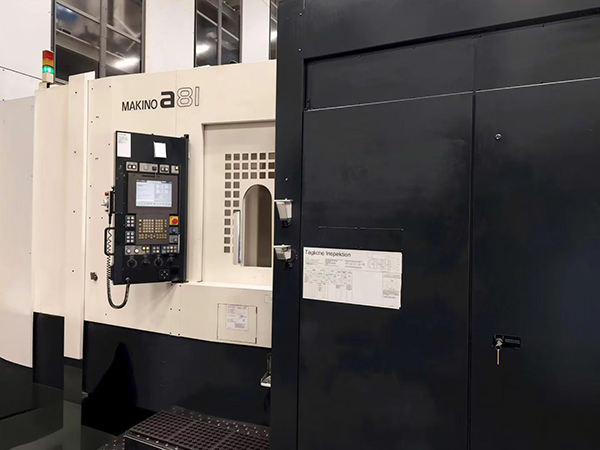

Used Makino A81 HMC: High-Rigidity BT50 Spindle with 136-Tool ATC

1. Equipment Overview: The Gold Standard of Horizontal Machining

The Makino A81 is a legendary name in the world of Horizontal Machining Centers (HMC), known for its uncompromising rigidity, speed, and precision. Manufactured in Japan, this machine is specifically engineered to handle the most demanding heavy-duty cutting tasks while maintaining the finesse required for micro-precision finishes. Stock number 810963 represents a unique opportunity to acquire an A81 configuration that goes beyond standard specifications, most notably featuring an expansive 136-tool magazine.

At the heart of the A81 is Makino’s thermal stabilization technology and a robust bed design that minimizes vibration during high-torque operations. This machine is designed for manufacturers who cannot afford downtime or accuracy drift. Whether you are machining complex engine blocks or large aerospace structural components, the A81 provides the mechanical integrity needed to push cutting tools to their limits. The integration of high-speed spindle technology with a heavy-duty BT50 taper allows for a versatile production environment where both bulk material removal and fine finishing can occur in a single setup.

2. Technical Deep Dive: Mastering Large-Scale Precision

Expansive Working Envelope (900 x 800 x 1020mm)

The X, Y, and Z axes provide a generous working volume, allowing for the processing of large workpieces up to 630mm pallet sizes. The extended Z-axis (1020mm) is particularly beneficial for manufacturers using long tooling or those performing deep-hole boring operations. This extra clearance ensures that the machine can accommodate diverse workholding setups without risking interference.

BT50 Spindle Power & 10,000 RPM Versatility

While many horizontal machines choose between high speed or high torque, the Makino A81 delivers both. The BT50 taper is the industry standard for rigidity, enabling the use of large face mills and heavy boring bars. With a spindle speed ranging from 20 to 10,000 RPM, the machine remains equally capable of high-speed aluminum milling and low-speed titanium or hardened steel cutting. The spindle is cooled by a sophisticated liquid-jacket system to ensure that thermal growth is virtually eliminated.

Superior Indexing and Tool Management

Precision is often found in the details, and the 0.001° table indexing on this A81 is a testament to that. This high-resolution B-axis allows for complex 4-axis positioning with extreme repeatability. Coupled with the 136-station Automatic Tool Changer (ATC), this machine becomes a powerhouse for flexible manufacturing. In a typical production setting, a 136-tool magazine allows a shop to keep multiple job setups permanently resident in the machine, reducing changeover times from hours to minutes.

3. Application Case Study: From Automotive to Aerospace

In the automotive industry, the Makino A81 is the preferred choice for machining engine blocks and cylinder heads. A Tier 1 supplier utilized the A81’s 0.001° indexing to machine all faces of a complex aluminum housing in a single fixture. The machine's ability to maintain true position tolerances across multiple bore holes significantly reduced the scrap rate compared to previous-generation machines.

In the aerospace sector, where titanium and Inconel are common, the A81’s BT50 spindle rigidity becomes its greatest asset. The machine's structural damping properties allow for higher feed rates without chatter, directly impacting tool life and surface integrity. For the used market, this A81 (Stock 810963) offers the same level of industrial performance, making it an ideal candidate for contract manufacturers looking to upgrade their capability to handle aerospace-grade materials without the astronomical price tag of a new build.

4. Cost-Benefit Analysis: The ROI of a Used Makino

Investing in a used Makino A81 is a strategic financial decision. A new machine with a 136-tool ATC and BT50 spindle would require a significant capital outlay and likely come with a lead time of 6 to 12 months. By opting for this high-quality pre-owned unit, you bypass the depreciation curve while gaining immediate access to world-class machining power. The ROI is accelerated not just by the lower purchase price, but by the machine's reliability and high throughput. For any shop looking to compete in the high-end precision market, this A81 offers the perfect balance of technical capability and financial prudence.

5. FAQ (Frequently Asked Questions)

Q1: Can the Makino A81 handle 24/7 automated production?

A1: Absolutely. The A81 is built for high-duty cycles. With its 136-tool magazine and robust pallet system, it is frequently used in 'lights-out' manufacturing environments when integrated with appropriate automation or cellular systems.

Q2: What are the advantages of a 136-tool ATC over a standard 60-tool unit?

A2: A larger tool capacity allows you to store redundant tools (sister tools) for long-run jobs and keep multiple distinct job setups ready at all times. This eliminates the need for tool setup between different jobs, significantly increasing machine uptime.

Q3: How does the 0.001° indexing improve part quality?

A3: Standard 1-degree indexing is limited for complex geometries. 0.001° (Full 4th Axis) indexing allows for precise angular positioning, which is critical for maintaining hole alignments and surface matching across different faces of a part.

Q4: Is the BT50 spindle suitable for high-speed aluminum cutting?

A4: Yes, while BT50 is famous for torque, the 10,000 RPM capacity and Makino’s high-speed control algorithms make it highly efficient for aluminum milling, providing excellent surface finishes and high metal removal rates.

Q5: What support is available for this machine internationally?

A5: Makino has one of the best global service footprints. Parts for the A81 series are widely available from Makino service centers and third-party vendors worldwide, ensuring long-term serviceability for this asset.
