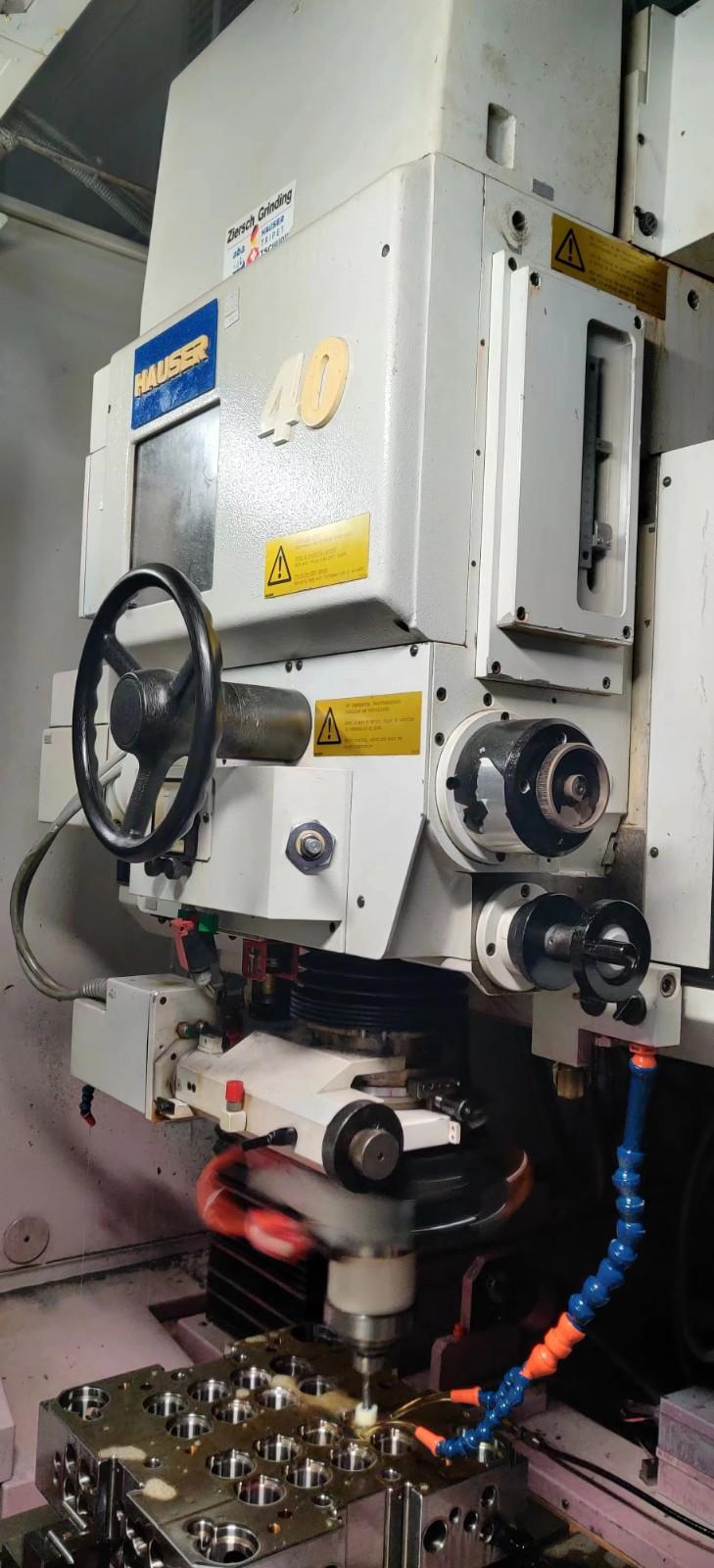

Hauser S40 Jig grinding machine

Brand: Hauser

Model:S40

 jig grinder machine

Worktable size: 770×630 mm

X*Y*Z*W axis travel: 650 mm*450*140*500mm

Machine spindle speed: 0~300 rpm

Grinding spindle speed: 9000~45000 rpm

Grinding diameter: 230 mm

Feed rate range: 0-1500 mm /min

T-slot: 6 mm

Slot: 14 mm

Space between slot: 100 mm

Worktable load: 500 kg

Space between columns: 750 mm

Grinding taper Angle : 16 degrees

Total power: 8 kW

Machine weight: 4.5 tons

Machine Footage: 4X3.6× 3.2m

Normal operating temperature: 20~23 ℃

The temperature change is constant in +1℃
