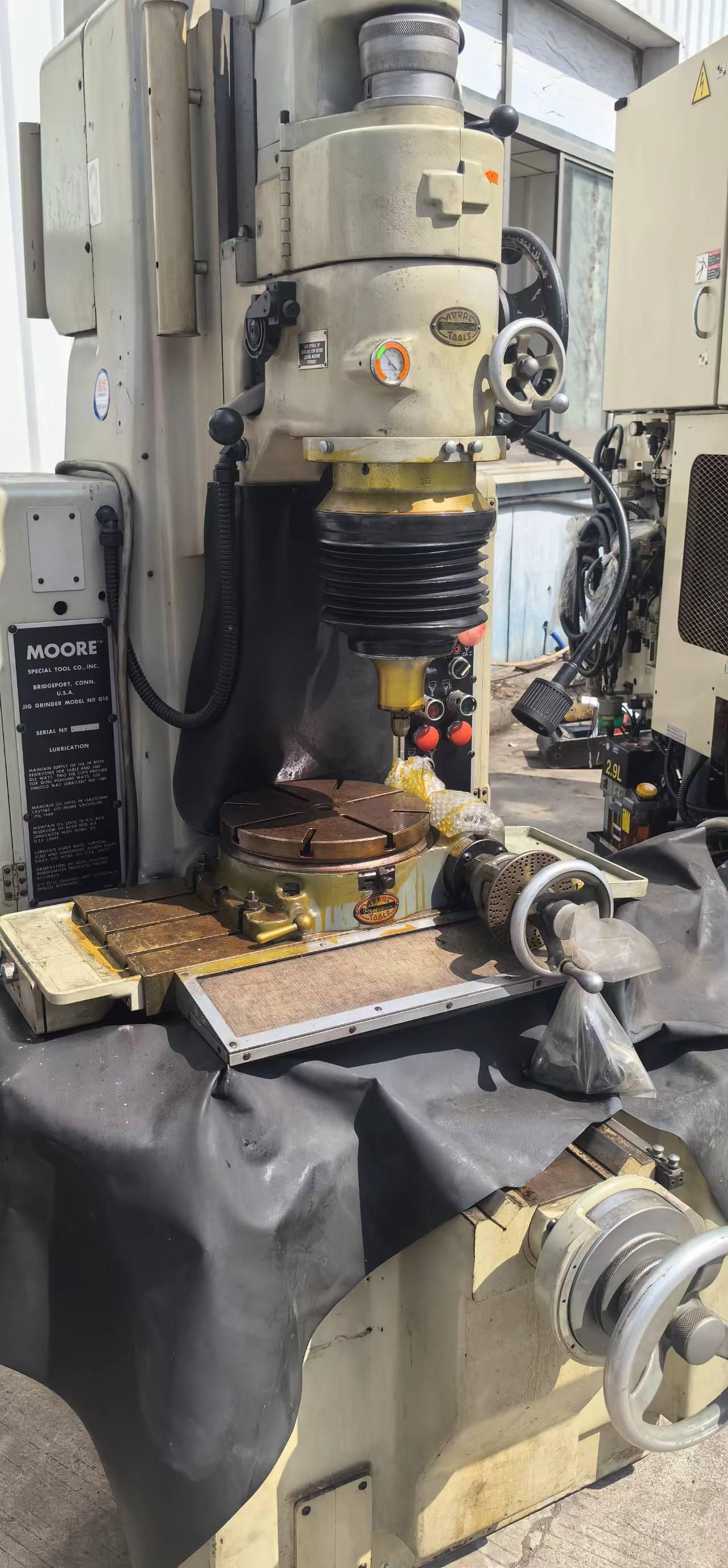

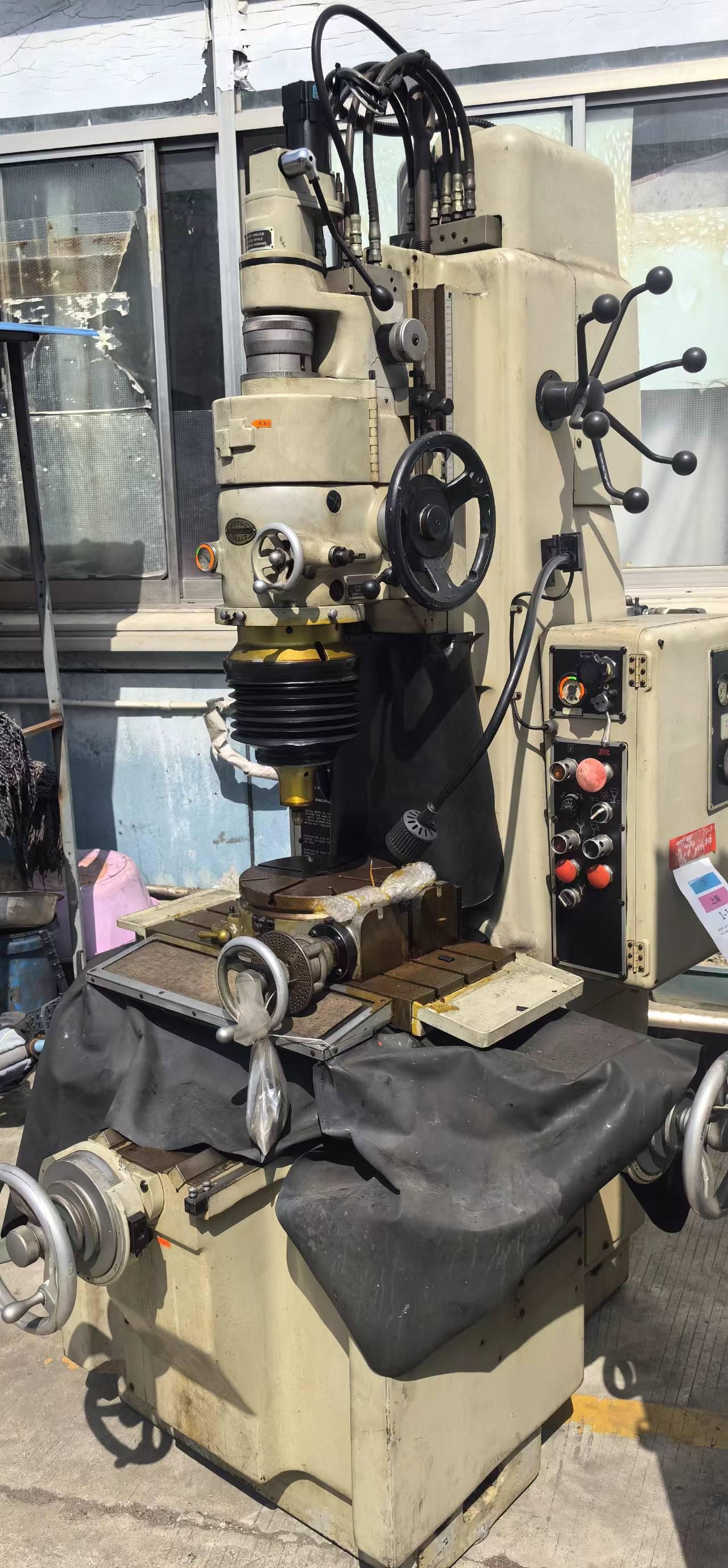

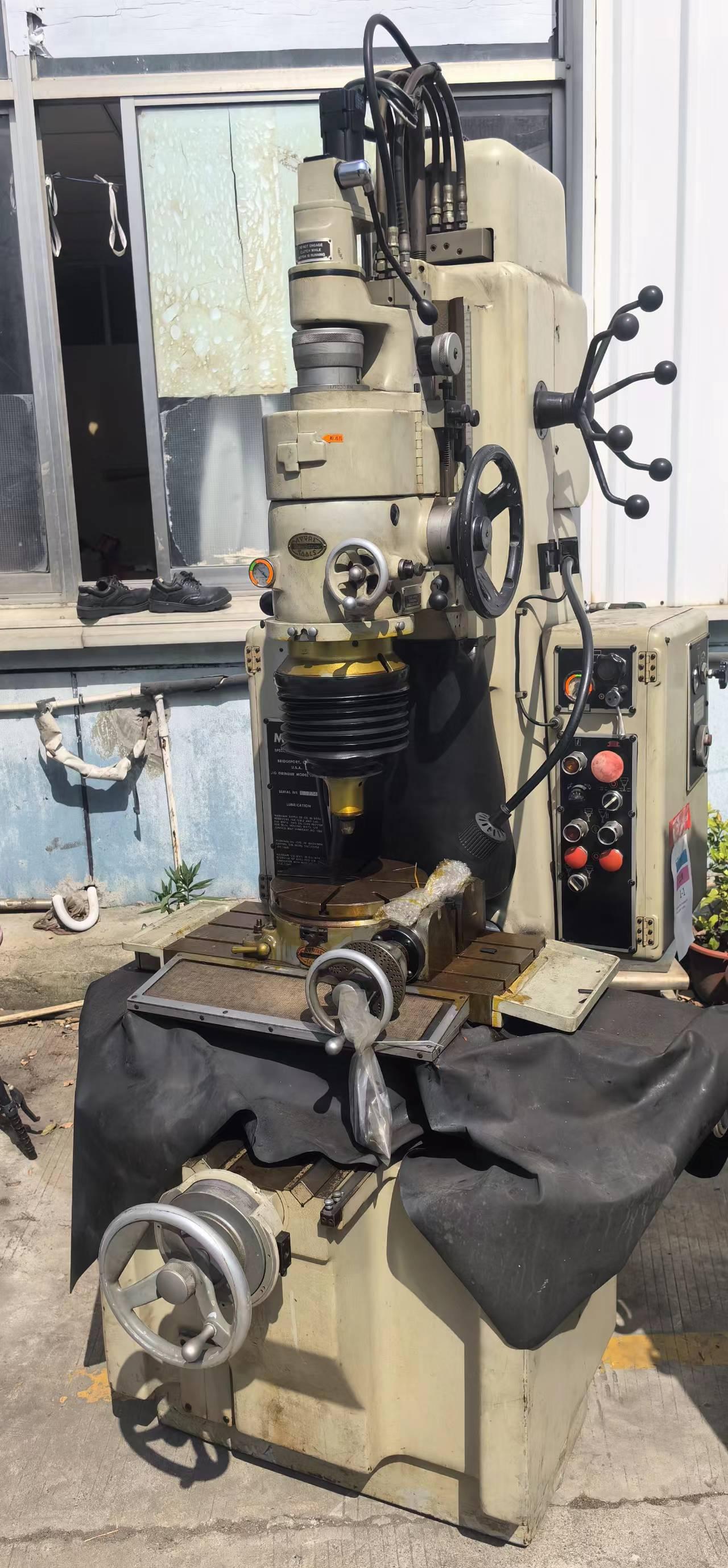

MOORE G18 Jig grinding machine

[Product Information]:

WorkWorktable size: 278mm x 610mm

Worktable moving - vertical: 400mm

Worktable movement - Transverse: 250mm

spindle vertical travel: 320mm

spindle vertical movement: 92mm

Worktable top to grinding wheel seat: 51mm x 457mm

spindle to column lead rail: 254mm

spindle to lead rail under the column: 343mm

spindle speed - stepless transmission: 25-225 RPM

spindle feed - stepless transmission: 2-120 SPM

grinding wheel speed: 6000-40000 RPM

3 grinding heads

CNC System: FANUC-18M
