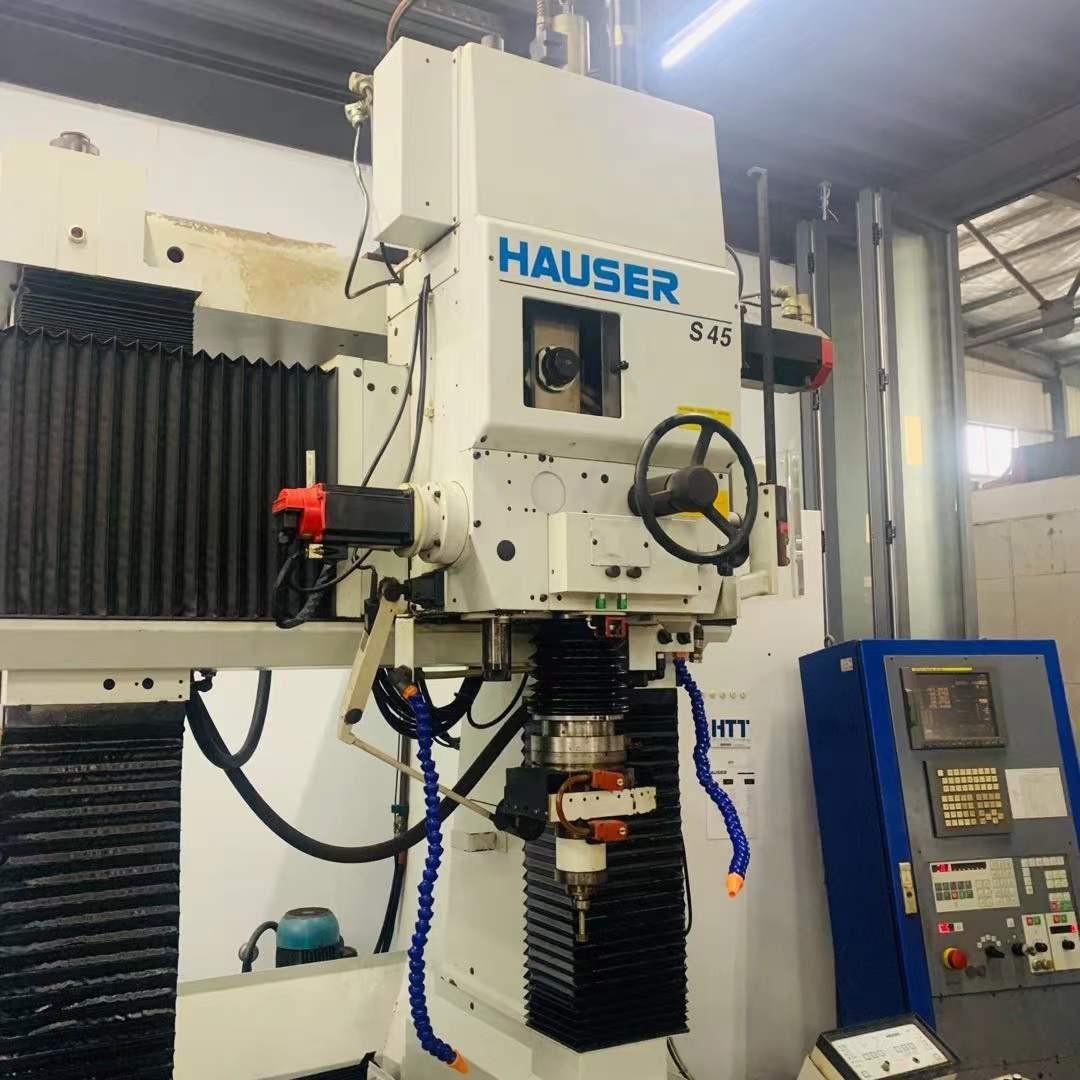

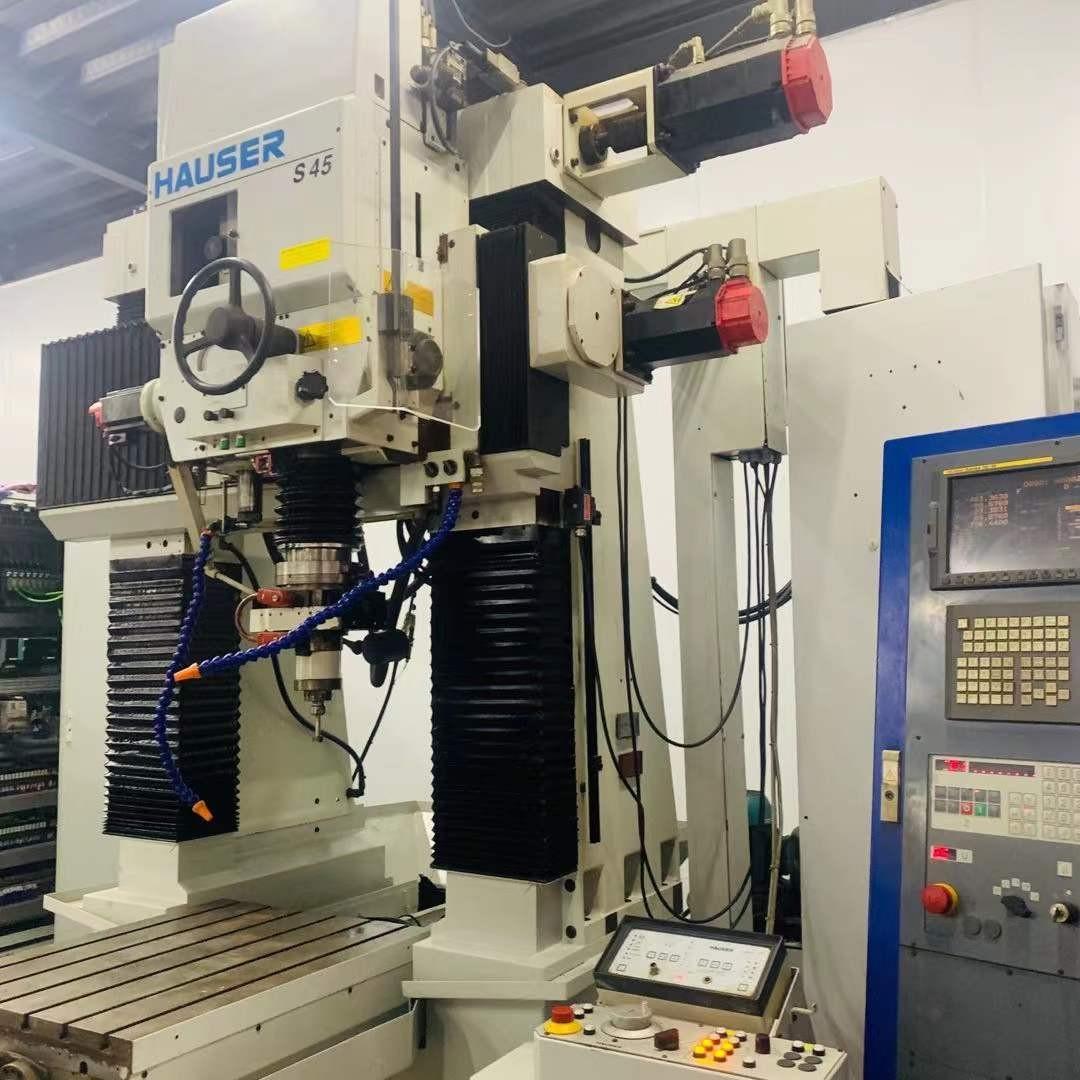

Hauser S45-400 Jig grinding machine

Brand: HAUSER

Model: S45-400

Origin: Switzerland

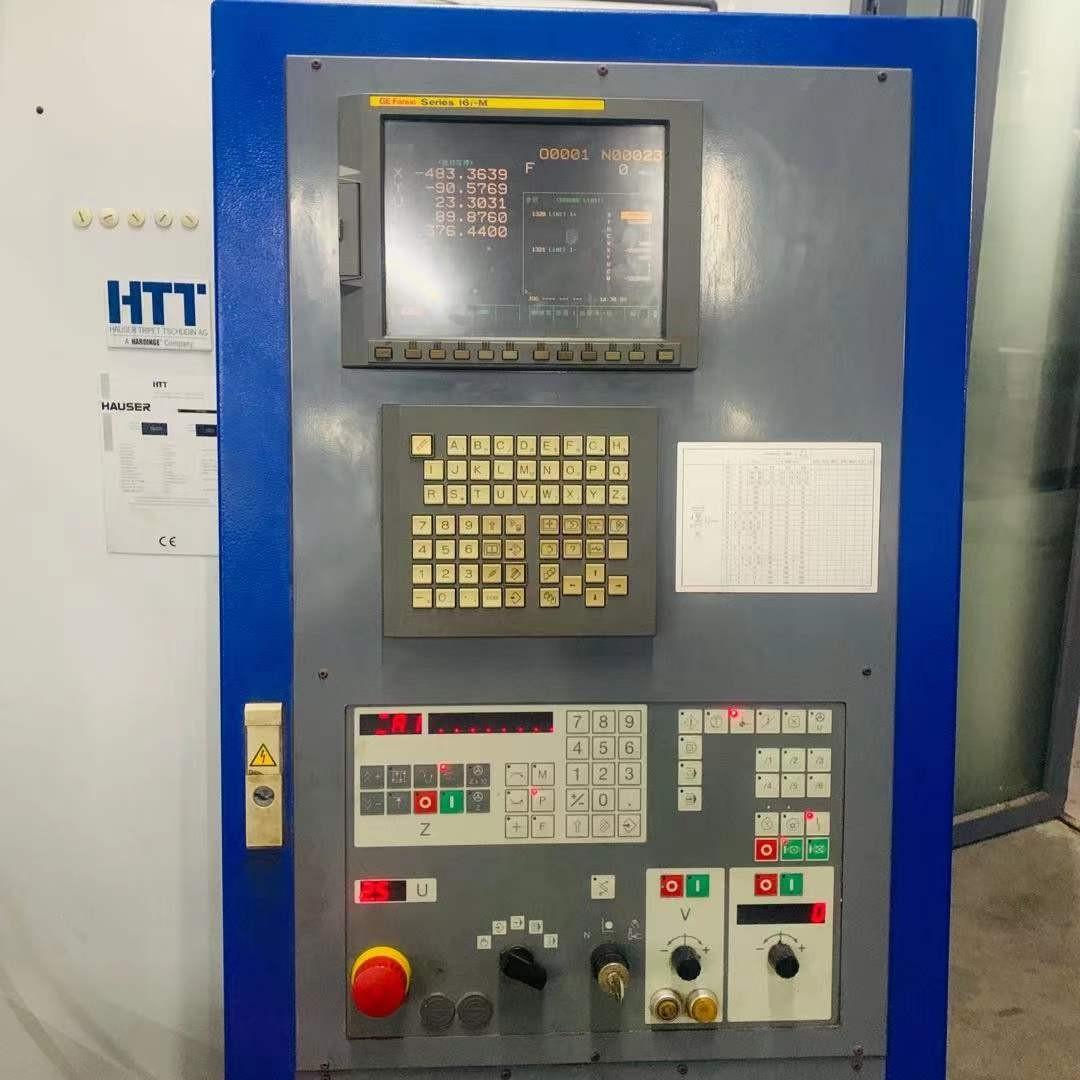

CNC system: Fanuc 16i

Worktable length: 770 mm

Worktable width: 630mm

X: 720mm

Y: 500 mm

W: 500 mm

Grinding diameter: 230 mm

Grinding spindle vertical stroke (stepless): 130 mm

Grinding spindle vertical stroke (manual): 140 mm

Planetary gear speed: 5-300 rpm

Spindle steplessly variable speed-- with motor: 4500-80,000 rpm

With air turbine: 100000-160000 rpm

Total power: 8.5kW

Machine weight: 4 tons

Machine dimensions: 2815 x 2410 x 3180 mm
