CITIZEN CINCOM M-20 Lathe

Number of axes: 4

Worktable length:  1150 mm

Worktable width : 700 mm

Turret positions: 60

X*Z*Y axis travel: 1000*750*750mm

Diameter with free adjacent pocket:115 mm

Tool length: 305 mm

Spindle nose: HSK A63

Distance from vertical  spindle to worktable: 115 mm

Maximum spindle speed(stepless):  24000 rpm

Feed rate: 1500 mm/min

Rapid rate: 22 m/min

Voltage: 50 Hz 3x   400 Volt

Total power required:40 KW

Time under power: 21859 hours

Machining time:7308 hours

Spindle running time:1564 hours

Weight: 10500 kg

Overall footage(L*W*H):  5220*3100*2840mm

Tool magazine: 30

Internal coolant supply (cts)

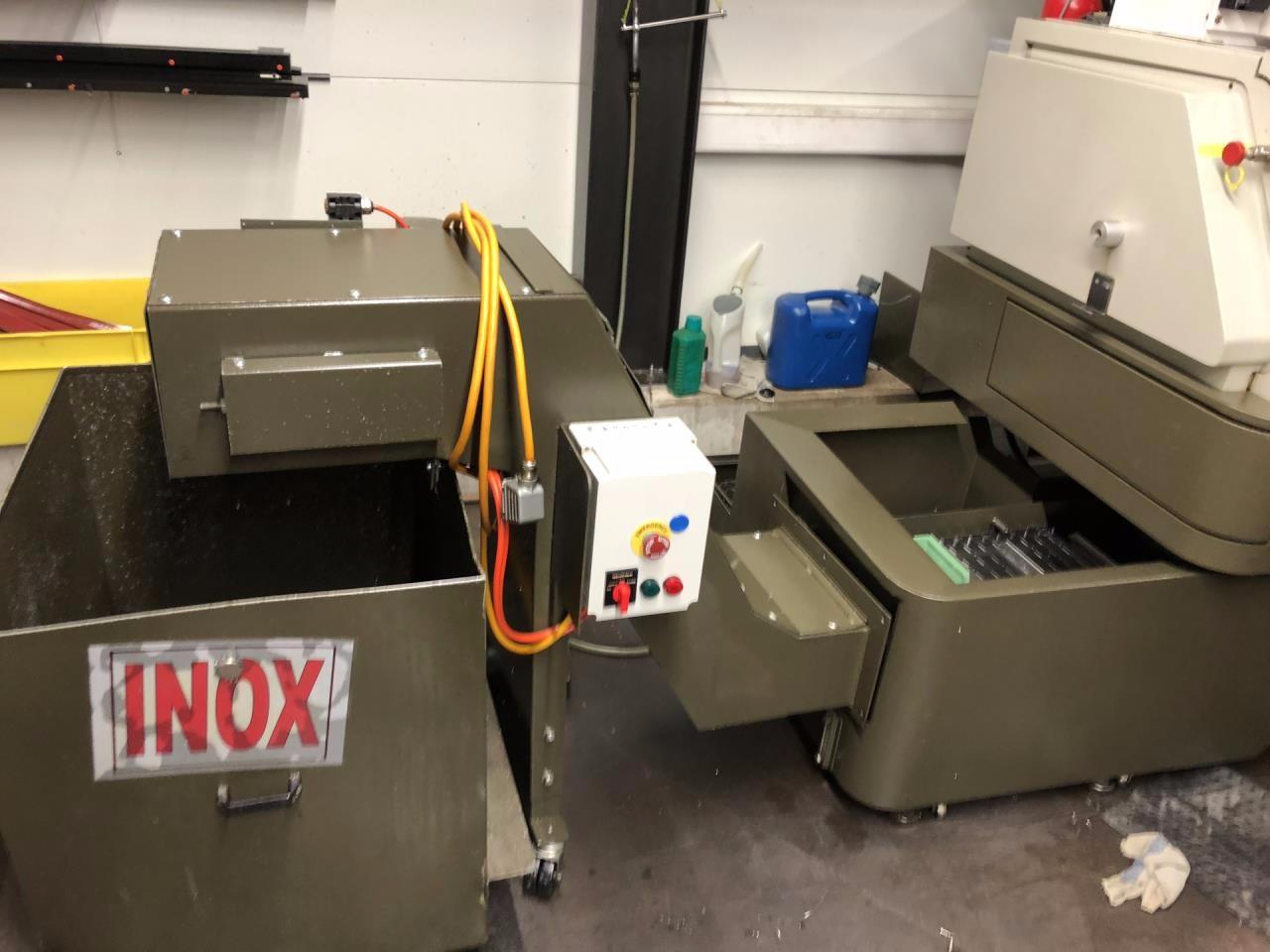

Chip conveyor

Dividing attachment：4th axis

Set of tool holders：45 .

Tool cabinet: LISTA
