TRAUB TNA500 Lathe

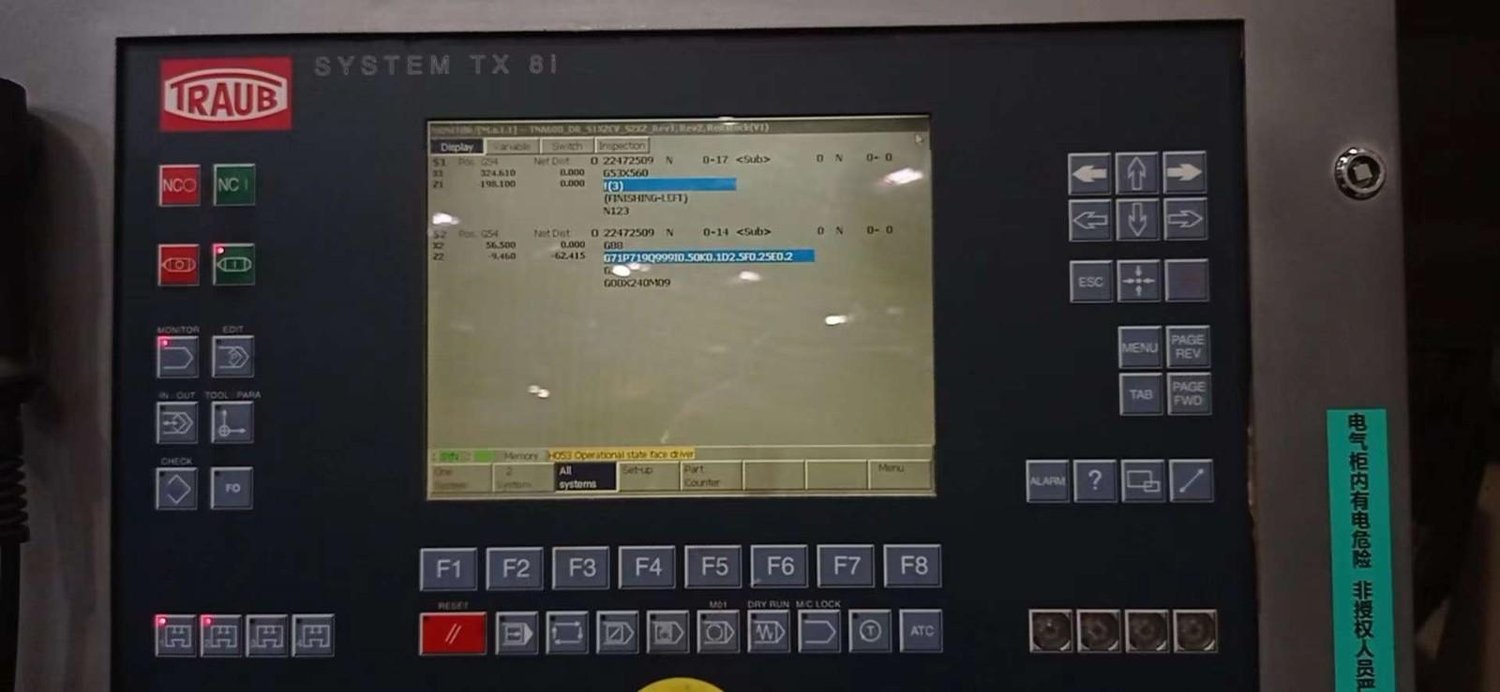

CNC system TRAUB TX 8F

Turning length 1000mm

Workpiece turning diameter 680mm

Maximum bar diameter 80mm

Chuck internal/external diameter 250/315mm

Maximum spindle speed 2800rpm

Maximum power 31kW

Maximum torque 545Nm

Tailstock：

tailstock quill shaft diameter 100mm

Quill shaft Travel 100mm

Number of Y-axis tool holder positions 12

Maximum power 6.6kW

Maximum torque 60.4Nm

X axis travel 320mm

Z-axis Travel 1070mm

X axis fast movement rate 15m/min

Z-axis fast movement rate of 20m/min

Machine weight 6.8 tons
