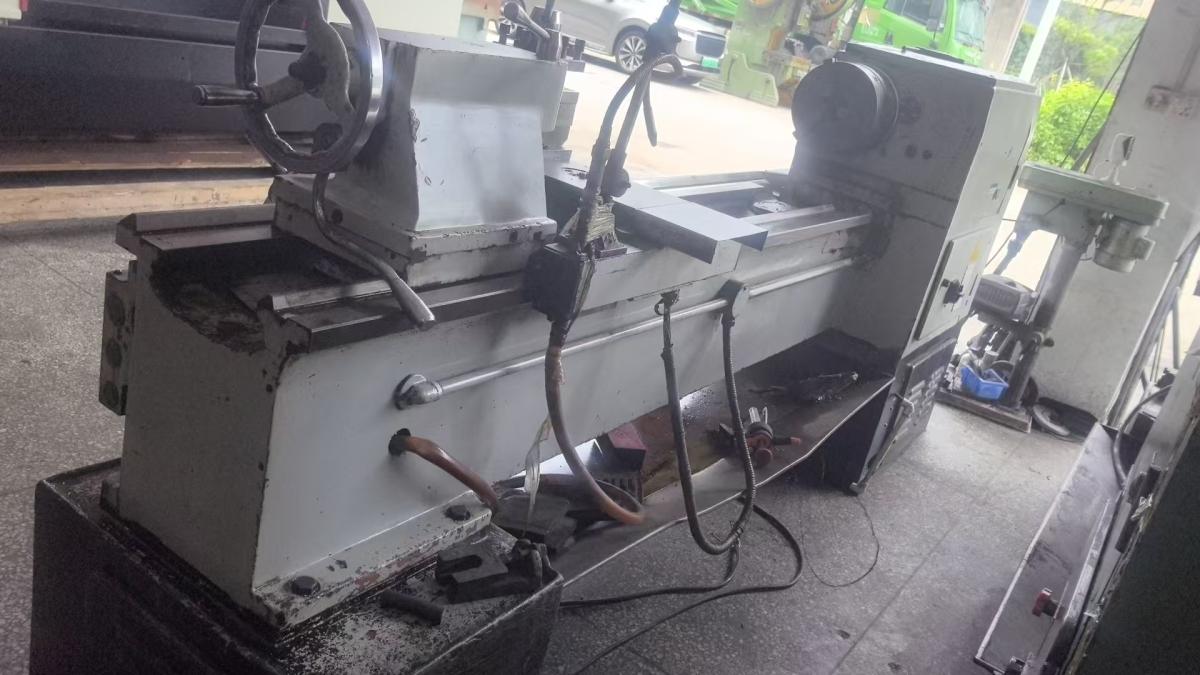

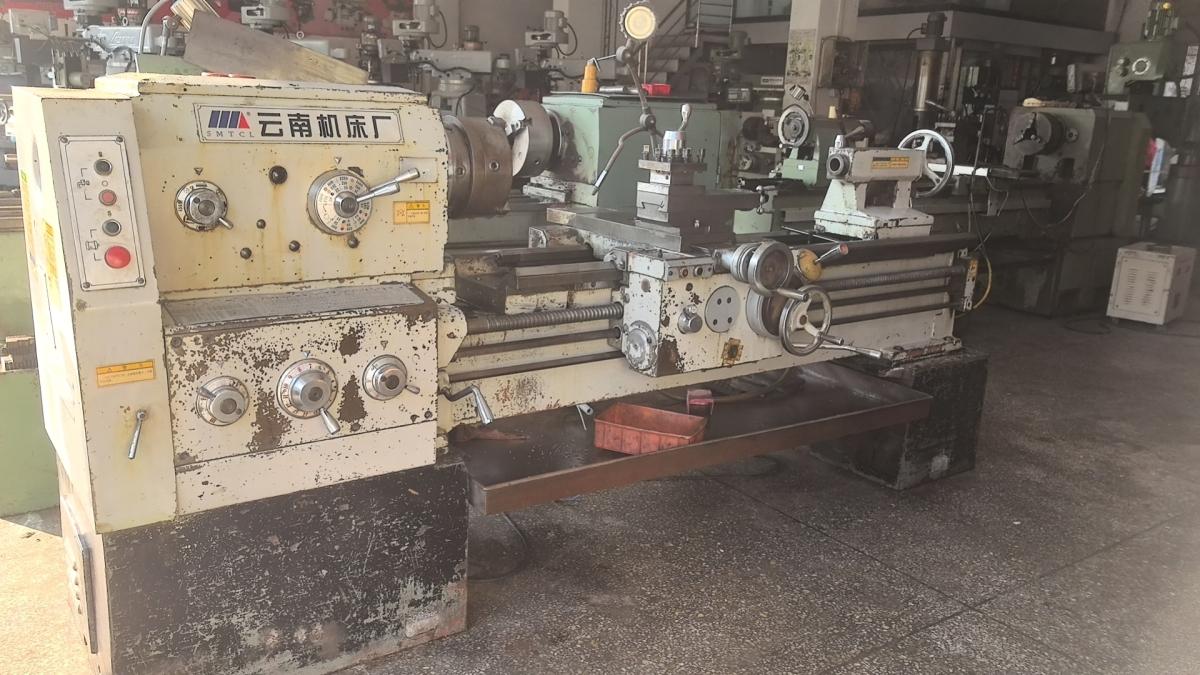

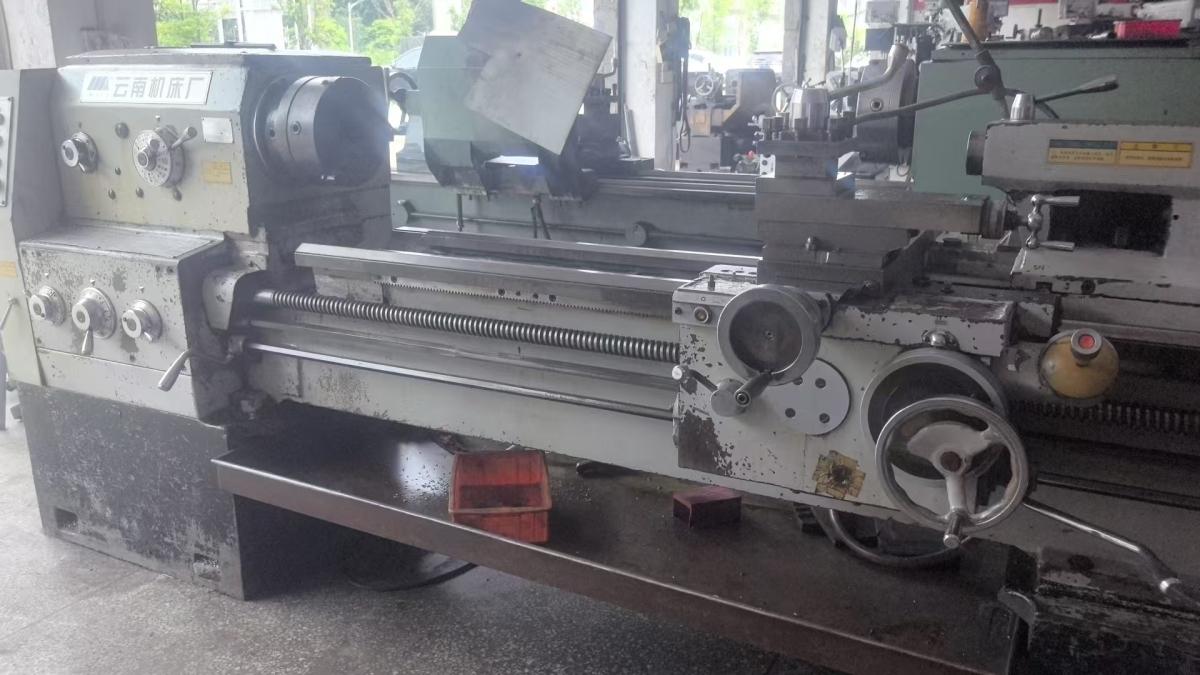

Yunnan Machine 6250B/1500 Lathe

Maximum Machining diameter over bed: 500 mm
Maximum Machining diameter over gap: 720 mm
Maximum workpiece length: 1500 mm
Spindle bore diameter: 82 mm (105 mm optional)
Spindle speed range: 25 - 2000 rpm (24 steps)
Main motor power: 7.5 kW
Maximum travel of tool post (longitudinal / cross): 1400 / 300 mm
Maximum travel of compound rest: 150 mm
Metric thread pitch range: 1 - 224 mm (48 types)
Whitworth thread range: 28 - 2 TPI (48 types)
Module thread range: 0.5 - 112 mm (42 types)
Diametral pitch thread range: 56 - 1 DP (42 types)
Tailstock quill diameter / travel: 75 / 150 mm
