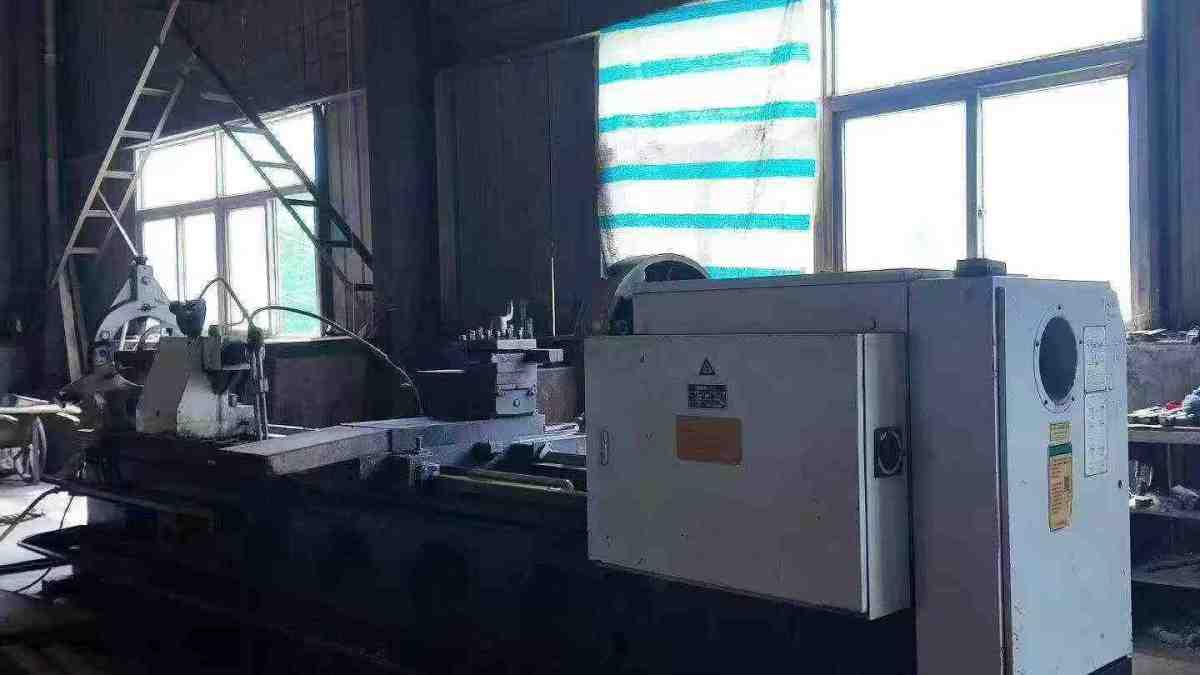

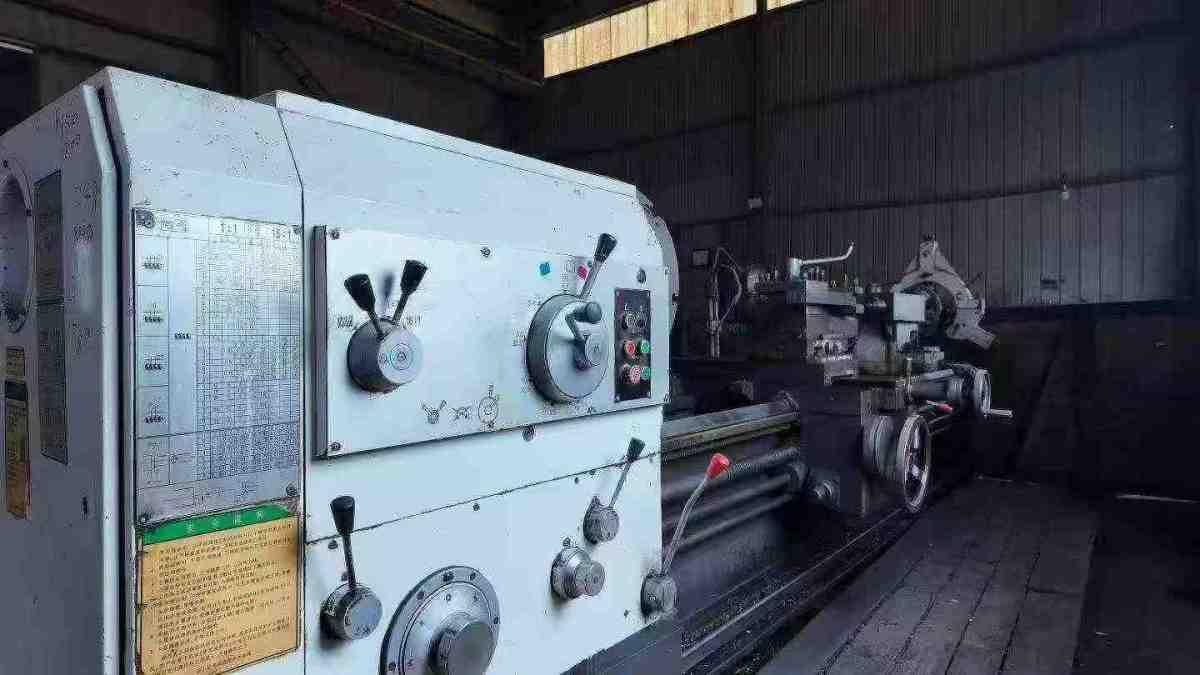

SMTCL CW6180B Lathe

[Product Information]:

Inventory number：68038
Brand：SMTCL
Model：CW6180B
Origin：China
Location：China
Year：2010
Create Time：2026-06-01

Specifications:

The maximum rotational diameter on the bed: φ800mm
The maximum rotational diameter on the tool holder: φ480mm
Maximum workpiece length: 3000mm

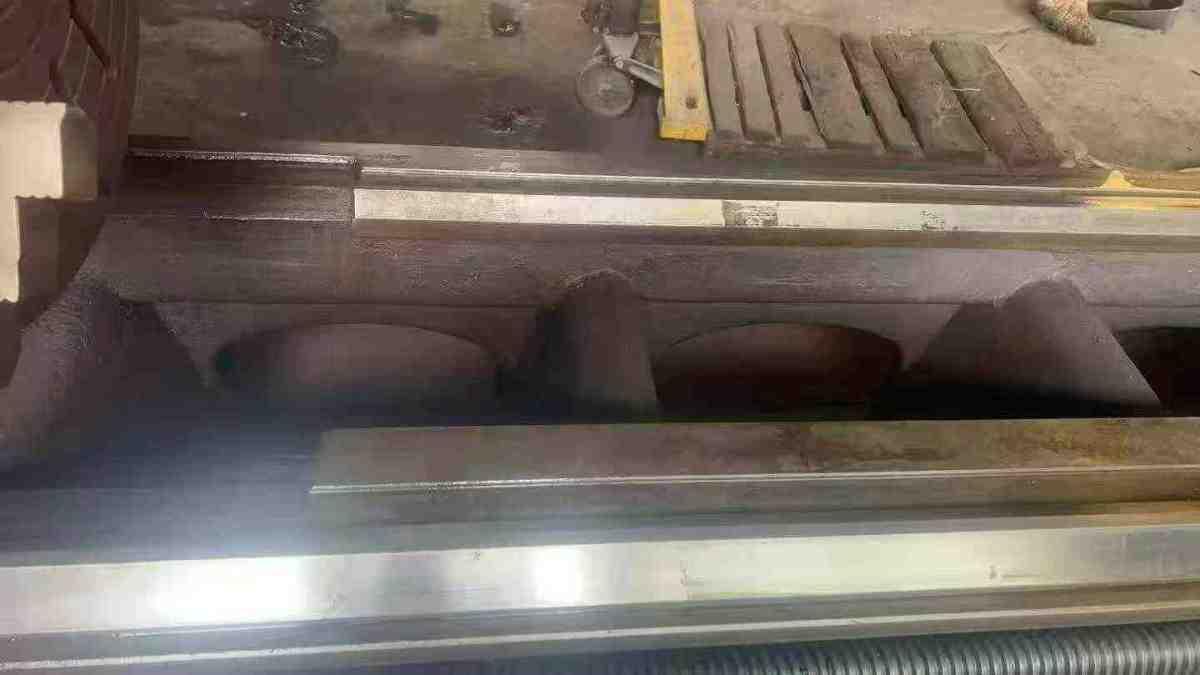

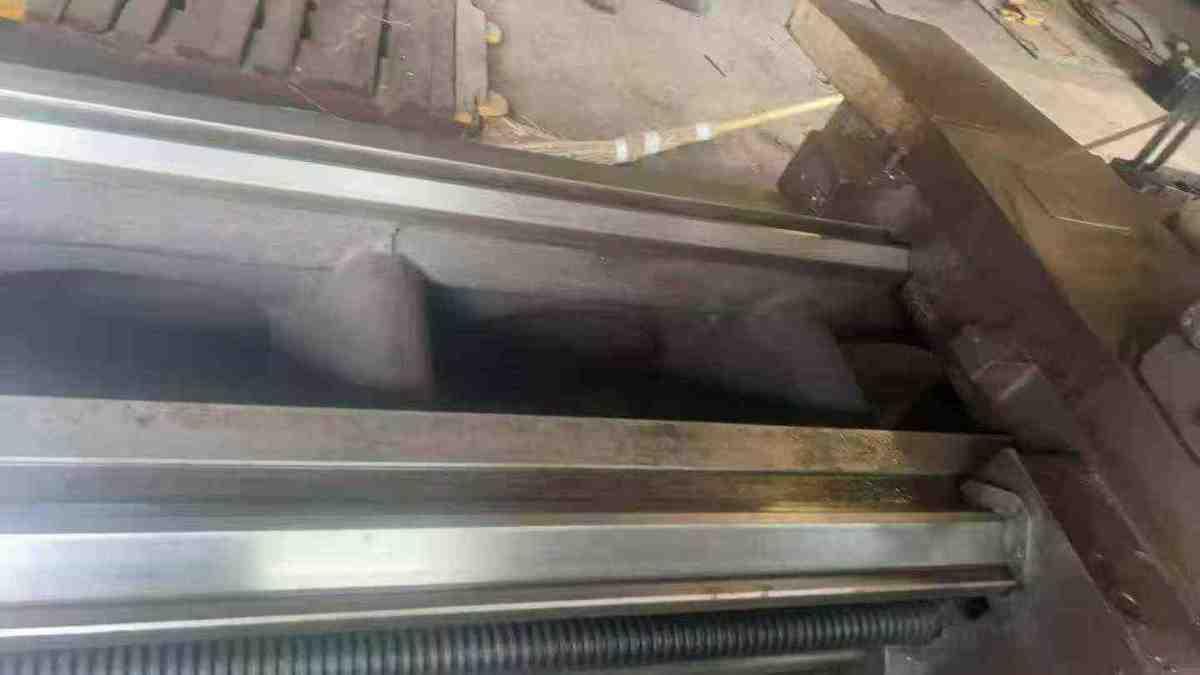

Width of the bed guideway: 550mm
spindle center height: 400mm
spindle through hole diameter: φ104mm
Spindle speed range: 14-1600rpm
Top taper: Mohs No. 5
Overall weight: 5,500 kg
Main motor power: 11kW

PDF Download Click to Contact Seller
