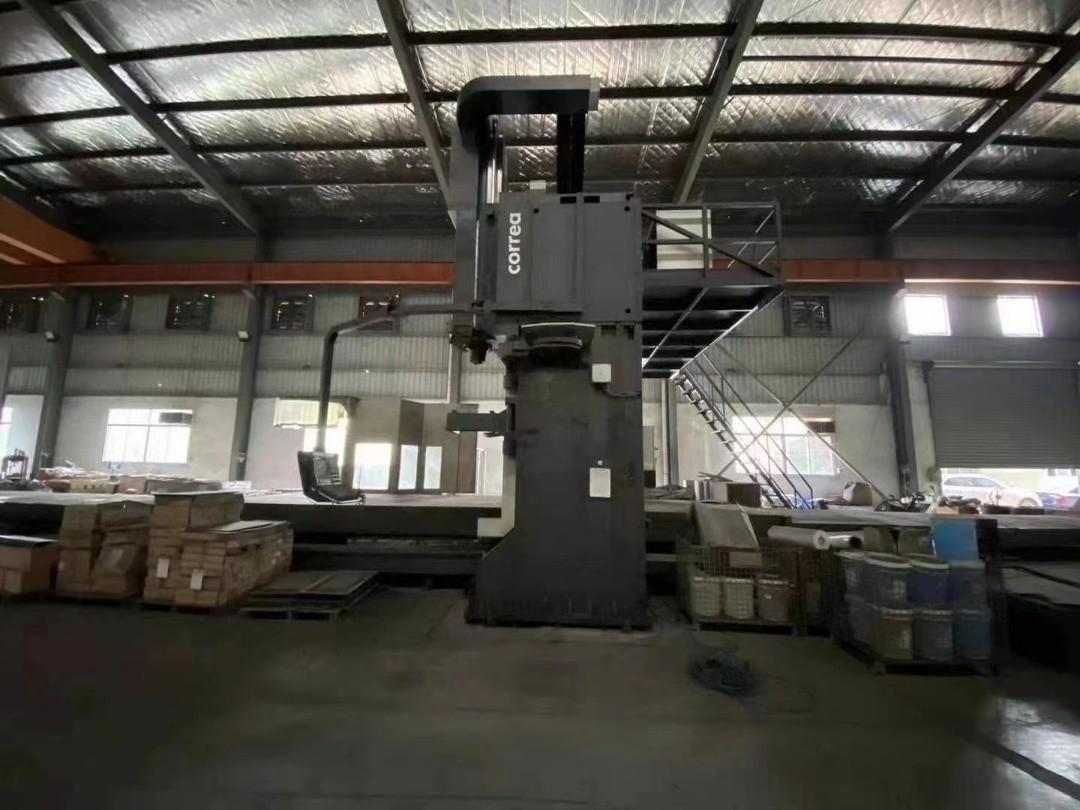

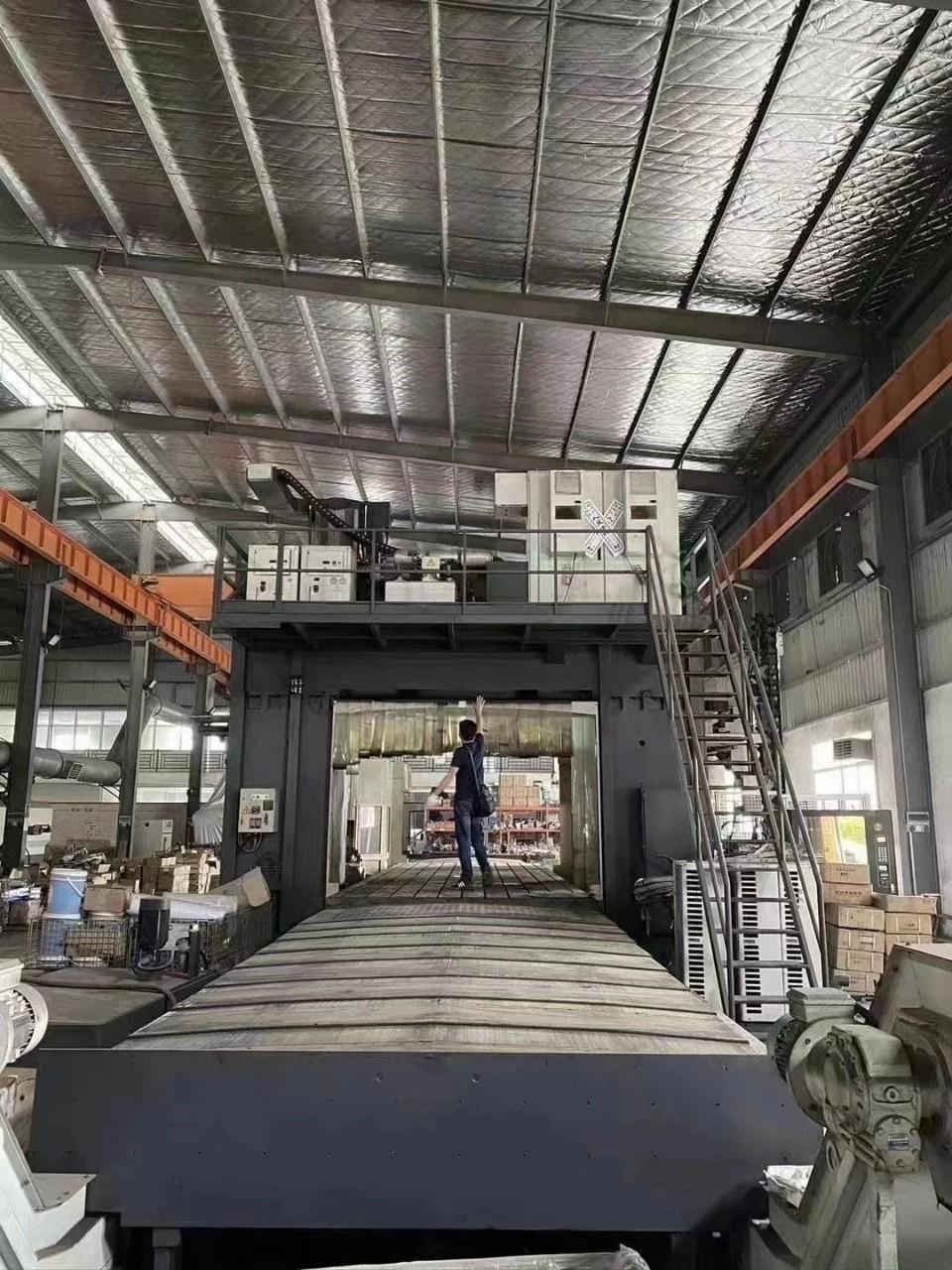

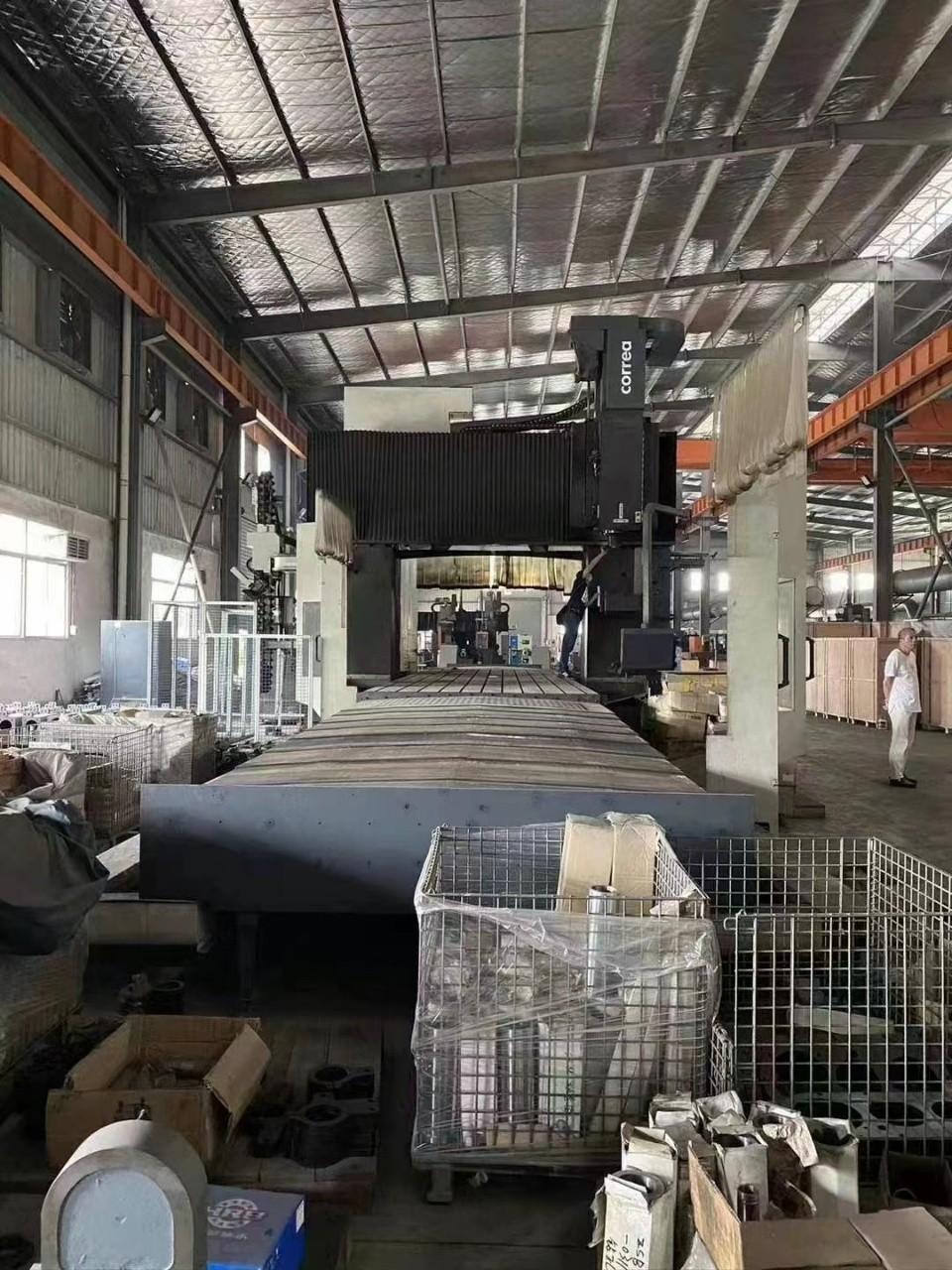

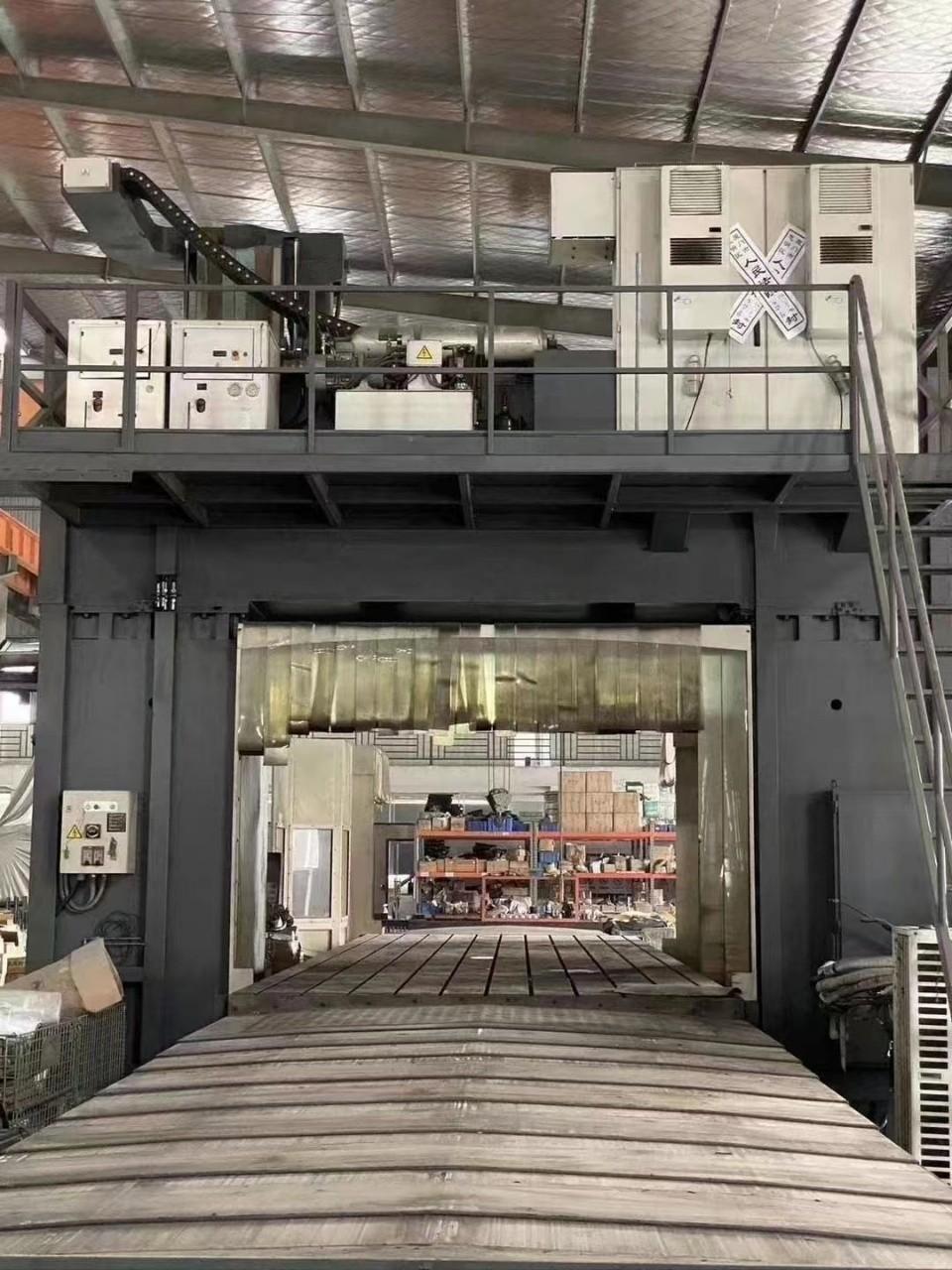

Nicolas FPV85 Lathe

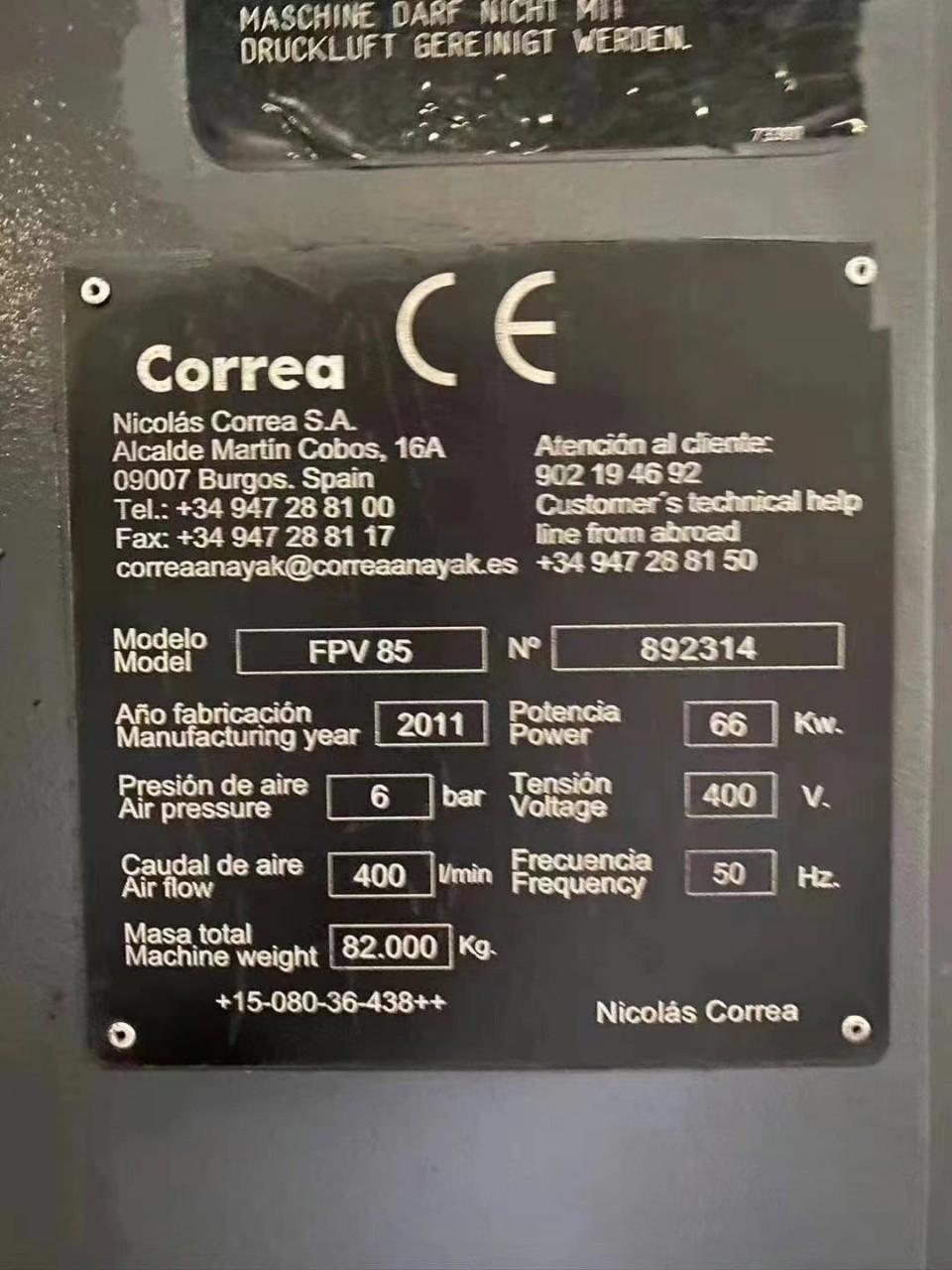

Brand: Nicolas five-face gantry machining center

Model: FPV85

Origin: Spain

XYZ travel: 8500 * 3800 * 1250

Worktable size: 8m x 2.5m

Worktable load: 35 tons

Effective door width: 3100mm

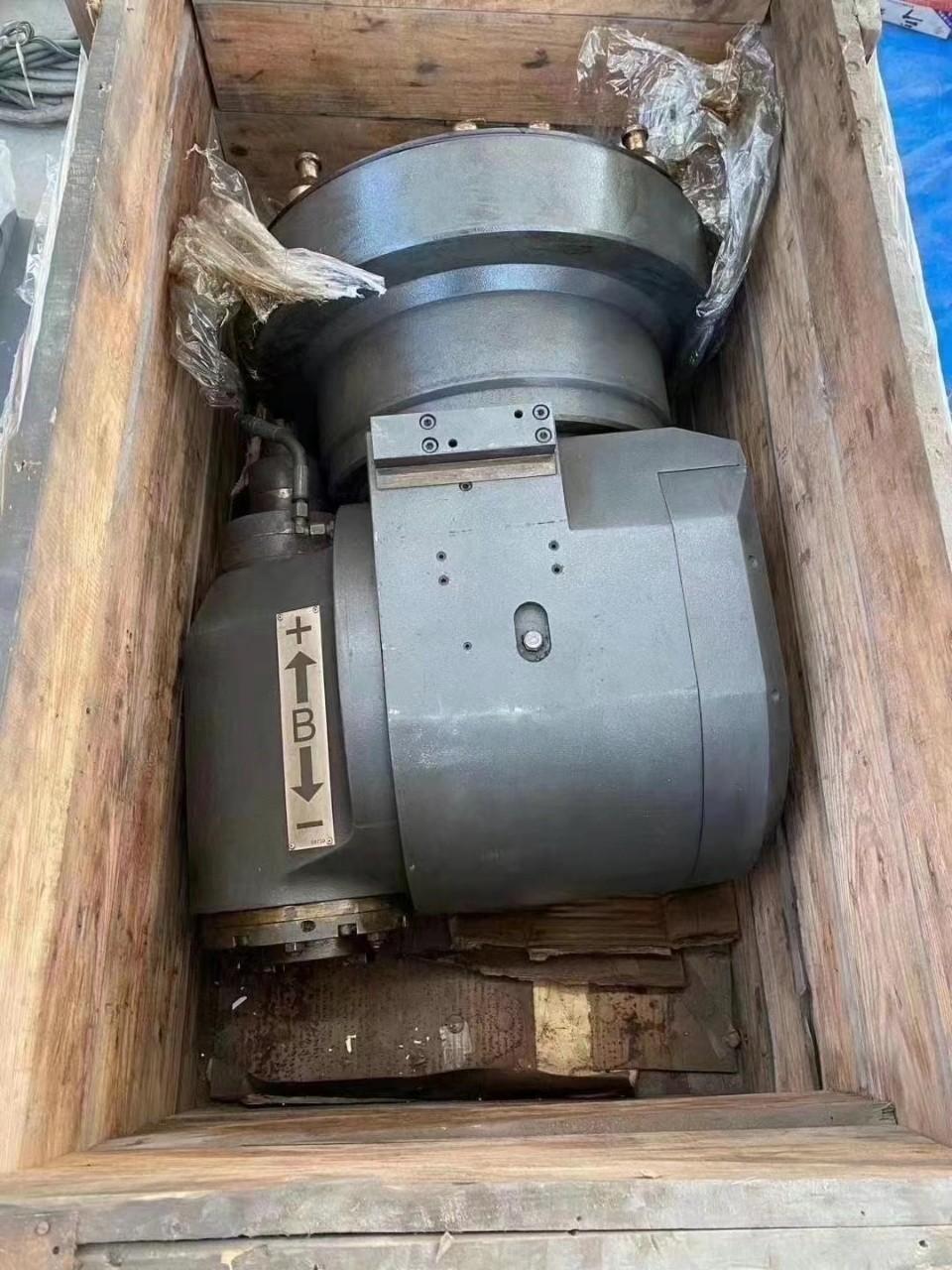

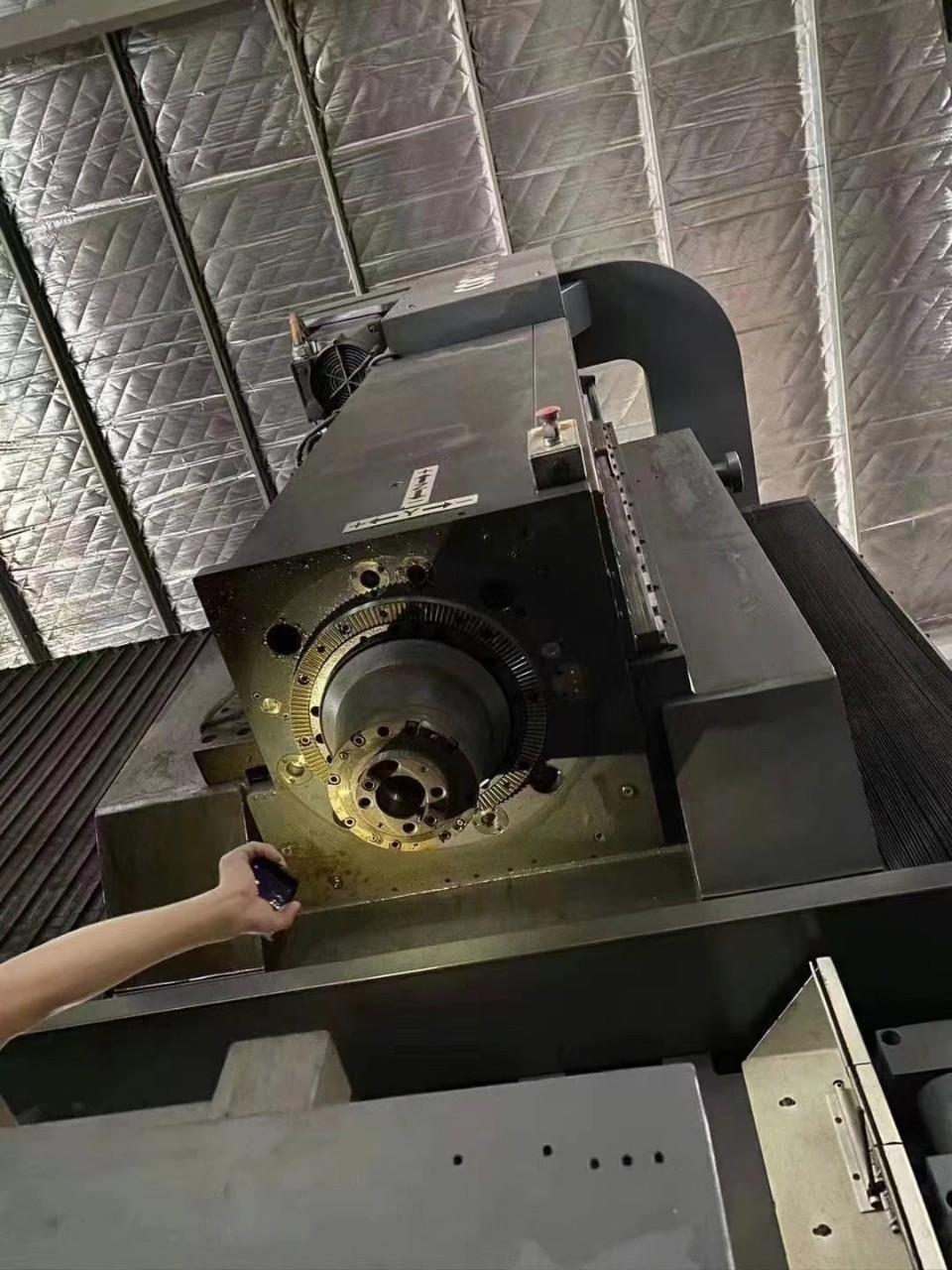

Heidenhain TNC530 system/1 steering milling head, spindle taper ISO50

Rapid feed speed

X：30

Y：12

Z：12

Spindle speed: 5000 rpm

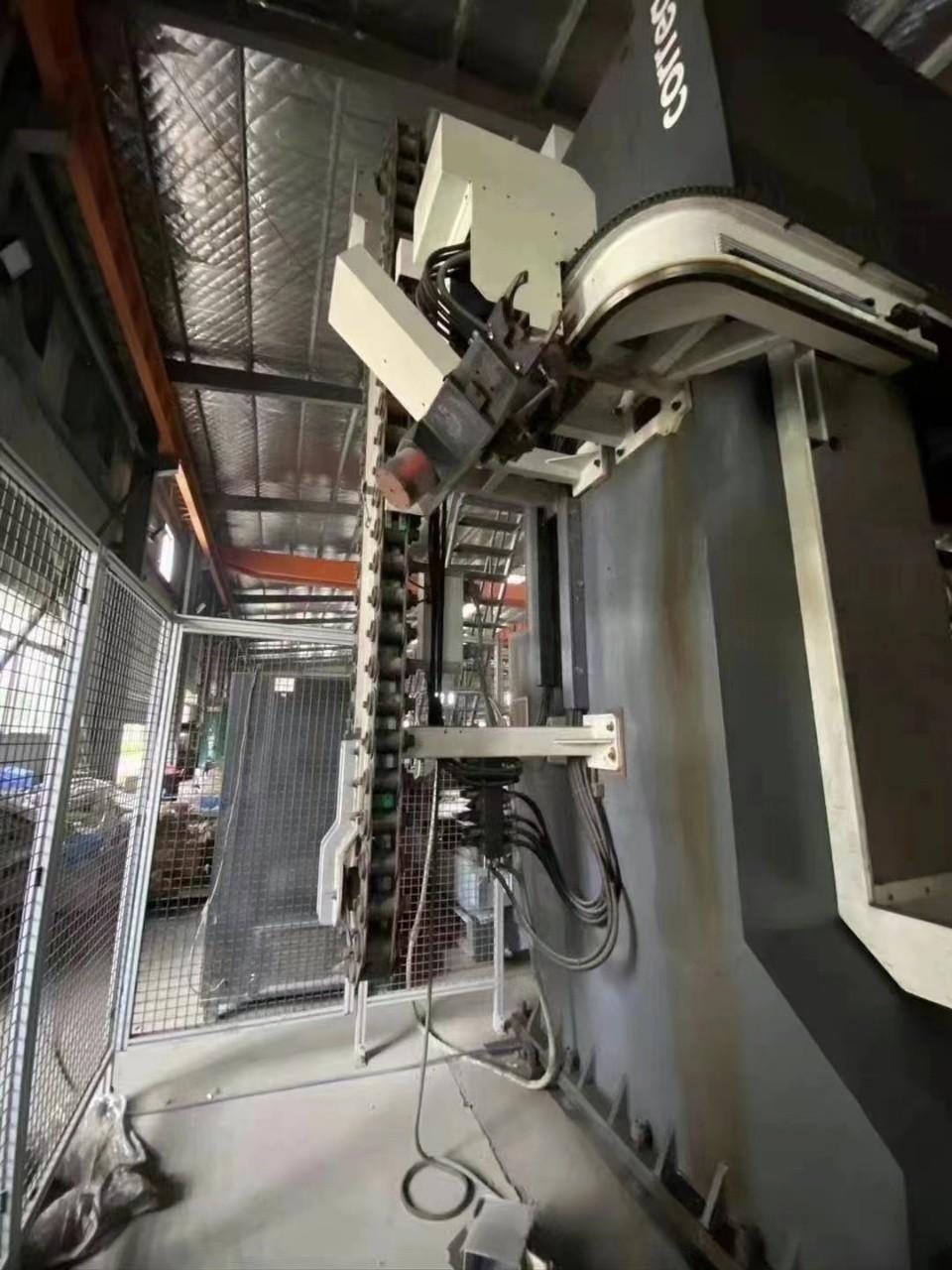

ATC tool magazine: 60

Maximum tool length: 400

Tool weight: 20 kg

Tool holder: A50

Distance between worktable surface to spindle nose: 1350

Cutting feed rate: 1 ～ 5000mm

Main motor power: 37/30KW
