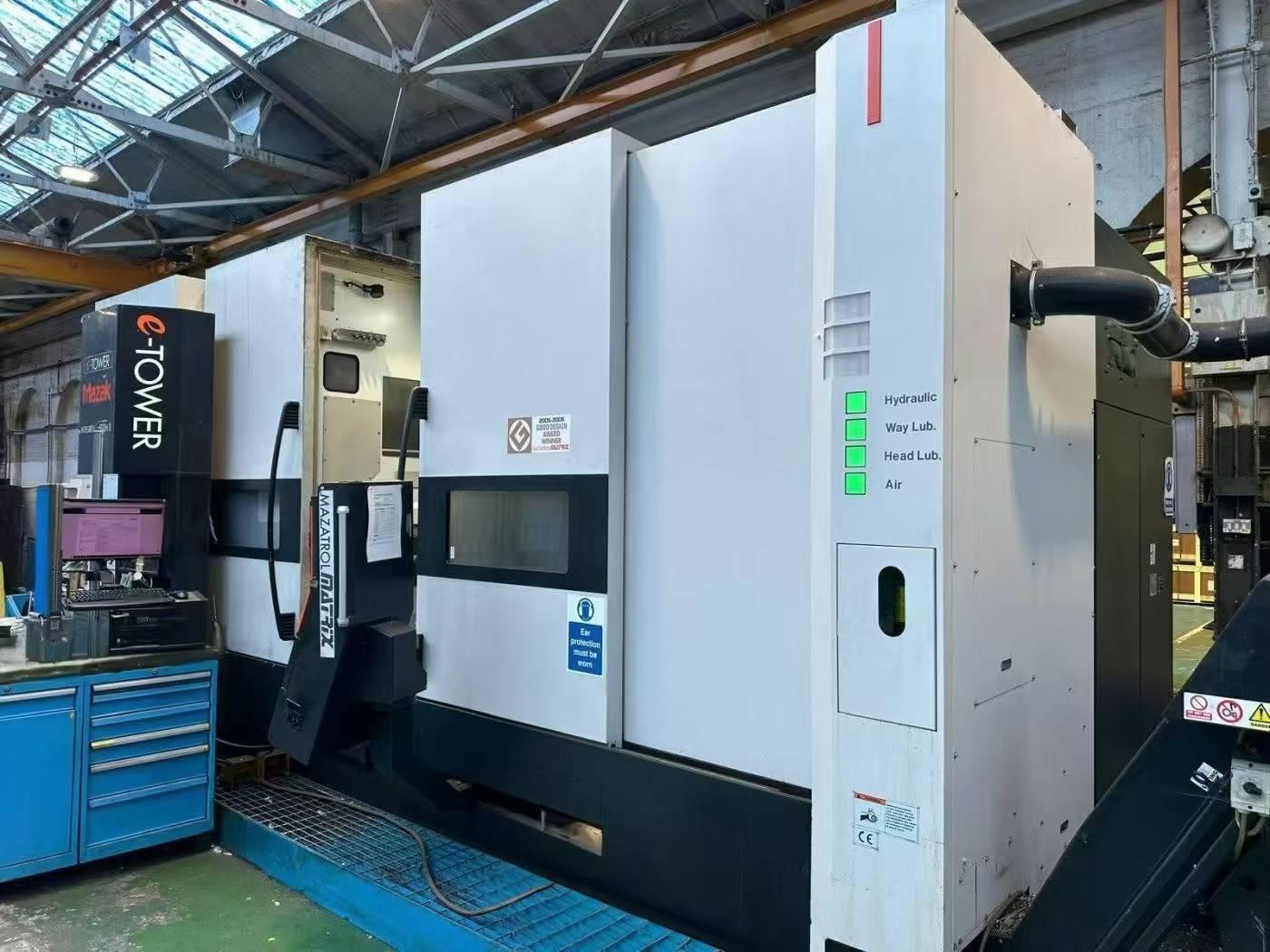

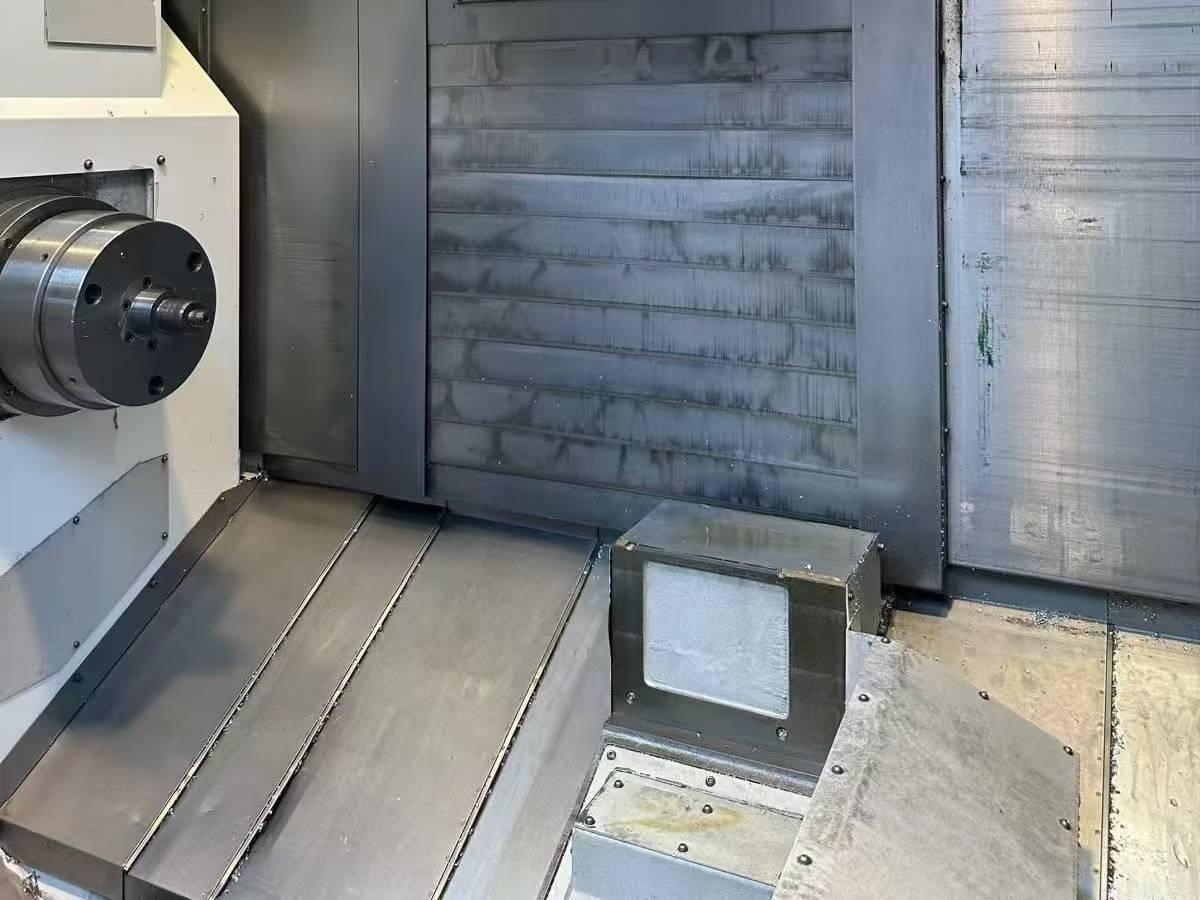

MAZAK Integrex E-500H-II Turn Mill Machining Centre

Rotary diameter: 820mm

machining  diameter: 820mm

machining  length: 1500mm

X-axis travel: 870mm

Y-axis travel: 500(±250)mm

Z-axis travel: 1598mm

B-axis travel: -30º to +210º(0.001)

C-axis travel: 360º(0.001)

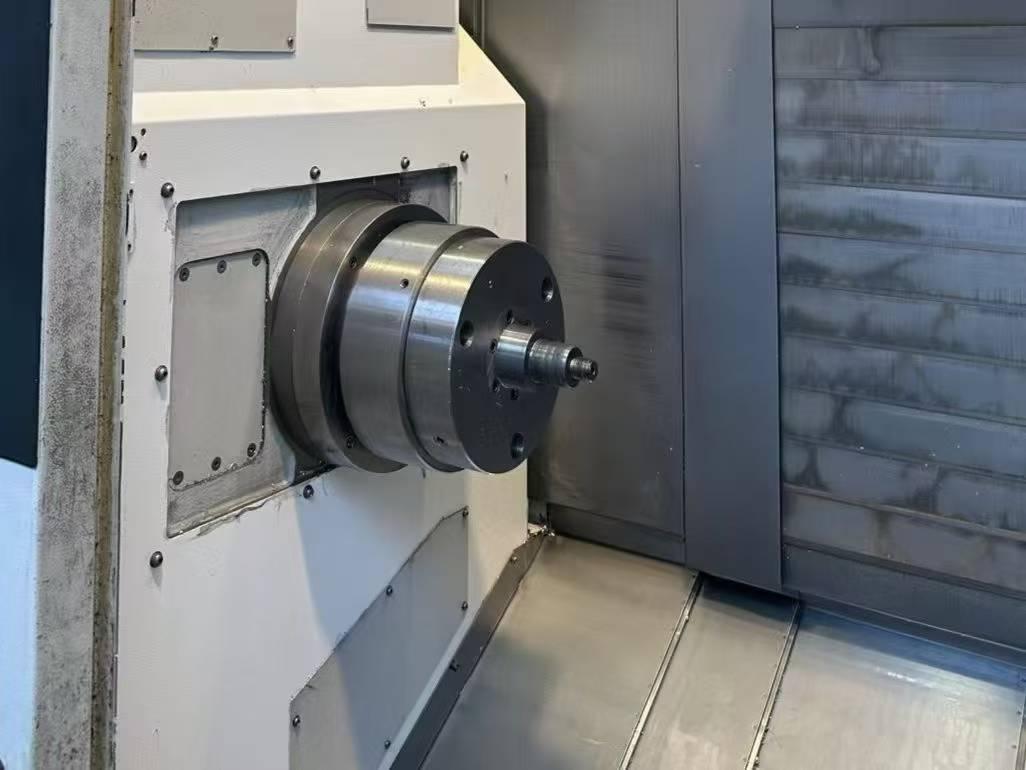

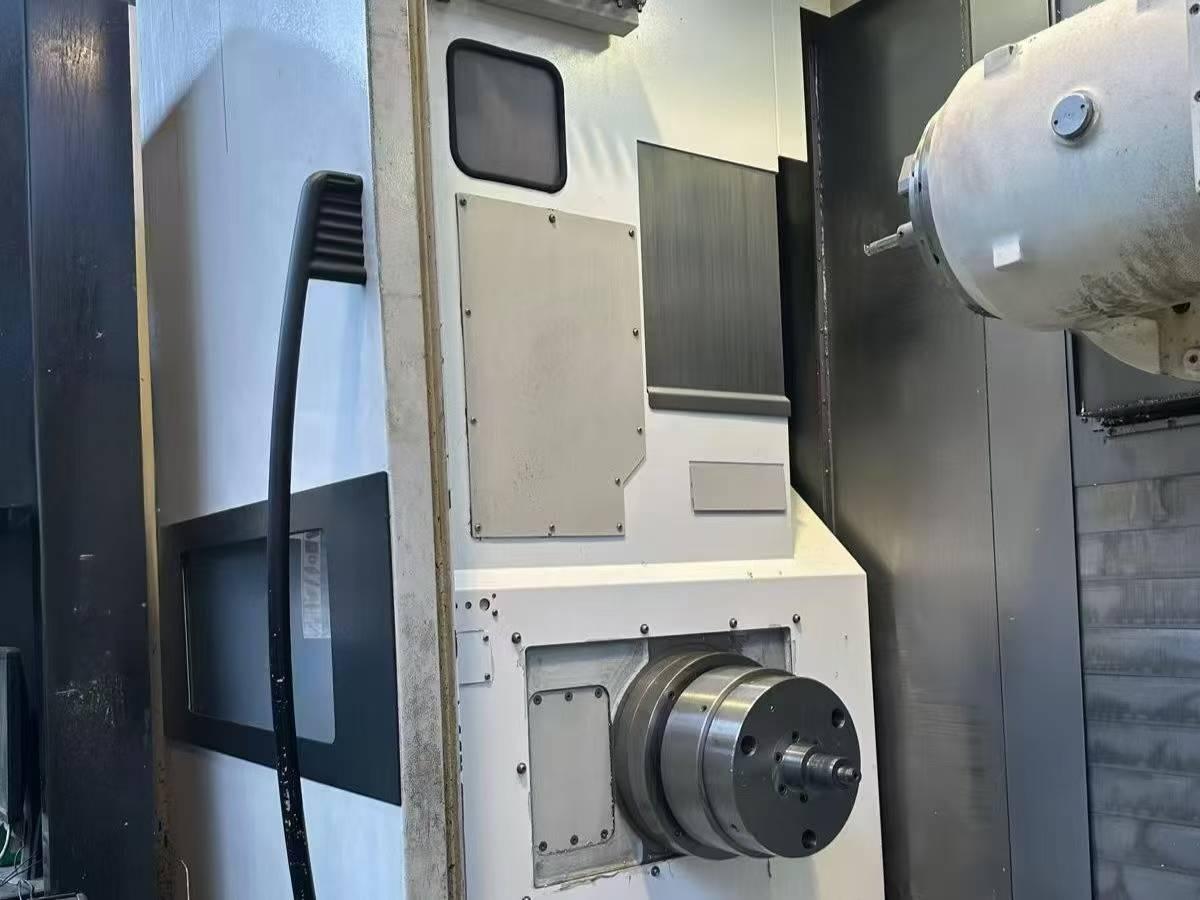

spindle chuck : 15 inches

Spindle speed: 1600 rpm

spindle nose shape: A2-11

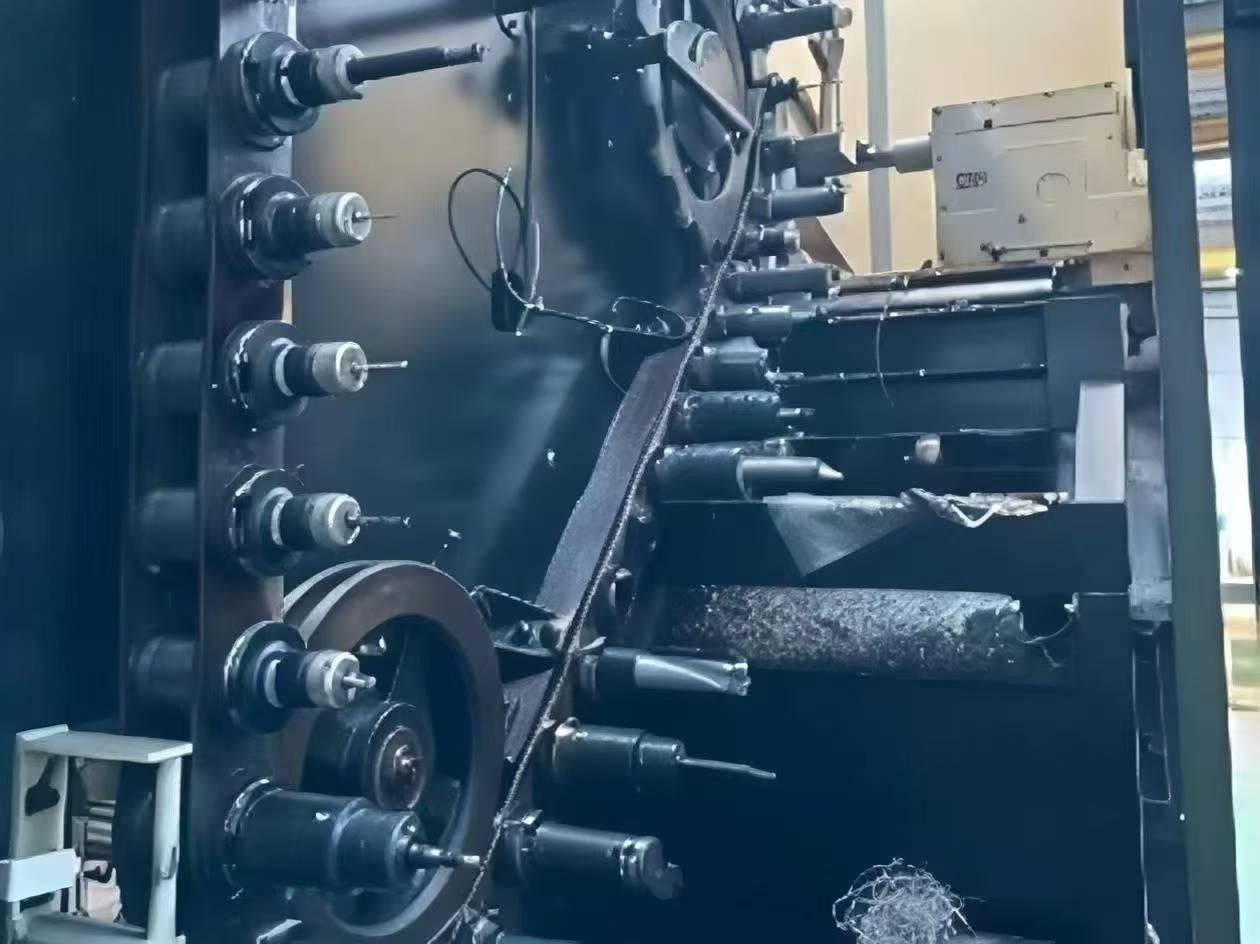

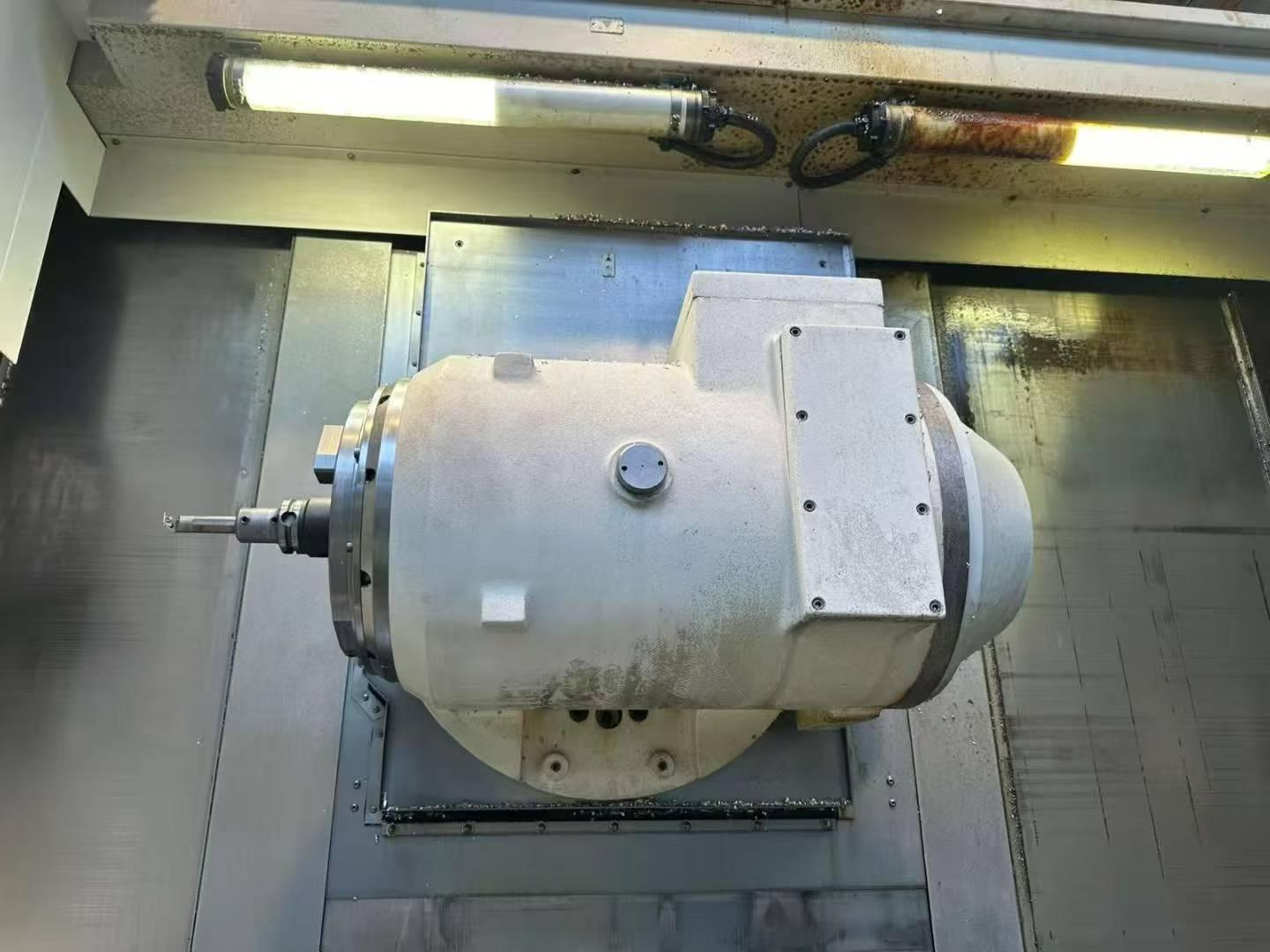

milling spindle: CAT 50, 10,000 rpm, ATC 40

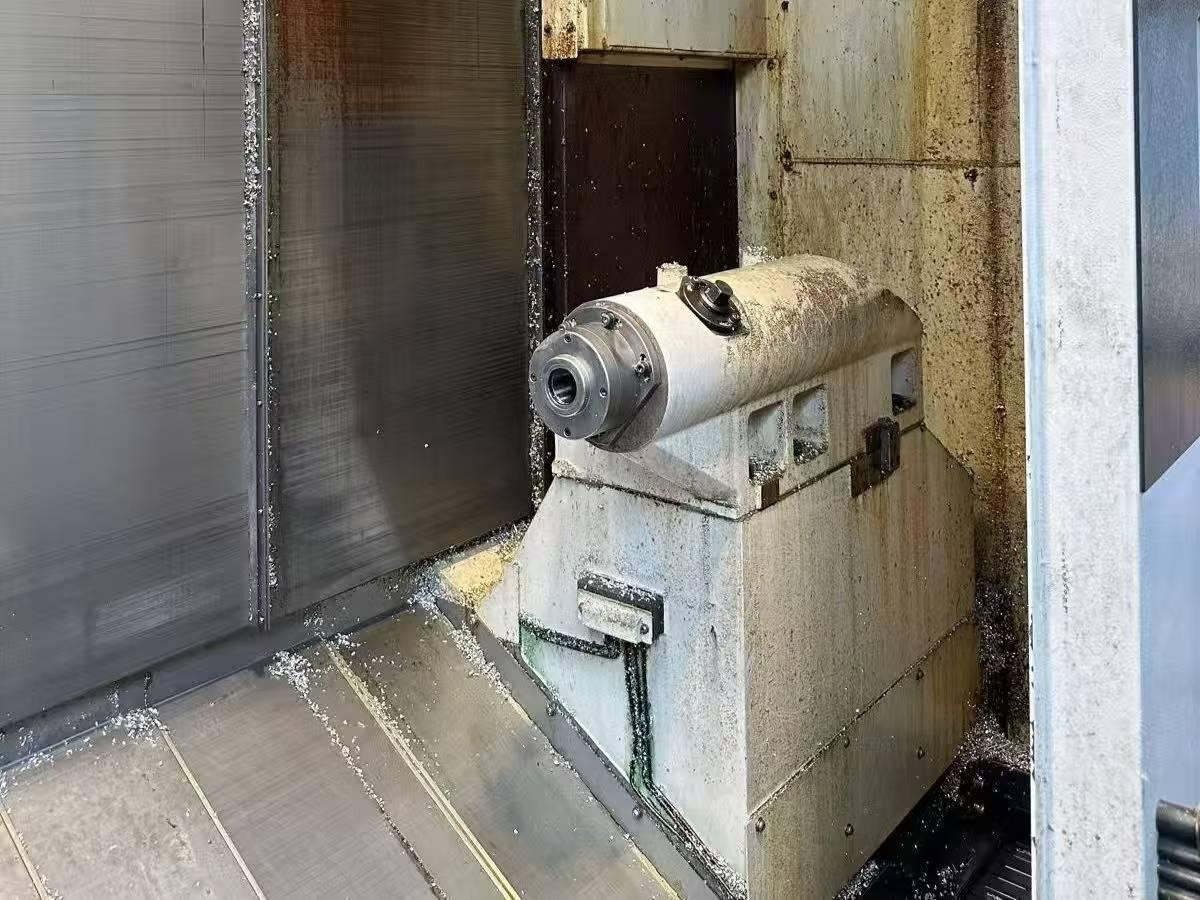

tailstock taper: M.T.5

tailstock travel: 1466

CNC System: Mazatrol MTARiX
