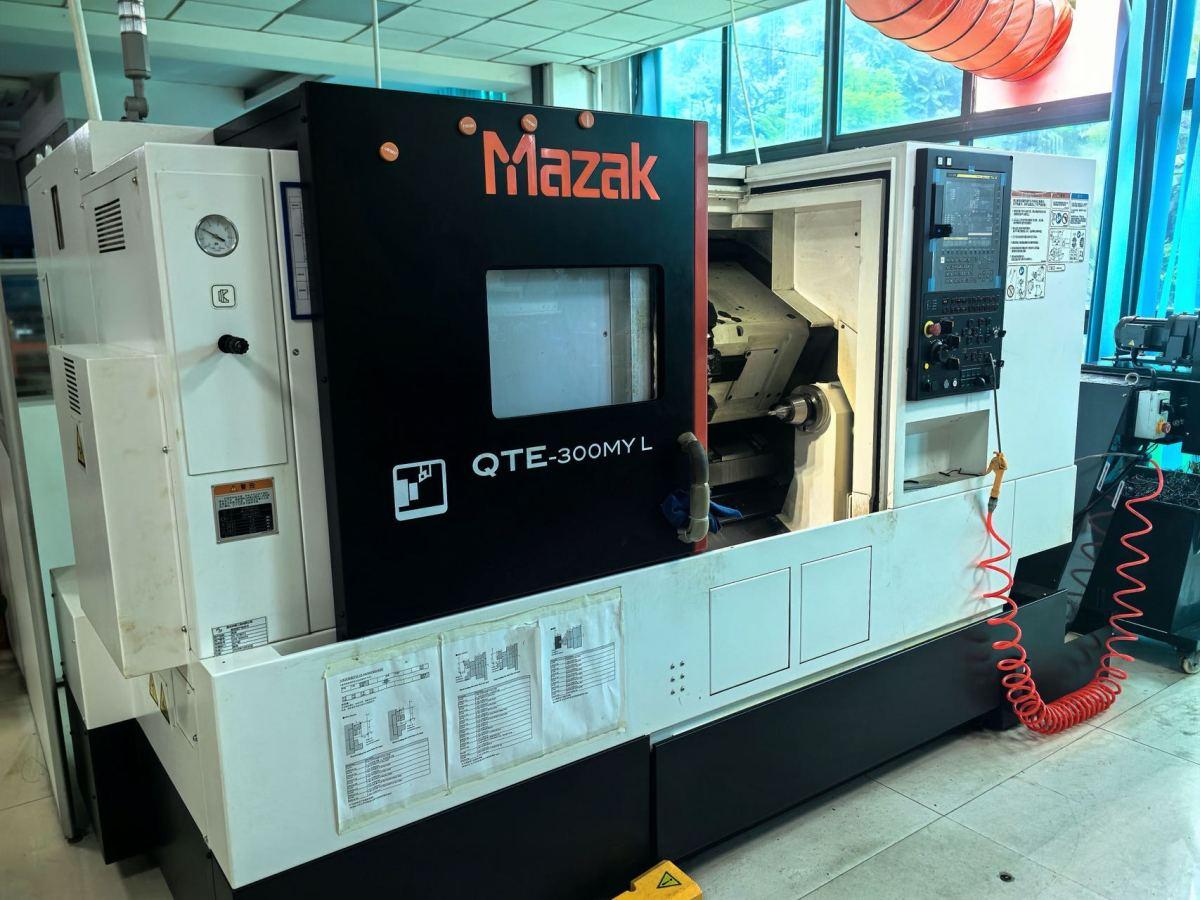

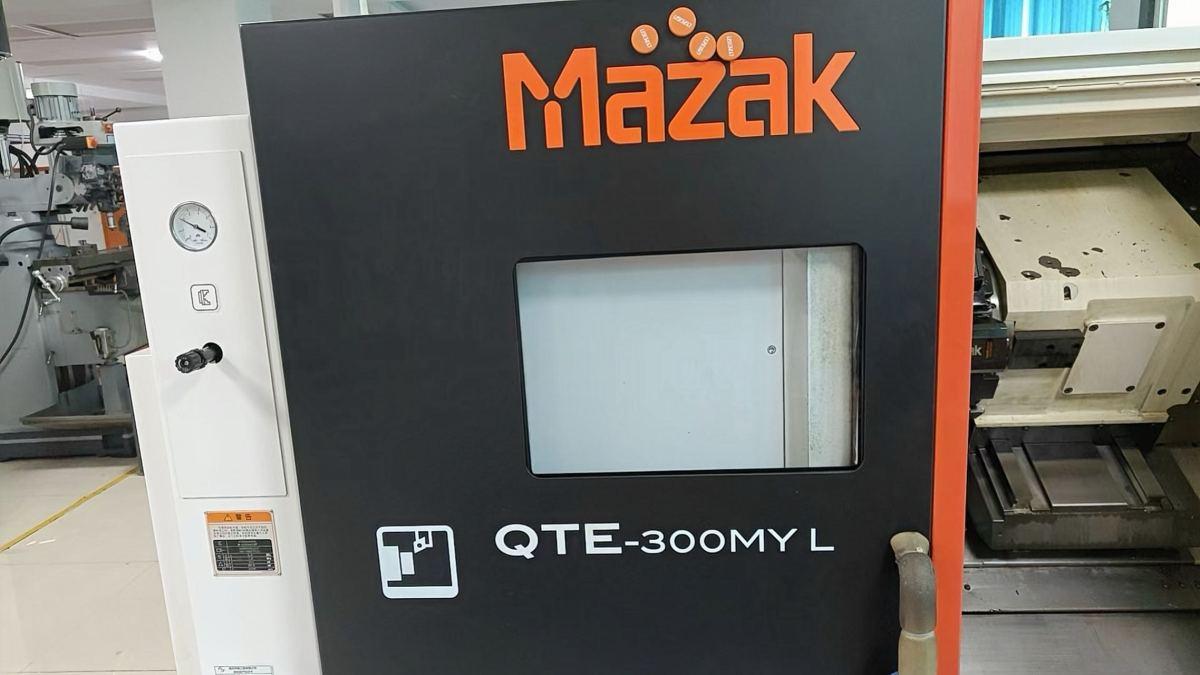

MAZAK QTE-300MY L Turn Mill Machining Centre

Three-axis travel: 215 × 100 × 605 mm
Maximum machining diameter: Φ340 mm
Standard machining diameter: Φ255 mm
Maximum turning diameter: Φ695 mm
Maximum machining length: 1,055 mm
Main spindle speed: 4,000 rpm
Milling spindle speed: 6,000 rpm
Chuck size: 10 inches
Tool magazine capacity: 12 tools
X/Y/Z-axis feed rates: 30,000 / 10,000 / 30,000 mm/min
C-axis feed rate: 555 rpm
Machine dimensions (L × W × H): 2,710 × 1,690 × 1,725 mm

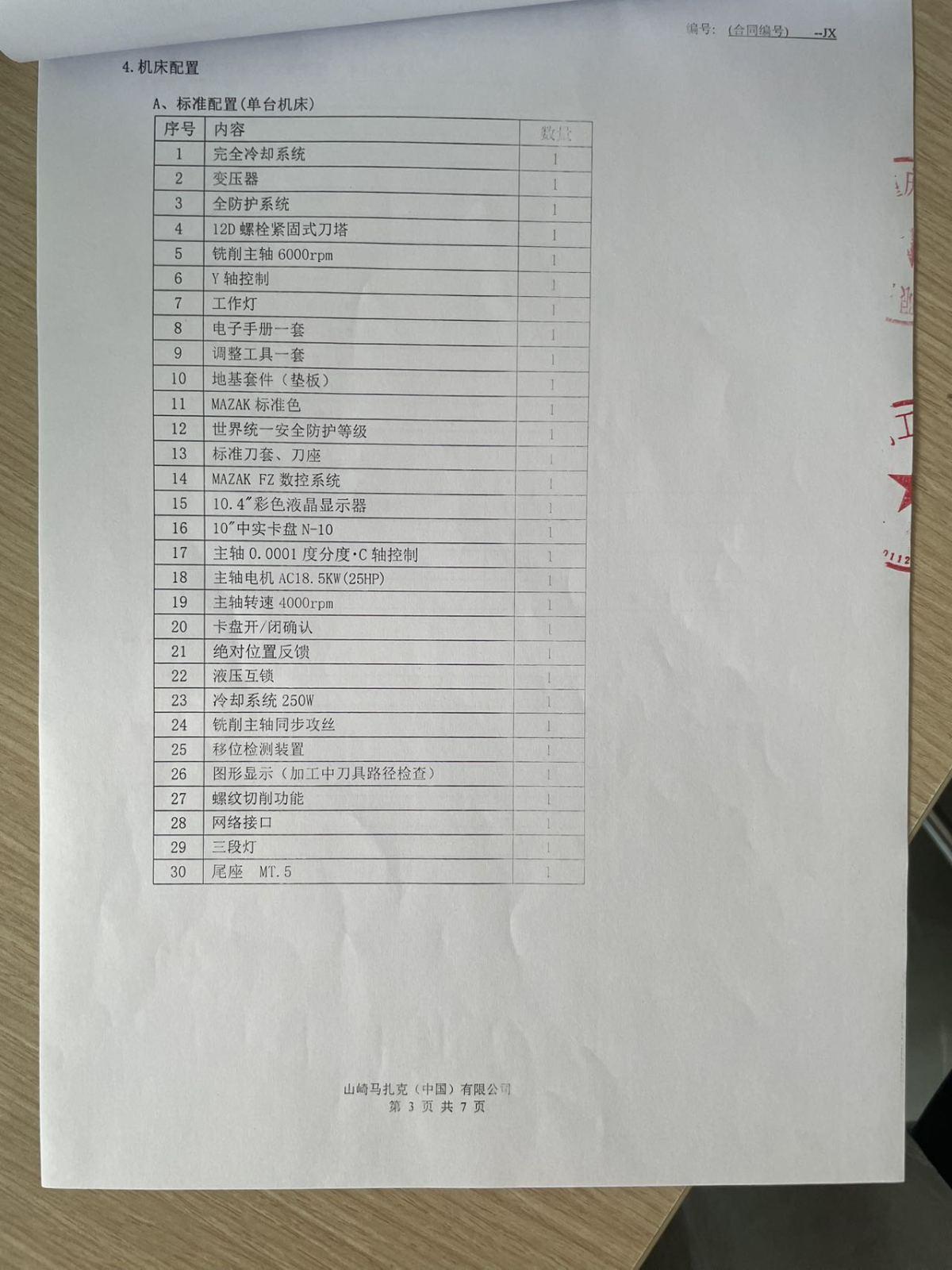

Configuration:
Y-axis

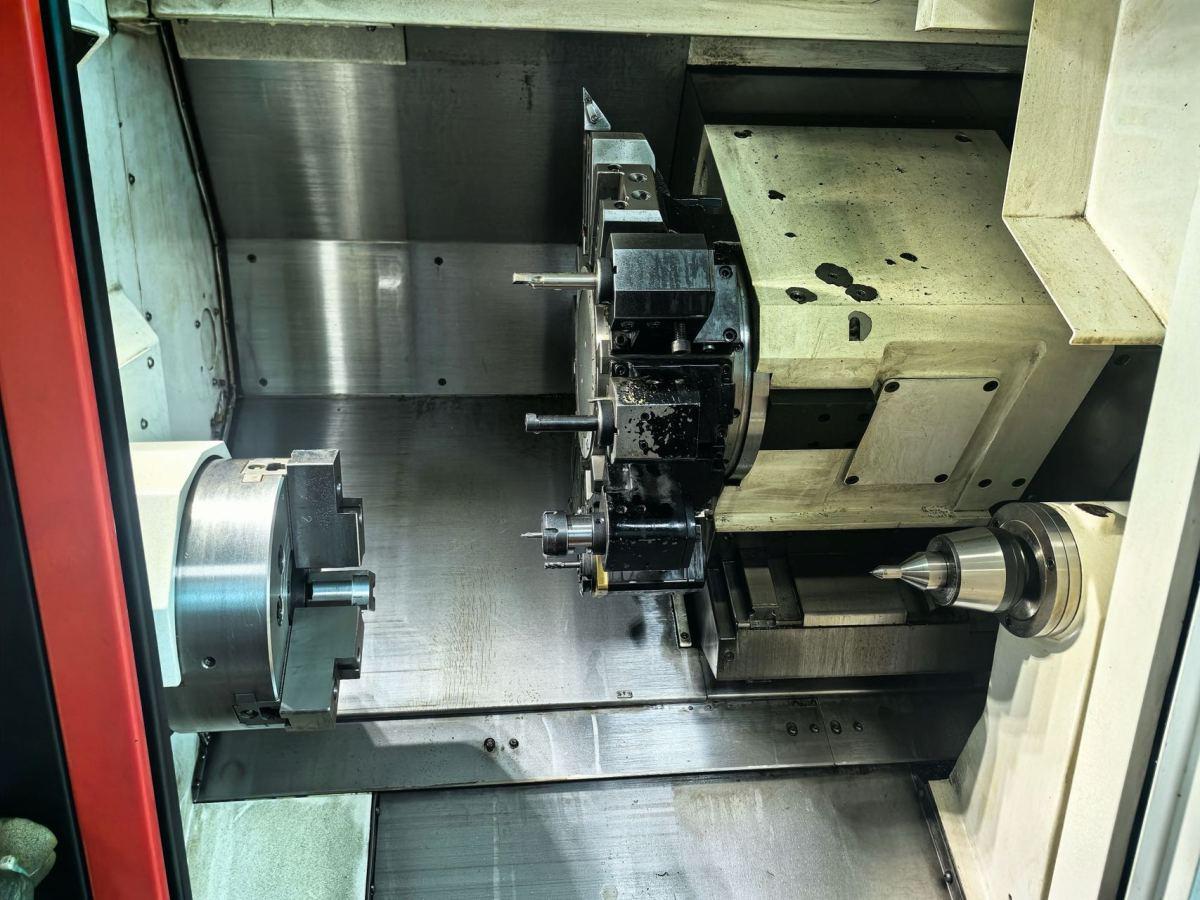

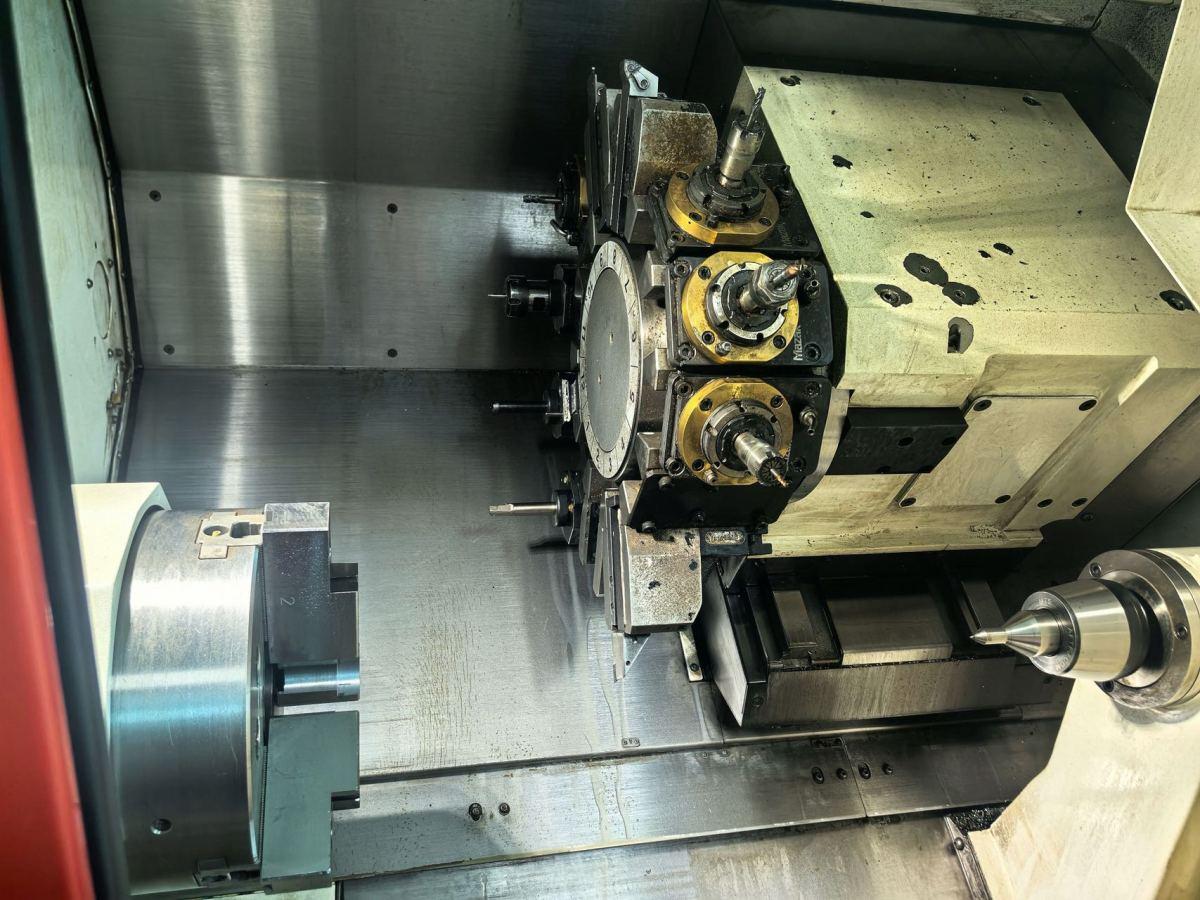

Four live tooling stations (three axial and one radial)
