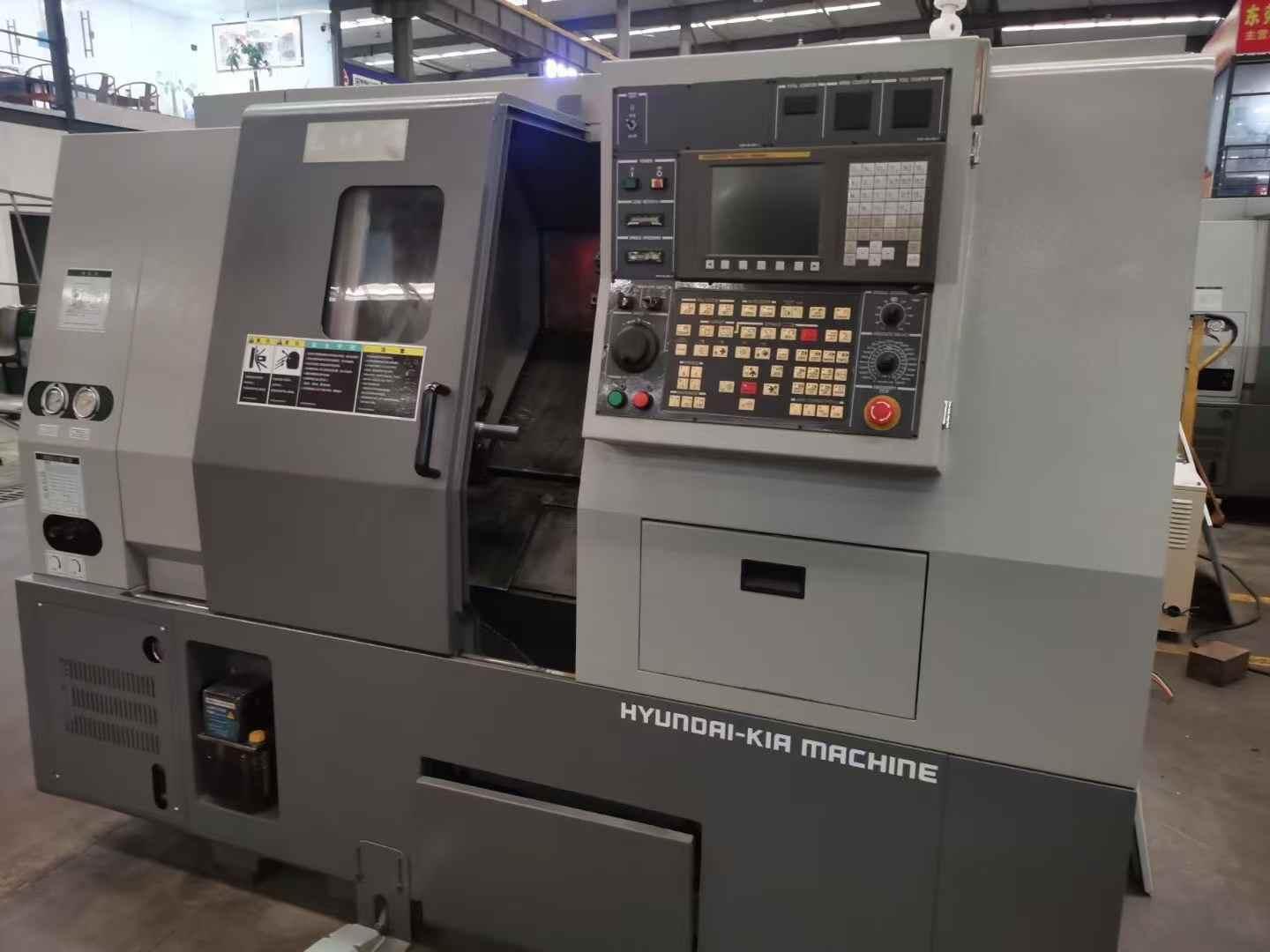

KIA SKT-15 CNC turning lathe

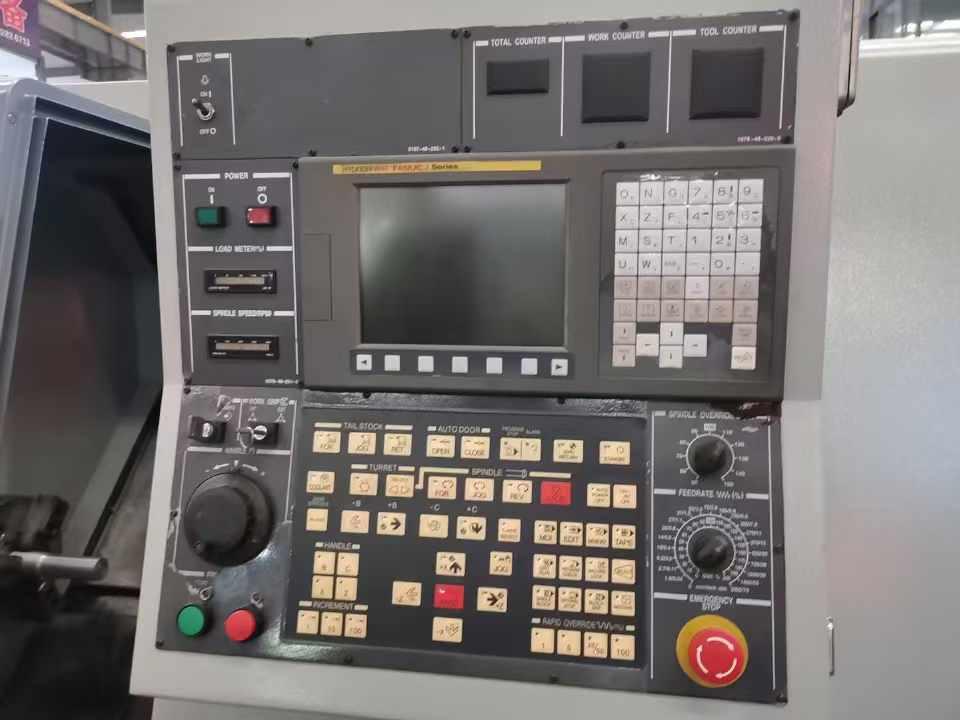

CNC CNC System: FANUC TD

X*Z axis travel :210*430mm

Rotating diameter :550mm

machining  diameter :350mm

Slide diameter :350mm

workpiece length :410mm

Bar diameter :45mm

Spindle speed :6000rpm

spindle through hole diameter :53mm

Fast moving rate :36m/min

spindle power :11/7.5kw

Footage :2400*1660*1870mm

Weight :4000kg

Six inch hydraulic chuck

12 positions turret
