DOOSAN LYNX2105LY CNC turning lathe

[Product Information]:

Maximum turning diameter: 300mm

Maximum workpiece length: 510mm

Bar workpiece diameter: 51mm

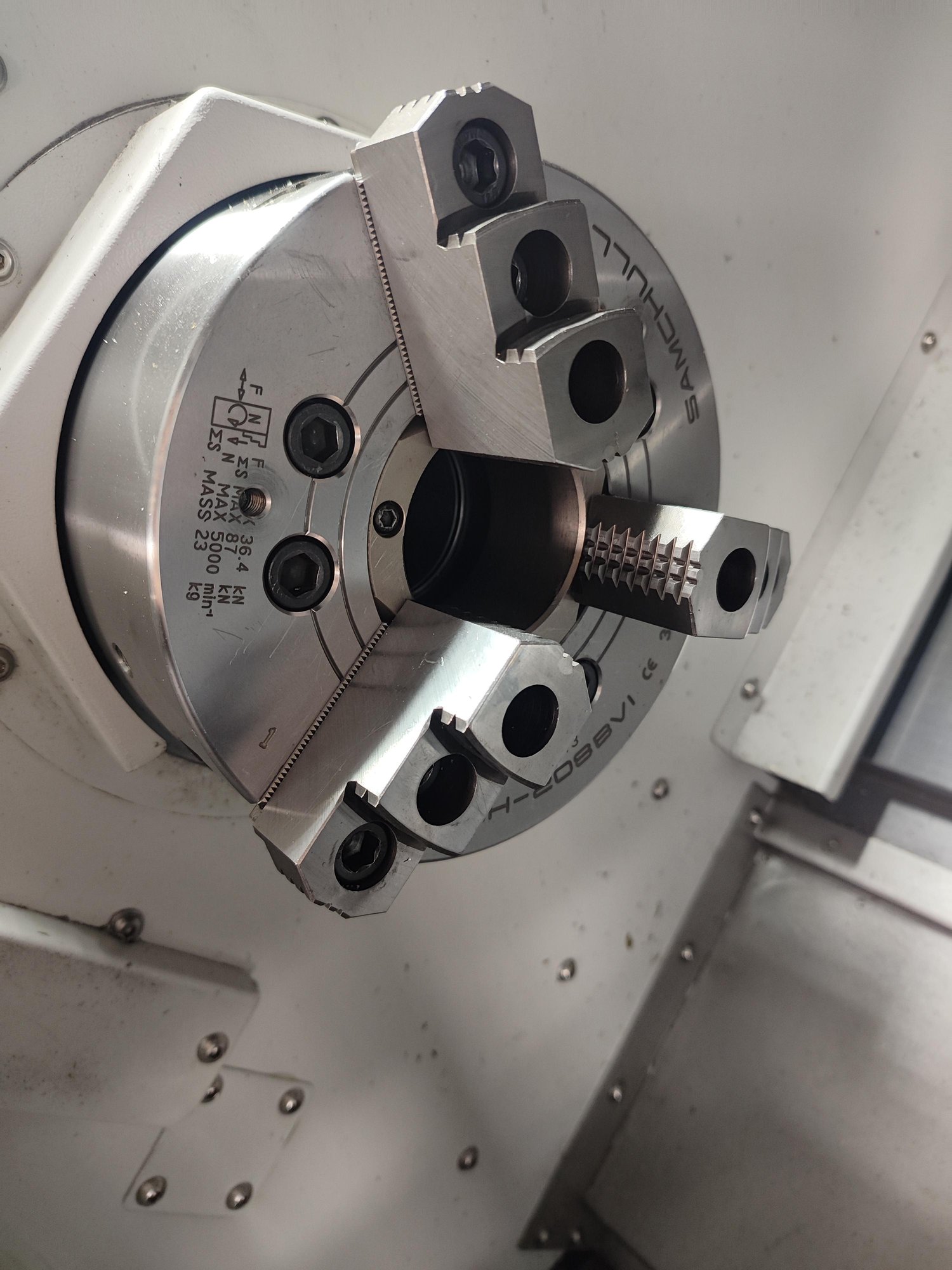

Chuck size: 169

spindle motor power: 15kw

Spindle speed: 6000rpm

spindle torque: 127Nm

X*Y*Z*C axis travel: 205*105*560*360mm

X/Y/Z/C fast feed rate: 30/10/36/200m/min

Turret positions: 12
