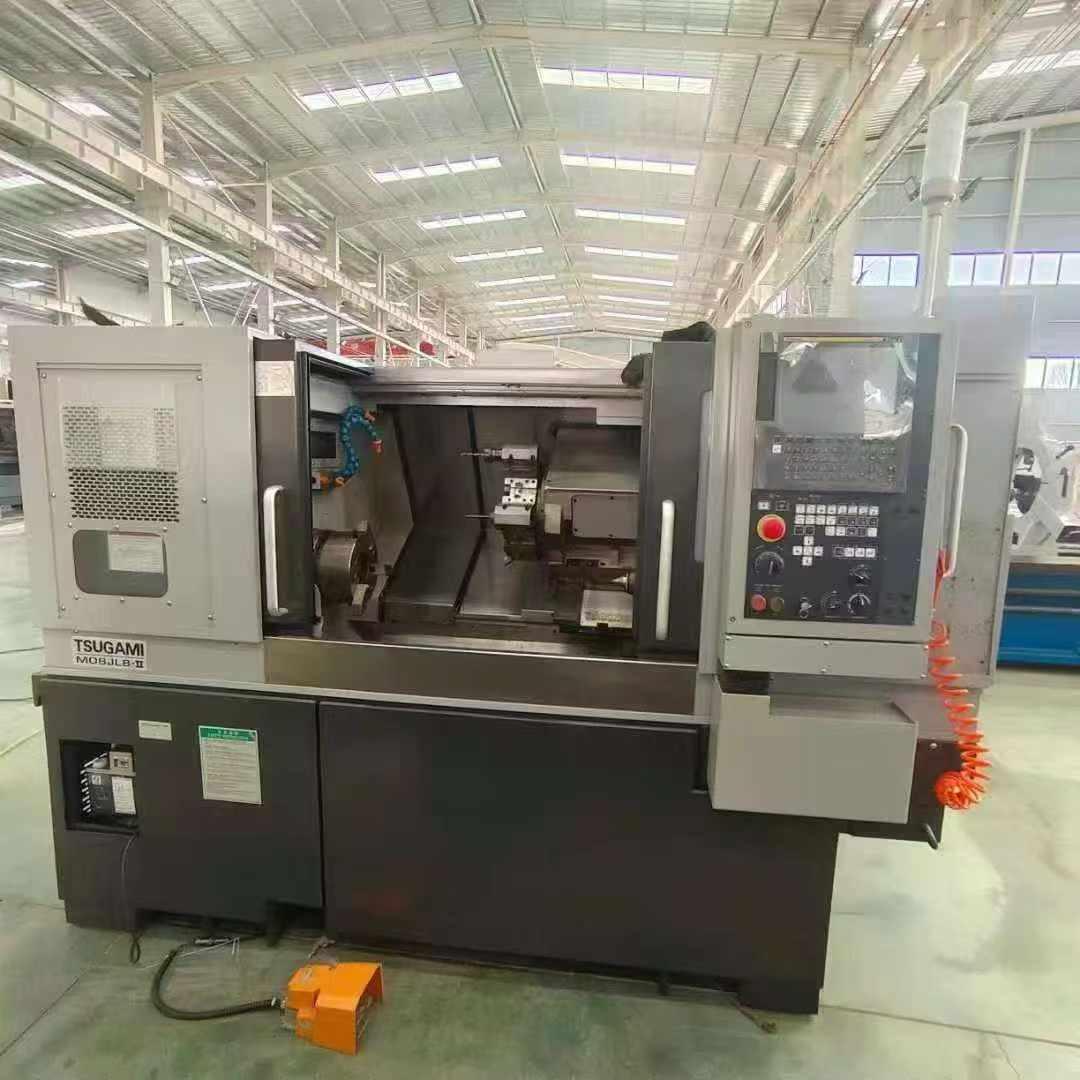

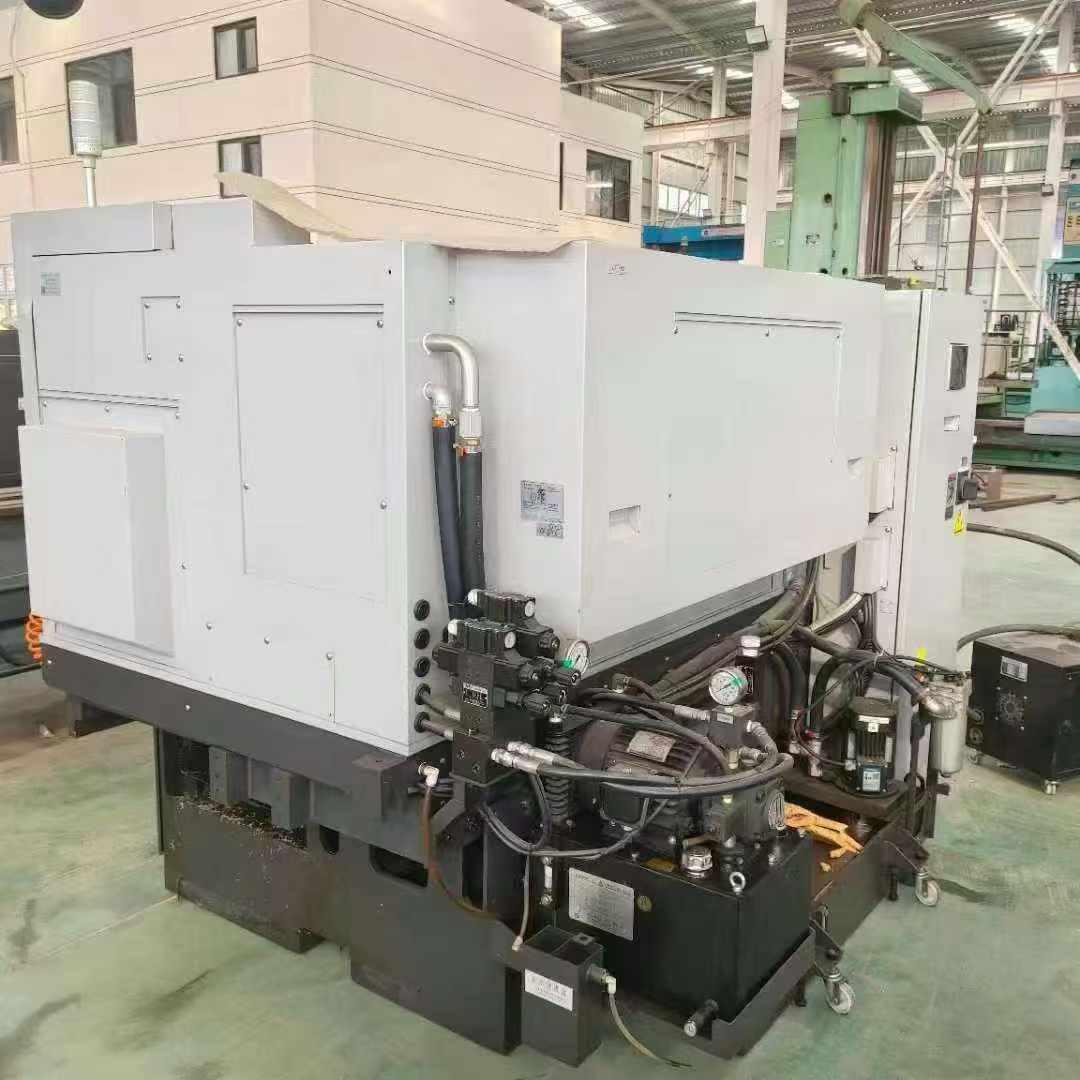

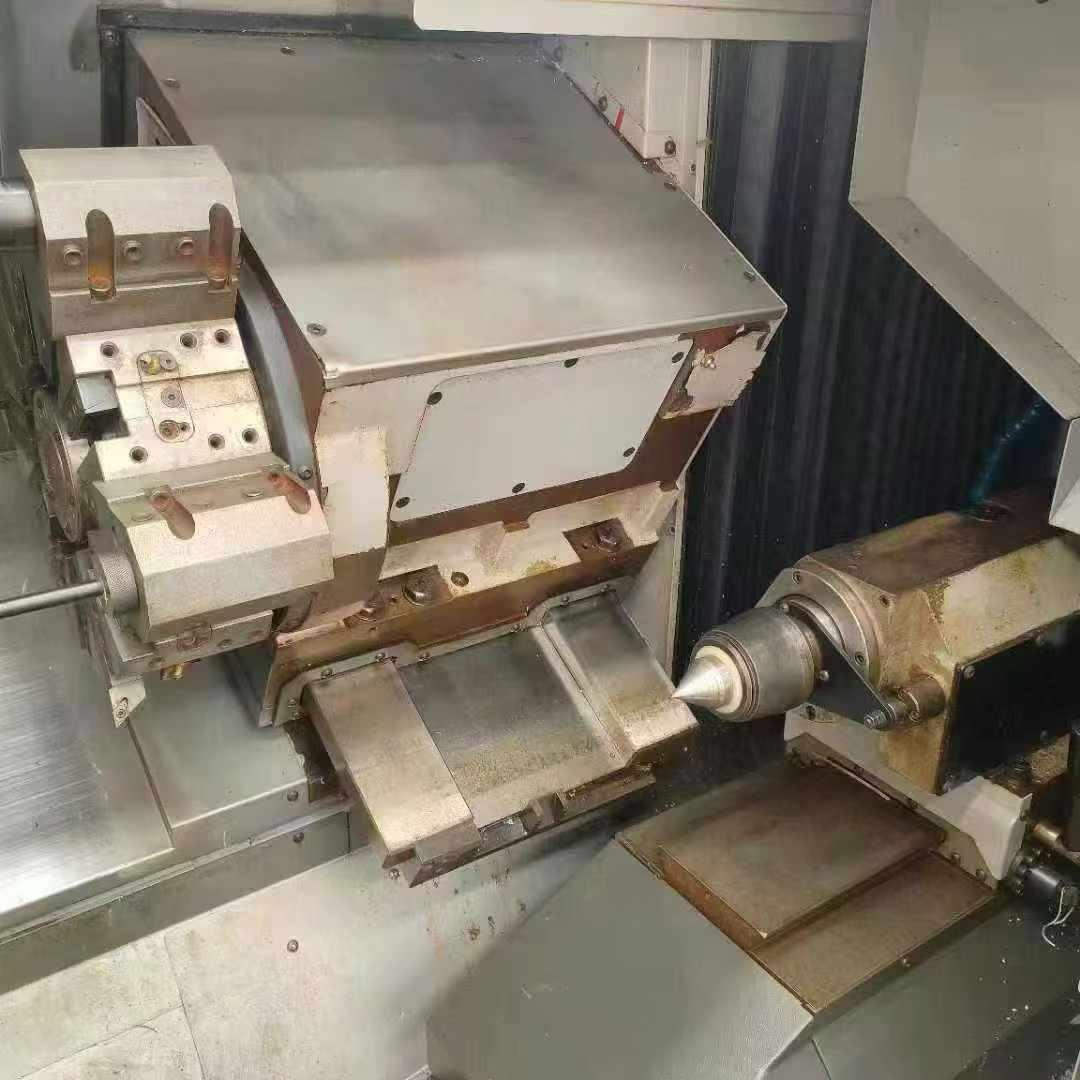

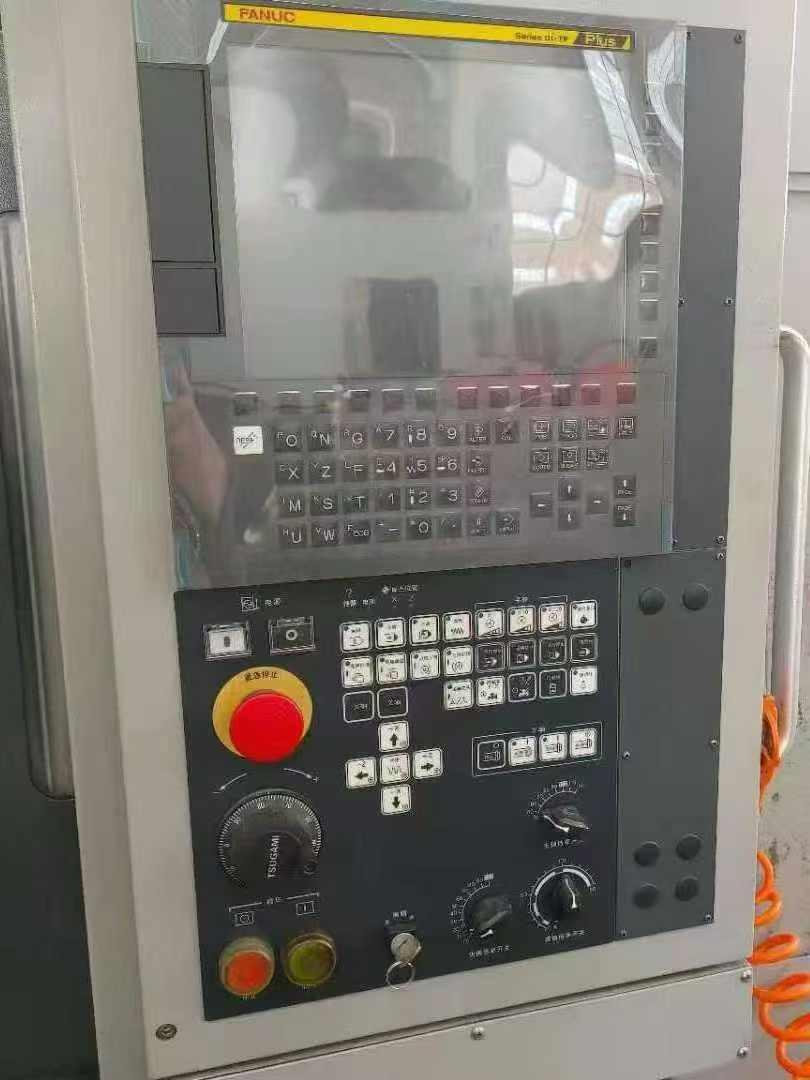

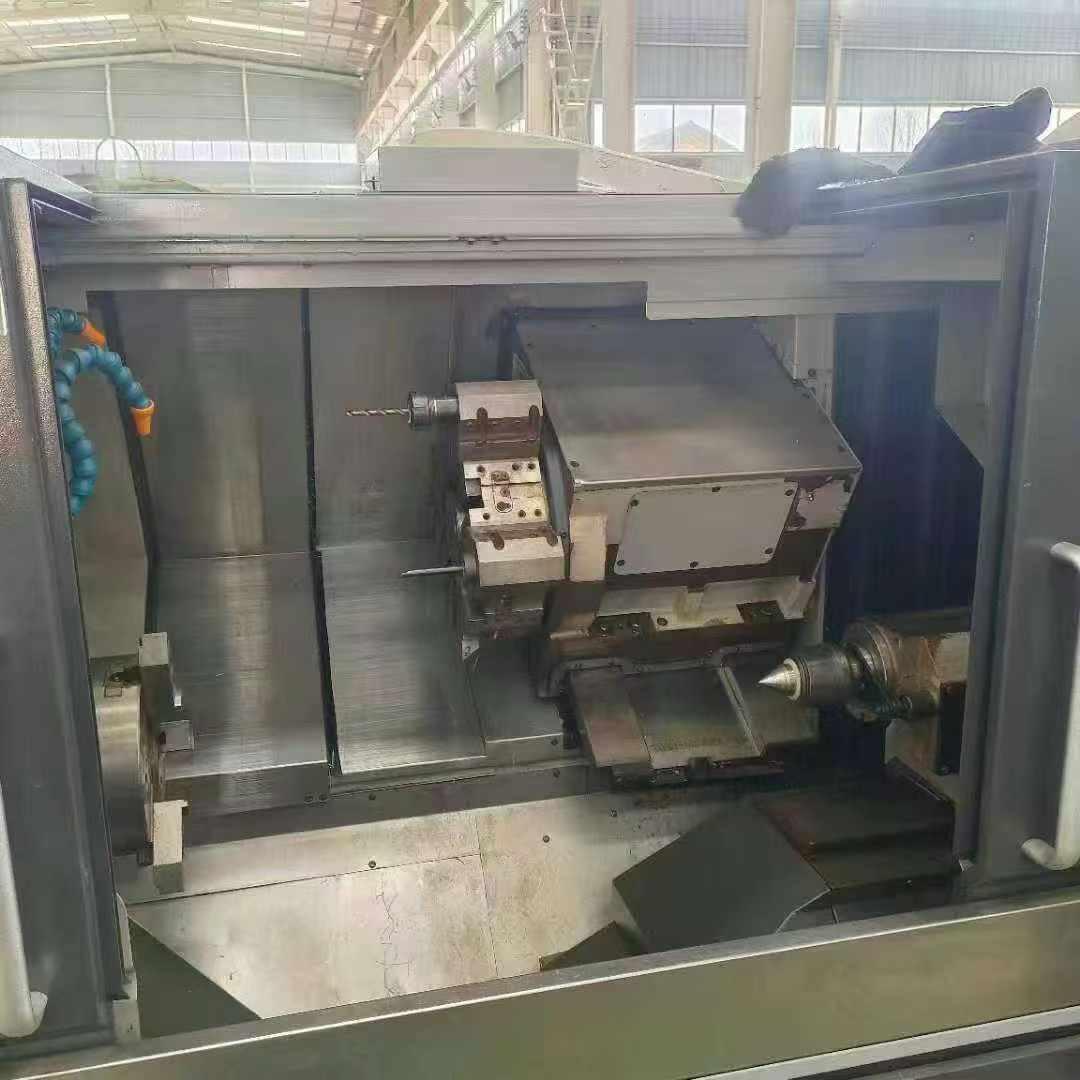

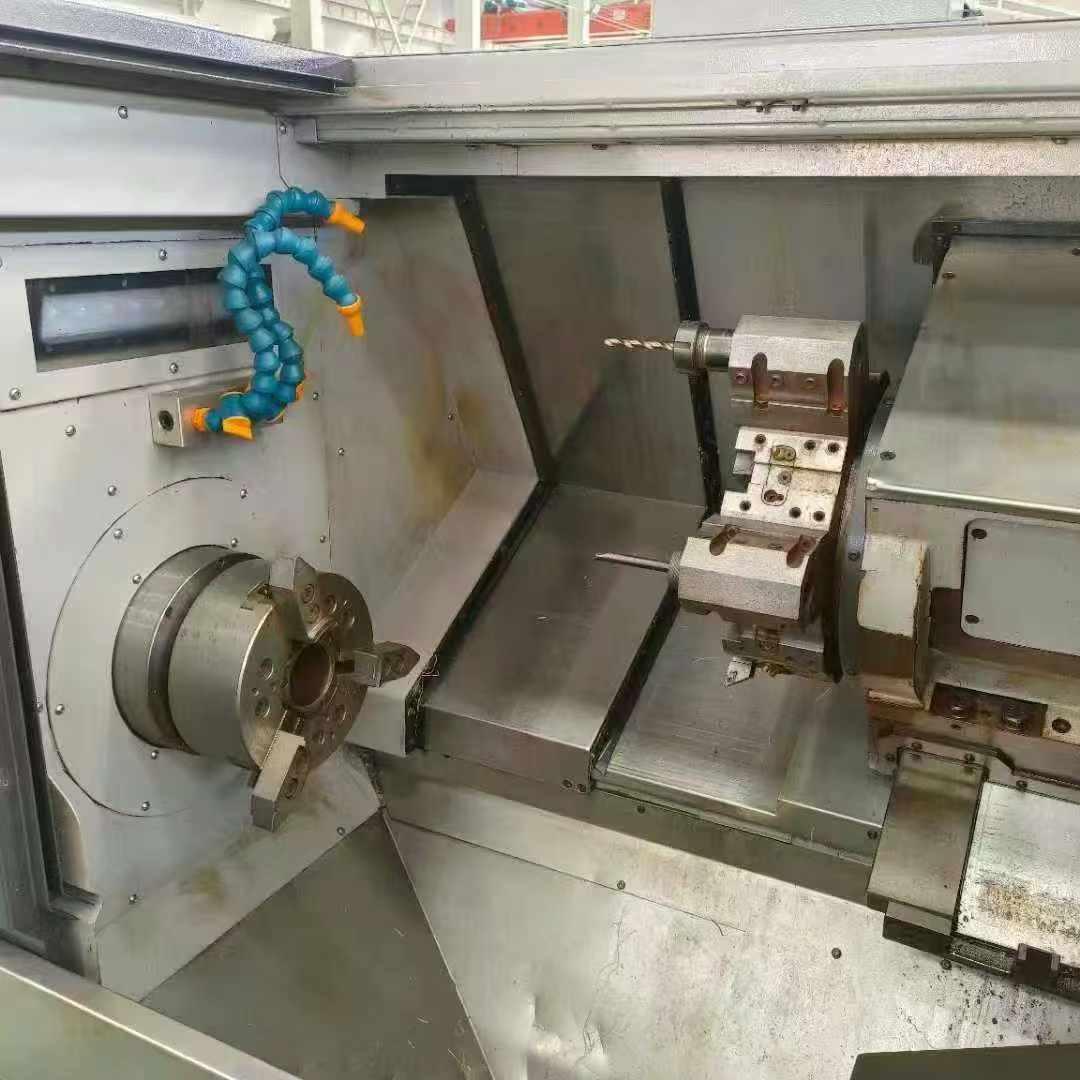

Tsugami M08JL8-II CNC turning lathe

[Product Information]:

Maximum machining diameter: φ280/φ65mm

Maximum machining length: 800mm

Chuck size: 8 inches

Maximum spindle speed: 5000rpm

spindle through hole diameter: φ73mm

external diameter Tool holder: 25mm

Hole diameter of the drilling seat: φ40mm

spindle motor: 11/18.5kw

X* Z-axis travel: 160*860mm

X* Z-axis Fast moving rate: 24/27m/min

Overall Footage: 2510*1640*1690mm

Weight: 4200kg
