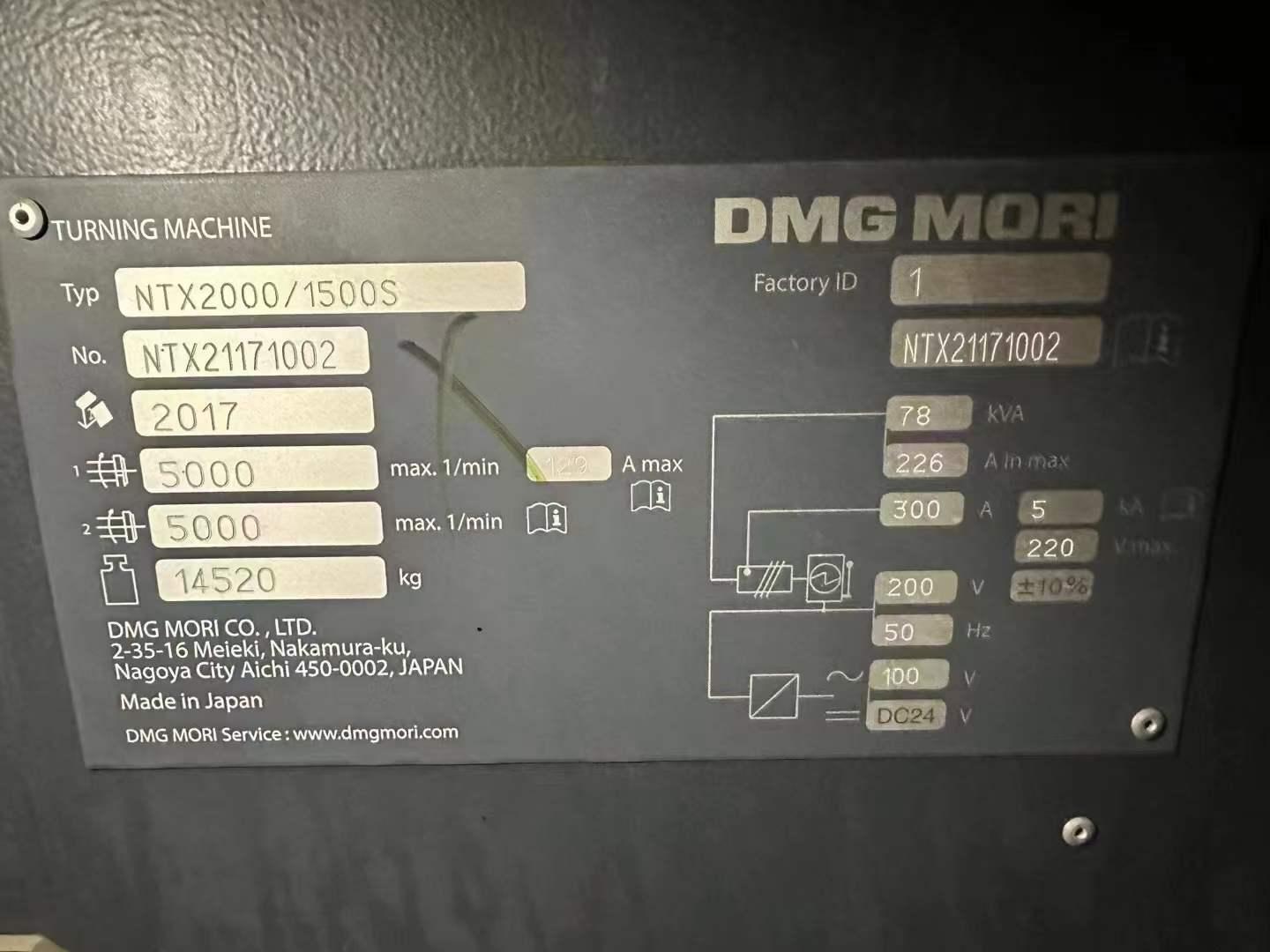

DMG MORI NTX2000/1500S Turn Mill Machining Centre

Maximum Machining length: 1540mm

Maximum turning diameter: 660mm

Bar working capacity: 65mm-80mm

cutter spindle:

X1 axis travel: 495mm

Y-axis travel: ±125mm

Z1 axis travel +ATC travel: 1560mm-215mm

B axis travel: ±120

The first Spindle speed: 5000rpm

spindle through through hole: 73-91mm

Minimum point degree of spindle: 0.0001

Second Spindle speed: 5000rpm

spindle through through hole: 73mm

Minimum point degree of spindle: 0.0001

cutter spindle (first turret) :

B axis minimum point degree: 0.0001

cutter Spindle speed: 12000rpm

cutter spindle taper: HSK-A63

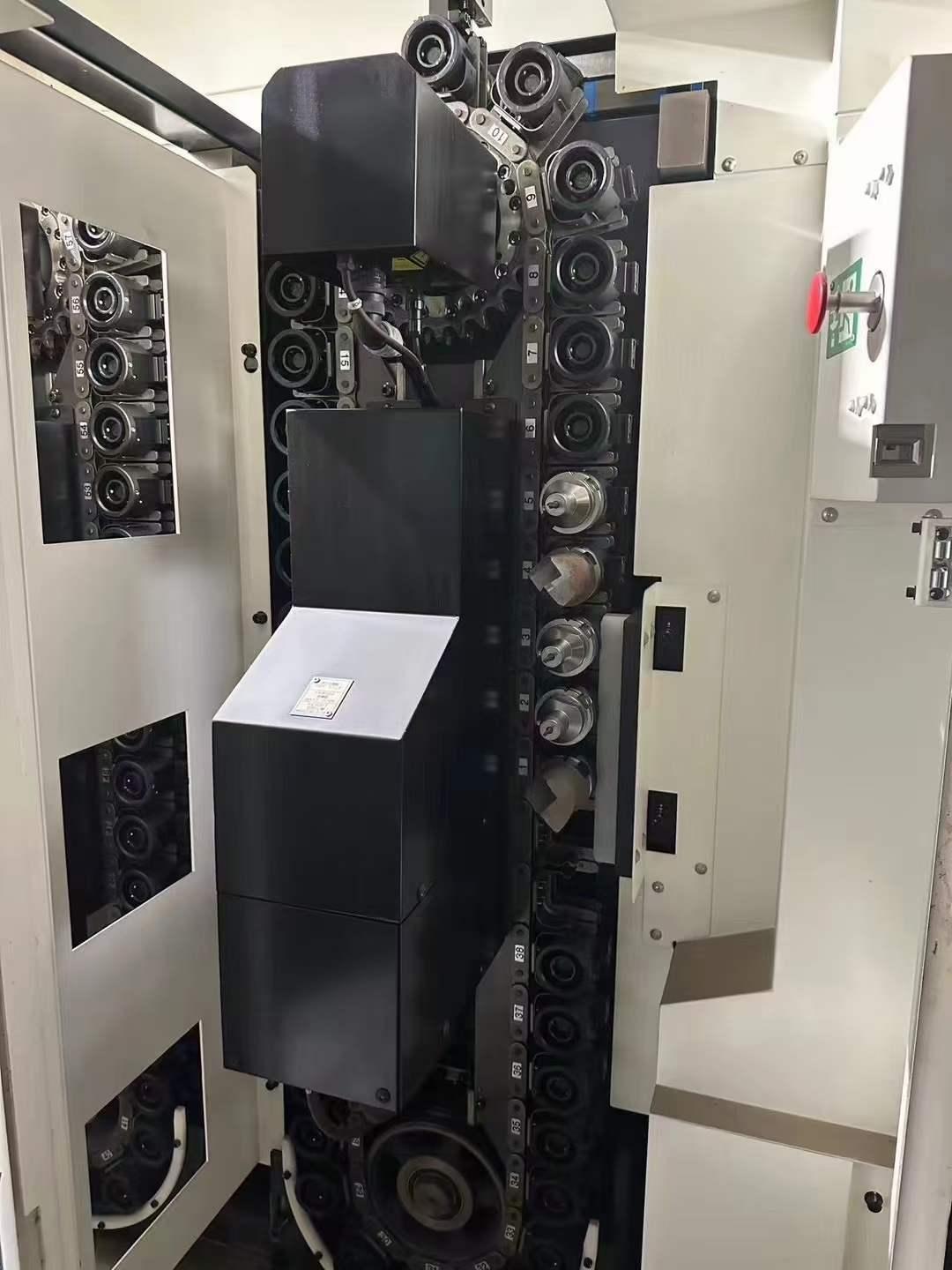

tools magazine: 76

cutter spindle: X40, Y40, Z40

2nd turret X2:30, Z2:38

Second spindle A: 30
