EMCO 665MC PLUS Turn Mill Machining Centre

spindle: 10 inch chuck

spindle motor power: 22KW

Spindle speed: 0-7000rpm

Second spindle: Chuck size 8in

Spindle speed: 0-7000rpm

主轴电机功率：22KW

Maximum rotating diameter: 600mm

Maximum turning diameter: 430mm

Maximum Machining length: 744mm

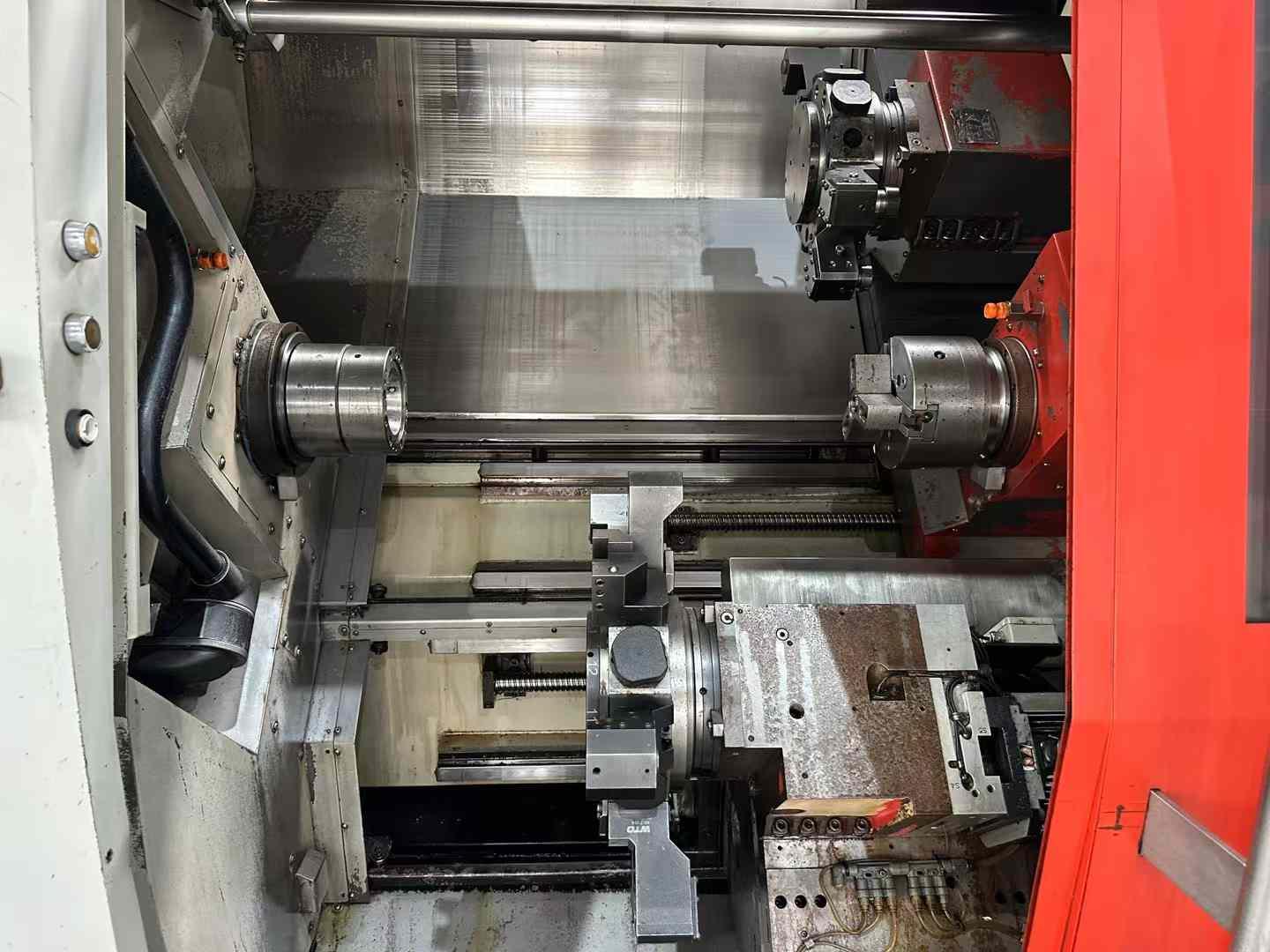

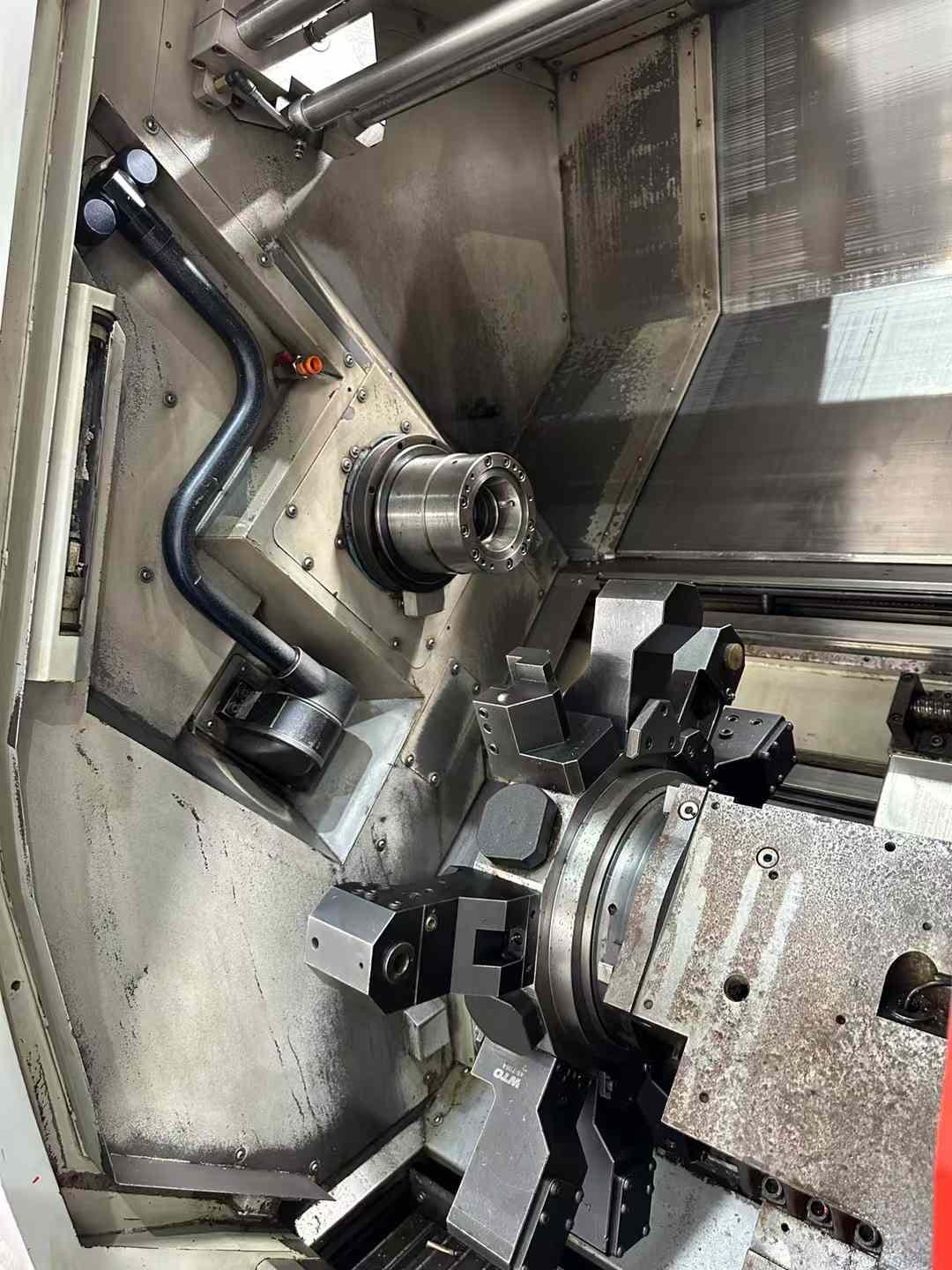

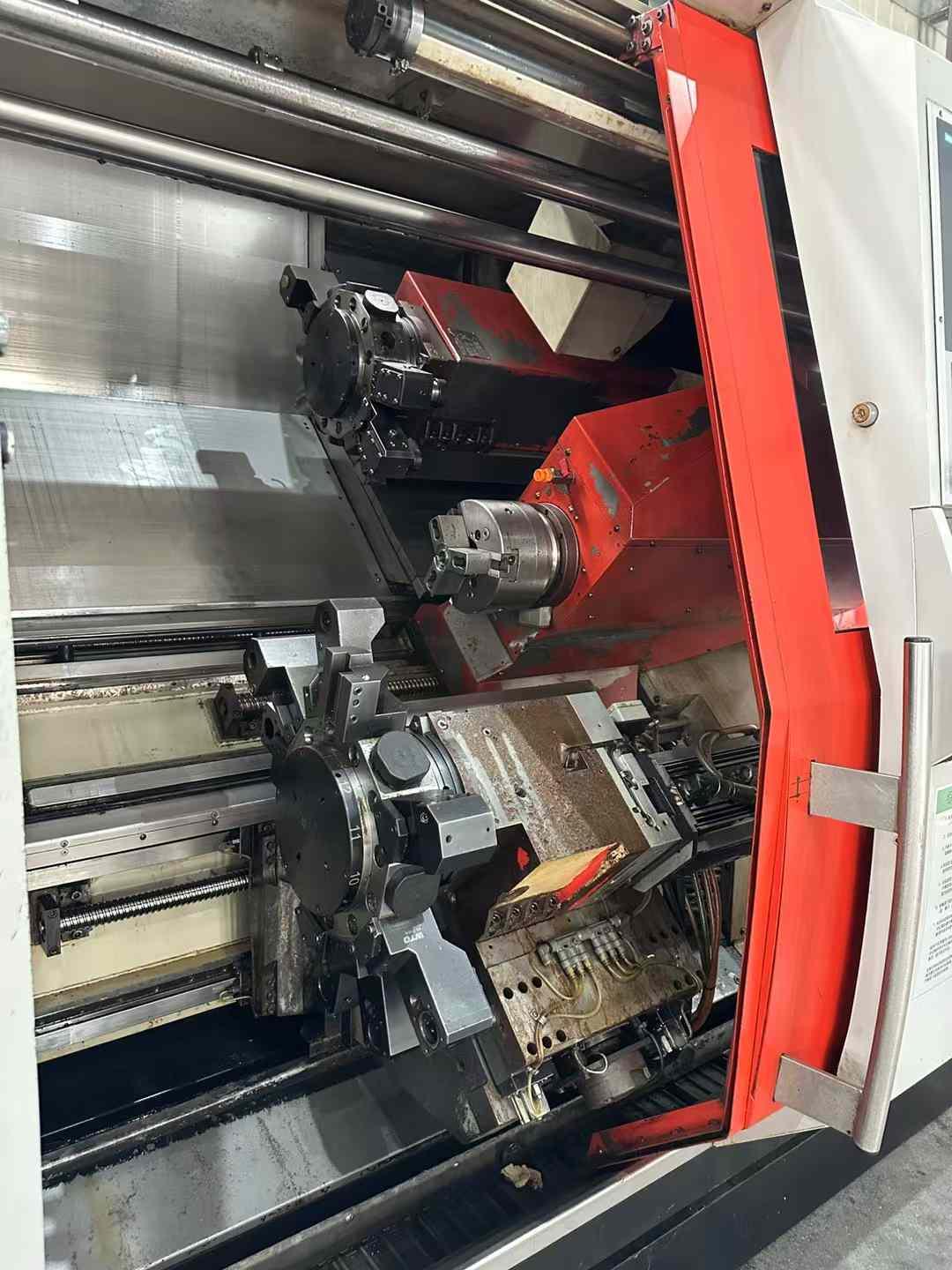

Number of upper Turret power tool holders: 12

Speed: 0-5000rpm

Tool base motor power: 6.7KW

lower turret power tool holder number: 12

Speed: 0-5000rpm

Tool base motor power: 6.7KW

X axis travel :280mm

X1 axis travel: 205mm

Z-axis travel: 750mm

travel of Z2 axis: 750mm

Z3 axis travel: 750mm

Y轴行程：100mm

X axis displacement: 24m/min

Y-axis displacement: 10m/min

Z轴位移：30m/mi
