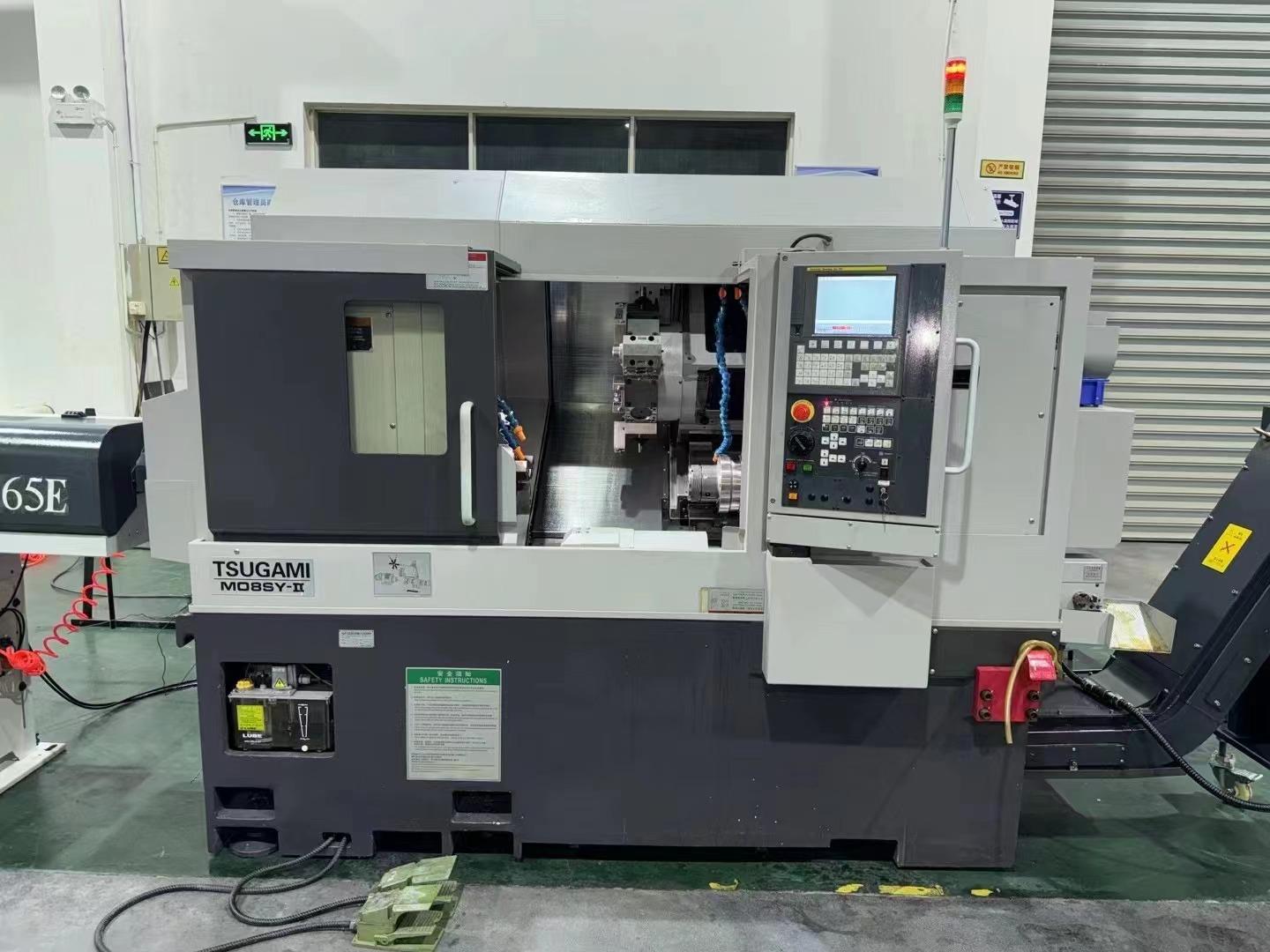

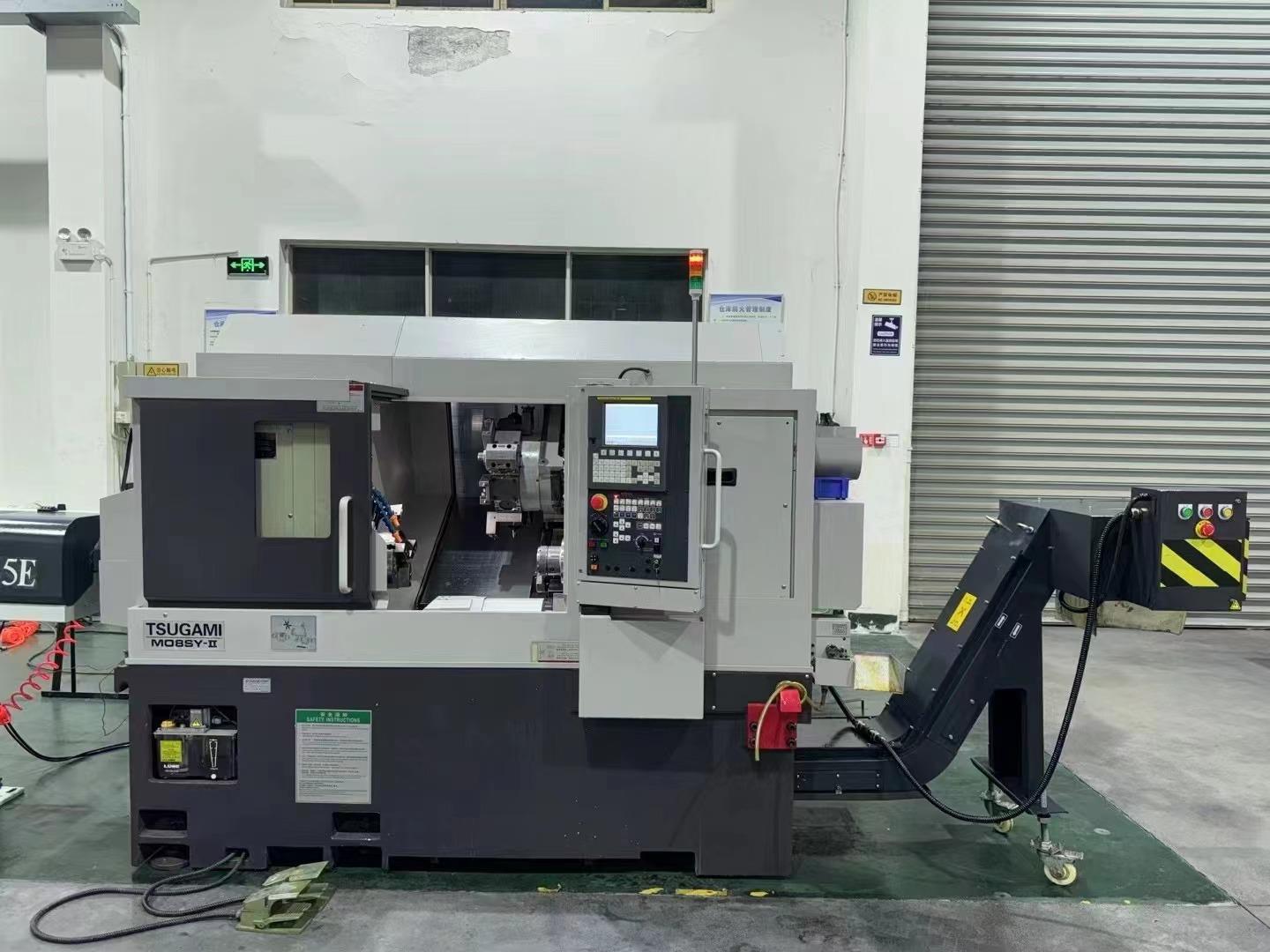

Tsugami M08SY-II Turn Mill Machining Centre

X/Z/A/Y travel: 221/400/506/±50mm
X/Z/A/Y Fast shift speed: 24/27/30/12m/min
Maximum machining  length: 380mm
Cutter tower station: 12
Hard rail engine
With Germany WTO power head
RPM: 5000rpm

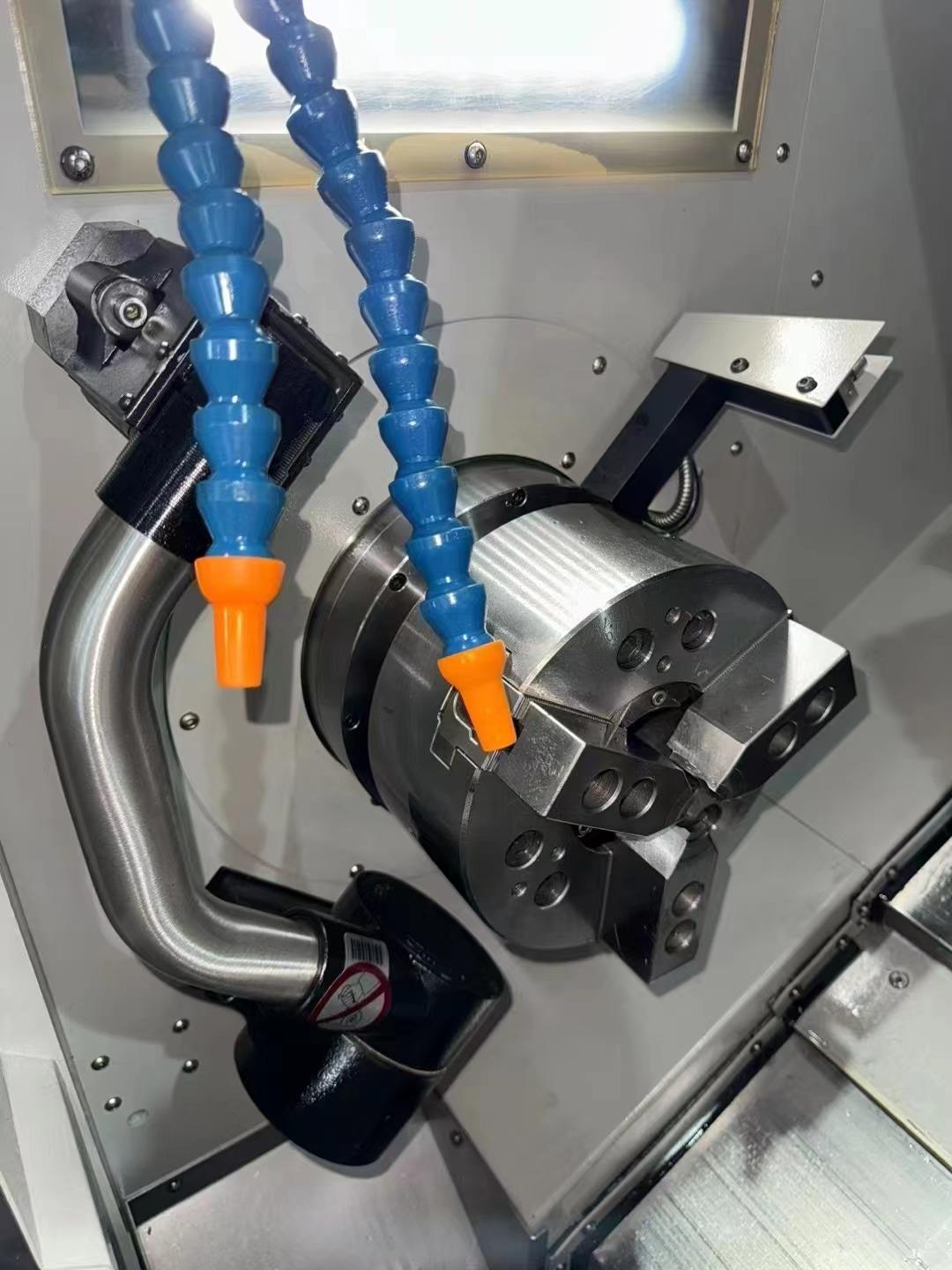

spindle Chuck size: 8 inches
Spindle speed: 4500rpm
Through hole diameter: 65mm
Motor: 7.5/11kw
Secondary spindle Chuck size: 6 inches
Secondary spindle revolution: 4500rpm
Through hole diameter: 59mm
Motor: 5.5/7.5kw
Machine size (length * width * height) : 2470*1850*1930mm
Machine weight: 5.8t
high pressure pump
Cutter Aligner
With a row cutter
