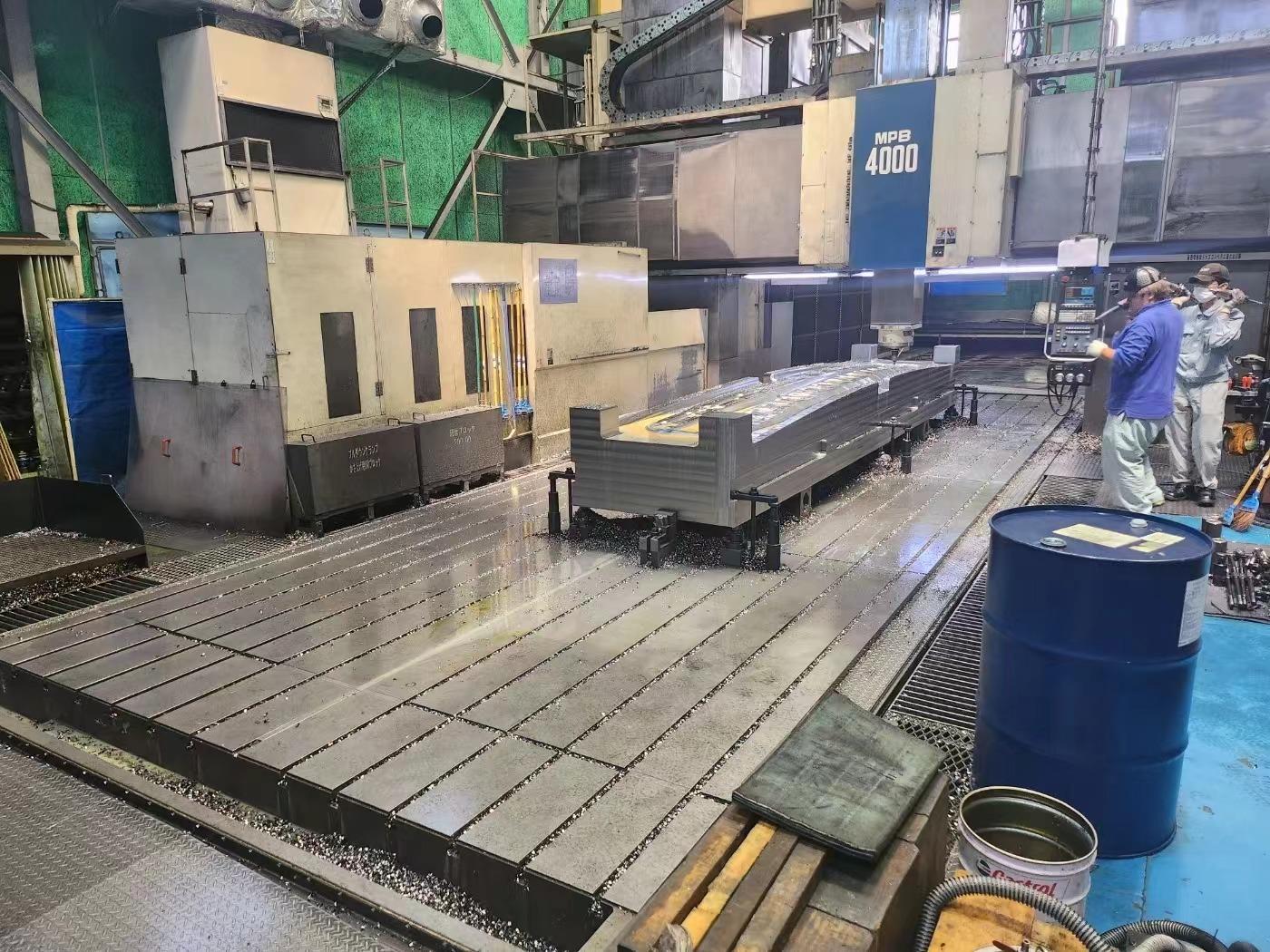

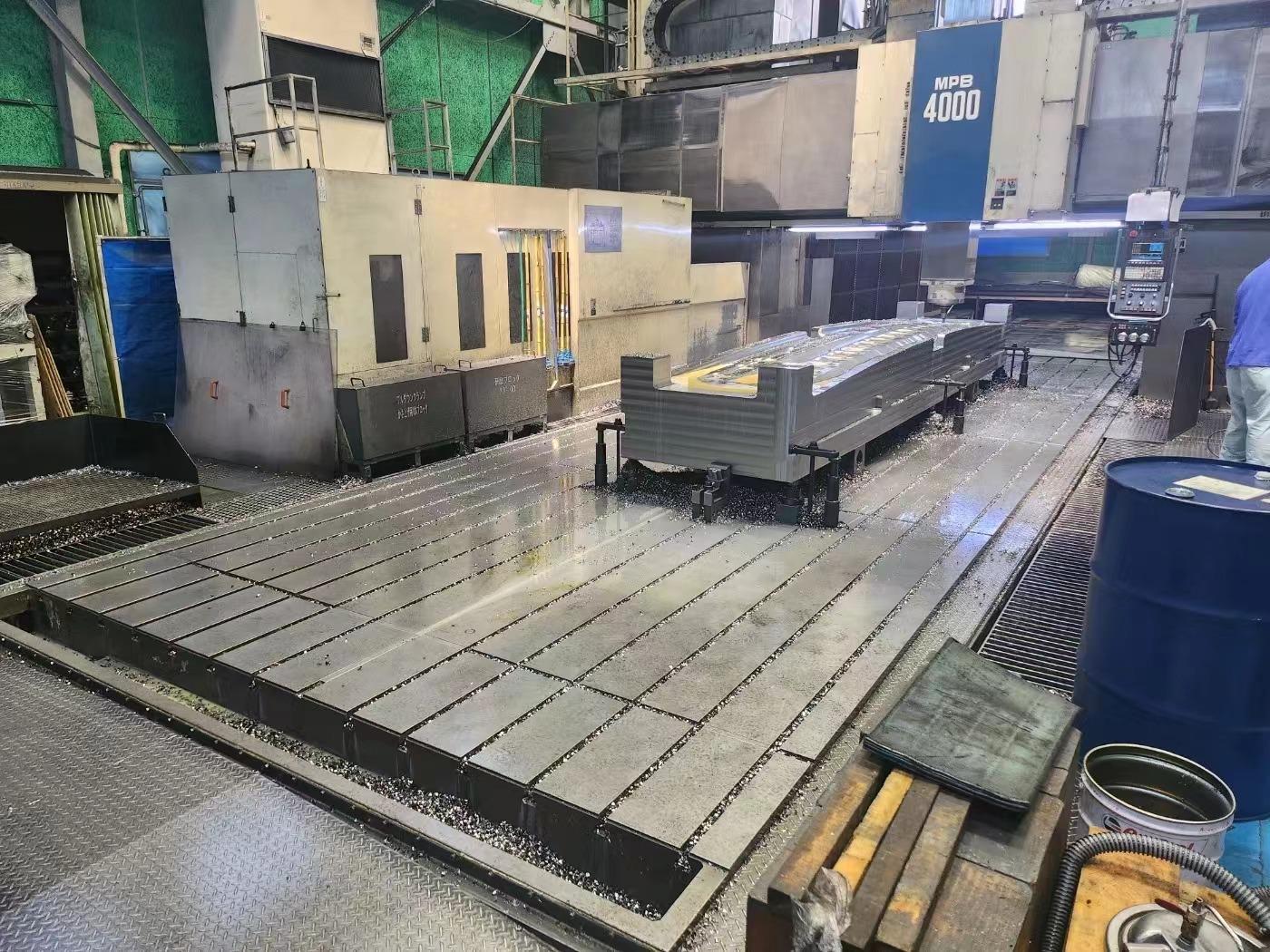

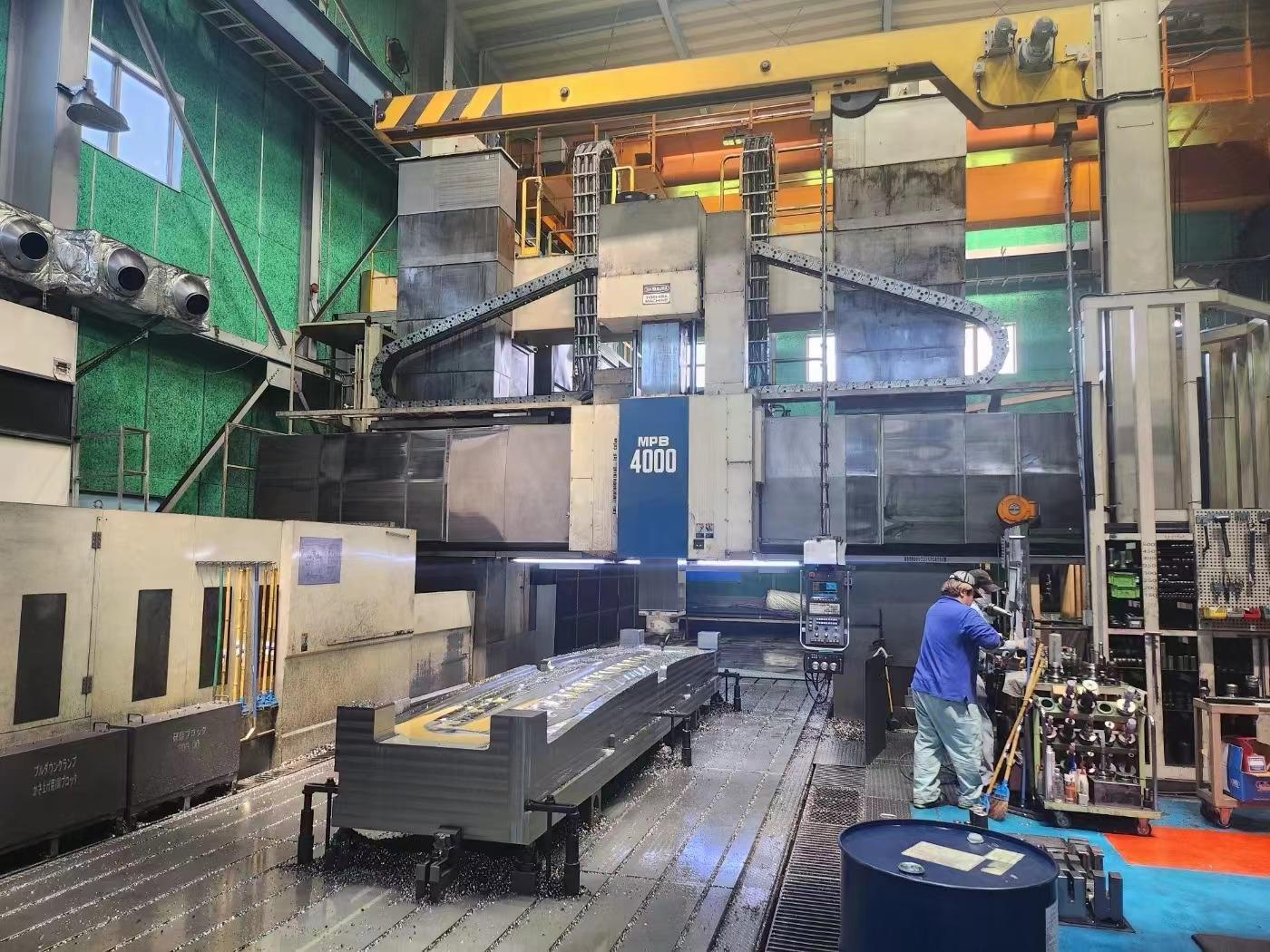

Toshiba MPB4000 Gantry machining centre

[Product Information]:

Distance between columns: 4000mm

Distance from worktable to spindle nose: 4200mm

Worktable size: 3500*11100mm

X-axis travel: 11300mm

Y-axis travel: 4,750mm

Z-axis travel: 1350mm

W-axis travel: 3200mm

Ram size: 420*420mm

Spindle speed: 10-2000rpm

ATC: 120

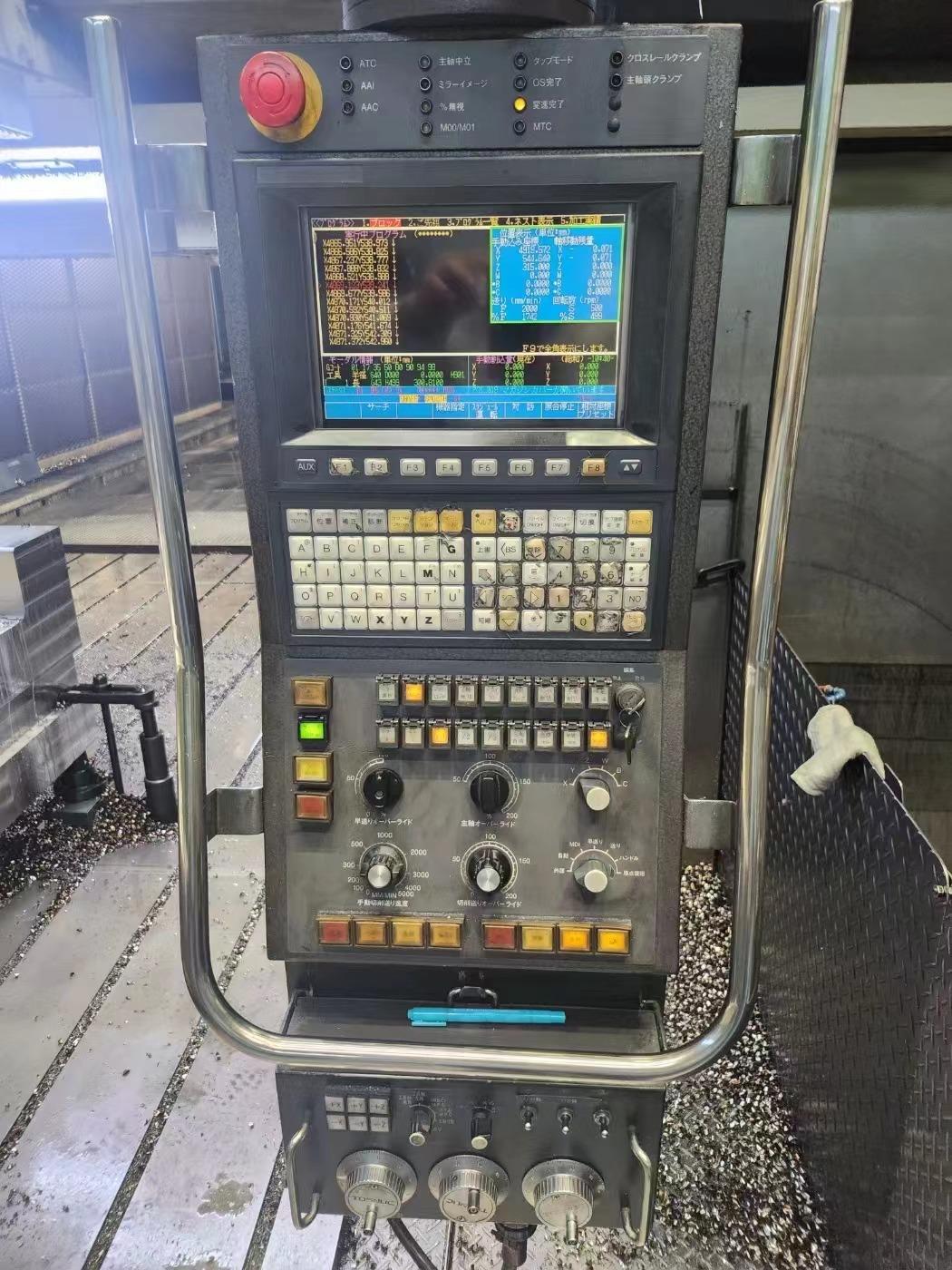

CNC System：tosnuc - 888
