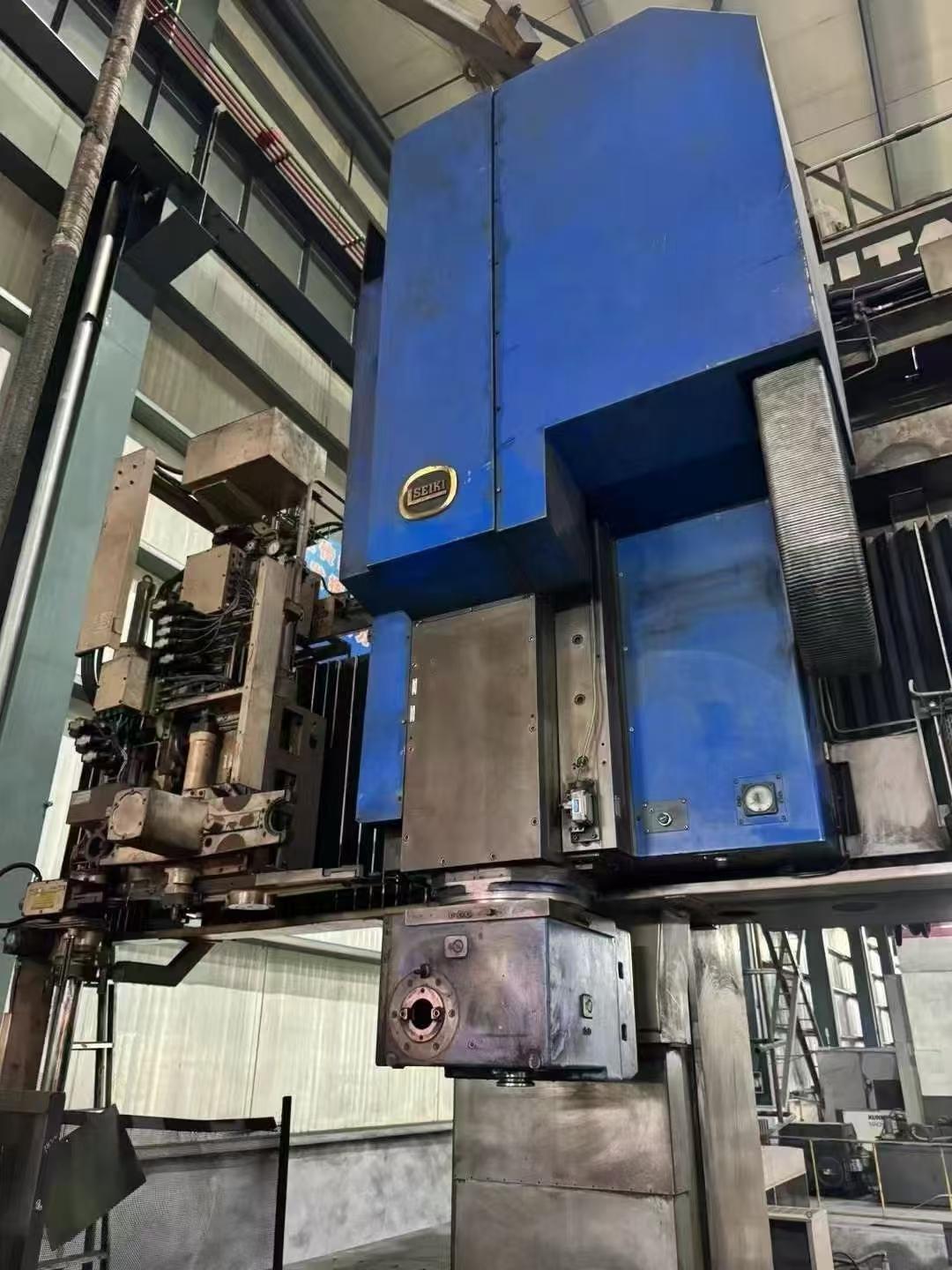

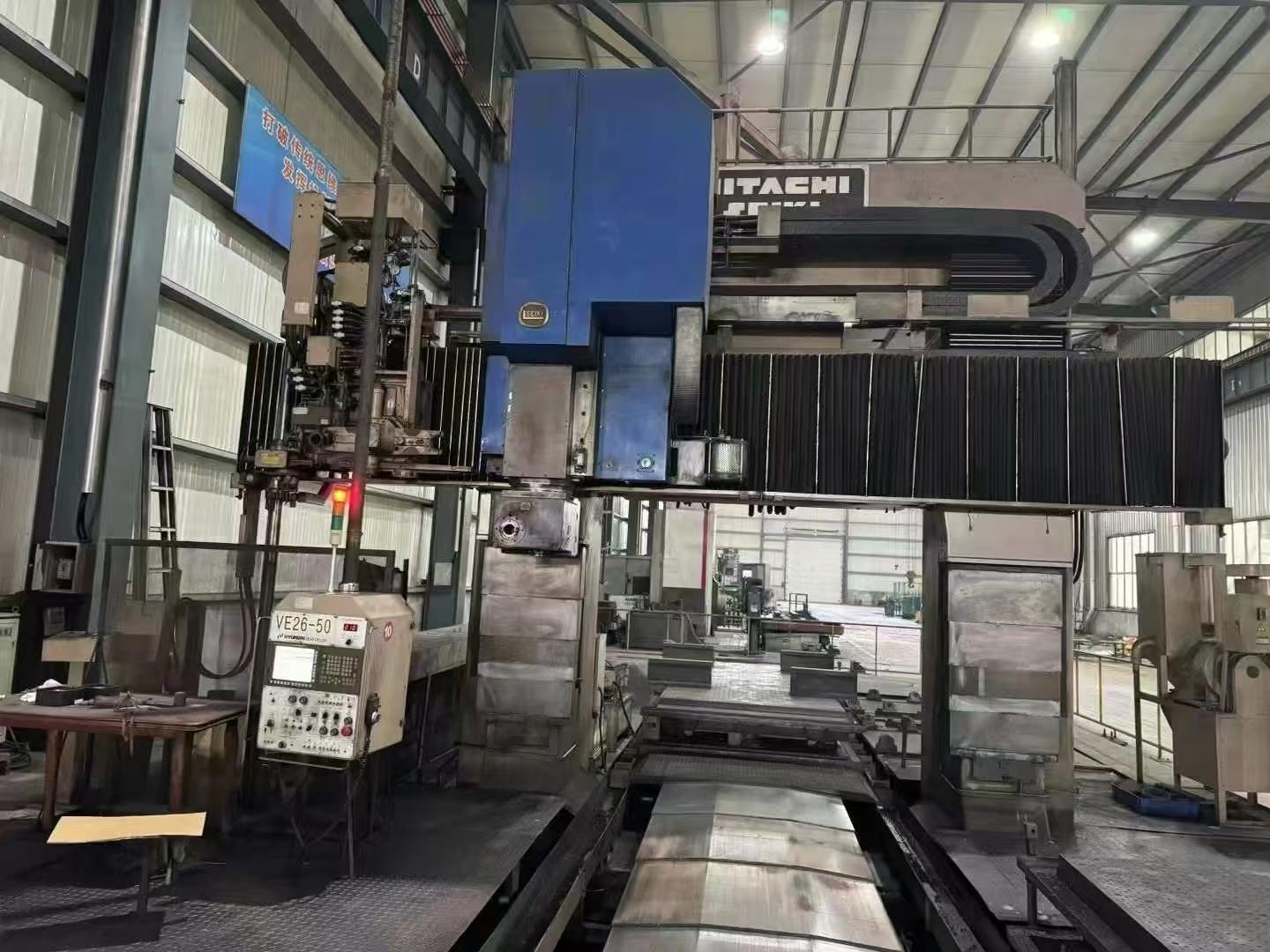

SEIKI VE26 Gantry machining centre

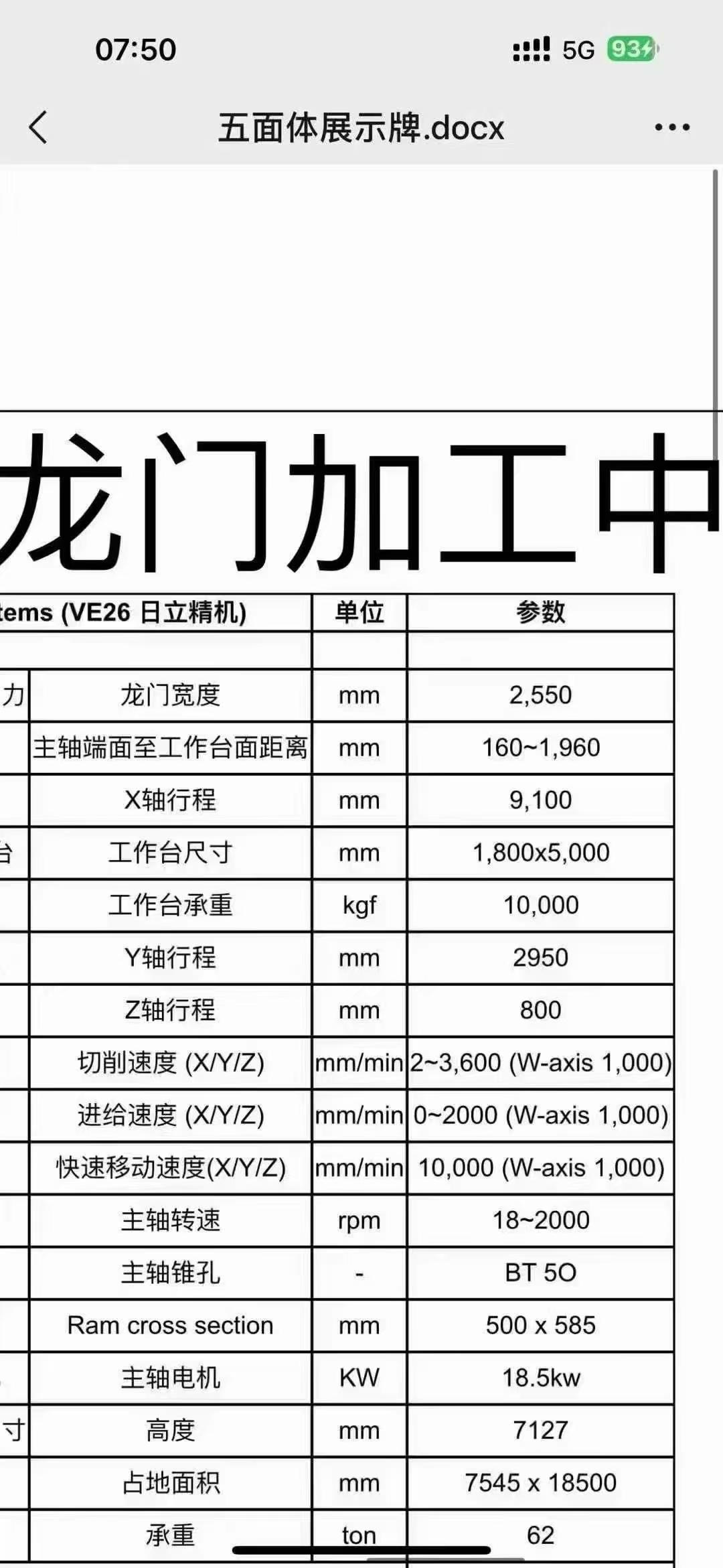

Gantry width: 2,550mm

Distance from spindle nose to Worktable surface: 160~1,960mm

three-axis travel: 9100*2950*800mm

WorkWorktable size: 1800*5000mm

WorkWorktable load: 10000kg

Cutting rate (XYZ) : 2-3,600 (W-axis 1,000)mm/min

feed rate (XYZ) : 0~2000(w-axis 1,000)mm/min

Fast moving rate (X/Y/Z) : 10,000 (W-axis 1,000)mm/min

Spindle speed: 18~2000rpm

spindle taper: BT50

spindle motor: 18.5kw

Height: 7127mm

Floor area: 7545 x18500mm

Weight: 62 tons
