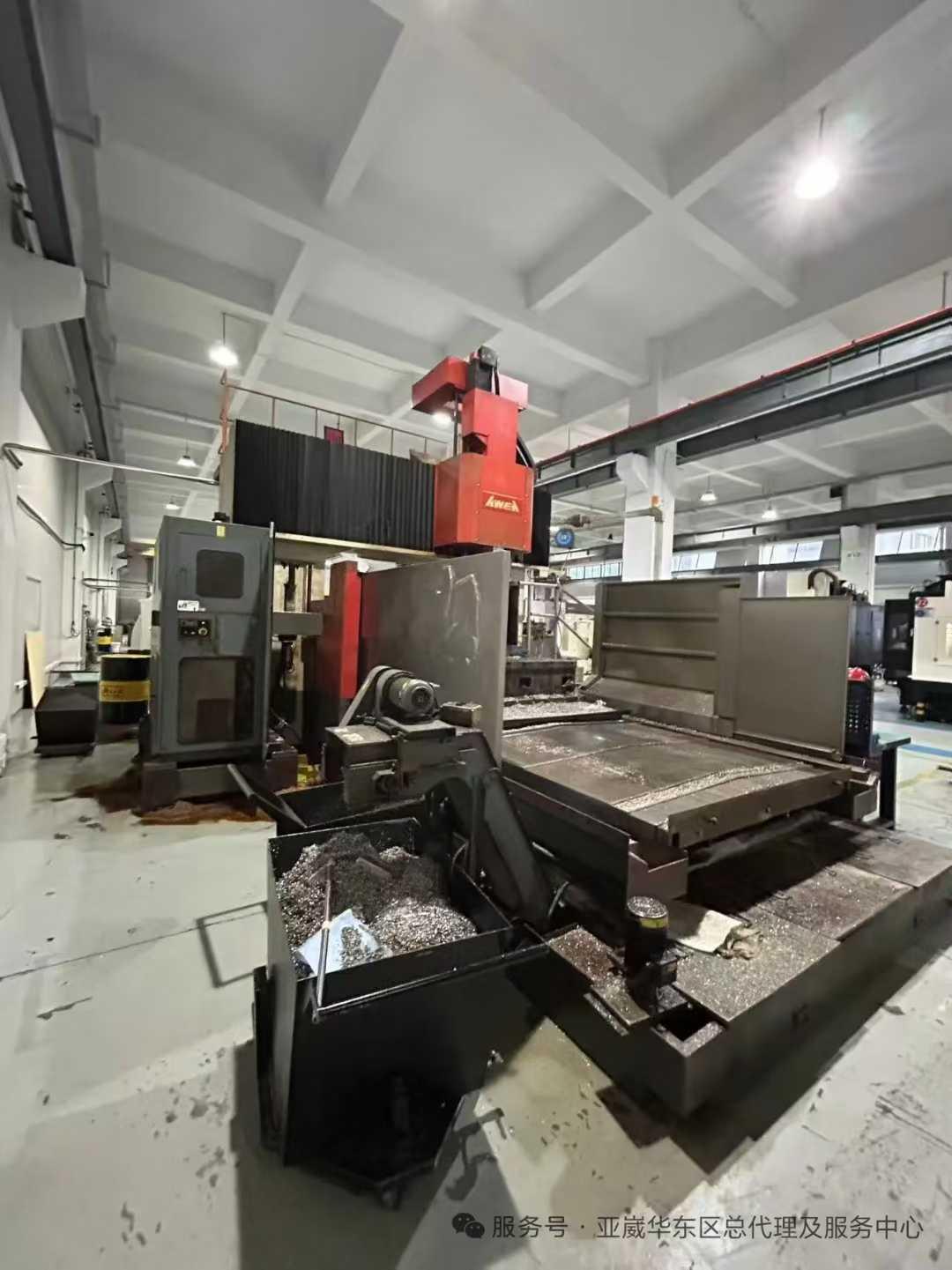

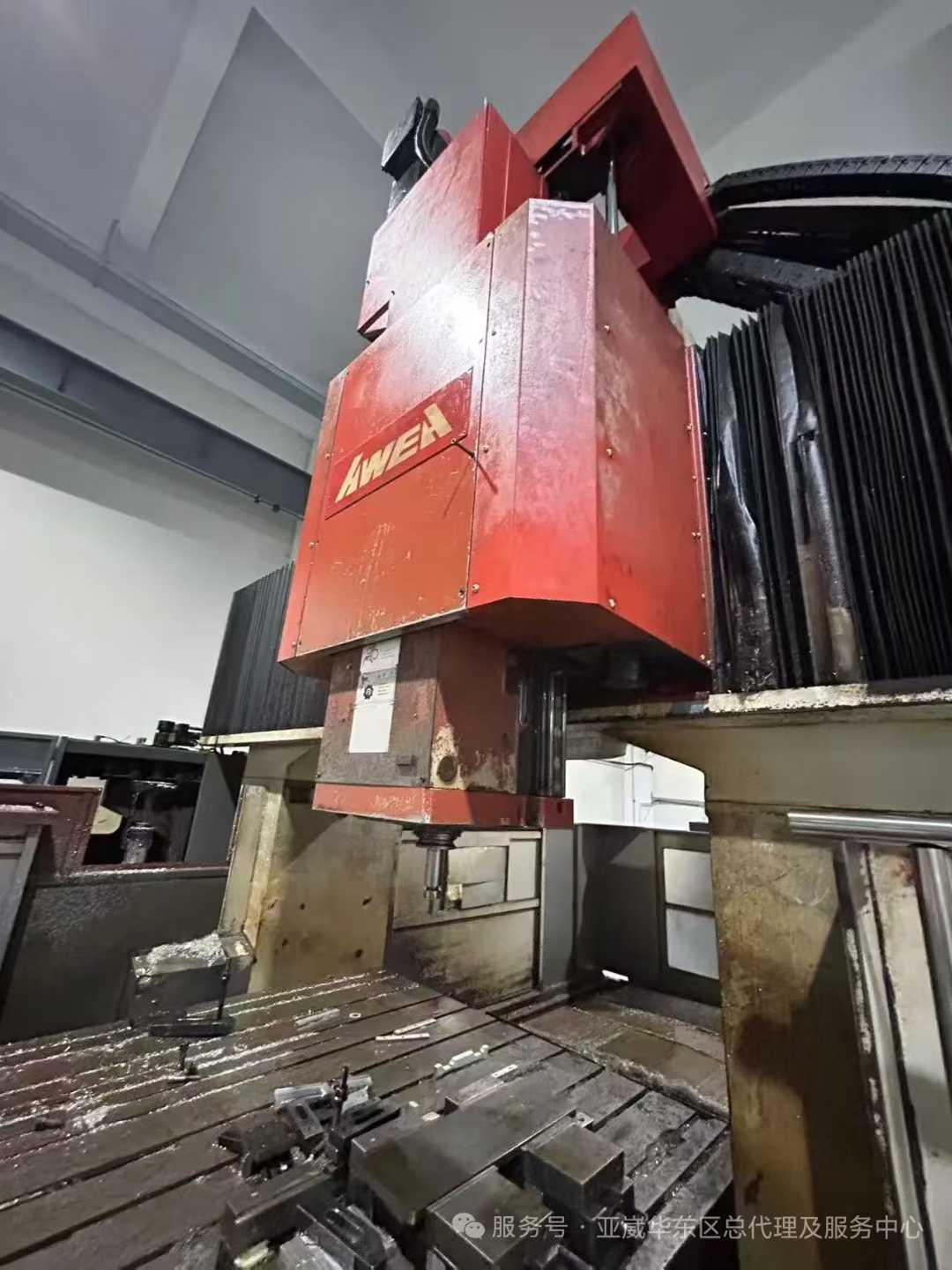

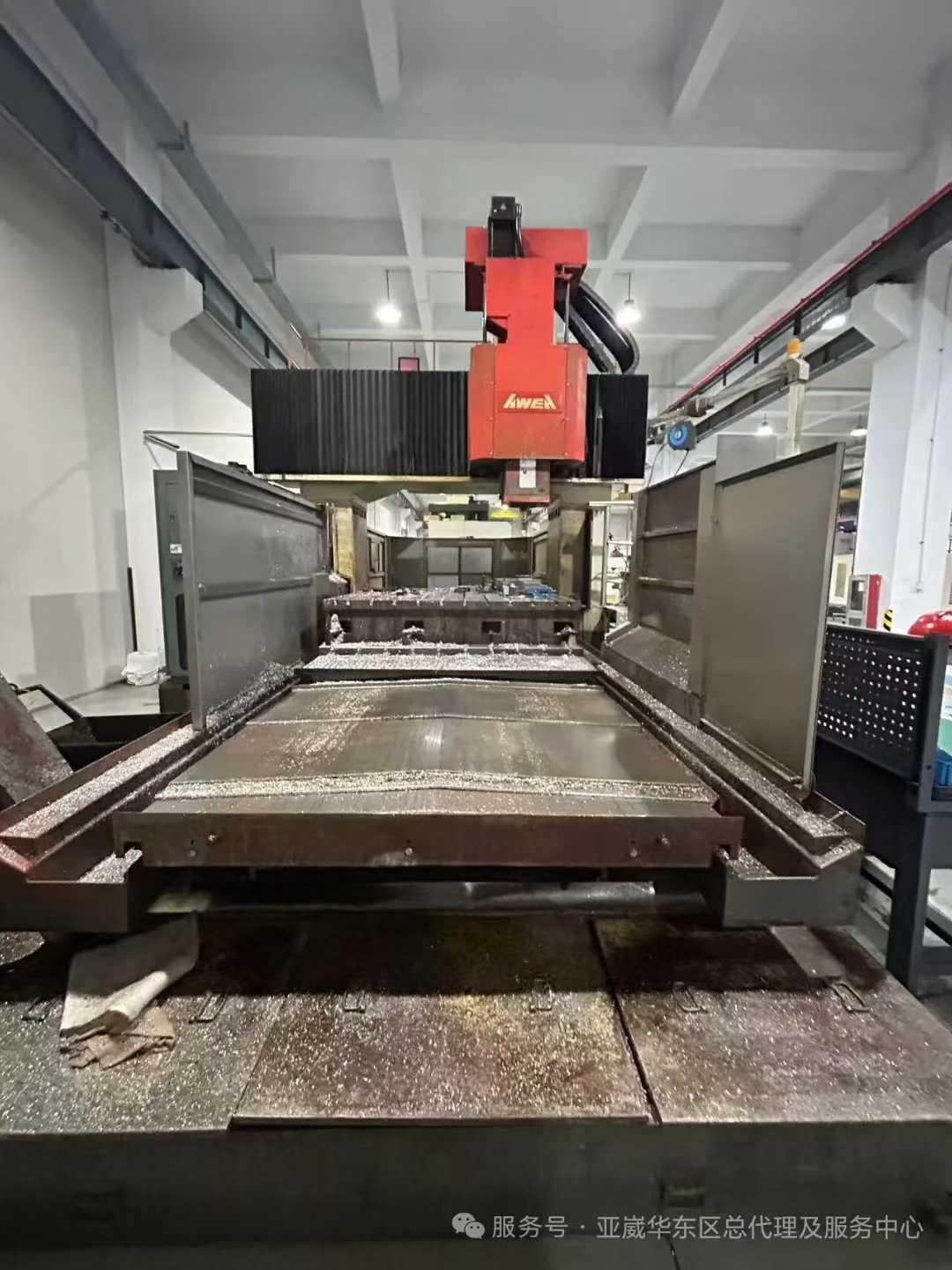

AWEA LP3021 Gantry machining centre

X-axis travel: 3000mm

Y-axis travel: 2100mm

Z-axis travel: 760mm

Distance between the two columns: 2300mm

Distance from spindle nose to workWorktable surface: 240-1000mm

WorkWorktable size (X*Y) : 3000*2000mm

The T-slot size (width * distance) of workWorktable: 28*200mm

The maximum load of workWorktable is 10,000 kg

spindle motor: 22/26 (30/35) KW (HP)

Spindle speed: 10-6000rpm

Taper of spindle through hole: BT50

spindle broaching force: 1800kg

Rapid feed for X/Y/Z axes: 15000/15000/10000mm/min

Cutting feed: 10,000 mm/min

Floor area (length * width * height) : 8600*5900*4000mm

Weight: 33,000 kg
