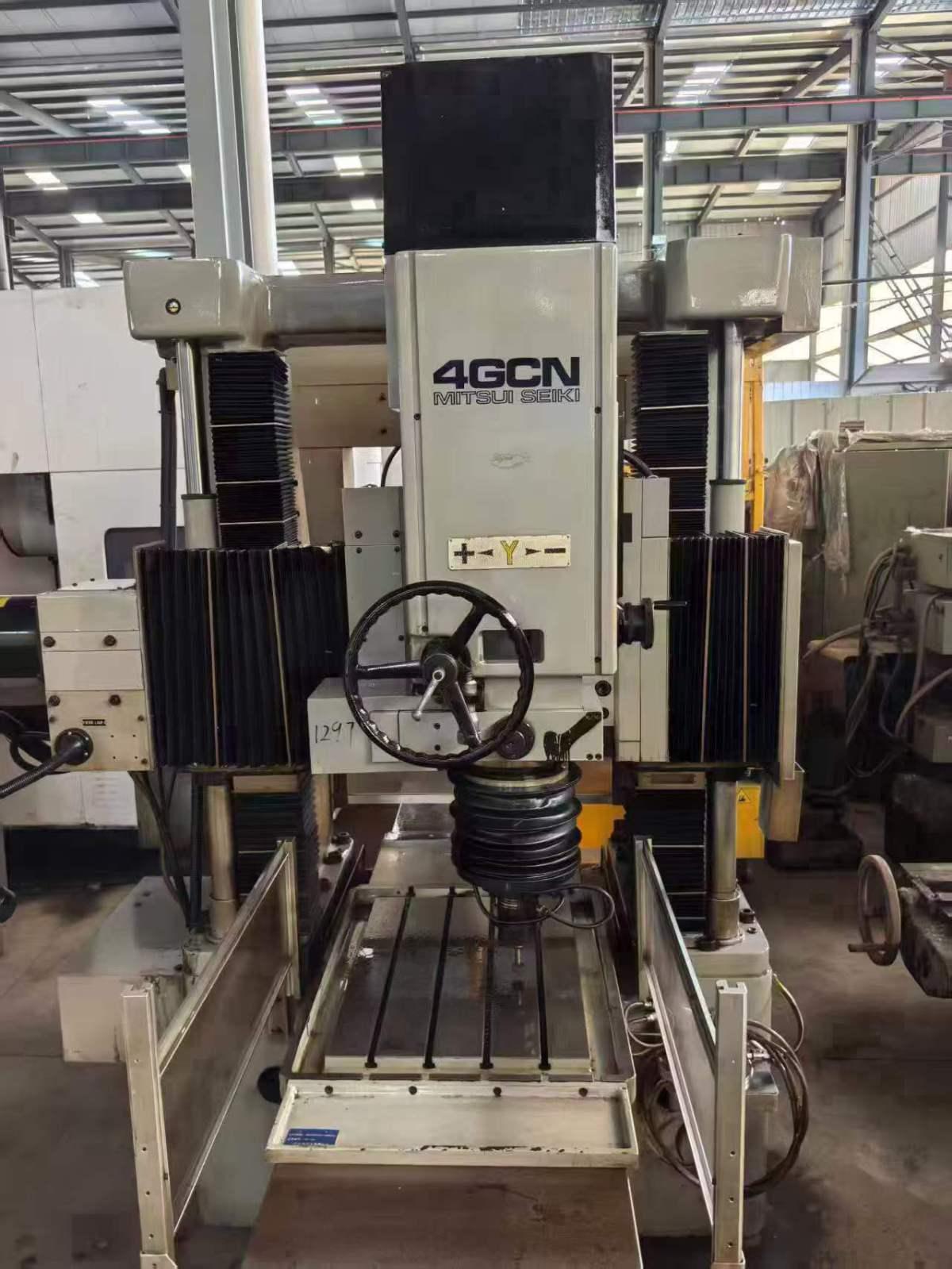

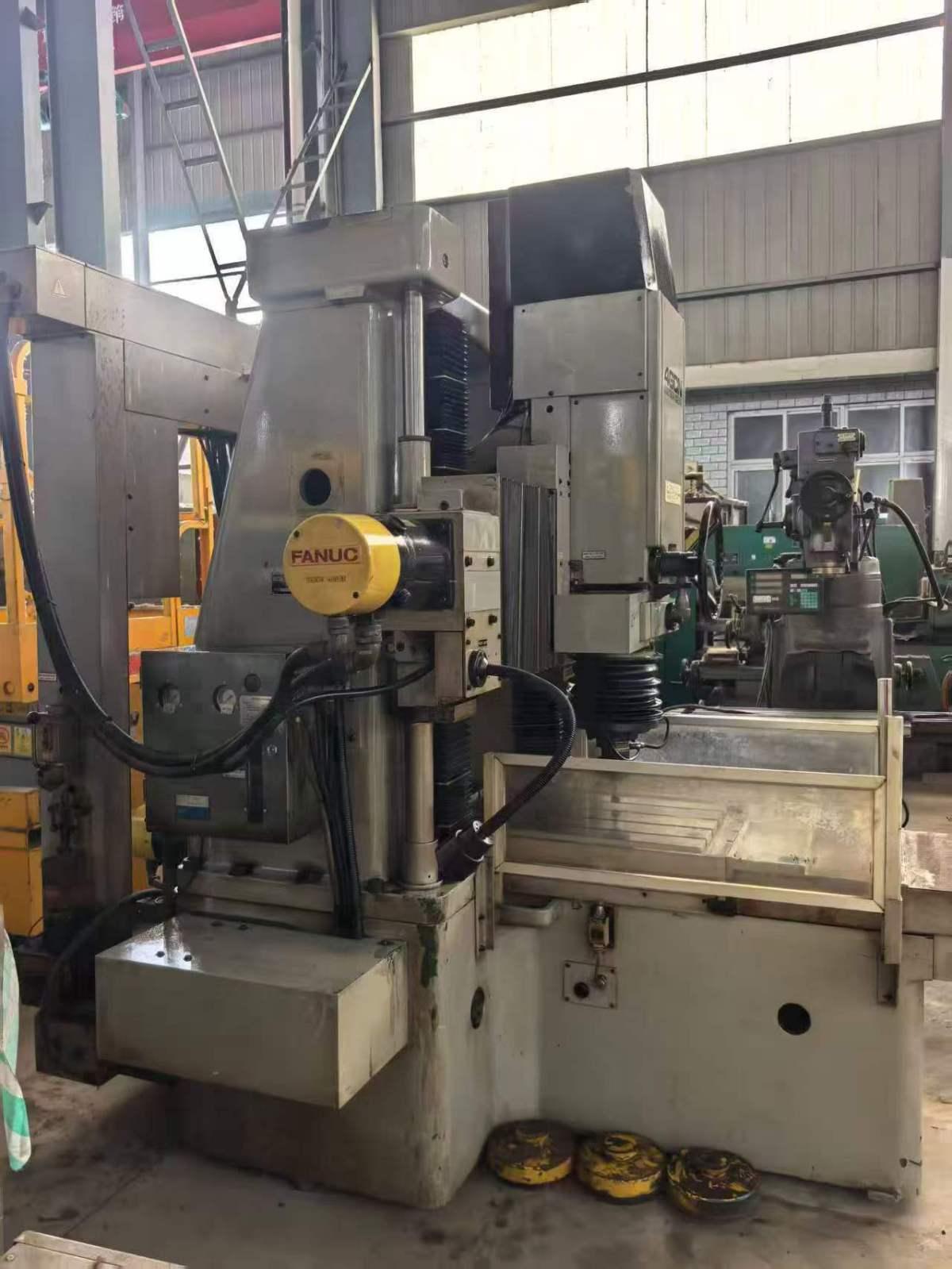

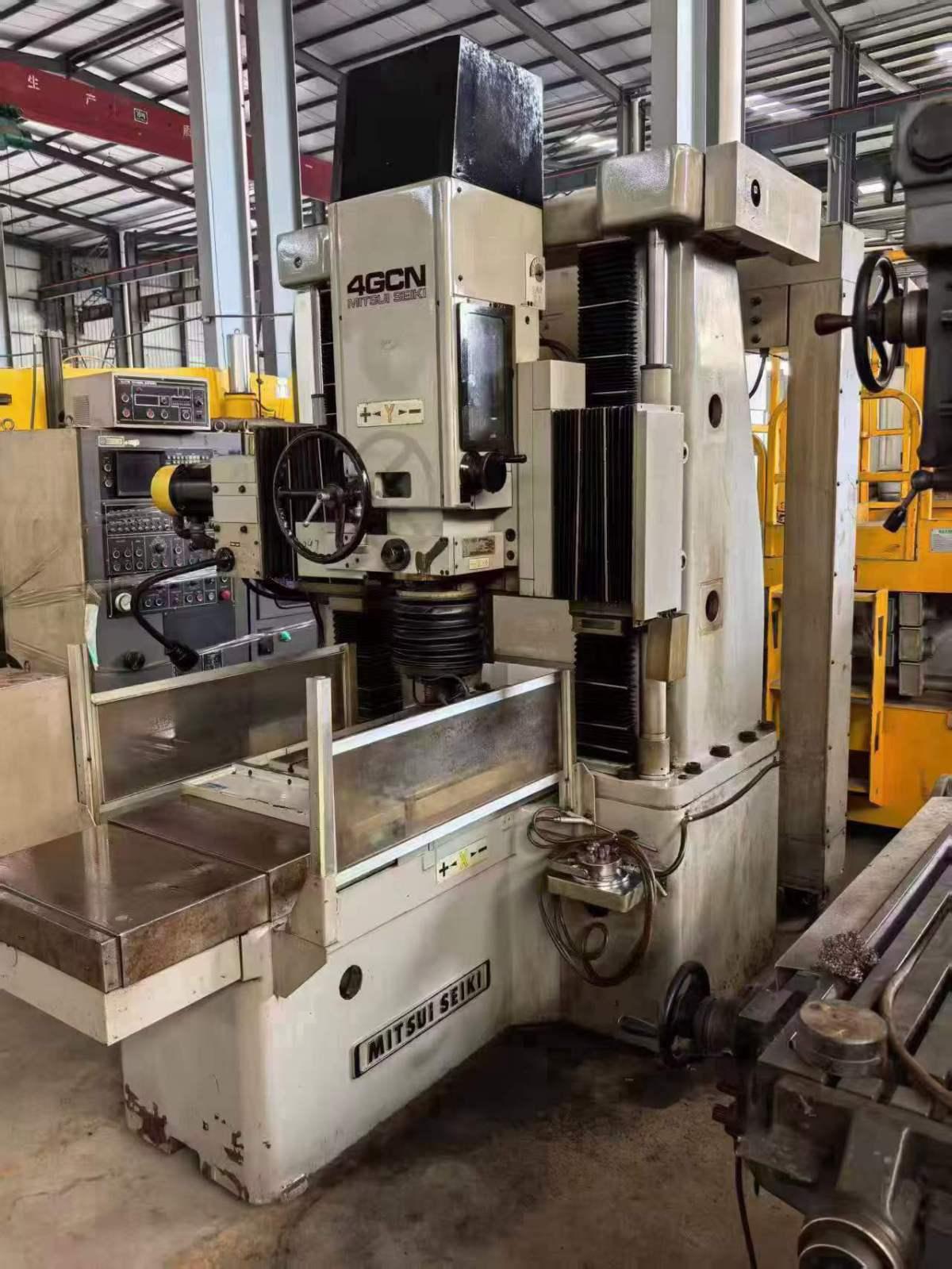

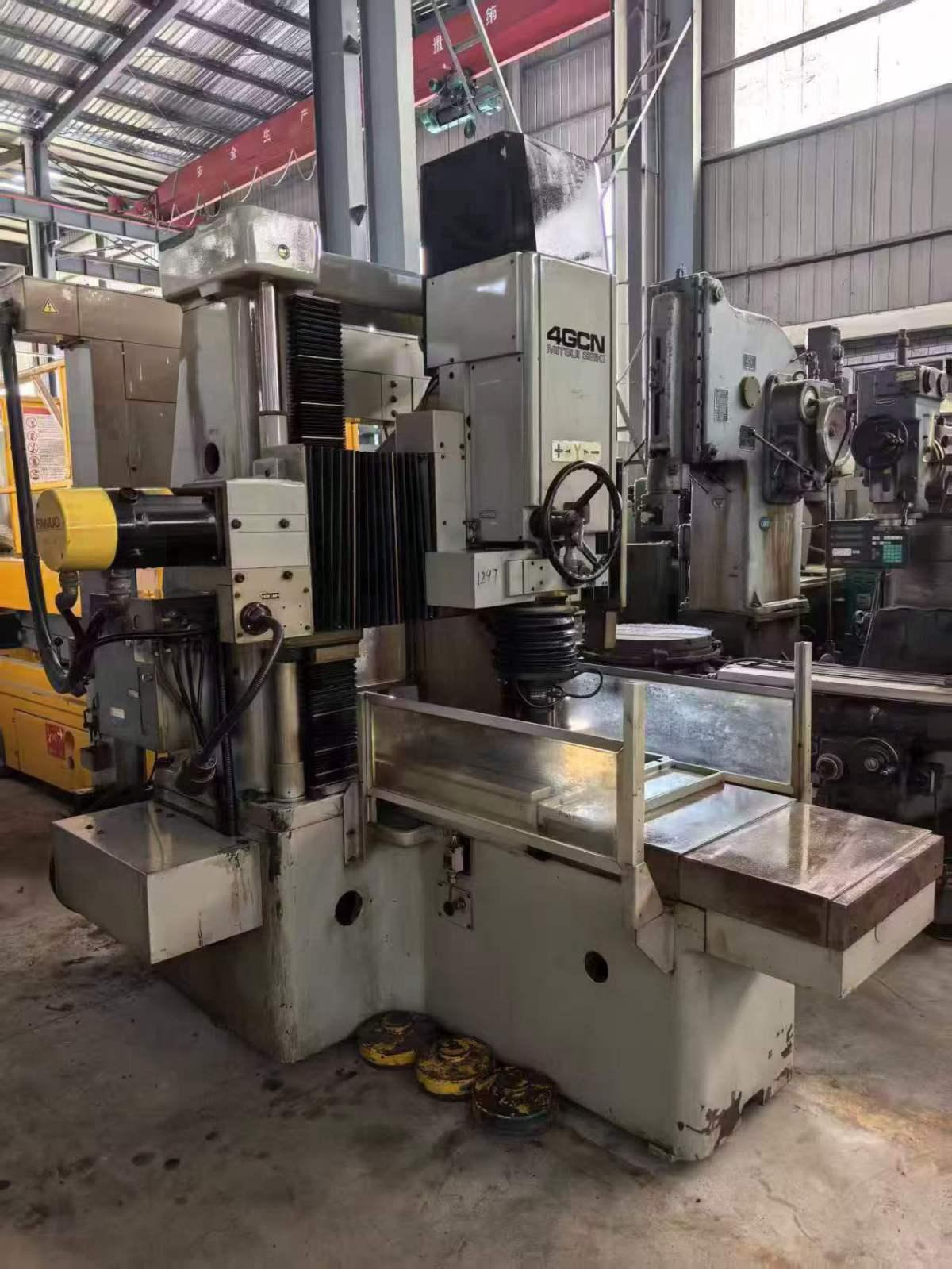

Mitsui Seiki 4GCN Jig grinding machine

[Product Information]:

Inventory number：813453
Brand：Mitsui Seiki
Model：4GCN
Origin："Japan
Location：China
Year：2000
Create Time：2026-10-22

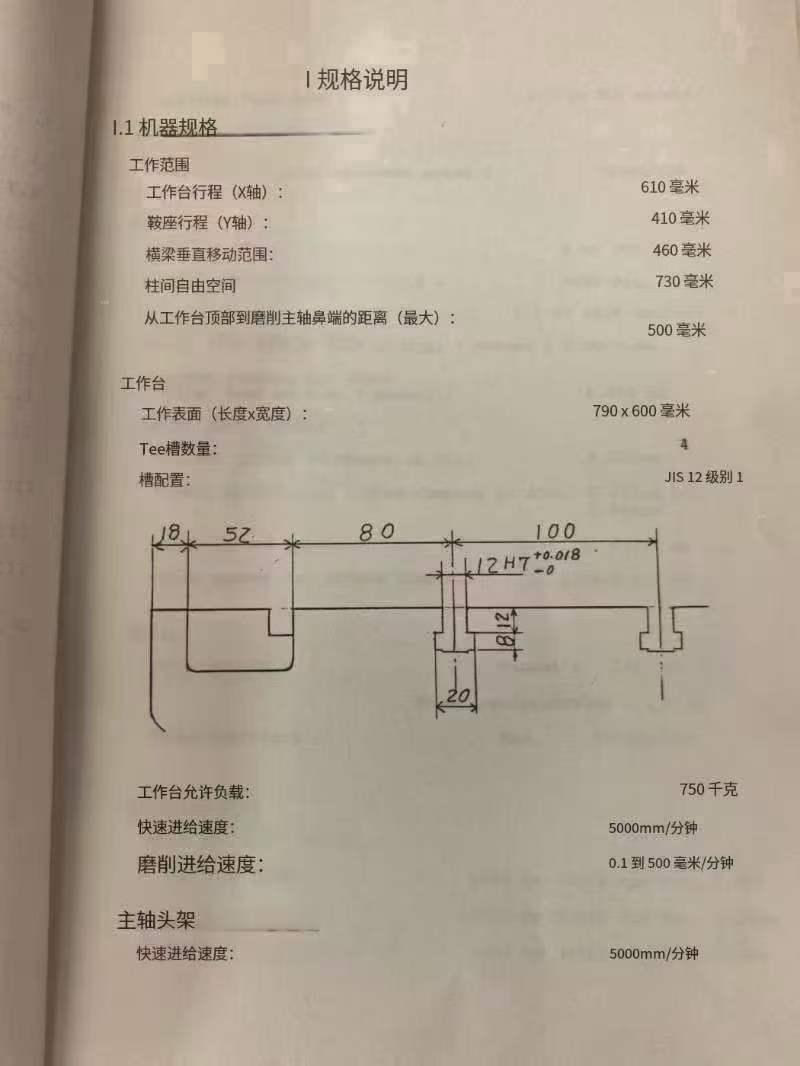

Specifications:

X-Axis Travel: 610 mm
Y-Axis Travel: 410 mm
Z-Axis Travel: 460 mm
Column Clearance: 730 mm
Maximum Distance from Worktable Surface to Grinding Spindle Nose: 500 mm

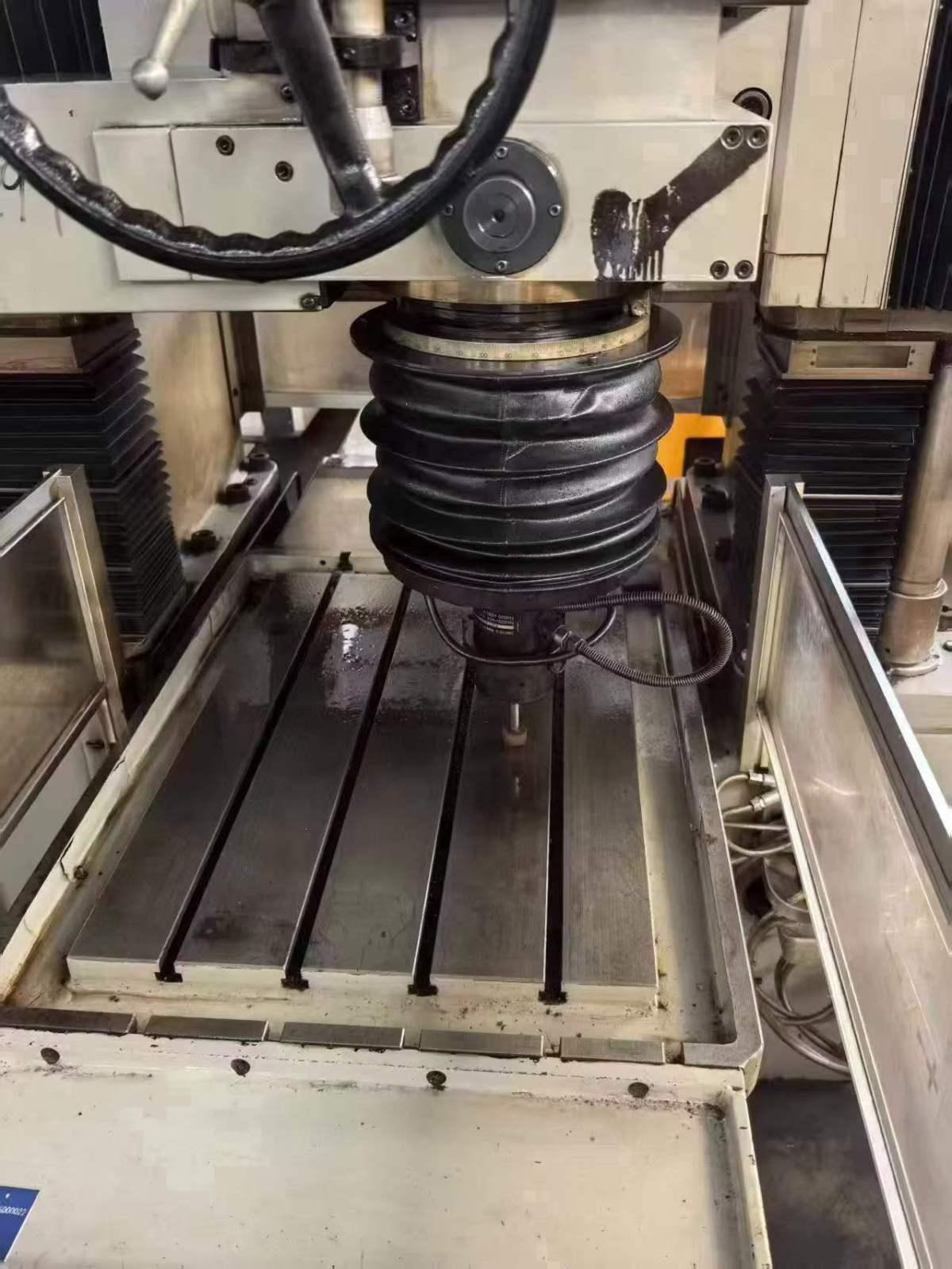

Worktable
Worktable Size (L × W): 790 × 600 mm
Number of T-Slots: 4
T-Slot Specification: JIS No. 12, Class 1
Maximum Worktable Load Capacity: 750 kg
Feed Rates
Rapid Feed Rate: 5,000 mm/min
Grinding Feed Rate: 0.1–500 mm/min
Spindle Head
Rapid Feed Rate: 5,000 mm/min
