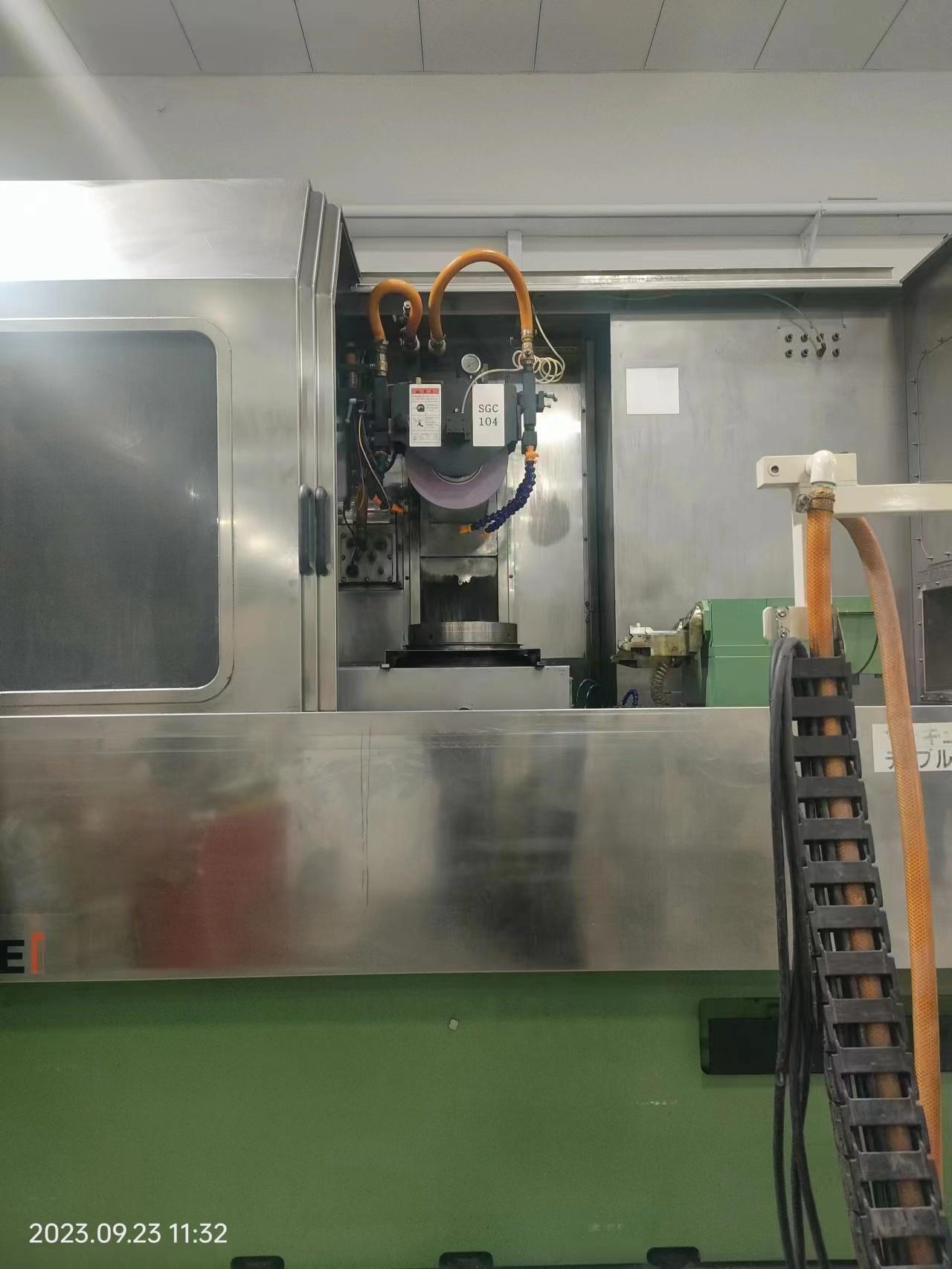

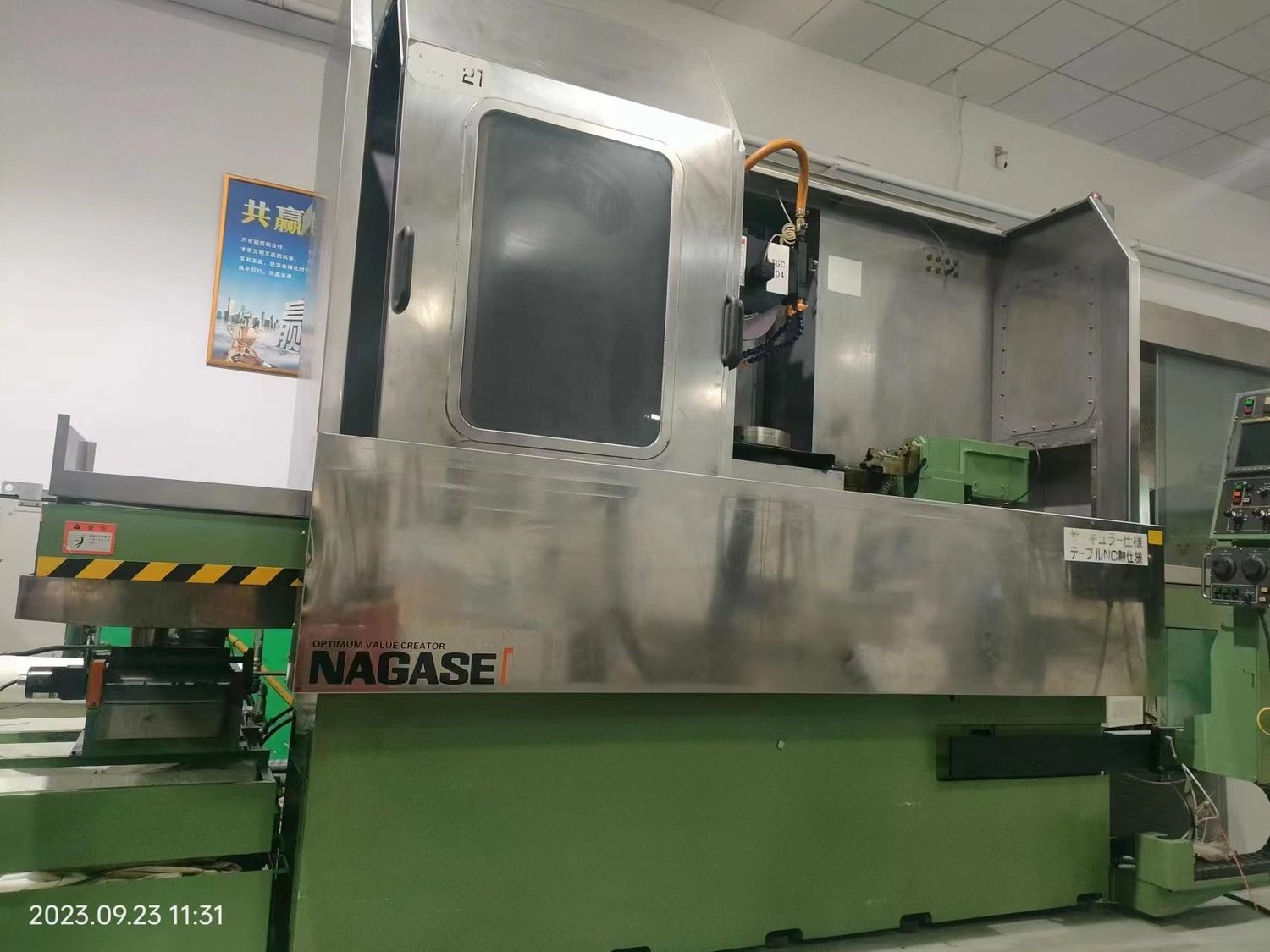

Nagase SCG104 Grinding machines

X*Y*Z axis travel: 950*340*850mm

A axis  φ315

Segmentation precision ±0.0005 arcseconds

Grinding wheel speed :2000 rpm

Spindle drive mode: static mechanical direct connection

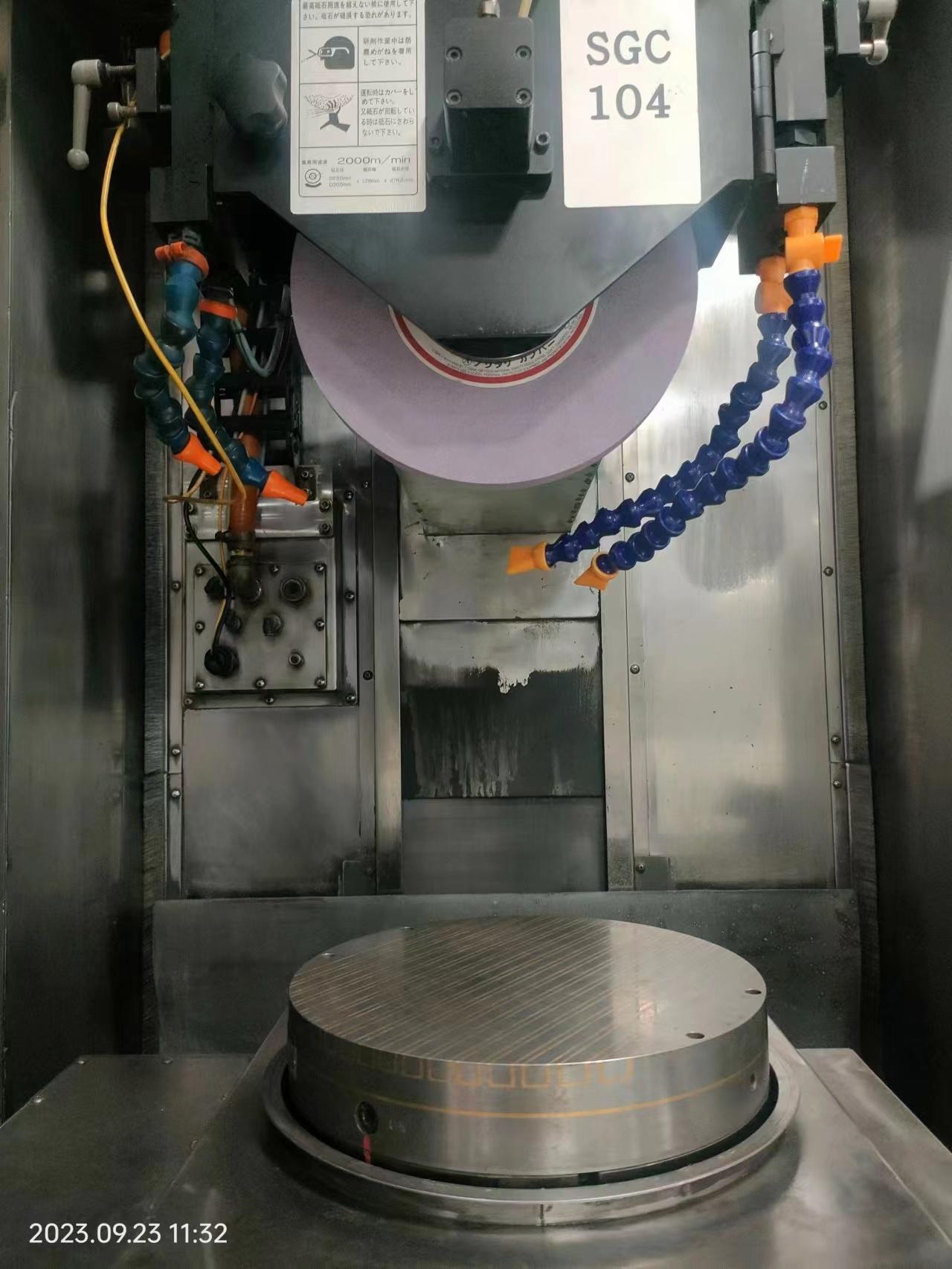

Grinding wheel diameter * width * Internal diameter :φ305*30*φ76.2

Grinding travel :950*340*400

Minimum feed :0.0001mm

Worktable size: 1000*400mm

Worktable load :500KG

Lead rail mode :WA axis static pressure XY axis rail

Drive mode per shaft :WXY shaft: screw drive

Magnetic separation chip conveyor

Dimensions :5000*2500*2800mm
