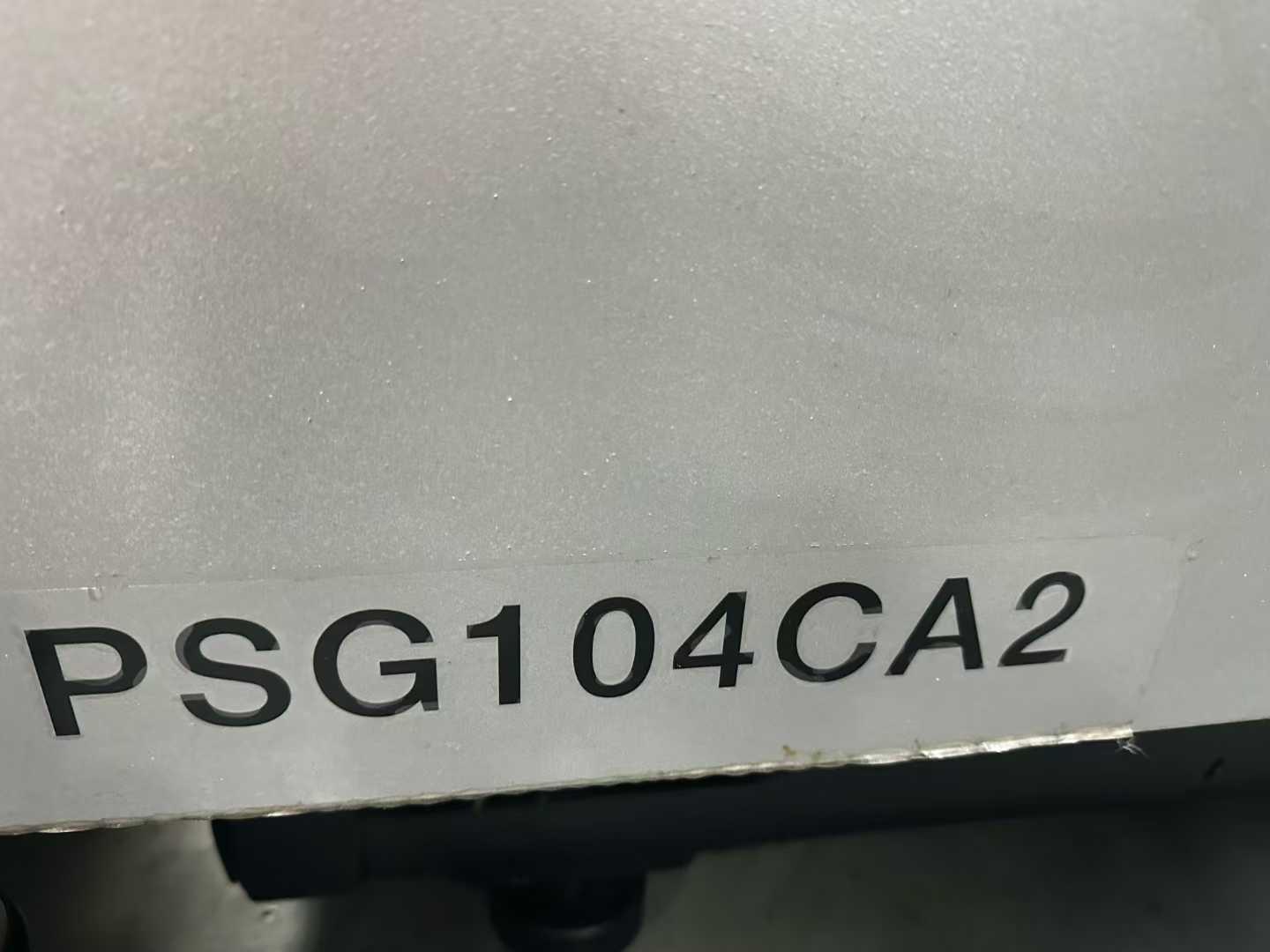

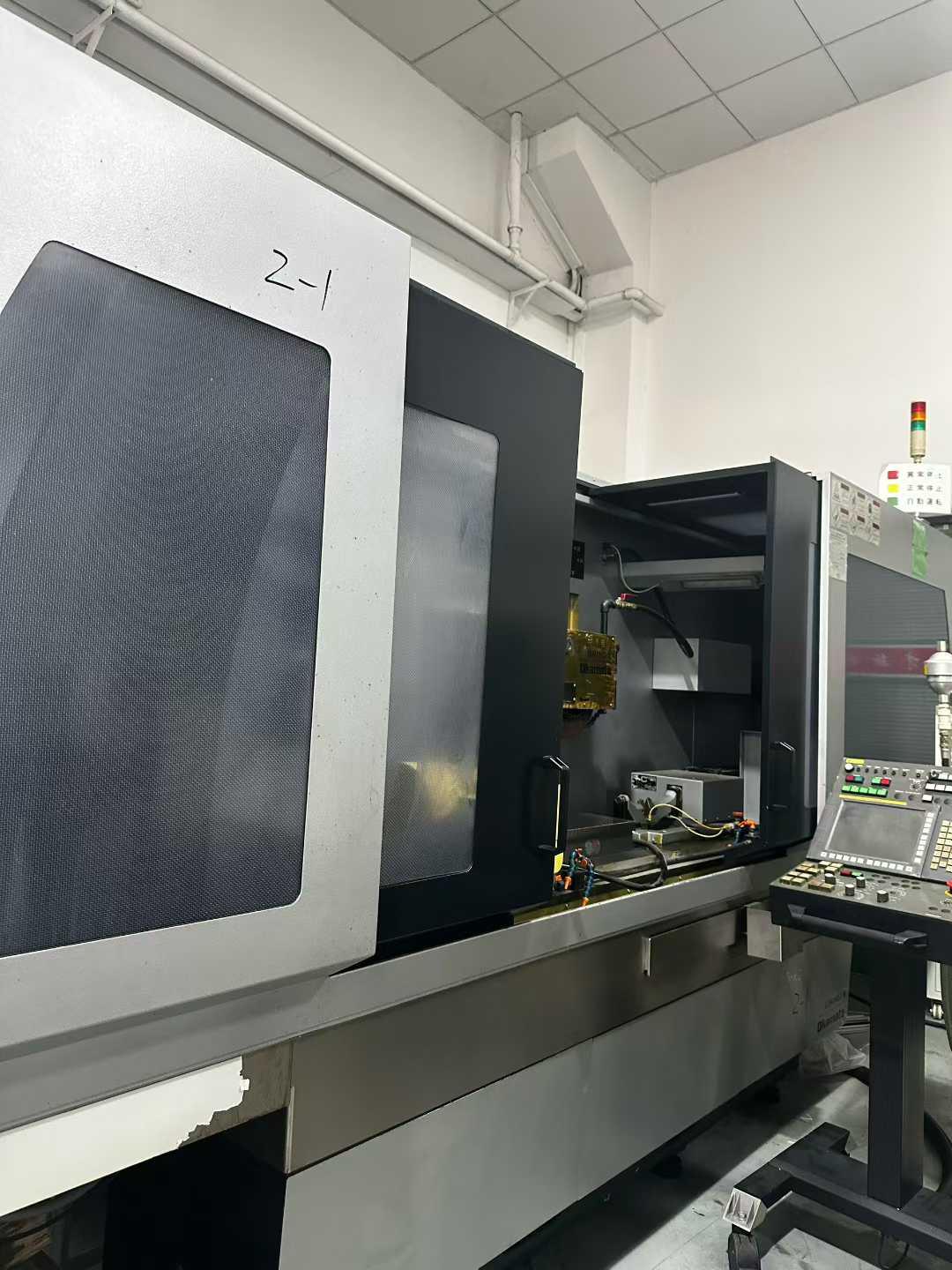

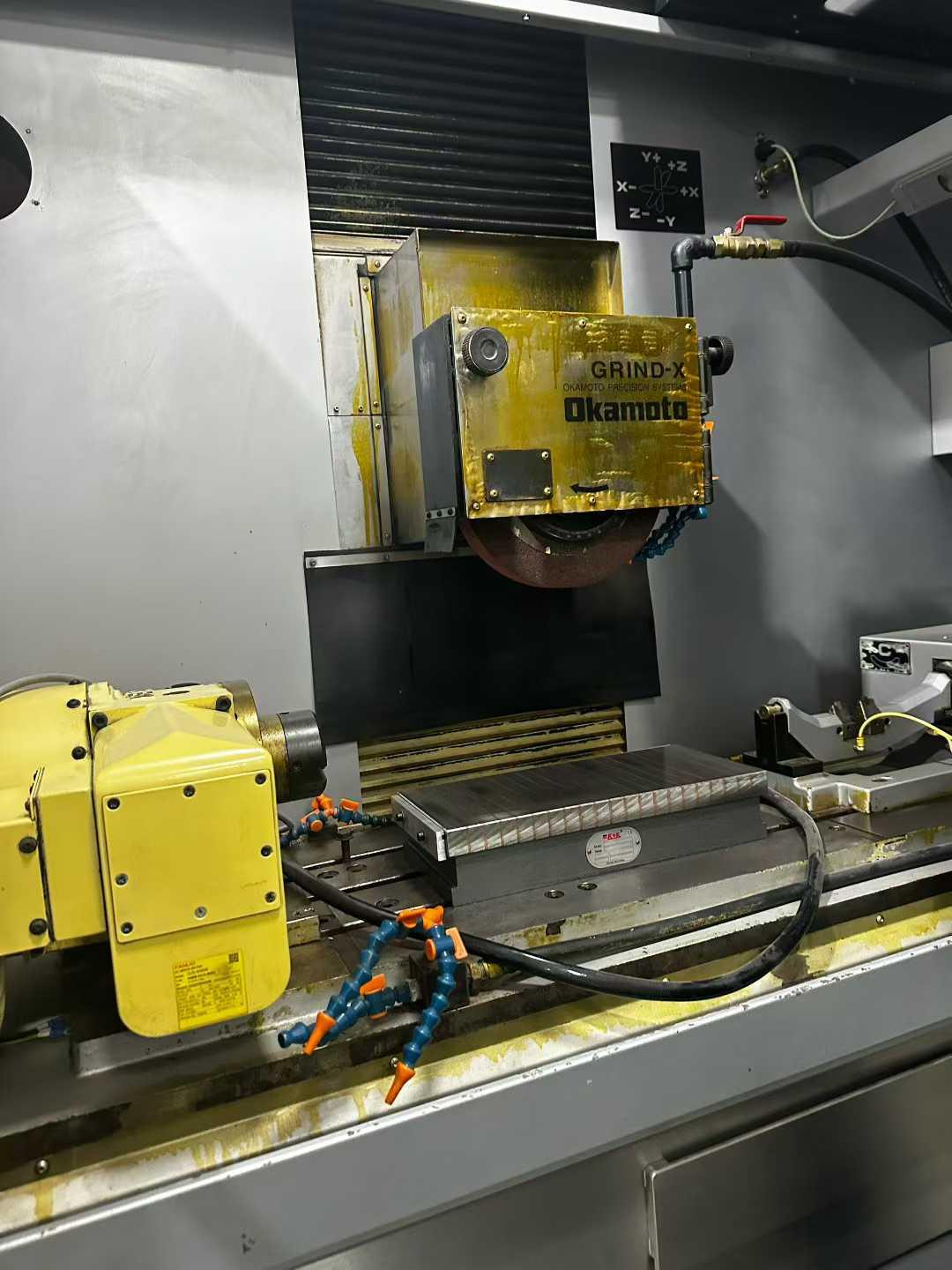

Okamoto PSG104CA2 Grinding machines

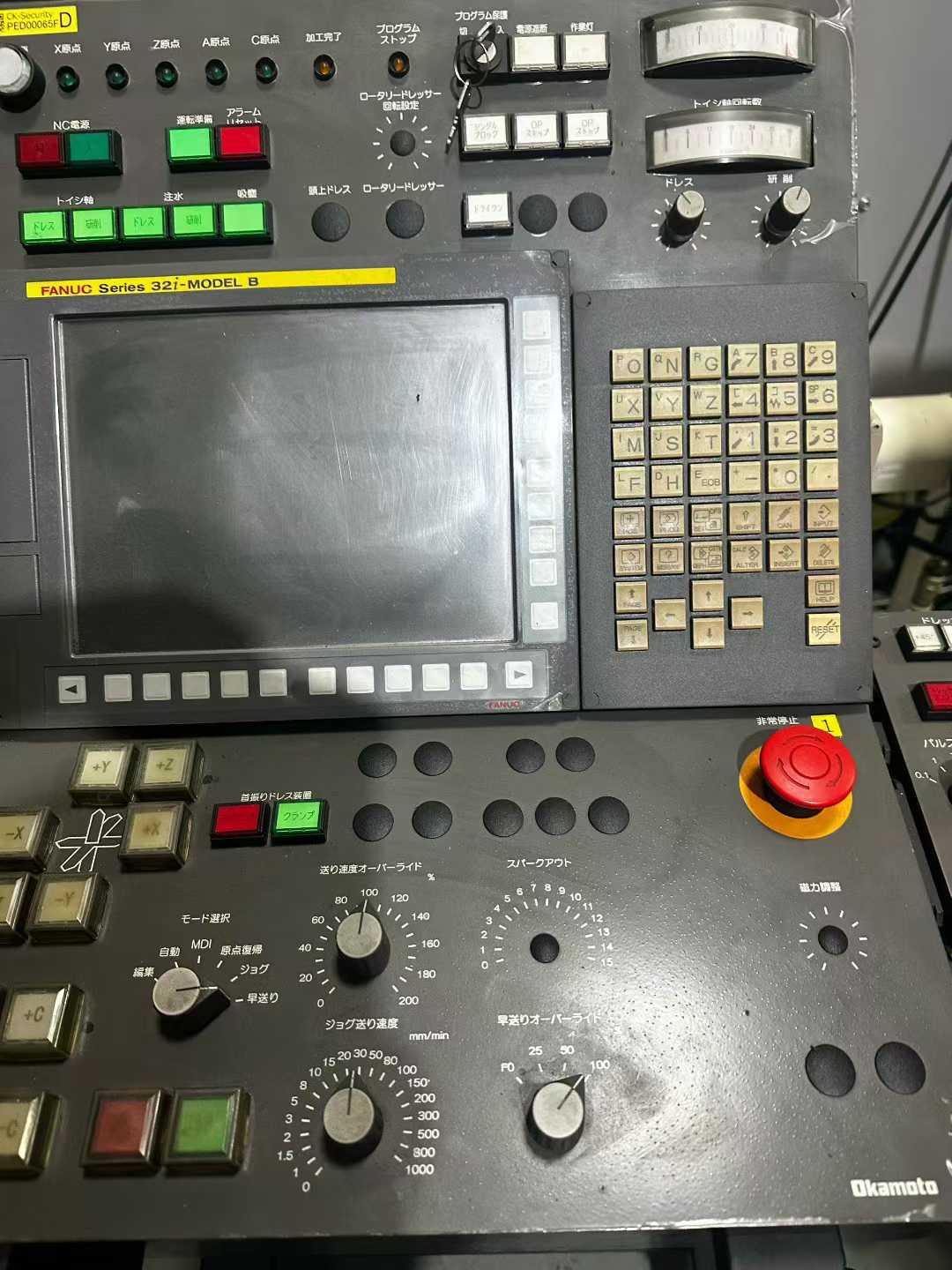

CNC System :FAMUC series 32i-mb
The three-axis travel is 1200*440*400mm

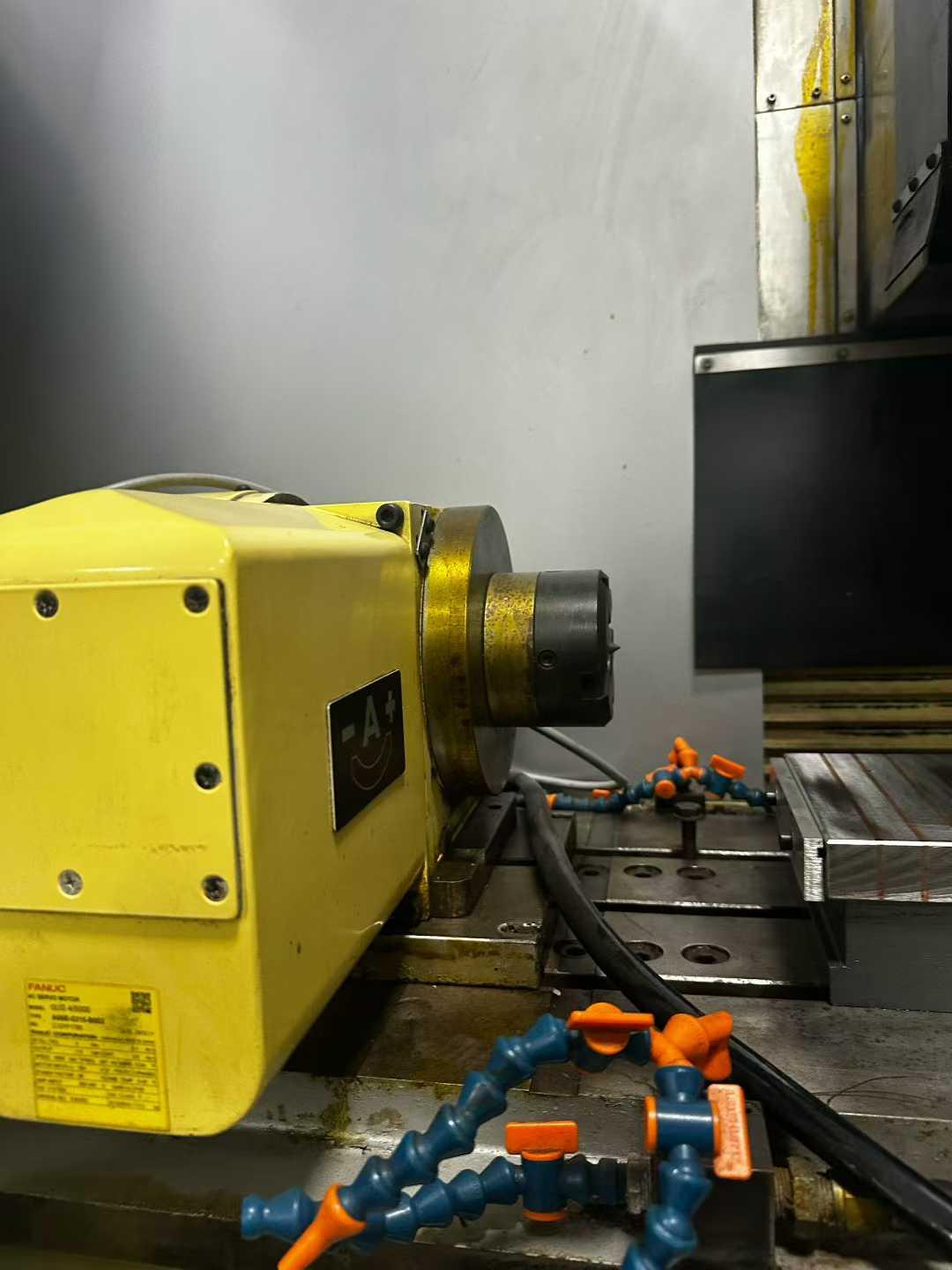

A-axis :360 degree

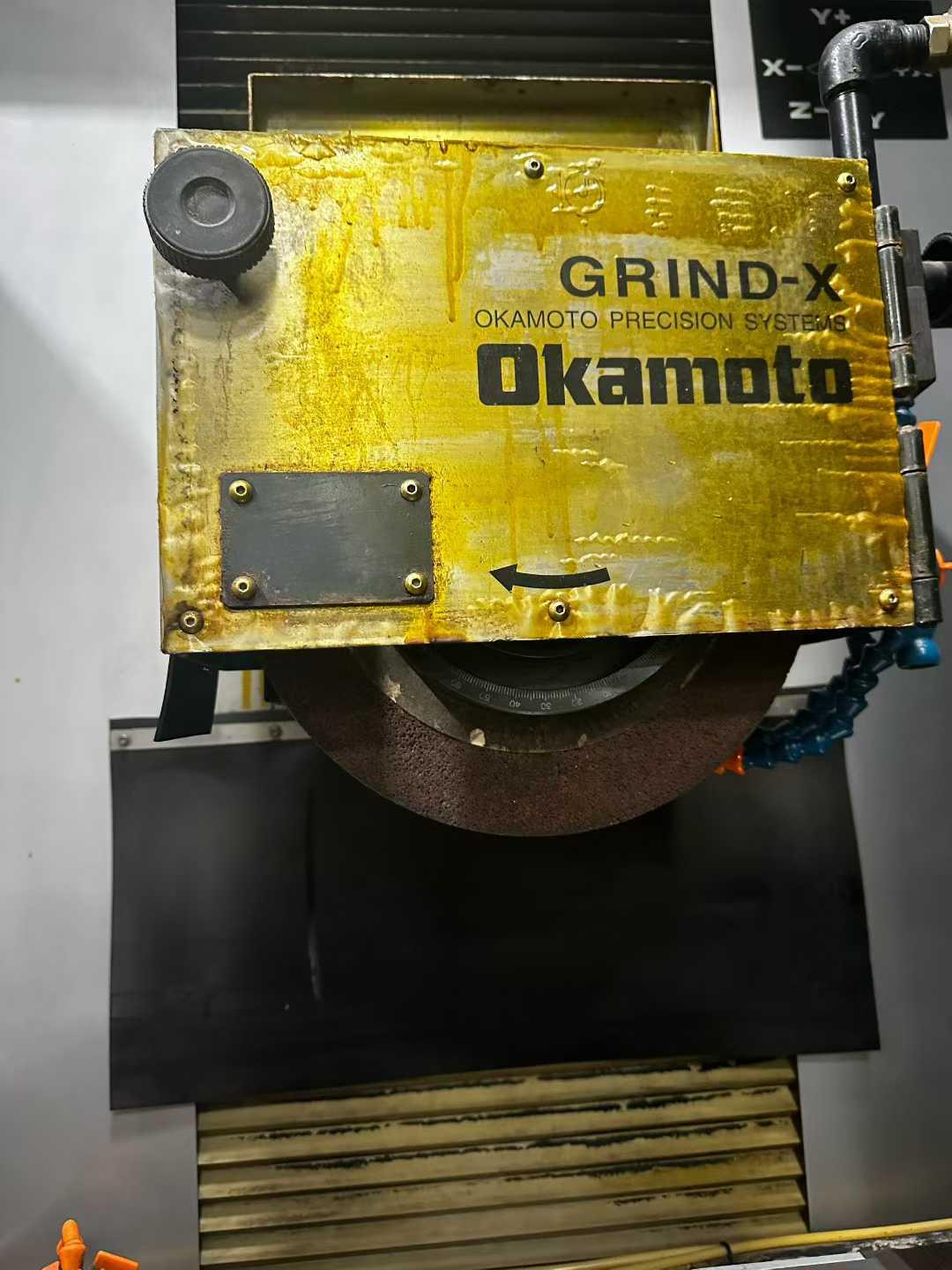

grinding wheel diameter, width, Internal diameter :φ305*50*φ127
guideway method: Linear guide
Drive mode per axis :XYZC drive
Worktable :1400*300mm
Worktable load :700KG
spindle drive method: Electric spindle grinding wheel speed 2500rpm
spindle feed rate: 20,000 mm/min
Arrangement method: Magnetic attraction
‌Dimensions :4700*3275*2166mm
Feed value :0.0001mm
Attachment: Equipped with NikKEN AC shaft and two oil chillers
