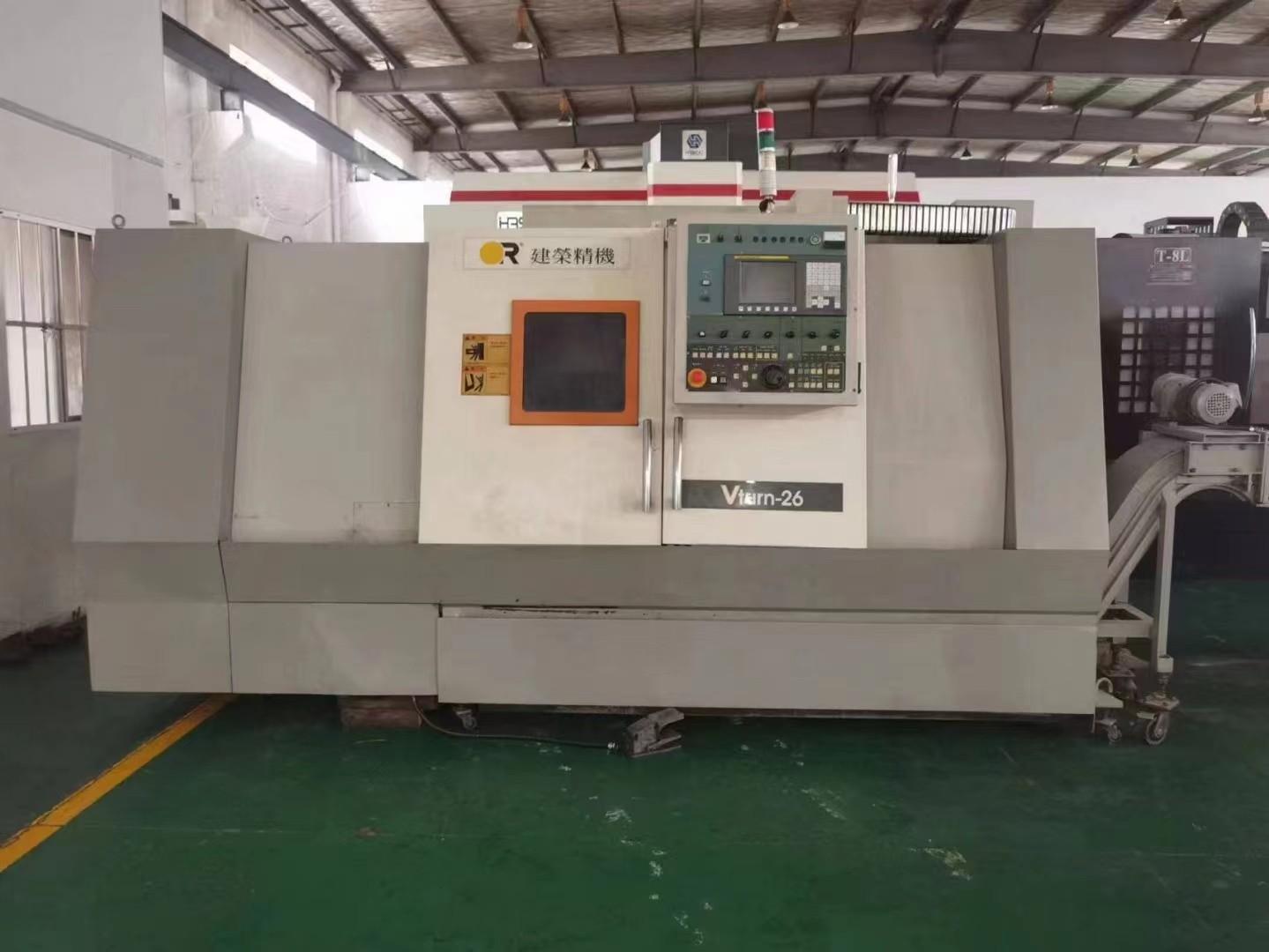

VICTOR V26/1100 CNC turning lathe

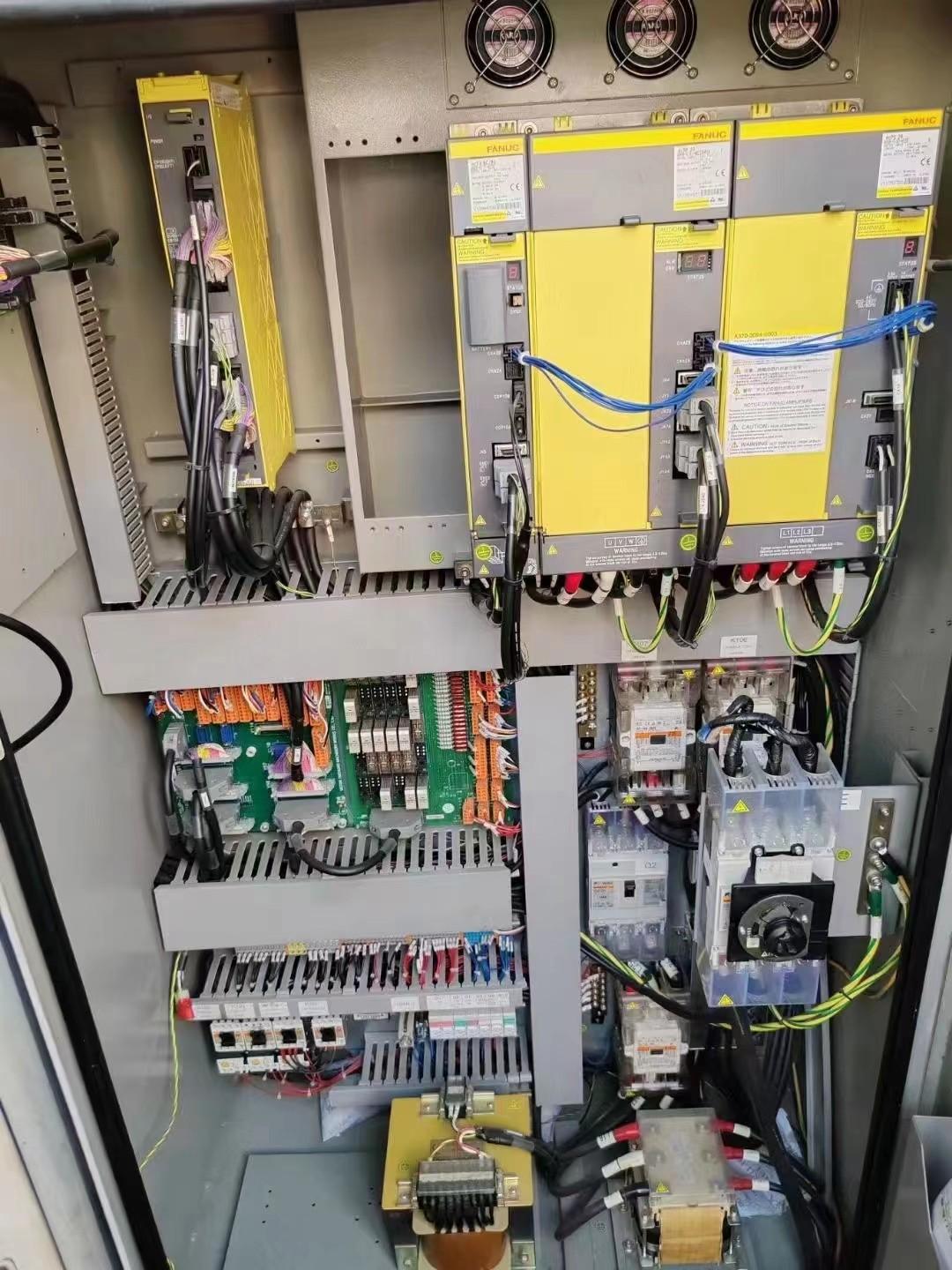

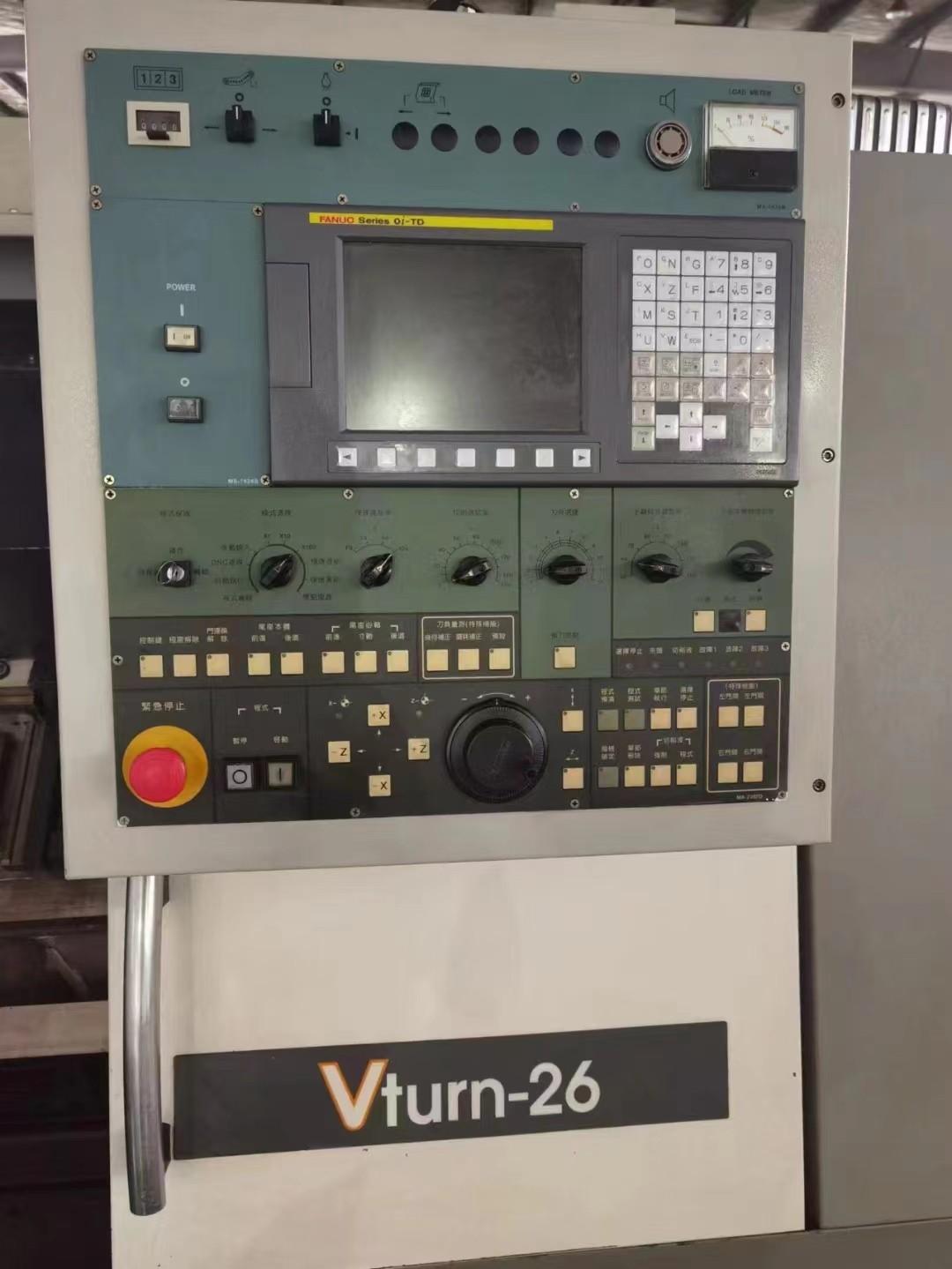

CNC System: Fanuc TD, Alpha motor drive

Guideway: two axes rigid guideway

Machining range :290-1100mm

Maximum machining diameter :380mm

Distance between two centers:650mm

Spindle :A2-8, 18.5kW

Maximum bar through hole :75mm

Spindle speed :3500rpm

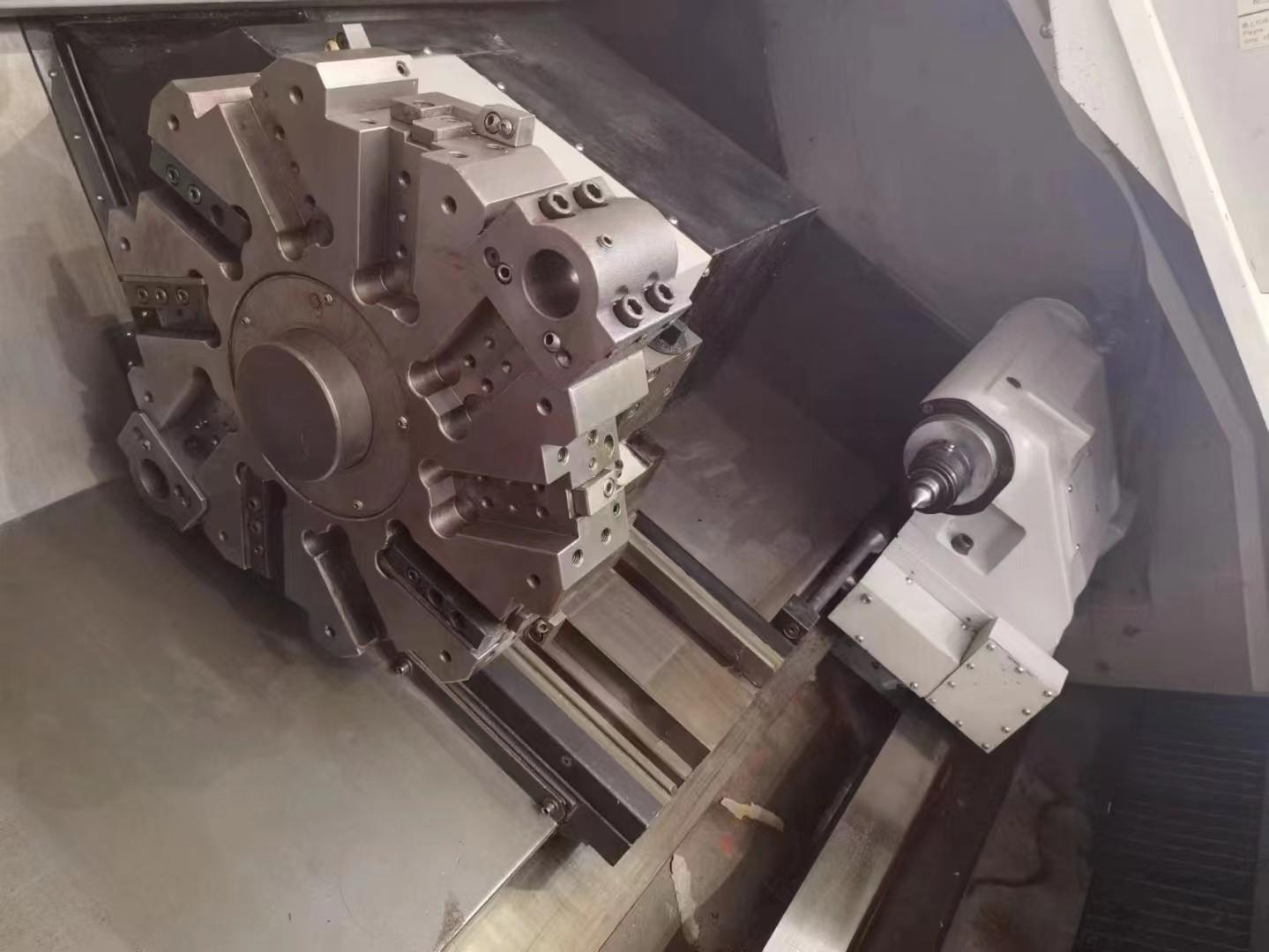

Turret :10 positions

Tool: Square: 25mm,through hole: 50mm

Tailstock :MT4

Tailstock diameter :110mm

Spindle travel:100mm

10 "chuck
