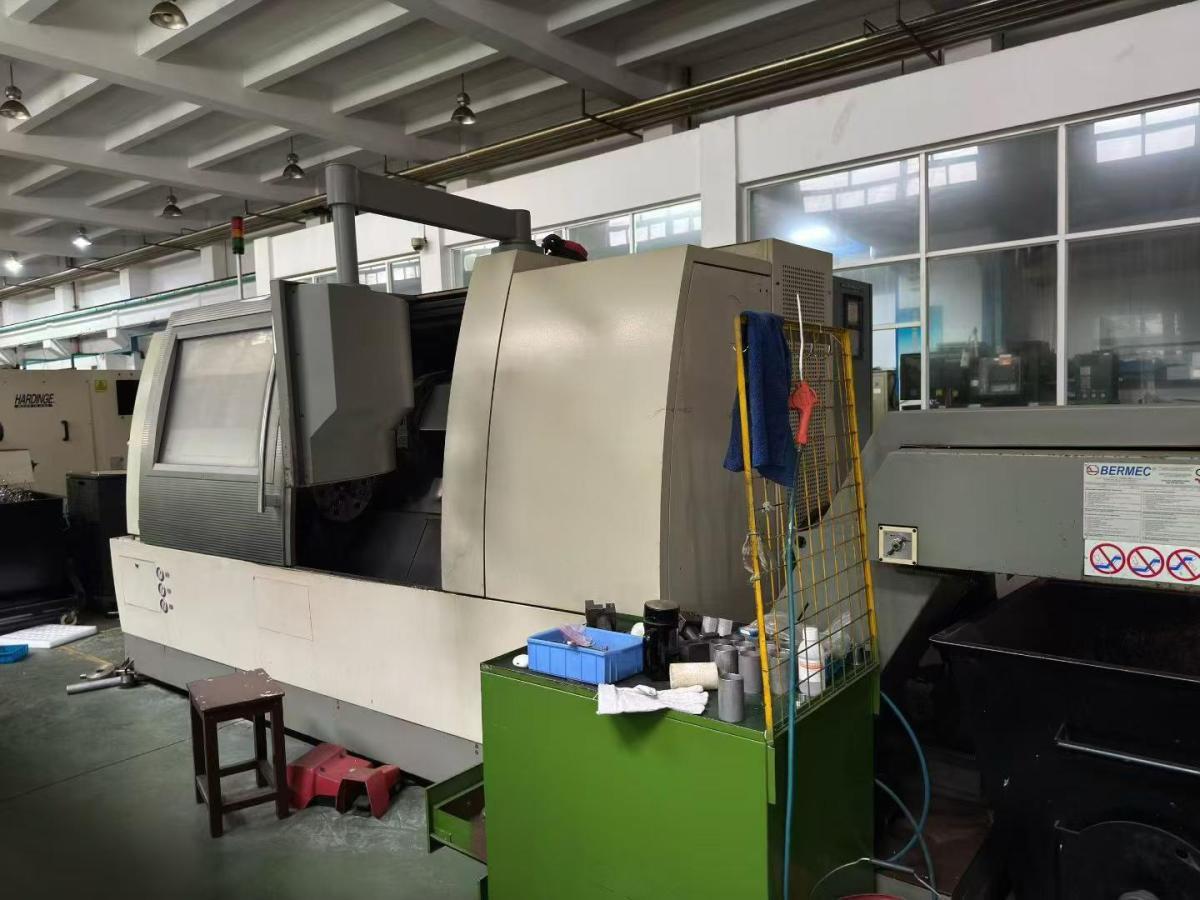

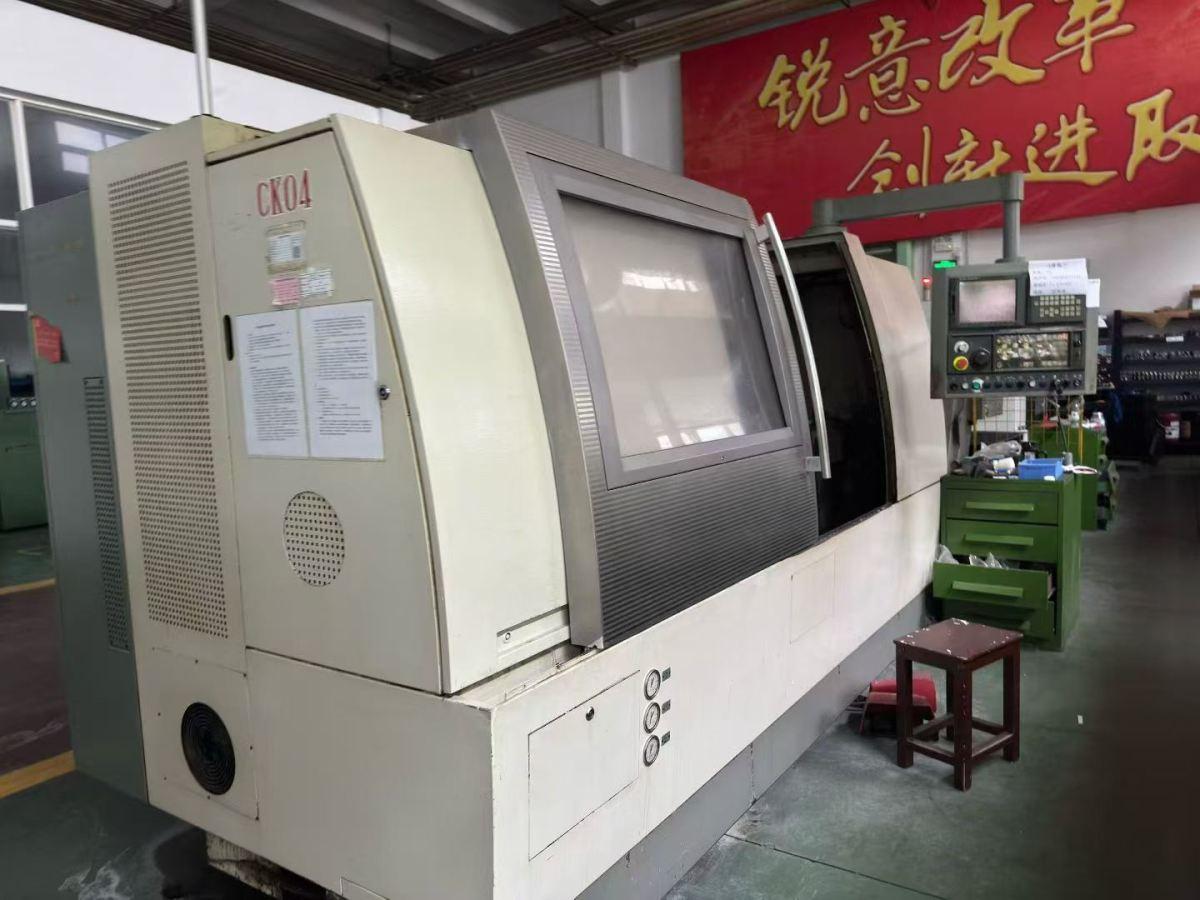

GRAZIANO CTX500 CNC turning lathe

Maximum Machining length: 400mm

Maximum turning diameter: 240 mm

The maximum rotation diameter on the bed is 510 mm

The maximum diameter of rotation on the transverse slide plate: 310 mm

CNC CNC System: Siemens 840

spindle taper: ASA 6

spindle through hole diameter: 80mm

Maximum spindle speed: 5000 rpm

spindle motor power: 13 kW

Equipment Footage (length × width × height) : 3800 × 2500 × 1800 mm

Net weight of the equipment: 7500 kg
