Mazak NEXUS 5000II Horizontal Machining centre

Three-axis travel :730*730*740mm

Distance from spindle nose to worktable center :70-810mm

Distance from spindle center to worktable surface:100-830mm

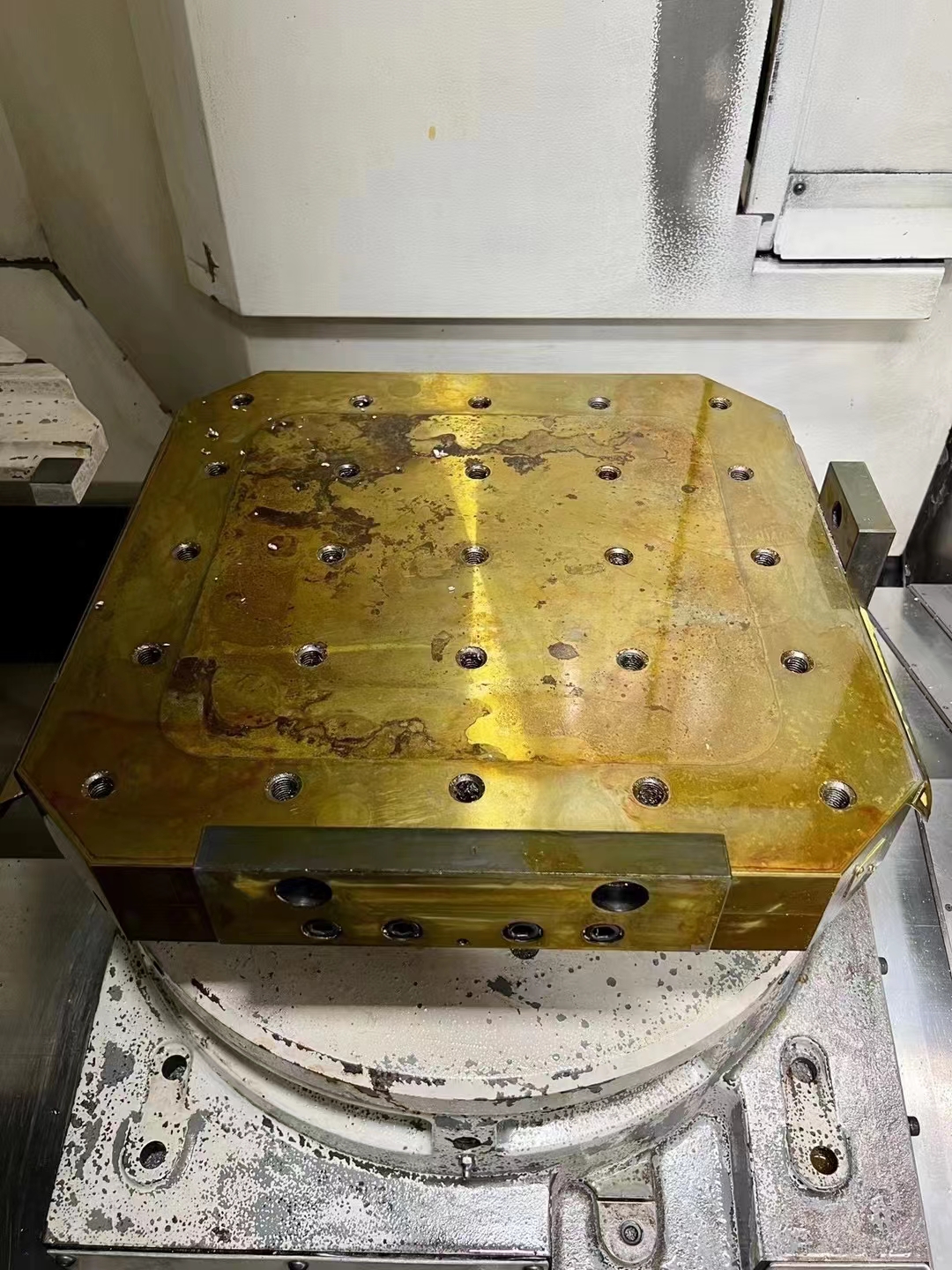

Worktable size :500*500mm

Worktable load :700kg

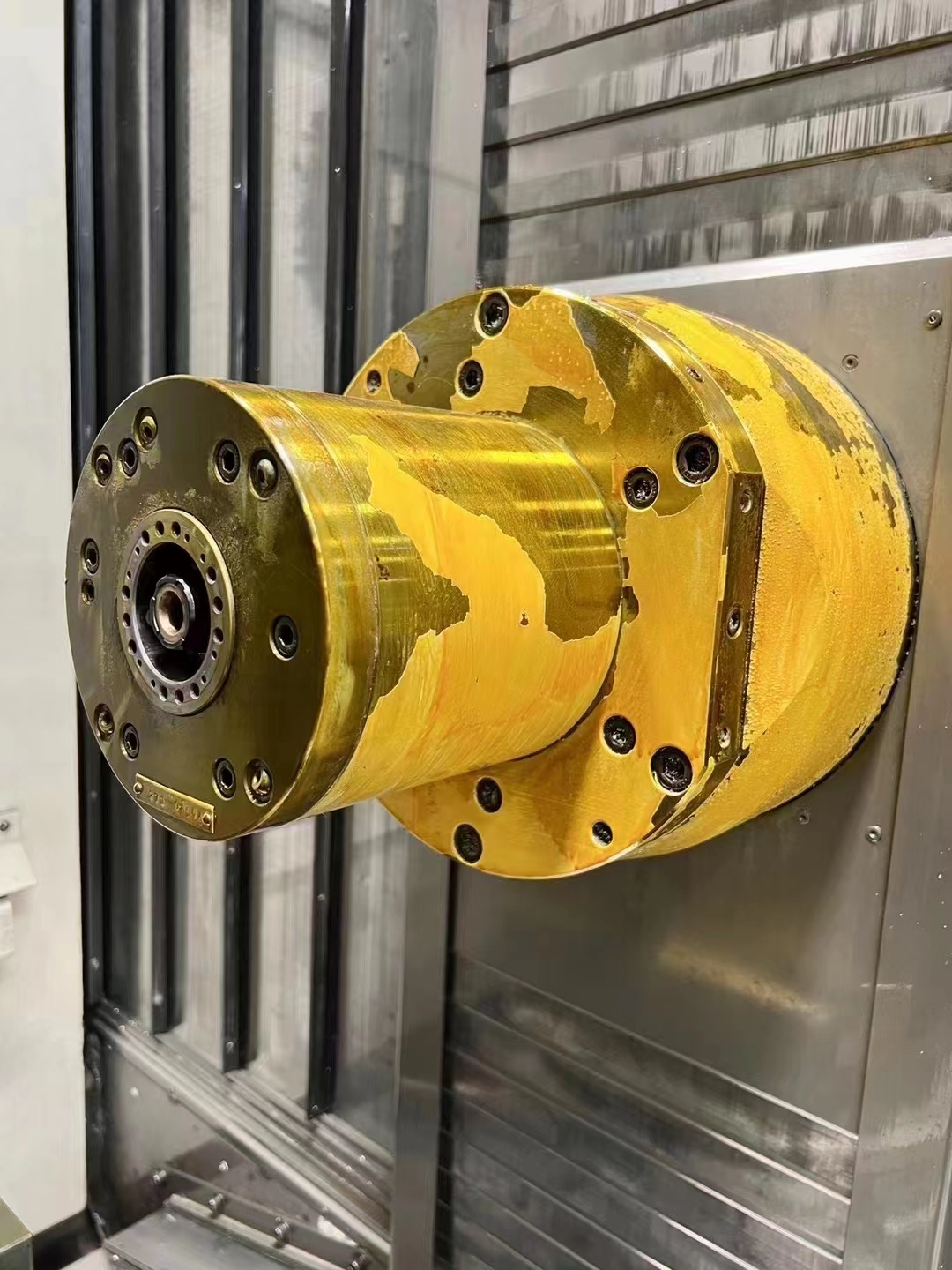

Spindle speed:18000rpm

Spindle motor :30/22kw

Tool holder type: HSK63

Dimensions:2900*2330*5550mm

Weight :11000kg

Tool magazine: 60

With center flushing
