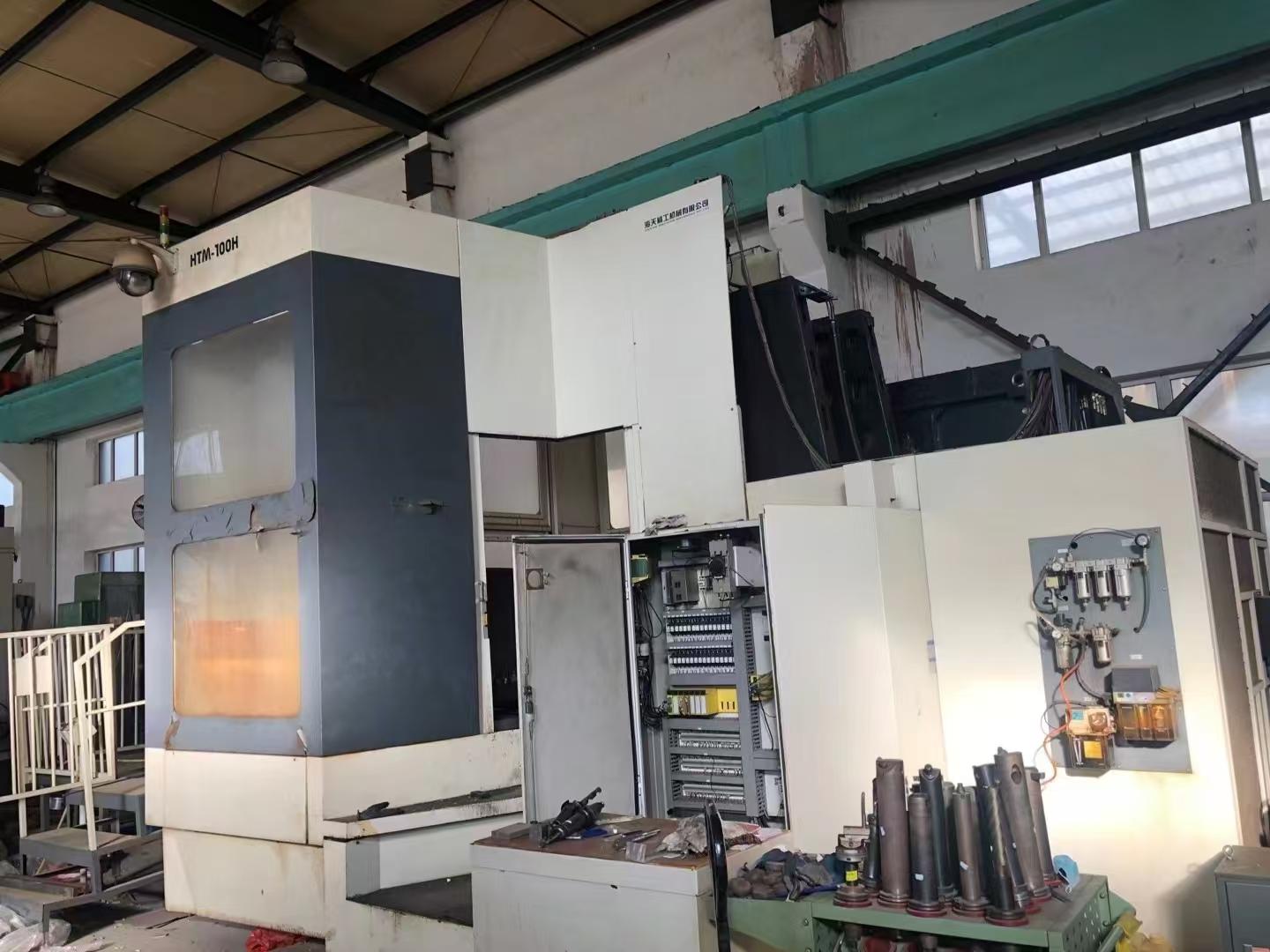

Haitian HTM-100HD Horizontal Machining centre
[Product Information]:
- Inventory number：85231
- Brand：Haitian
- Model：HTM-100HD
- Origin：China
- Location：China
- Year：2009
- Create Time：2024-10-28
Specifications:

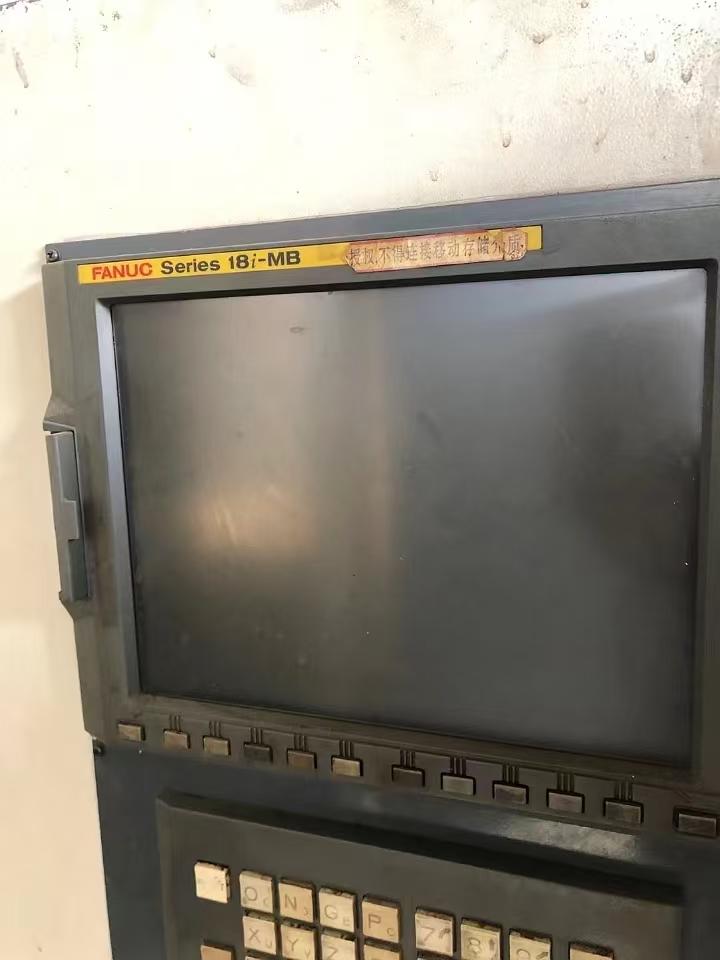

CNC CNC System: FANUC
three-axis travel: 2000*1500*1200mm
spindle center to work surface height: 50-1550mm
Distance from spindle nose to center of WorkWorktable: 280-1480mm

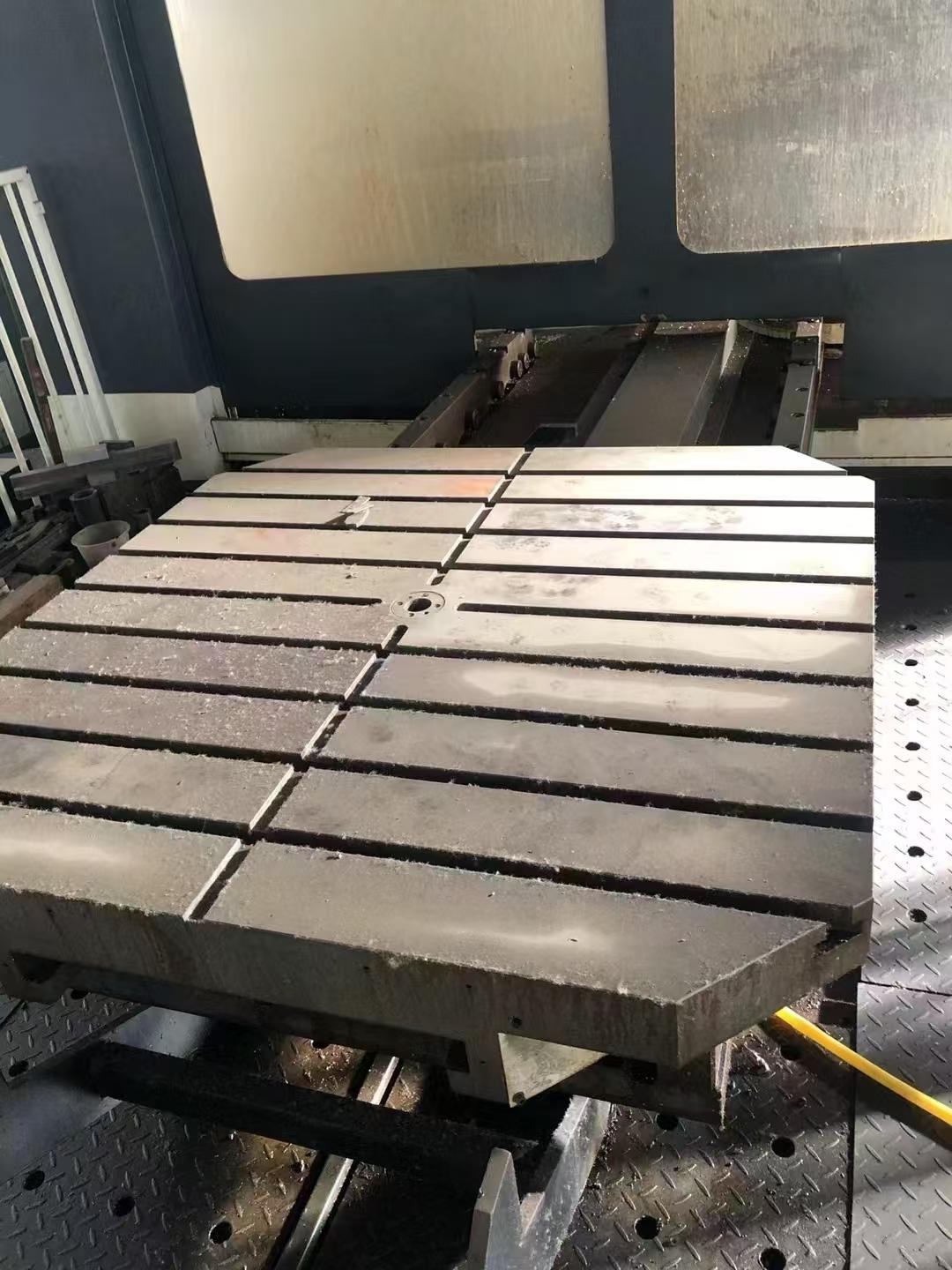

WorkWorktable size: 1250*1250mm
Maximum load: 5000kg
spindle motor power: 22/18.5kw

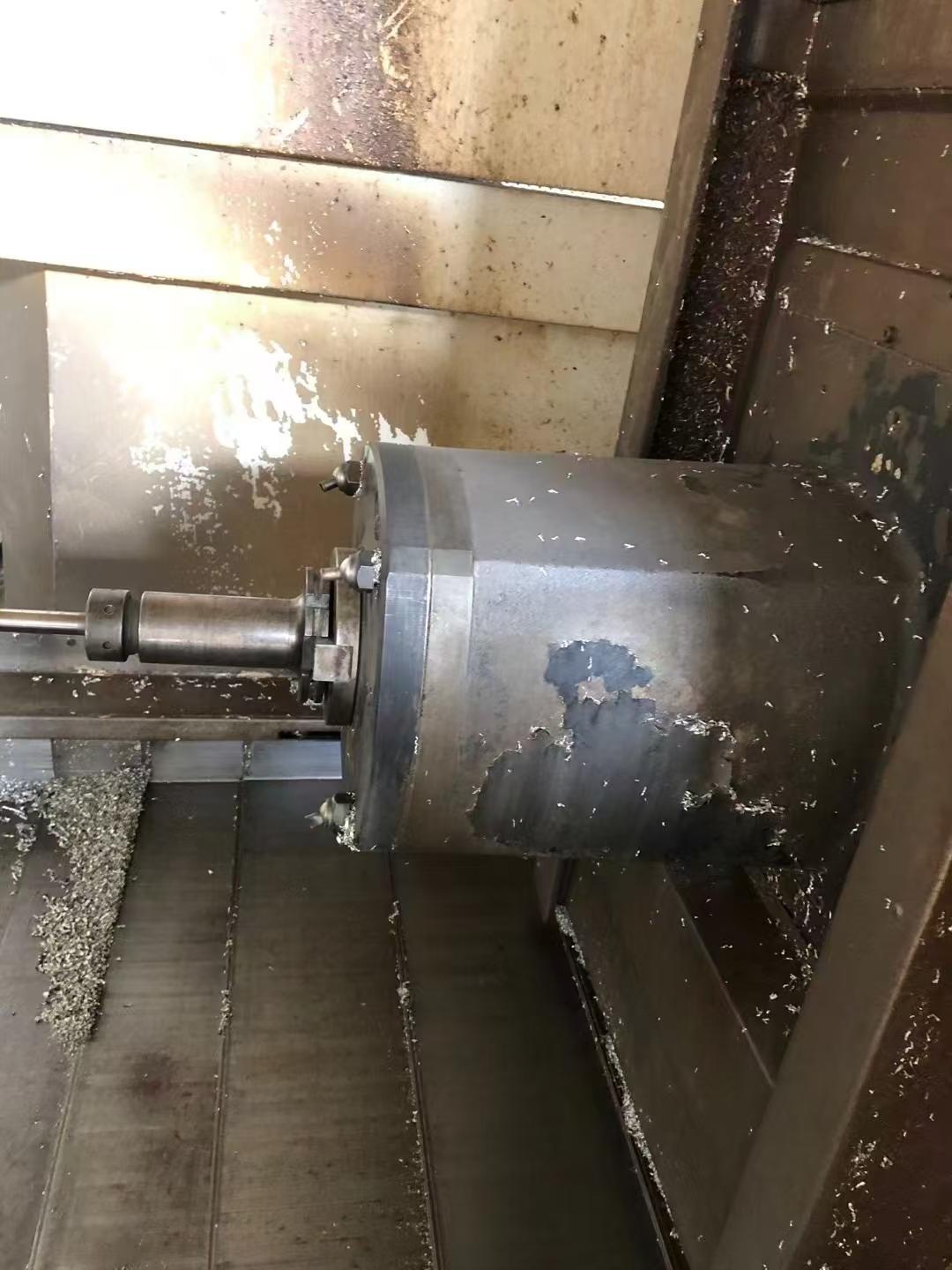

Spindle speed: 20-4500 RPM
spindle maximum torque: 837Nm
Tool holder form: BT50
Tool maximum length: 500mm

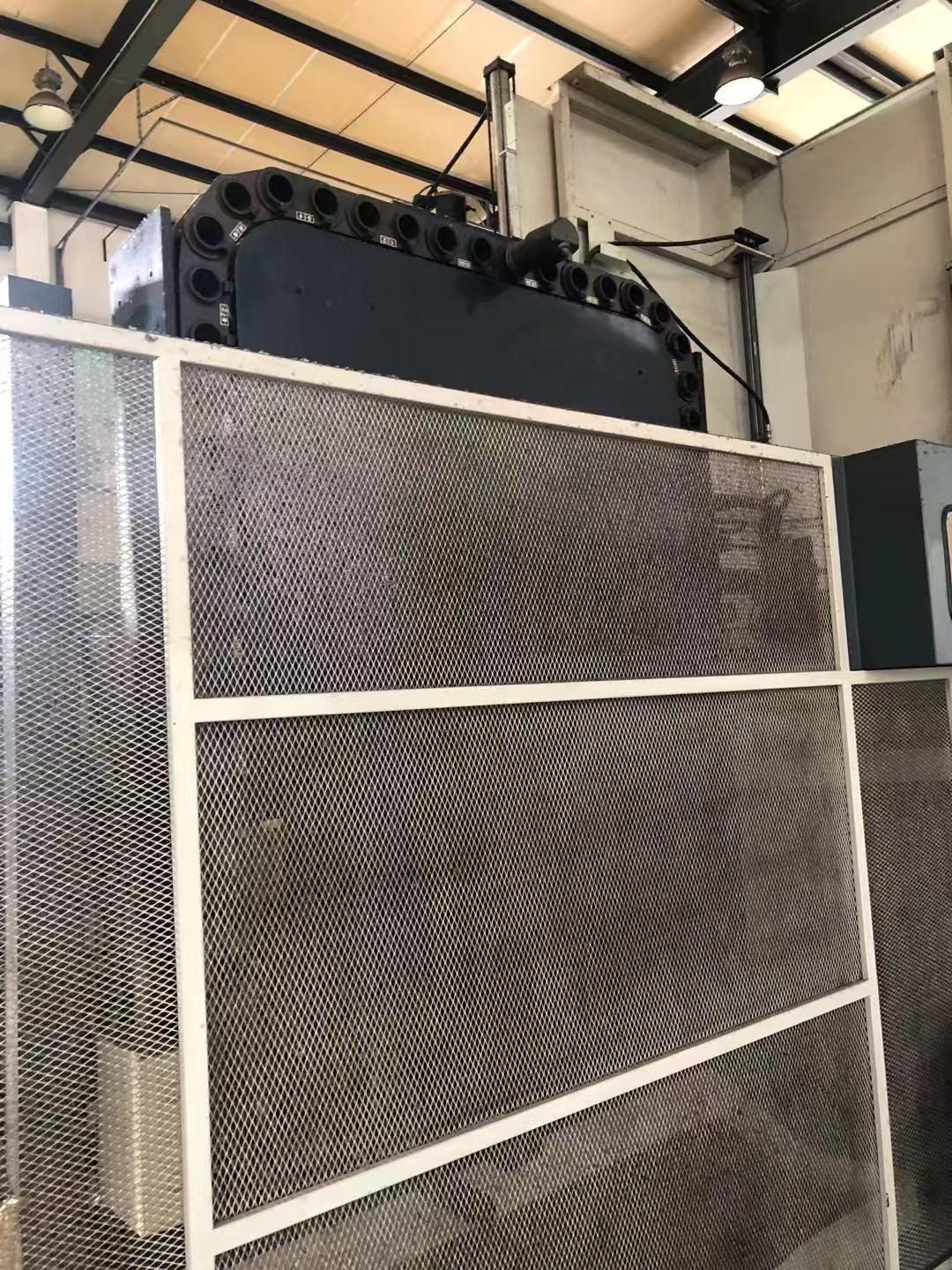

magazine capacity: 60T
